Automatic Sheet Polishing Machine Steel Sheet Flat Plate Surface
| Place of Origin | Hefei China |
|---|---|
| Brand Name | TCM Trancar Industries |
| Certification | CE ISO Co |
| Model Number | TCM-PM |
| Minimum Order Quantity | 1 sets |
| Price | USD Dollar 12000-25000 per set |
| Packaging Details | Customs design plywood boxes + container |
| Delivery Time | 25-35 days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Sheet Surface Automatic Grinding Polishing Machine | Weight | 3800 Kg |
|---|---|---|---|
| Dimenison | 6500x3000x1500mm | Power Supply | 380V/415V 50Hz/60Hz Etc |
| After-sales Service Provide | Engineer Overseas Available/online Etc | Condition | 100% New |
| Colors | Blue/Yellow/Grey/Red Etc | Custom Design Service | OEM & ODM |
| Highlight | Sheet Polishing Machine Automatic,Sheet Polishing Machine Plate Surface,380V Automatic Polishing Machine |
||
Product Description

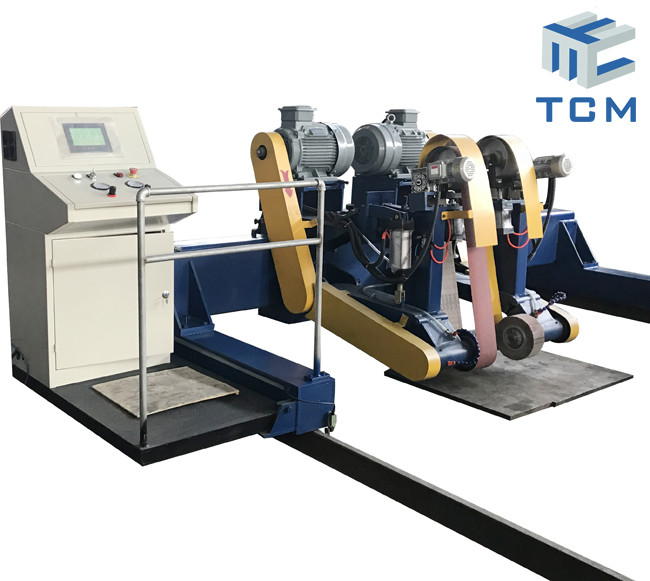

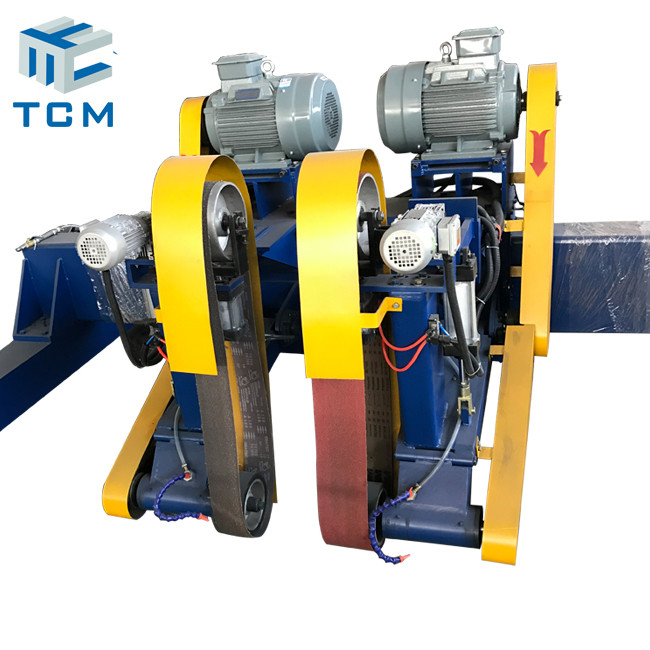

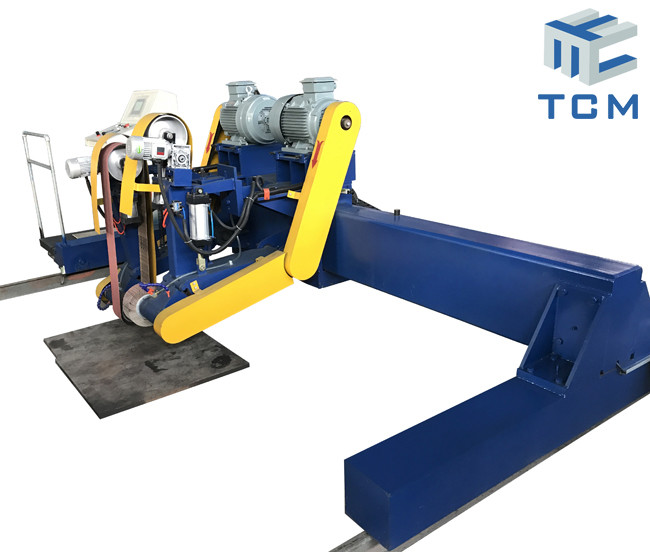

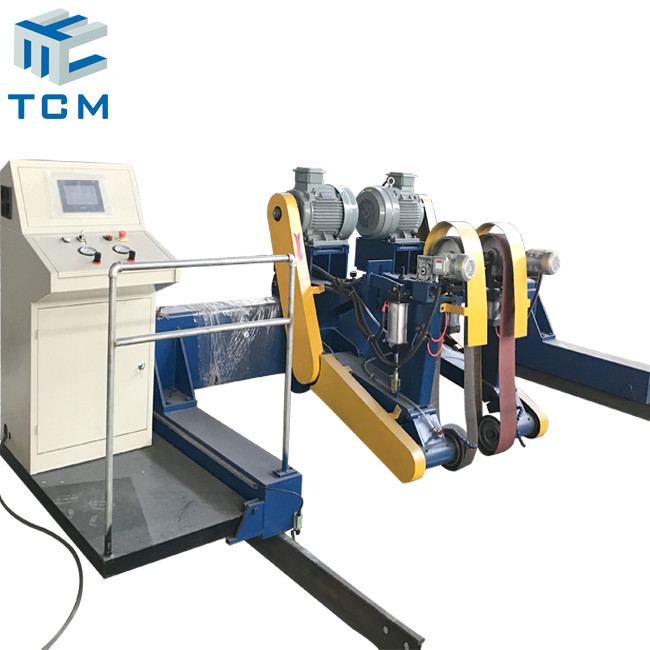

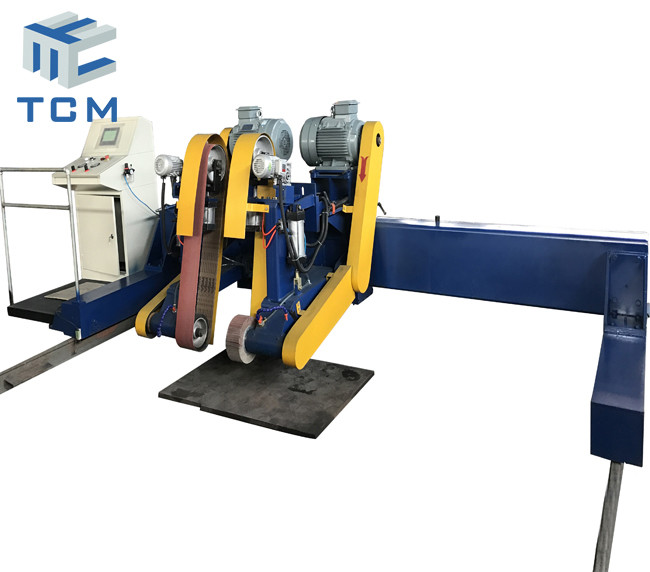

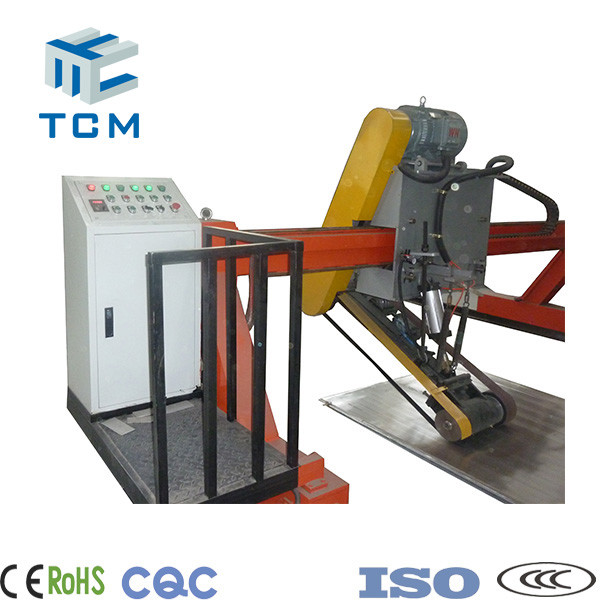

Automatic Sheet Polishing Machine Steel Sheet Flat Plate Surface
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Steel sheet surface automatic grinding polishing machine |
| Weight | 3800 kg |
| Dimension | 6500×3000×1500mm |
| Power supply | 380V/415V 50Hz/60Hz etc |
| After-sales service | Engineer overseas available/online etc |
| Condition | 100% New |
| Colors | Blue/Yellow/Grey/Red etc |
| Custom design service | OEM & ODM |
Product Description
Trancar Industries TCM-PM Polishing Machine is a stainless steel surface finishing machine capable of dust removal, welded joint surface grinding, and mirror surface buffing for steel metal flat plate sheets.
This machine is primarily designed for polishing and grinding various large plate sheet materials, including composite sheets and carbon steel plates before composite grinding and surface finishing. It is particularly effective for polishing, grinding, and drawing stainless steel plates.
The machine accommodates sheets up to 10 meters in length, with adjustable guide rails to suit different requirements. Automatic flat sheet polishing machines are widely used in food processing, catering, brewing, and chemical industries.
Technical Parameters
| Parameter | Specification |
|---|---|
| Steel metal sheet size | Max. Available Width: 800/1500/2000 mm |
| Thickness | ≥1.5 mm |
| Length | ≤10,000 mm |
| Machine Dimension | 6500×3000×1200 mm (L×W×H) |
| Polishing Precision | Surface roughness (Ra) ≤0.8μm |
| Production Efficiency | Polishing working speed: 6~12 m²/h |
| Input total Power | 8Kw/12Kw/20kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 3800kg |
| Color | Grey/Green/Blue/Red/Yellow or Custom design |
| Suitable Polishing Materials | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |
Customization Options
This machine is available with custom designs (OEM & ODM) to meet specific production requirements. Our engineering team can provide overseas support and online assistance for installation and maintenance.
