High Efficiency Metal Sheet Automatic Sanding deburring machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-PM-S |
| Minimum Order Quantity | 1 set |
| Price | USD 5000-25000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Metal Sanding Deburring Machine With CE | Dimensions | 3100x1400x2200 Mm |
|---|---|---|---|
| Weight | 2800kg | Voltage | 380V 400V 415V Etc |
| Color | Blue/Red/Grey | Condition | 100% New |
| Automation | PLC Automatic | Usage | Laser Cutting Parts Surface Polishing Deburring |
| Warranty | 18 Month | Provide | Custom Design Service |
Product Description
High Efficiency Metal Sheet Automatic Sanding Deburring Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Metal Sanding Deburring Machine with CE |
| Dimensions | 3100×1400×2200 mm |
| Weight | 2800kg |
| Voltage | 380V 400V 415V etc |
| Color | Blue/Red/Grey |
| Condition | 100% new |
| Automation | PLC Automatic |
| Usage | Laser cutting parts surface polishing deburring |
| Warranty | 18 Month |
| Provide | Custom design service |
Product Overview
The TCM-PM series Sanding & Deburring Machine is designed for precision metal surface treatment, specifically engineered for cleaning laser cutting burrs. This PLC-controlled machine from Trancar Industries is ideal for surface finishing, brushing, chamfering, removing oxide layers from steel sheets, and rust removal.
Key Features
- Versatile Applications: Effective for rust removal, decontamination (oil stains, corrosion, paint, powder), deburring, scratch removal, grinding, polishing, and chamfering on various materials including iron, aluminum, copper, stainless steel, stone, wood, and synthetic boards
- High Efficiency: Replaces traditional manual polishing and grinding processes
- Custom Solutions: Supports non-standard customized products to meet specific requirements
- Advanced Control: Features touch screen interface with Siemens PLC and servo motor for enhanced precision
- Eco-Friendly Operation: Energy efficient with stable performance and simple maintenance
- Production Integration: Supports multi-machine linkage and production line matching
Technical Parameters
| Sanding Sheet Width | 50mm-1600mm |
| Processing Sheet Thickness | 1-100mm |
| Sanding Sheet Length | Minimum 80mm |
| Conveyor Feed Speed | 1 ~ 10m/min |
| Working Air Pressure | 0.5-0.7MPa |
| Required Dust Suction Wind Speed | 20-30m/s |
| Machine Weight | 3000kg |

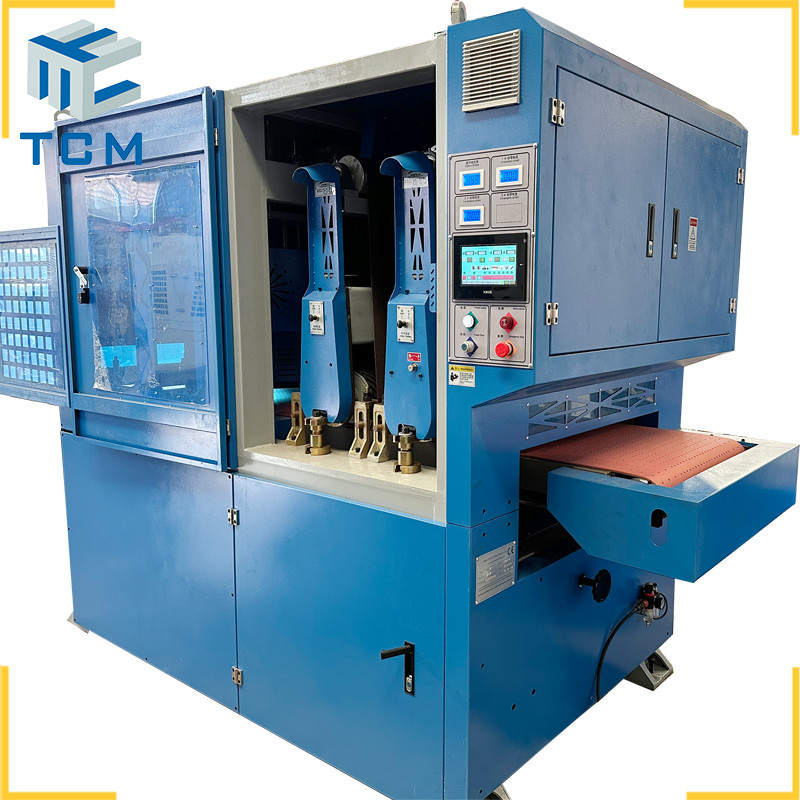

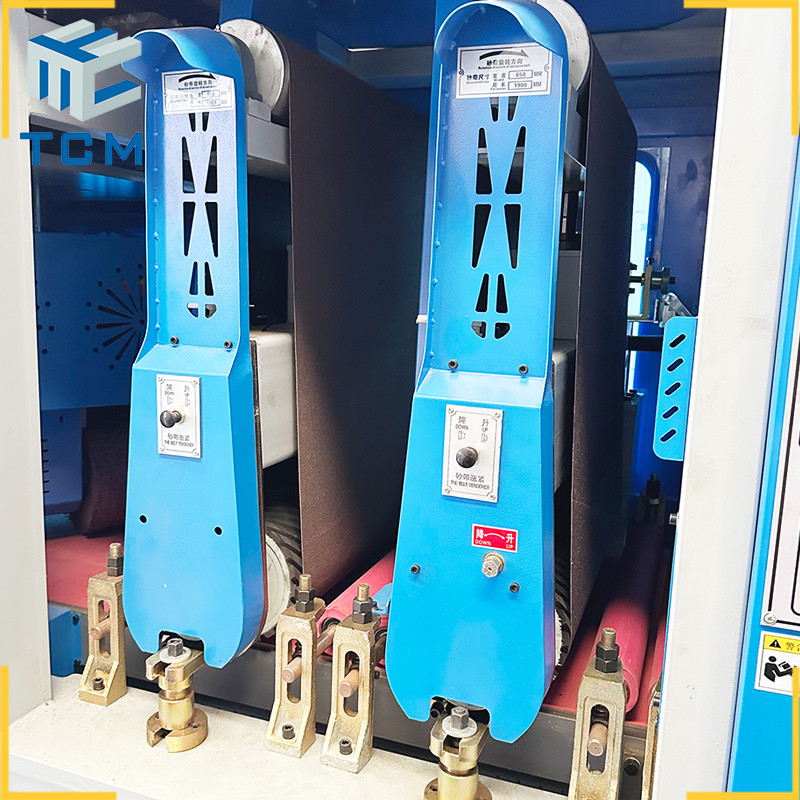

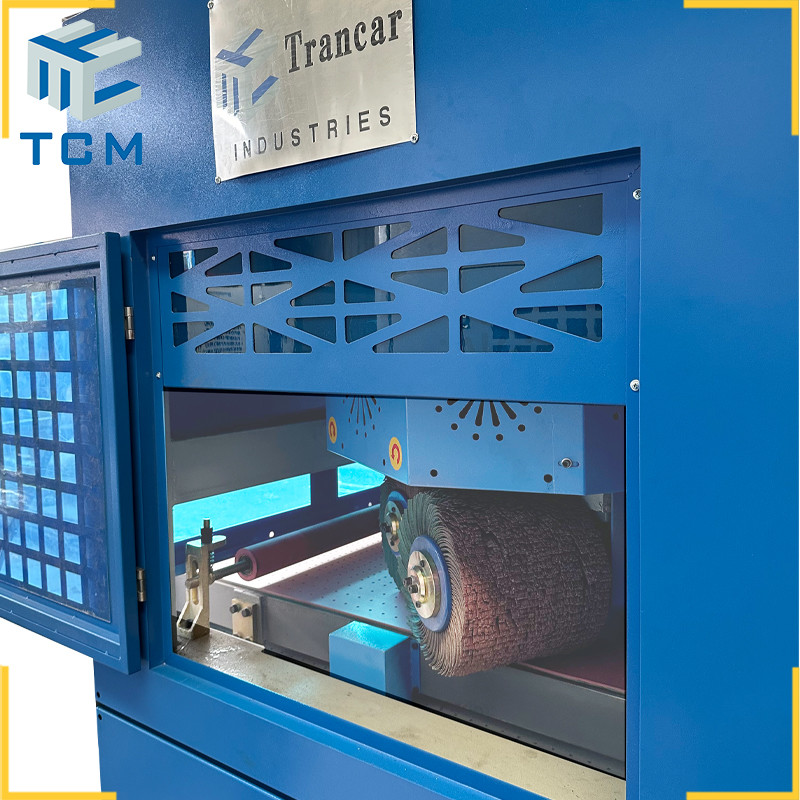

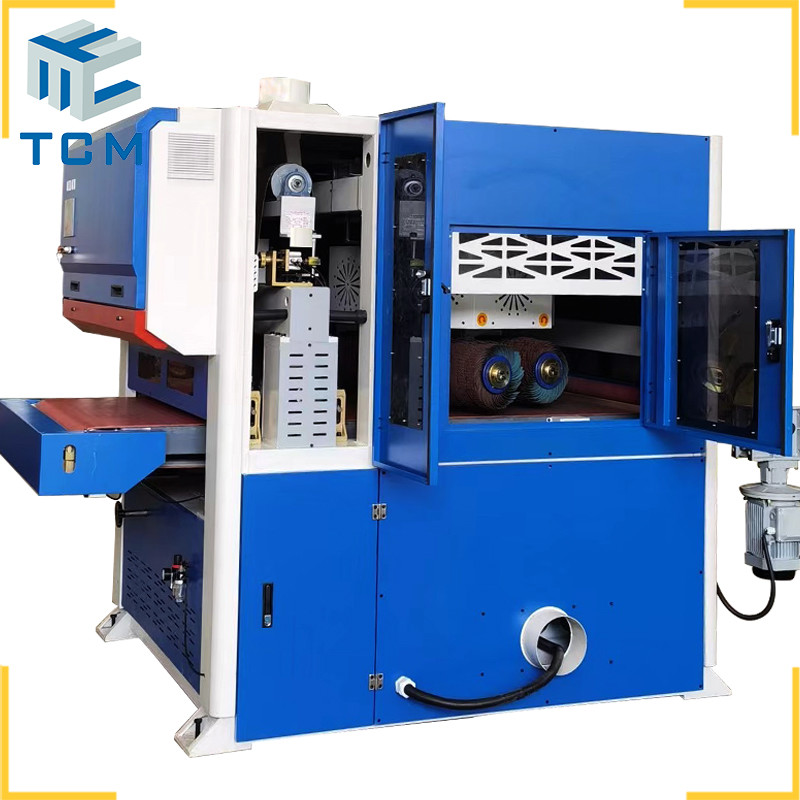

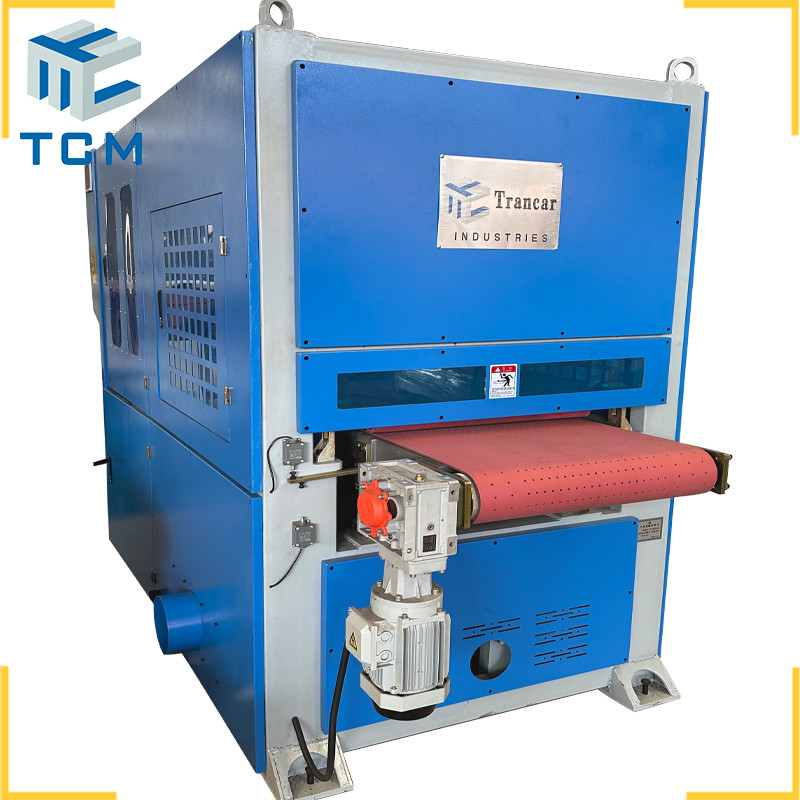

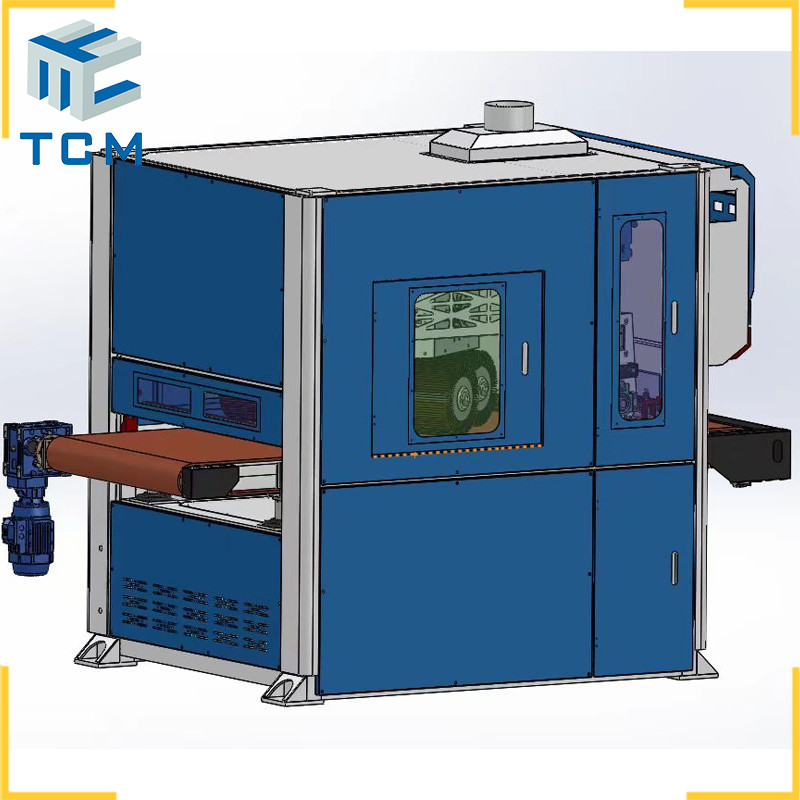

Product Images
Custom design services available for metal sheet sanding and chamfering applications. Contact Trancar Industries for comprehensive steel surface finishing solutions and equipment at competitive factory prices.
