Steel Automatic Polishing Machine Dished End Polishing Machine

  • Steel Automatic Polishing Machine Dished End Polishing Machine
  • Steel Automatic Polishing Machine Dished End Polishing Machine
  • Steel Automatic Polishing Machine Dished End Polishing Machine
  • Steel Automatic Polishing Machine Dished End Polishing Machine
  • Steel Automatic Polishing Machine Dished End Polishing Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-D
Minimum Order Quantity 1 set
Price USD 9000-25000 Dollar per set
Packaging Details Custom design plywood box/Carton Boxes
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 25 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product_name Dished Head Surface Grinding Equipment Brand Trancar Industries
Type Surface Grinding Machine Material Steel
Features Automatic,interior And Exterior Surface Grinding Warranty 18 Month
Voltage 380V 400V 415V Etc Provide ODM & OEM
Highlight

Steel dished end polishing machine

,

Automatic dished end polishing machine

,

380V automatic stainless steel polishing machine
Leave a Message
Product Description
Steel Automatic Polishing Machine Dished End Polishing Machine
Product Overview
Trancar Industries TCM steel dish head grinding equipment is composed of column and boom manipulator, designed for mechanical grinding of steel dished head interior and exterior surfaces.
Key Features
  • Automatic interior and exterior surface grinding
  • Suitable for various standard steel metal heads including cylinder heads, vessel heads, and tank caps
  • Three-section curve grinding technology (subsection, time-sharing, different speed)
  • Adjustable beam running time via control cabinet
  • Grinding head floating technology for uniform polishing
  • 18-month warranty
Technical Specifications
Available Polishing Workpiece Size 450-5000mm / 6000mm (inside & outside diameter)
Turntable Max Loading Capacity 1 Ton / 2 Ton /5 Ton / 10 Ton (custom options up to 20 Ton)
Polishing Precision Surface roughness (Ra) ≤0.25μm
Production Efficiency 6-12 m²/hour
Total Dimension 3500×1600×3080mm
Input Total Power 12 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p (customizable)
Machine Weight 2250kg
Applications
Our polishing equipment serves various industries including pharmaceutical, medical, food & beverage, water purification, pressure vessels, cosmetics, wastewater treatment, semiconductor, and photovoltaic industries.
Product Images

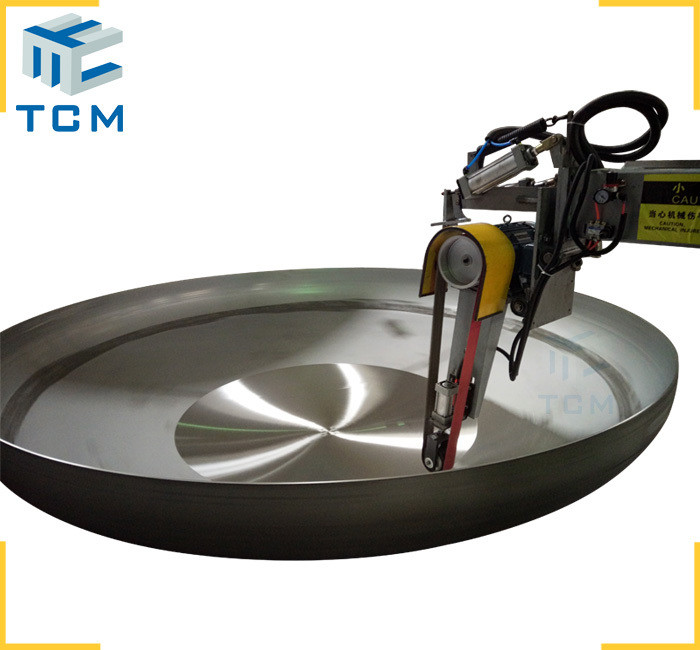

Steel Automatic Polishing Machine Dished End Polishing Machine 0

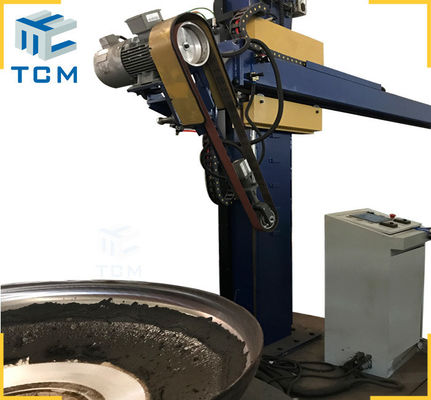

Steel Automatic Polishing Machine Dished End Polishing Machine 1

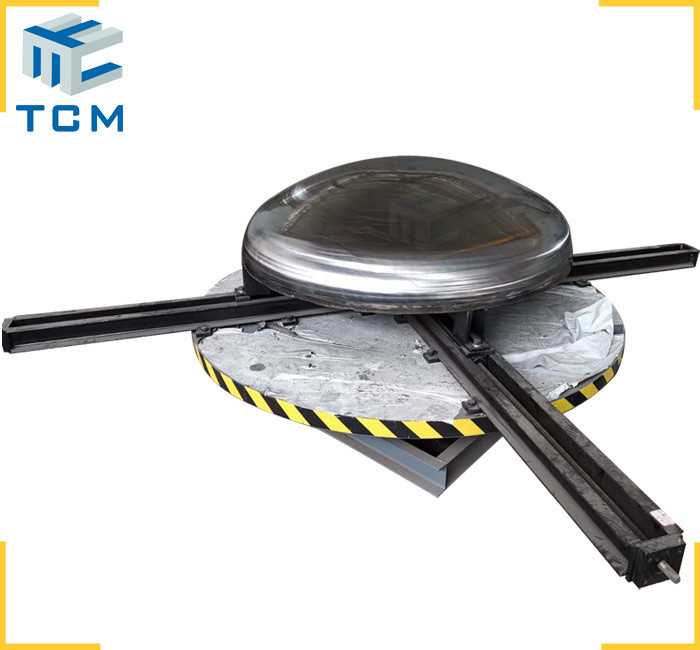

Steel Automatic Polishing Machine Dished End Polishing Machine 2
Machine in Operation

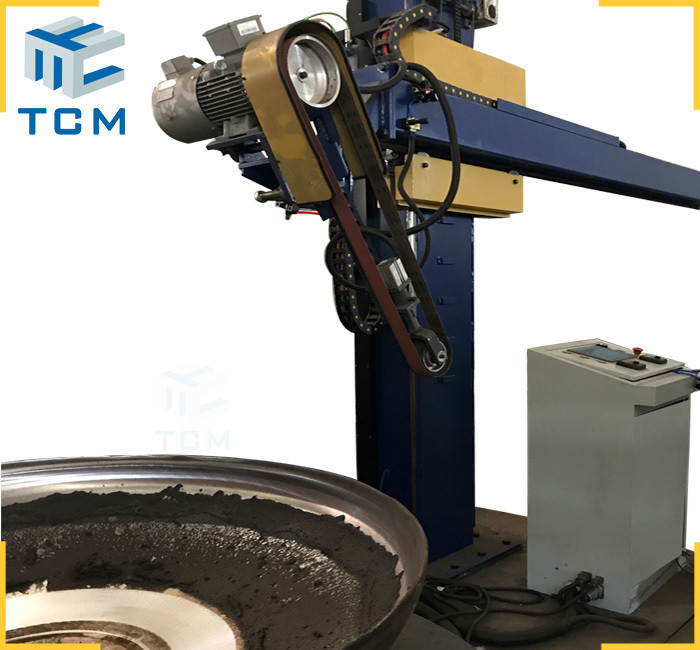

Steel Automatic Polishing Machine Dished End Polishing Machine 3
Delivery & Packaging

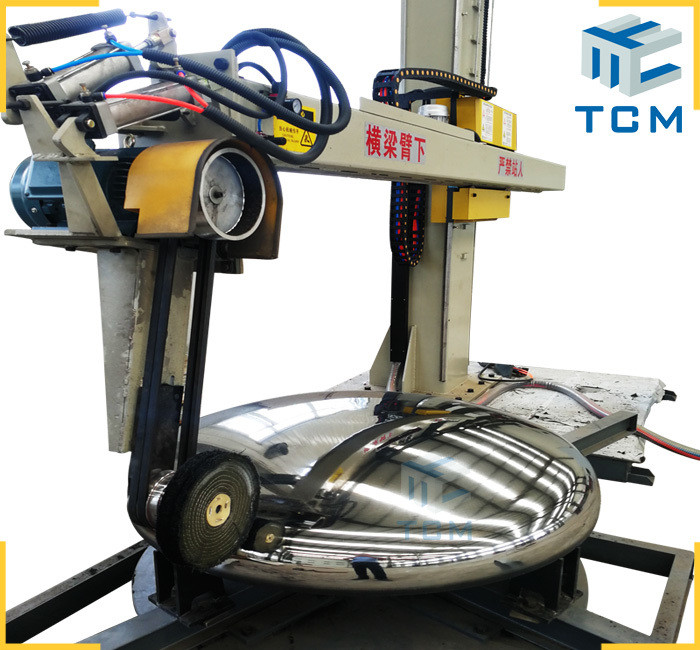

Steel Automatic Polishing Machine Dished End Polishing Machine 4

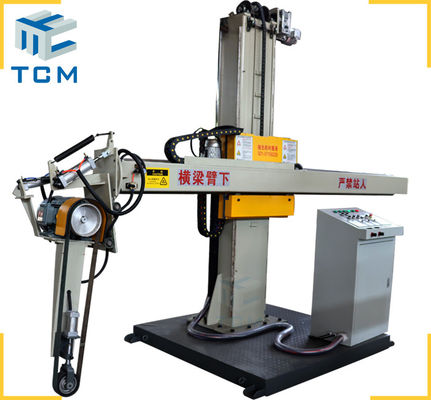

Steel Automatic Polishing Machine Dished End Polishing Machine 5
For working videos, custom solutions, or additional information about our steel surface grinding equipment, please contact Trancar Industries.
Steel Automatic Polishing Machine Dished End Polishing Machine 6
