Industrial Steel Pressure Vessel Automatic Dished End Polishing Machine
Product Specifications
Product Name Pressure Vessel Head Dished End Automatic Polishing Machine
Color Options Yellow/Red/Blue etc
Voltage 380V 400V 415V etc
Service ODM & OEM
Industrial Pressure Vessel Head Surface Polishing Solution

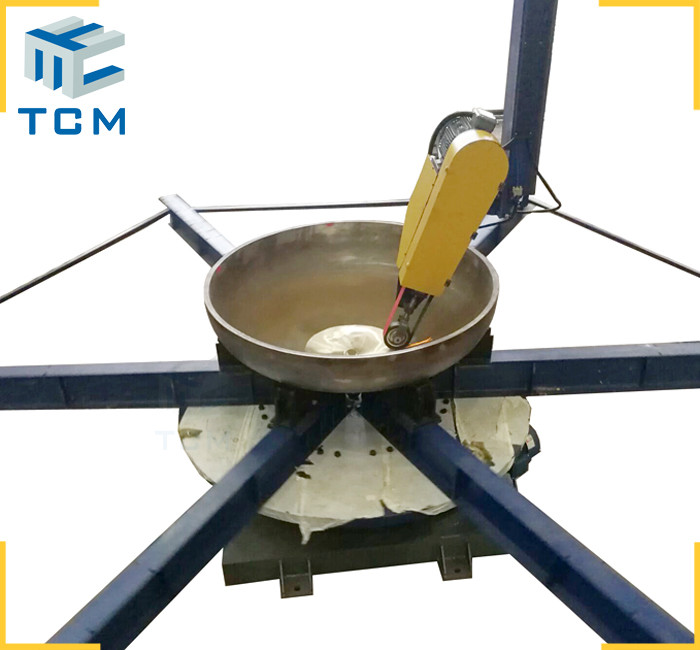

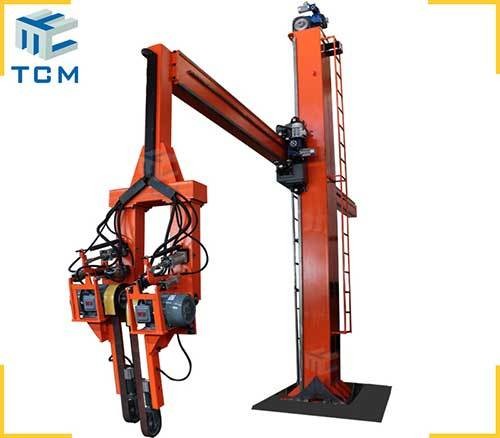

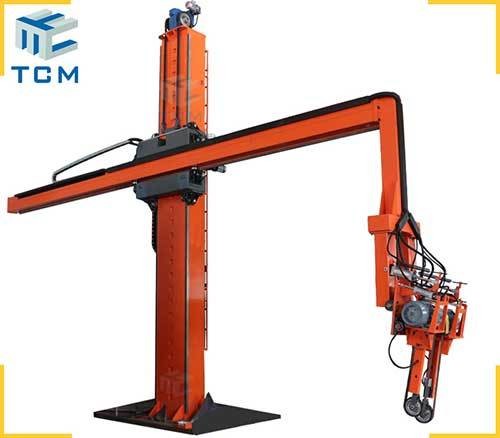

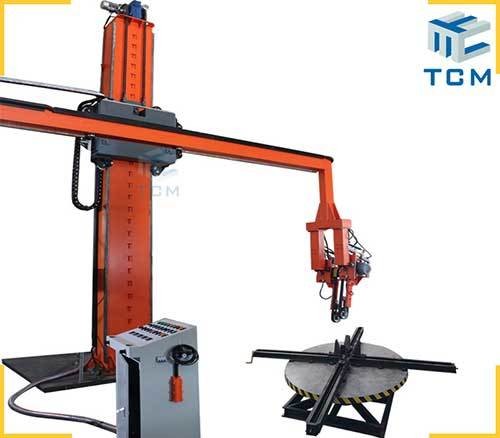

This column and boom manipulator automatic polishing machine is engineered for large diameter industrial pressure vessel head dished end surface grinding, polishing, and buffing with dual grinding heads. The versatile system handles various head types including:

  • Torispherical heads
  • Elliptical heads
  • Standard dished heads
  • Spherical dished surfaces

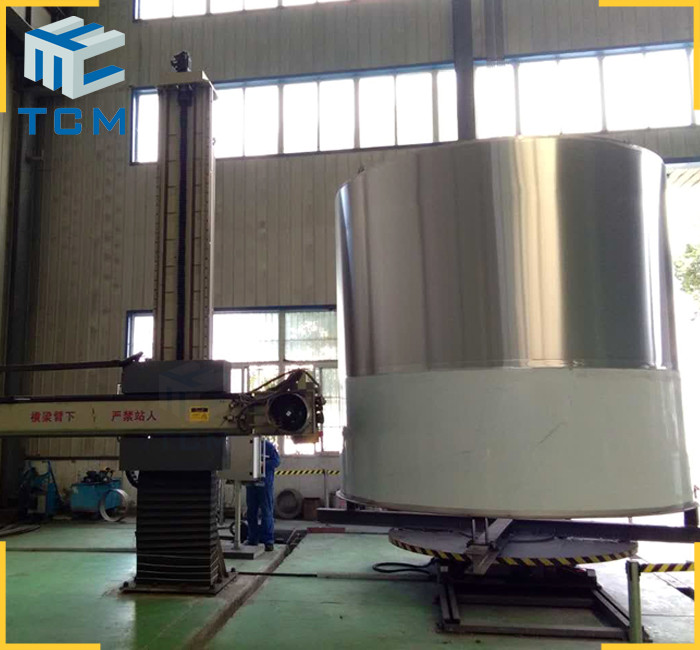

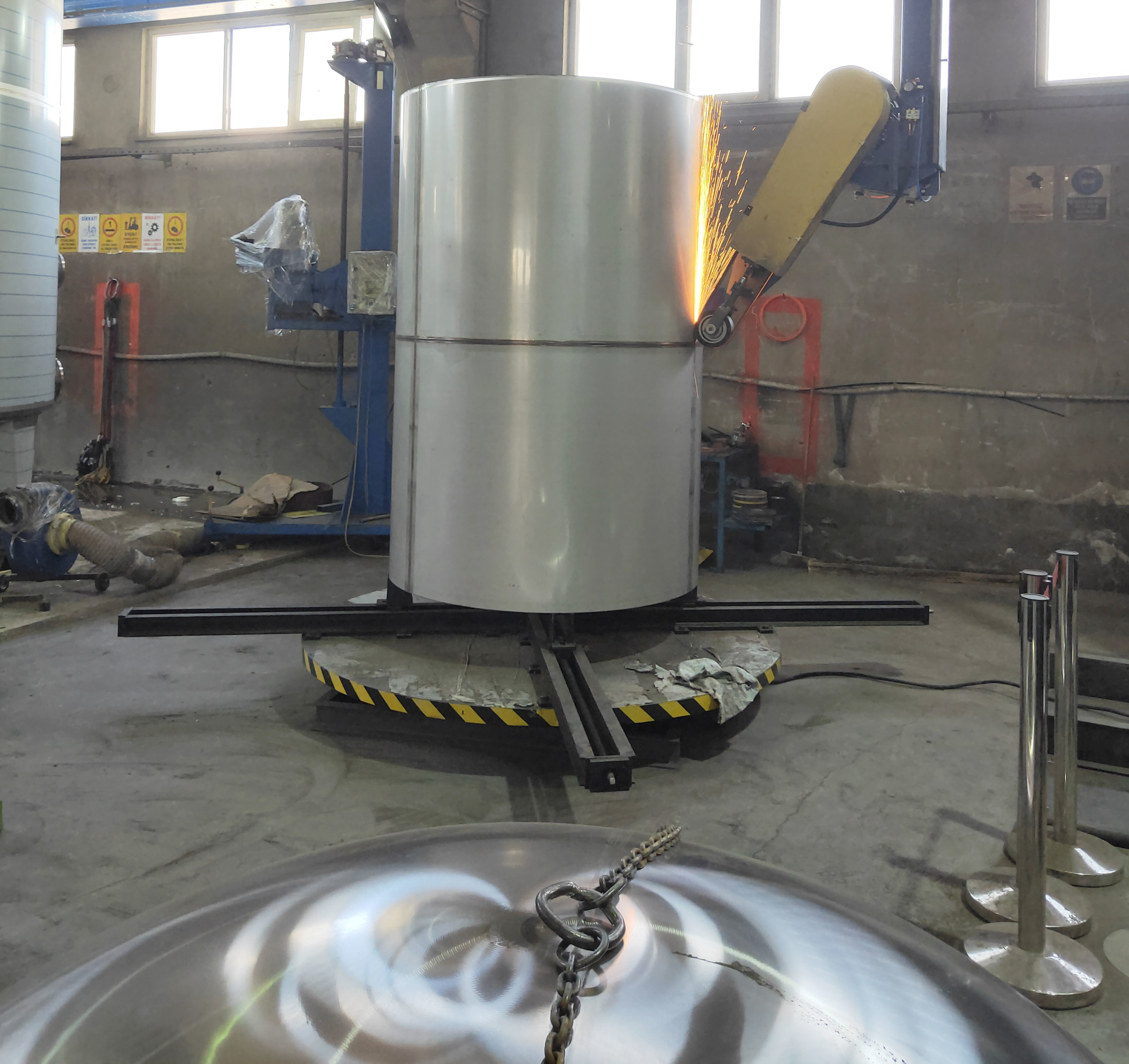

  • Vertical tank shell inner/outer surfaces

Ideal for pressure vessel applications across medical, chemical, environmental purification, food and beverage, and water filtration industries.

Technical Specifications
Polishing Workpiece Size (Tank Vessel) Range Unit
Inside Diameter 500-6000 mm
Outside Diameter 500-6000 mm
Length (Height) ≤ 2500 mm
Working Capacity (Vessel Head) Range Unit
Dish Head Diameter 500-6000 mm
Turntable Max. Loading Capacity 1 Ton / 2 Ton /5 Ton / 10 Ton (Custom options: 15 Ton, 20 Ton)
Polishing Precision Value Unit
Surface Roughness (Ra) ≤ 0.25 μm
Machine Specifications Value Unit
Machine Weight 4100 KG
Machine Dimension (L × W × H) 5000 × 800 × 5800 mm
Column Dimension (L × W × Thickness) 350 × 450 × 10 mm
Motorized Arm (L × W × Thickness) 200 × 250 × 8 mm
Input Total Power 22 KW
Work Efficiency 6~12 m²/Hour
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Suitable Polishing Material Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Industrial Steel Pressure Vessel Automatic Dished End Polishing Machine 0 Industrial Steel Pressure Vessel Automatic Dished End Polishing Machine 1
Contact us for more industrial pressure vessel head surface grinding solutions and custom machine configurations.
