Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine

  • Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine
  • Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine
  • Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine
  • Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine
  • Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine
  • Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine
  • Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-D
Minimum Order Quantity 1 set
Price USD 9000-5000 Dollar per set
Packaging Details Custom design plywood box/Carton Boxes
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Steel Cylinder Heads Automatic Polishing Machine Dimension 3500x1600x3080mm
Weight 2500 Kg Voltage 380V 400V 415V Etc 50Hz/60Hz
Color Option Blue/Yellow/Red/Gray Usage Steel Surface Cleaning,rust Removal,mirror Surface Achieving
Condition 100% New Control System Semi-automatic/CNC
Polishing Efficiency 8-12m2 Per Hour Warranty 18 Month
After-sales Service Video Technical Support/Online Support/Engineer Oversea Provide ODM & OEM
Highlight

Automatic surface polishing machine

,

Mirror surface polishing machine

,

Cylinder Heads cnc polishing machine
Leave a Message
Product Description
Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine

Professional-grade automatic polishing machine designed for stainless steel cylinder heads and tank components, delivering mirror-quality surface finishes with high efficiency.

Product Specifications
Attribute Value
Product Name Steel cylinder heads automatic polishing machine
Dimension 3500x1600x3080mm
Weight 2500 kg
Voltage 380V 400V 415V etc 50Hz/60Hz
Color Option Blue/Yellow/Red/Gray
Usage Steel surface cleaning, rust removal, mirror surface achieving
Condition 100% new
Control System Semi-automatic/CNC
Polishing efficiency 8-12m² per hour
Warranty 18 Month
After-sales service Video technical support/Online support/Engineer oversea
Provide ODM & OEM
Product Overview

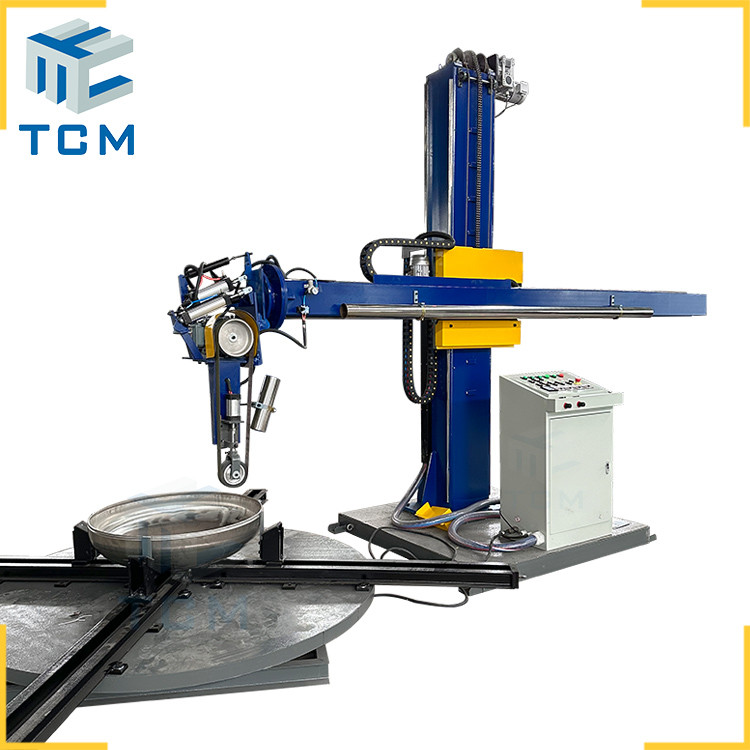

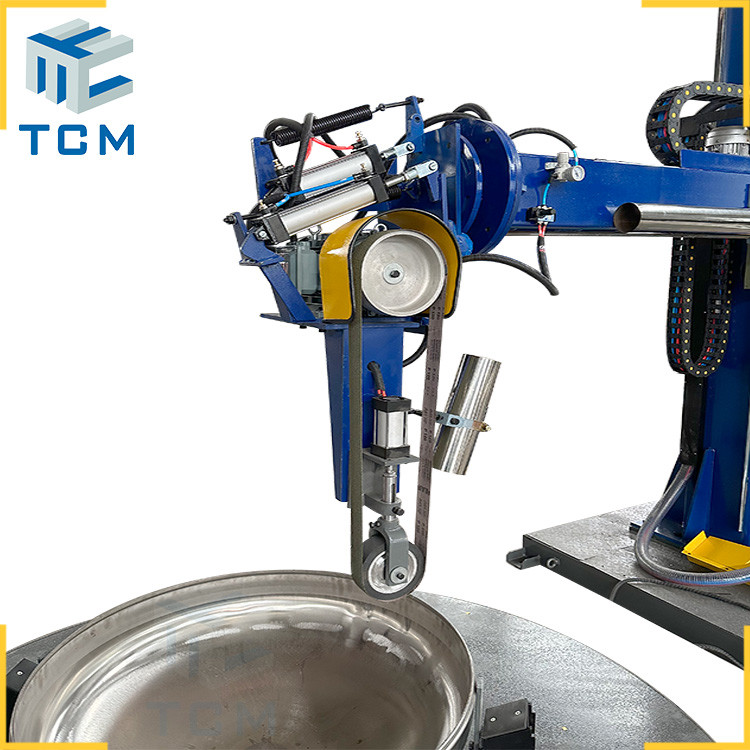

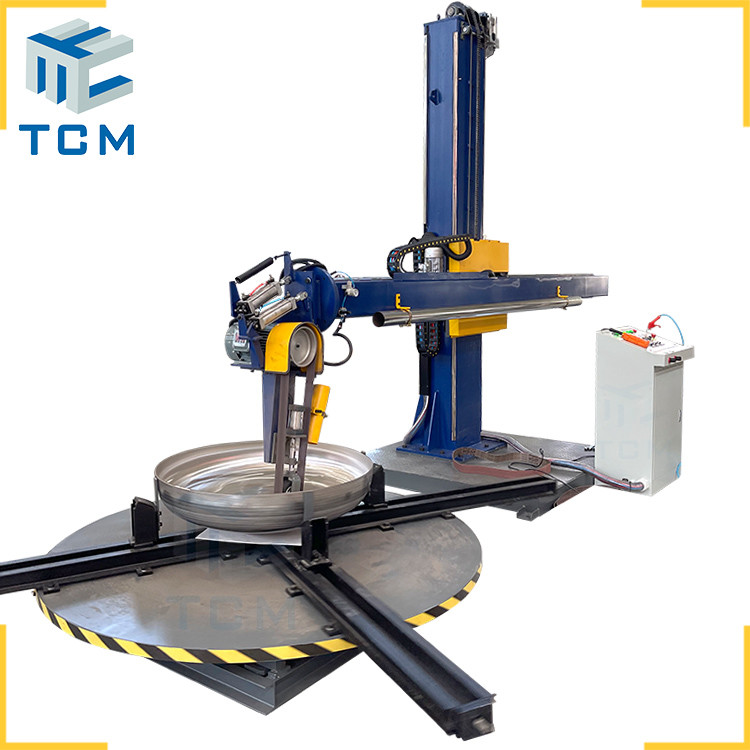

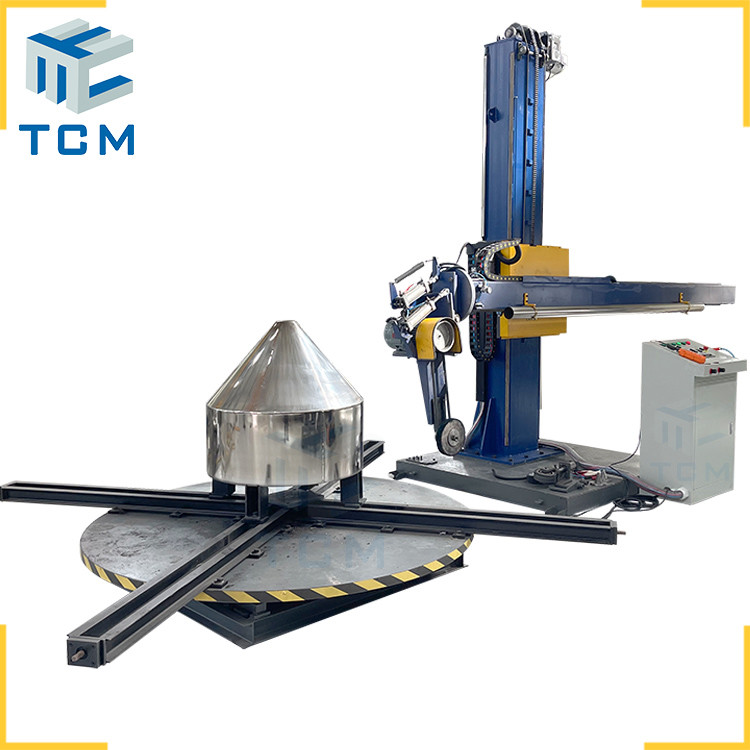

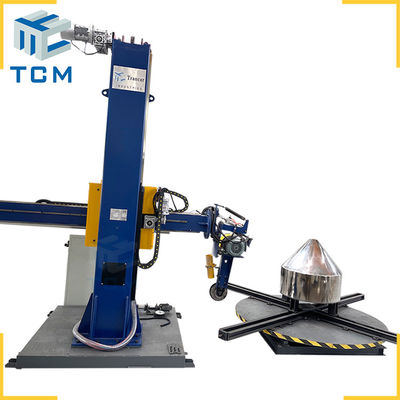

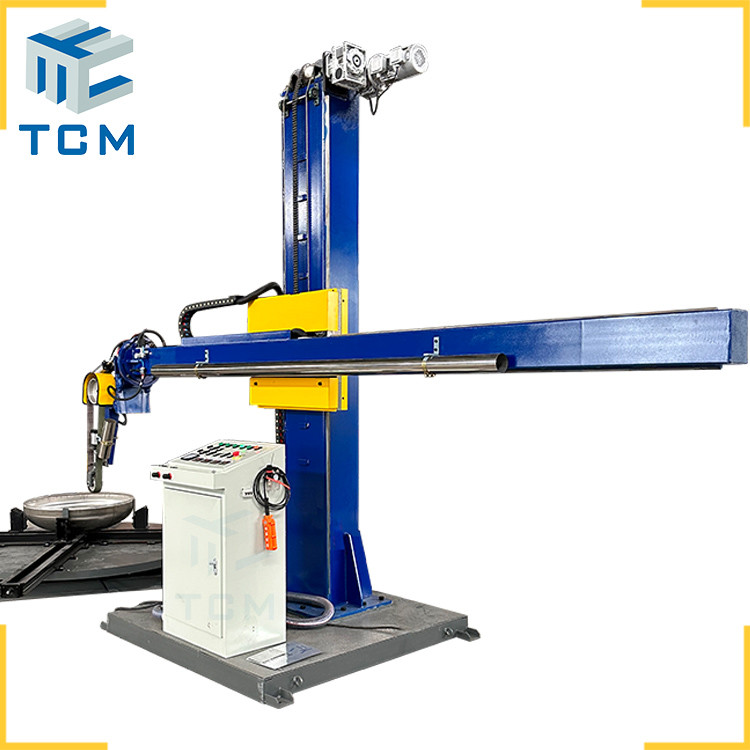

The TCM-D column and boom manipulator automatic surface grinding machine from Trancar Industries is specifically designed for polishing steel metal tank ends, dish heads, tank caps, bottoms, and cone surfaces (both inner and outer).

This industrial-grade machine achieves mirror-quality finishes on stainless steel, metal, aluminum, and copper components, including dished ends, tank heads, and cylinder heads. It's also suitable for vertical tank surface grinding applications.

Technical Parameters
Parameter Specification
Available Polishing workpiece size 450~5000mm / 6000 mm (Inside & outside diameter)
Turntable Max.Loading capacity 1 Ton / 2 Ton /5 Ton / 10 Ton (15 Ton,20 Ton custom options available)
Polishing Precision (Surface roughness Ra) ≤0.25μm
Production Efficiency 6~12 m²/hour
Total Dimension 3500*1600*3080mm
Input total Power 12 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p (Customization available)
Color Options Grey/Green/Blue/Red/Yellow (Custom designs available)
Machine Weight 2250kg
Suitable Polishing Material Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Industrial Applications

The TCM-D grinding machine is widely used across multiple industries including:

  • Pharmaceutical industry
  • Medical industry
  • Food & Beverage industry
  • Water purification
  • Pressure vessel industry
  • Cosmetic industry
  • Waste water treatment
  • Semiconductor industry
  • Photovoltaic industry
Packaging & Delivery
  • Standard packaging: Plywood case + PE Film + Carton protection
  • Custom packaging available based on order requirements
Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine 0 Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine 1 Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine 2 Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine 3 Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine 4 Stainless Steel Cylinder Heads Automatic Mirror Surface Polishing Machine 5
