Industrial Steel Vessel Head Surface Grinding Equipment Automatic Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-D |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-5000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Industrial Steel Vessel Head Surface Grinding Equipment | Dimension | 3500x1600x3080mm |
|---|---|---|---|
| Weight | 2500 Kg | Voltage | 380V 400V 415V Etc 50Hz/60Hz |
| Color Option | Blue/Yellow/Red/Gray | Usage | Steel Surface Cleaning,rust Removal,mirror Surface Achieving |
| Condition | 100% New | Control System | Semi-automatic/CNC |
| Polishing Efficiency | 8-12m2 Per Hour | Warranty | 18 Month |
| After-sales Service | Video Technical Support/Online Support/Engineer Oversea | Provide | ODM & OEM |
| Highlight | Industrial surface grinding equipment,Vessel Head surface grinding equipment,380V automatic polishing machine |
||
Product Description
Industrial Steel Vessel Head Surface Grinding Equipment Automatic Polishing Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Industrial steel vessel head surface grinding equipment |
| Dimension | 3500x1600x3080mm |
| Weight | 2500 kg |
| Voltage | 380V 400V 415V etc 50Hz/60Hz |
| Color Option | Blue/Yellow/Red/Gray |
| Usage | Steel surface cleaning, rust removal, mirror surface achieving |
| Condition | 100% new |
| Control System | Semi-automatic/CNC |
| Polishing efficiency | 8-12m² per hour |
| Warranty | 18 Month |
| After-sales service | Video technical support/Online support/Engineer oversea |
| Provide | ODM & OEM |
Product Overview

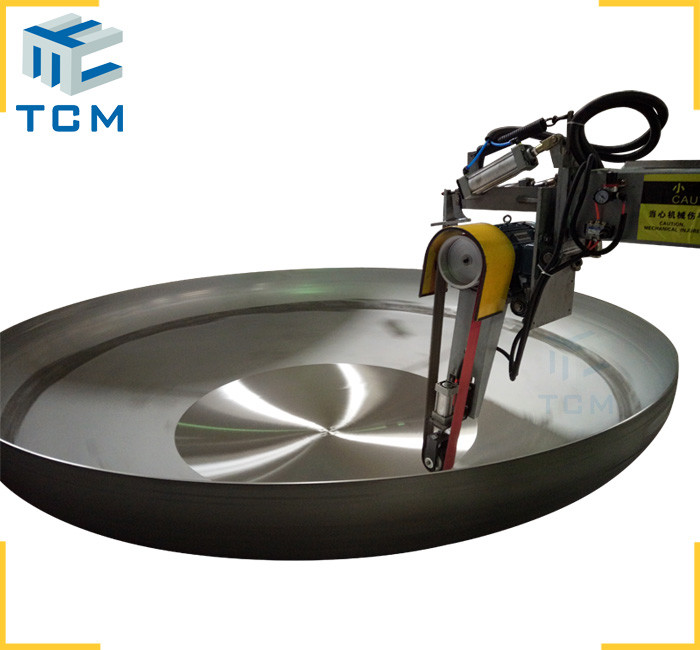

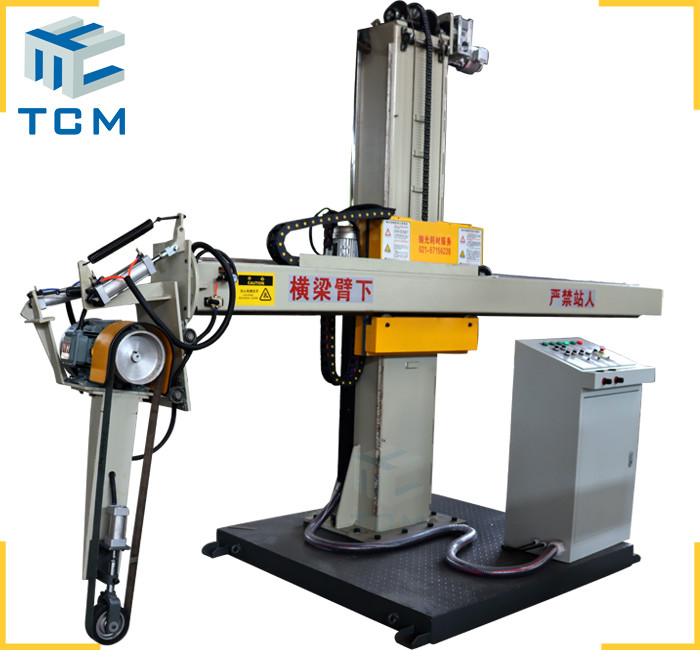

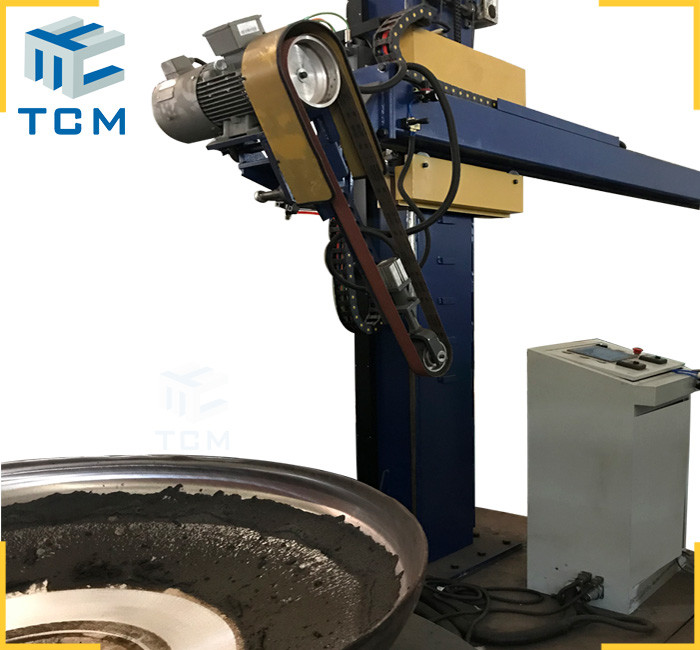

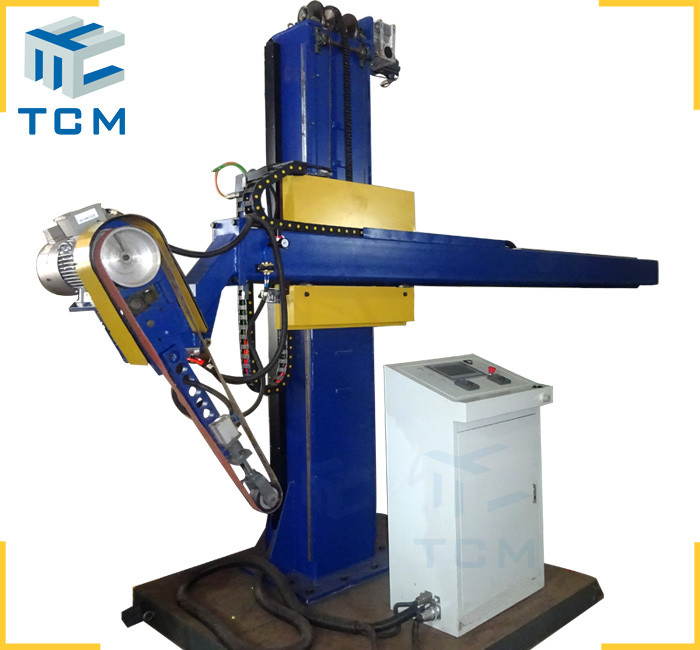

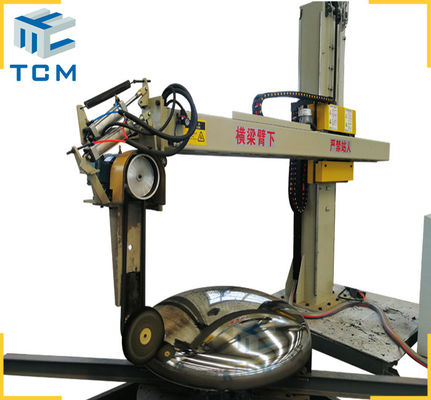

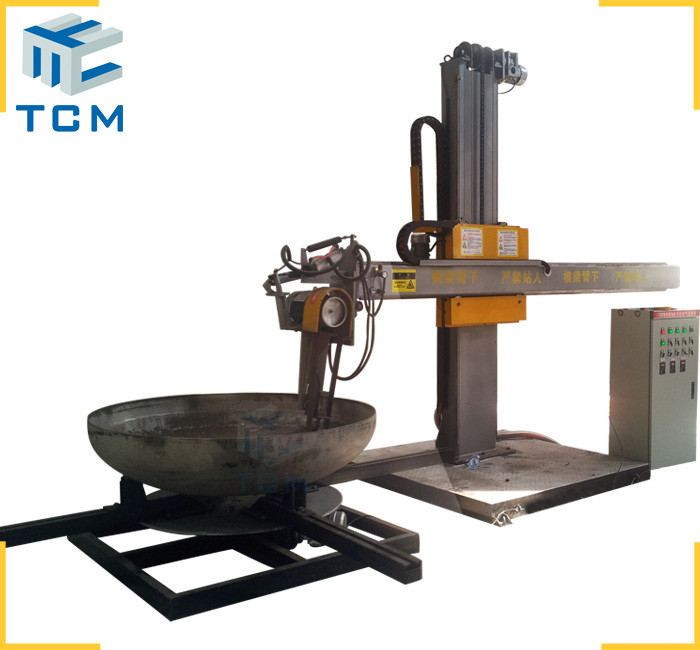

The TCM-D column and boom manipulator automatic surface grinding machine is designed for steel metal tank ends, dish heads, tank caps, bottoms, and cone inner/outer surface polishing and buffing.
Technical Parameters
| Parameter | Specification |
|---|---|
| Available Polishing workpiece size | Inside & outside diameter: 450~5000mm / 6000 mm |
| Turntable Max.Loading capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton (custom options up to 20 Ton) |
| Polishing Precision | Surface roughness(Ra) ≤0.25μm |
| Production Efficiency | 6~12 m²/hour |
| Total Dimension | 3500*1600*3080mm |
| Input total Power | 12 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Color | Grey/Green/Blue/Red/Yellow (Custom design available) |
| Machine Weight | 2250kg |
| Suitable Polishing Material | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |
Applications
This machine is ideal for surface polishing of stainless steel, metal, aluminum, and copper dished ends, tank heads, and cylinder heads. It's widely used in:
- Pharmaceutical industry
- Medical industry
- Food & Beverage industry
- Water purification
- Pressure vessel industry
- Cosmetic industry
- Waste water treatment
- Semiconductor industry
- Photovoltaic industry
Packaging & Delivery
- Plywood case + PE Film + Carton protection
- Custom packaging available based on order requirements
Contact Us
For any queries about our polishing machines, please feel free to contact us. We respond within 12 hours.
