ASME BPE 90 Degree Steel Elbow Internal PLC Automatic Polishing Machine

  • ASME BPE 90 Degree Steel Elbow Internal PLC Automatic Polishing Machine
  • ASME BPE 90 Degree Steel Elbow Internal PLC Automatic Polishing Machine
  • ASME BPE 90 Degree Steel Elbow Internal PLC Automatic Polishing Machine
  • ASME BPE 90 Degree Steel Elbow Internal PLC Automatic Polishing Machine
  • ASME BPE 90 Degree Steel Elbow Internal PLC Automatic Polishing Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-NP
Minimum Order Quantity 1 set
Price USD 9000-50000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product_name ASME BPE 90 Degree Steel Elbow Internal PLC Automatic Polishing Machine Dimension 2100x1400x2000mm
Weight 1300 Kg Color Blue/Red/Grey
Usage Polishing Elbow Inner Surface With Grinding Wheels Provide ODM & OEM
Highlight

ASME Steel Elbow Automatic Polishing Machine

,

90 Degree Steel Elbow Automatic Polishing Machine

,

PLC Automatic Polishing Machine
Leave a Message
Product Description

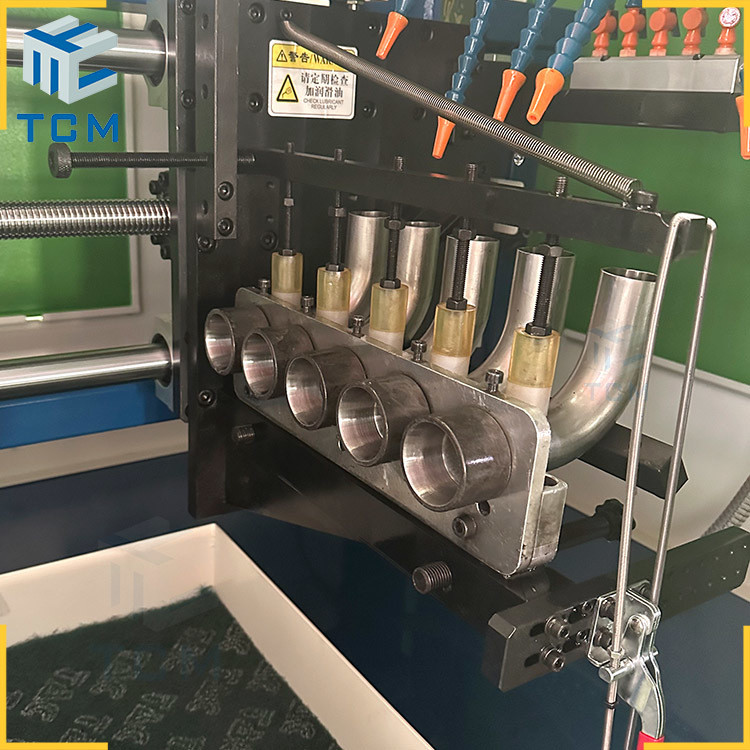

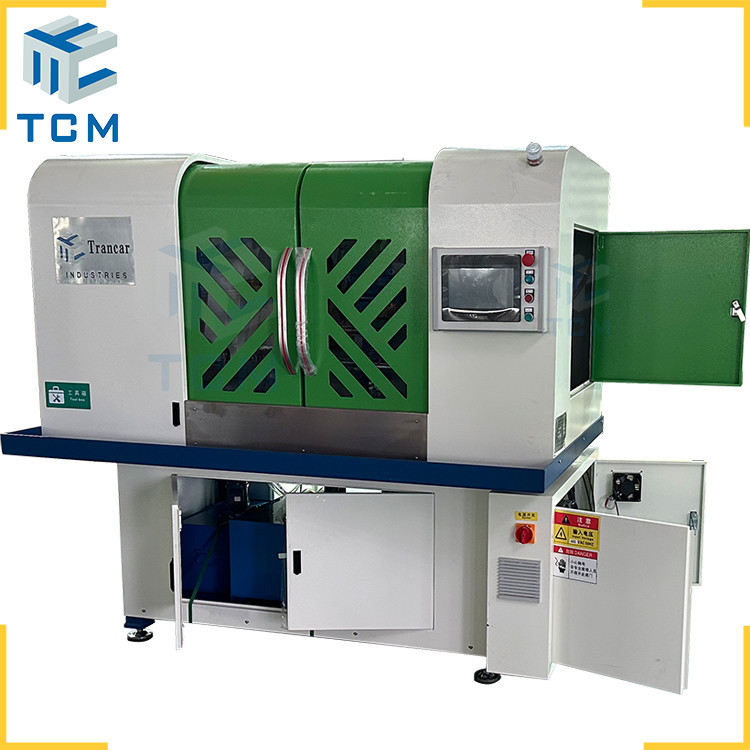

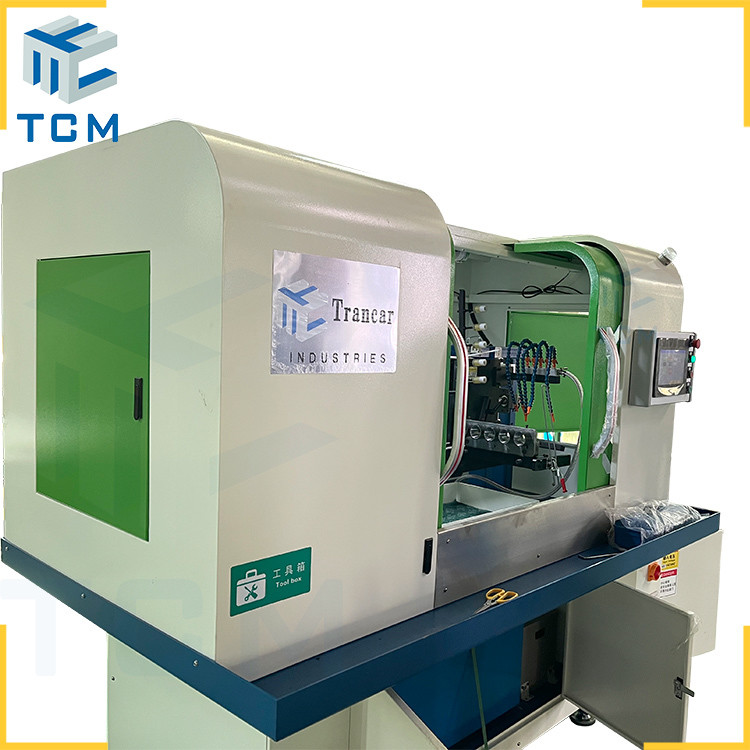

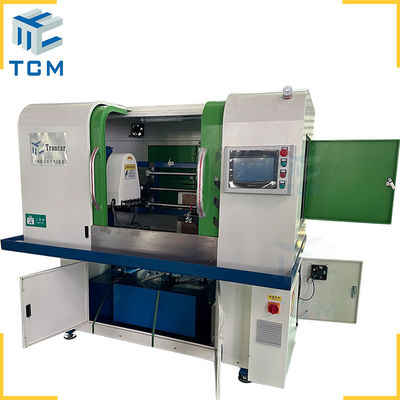

ASME BPE 90 Degree Steel Elbow Internal PLC Automatic Polishing Machine
Product Specifications
Attribute Value
Dimension 2100x1400x2000mm
Weight 1300 kg
Color Blue/Red/Grey
Usage Polishing elbow inner surface with grinding wheels
Provide ODM & OEM
Product Description

Trancar Industries' ASME BPE 90 degree steel Elbow internal PLC automatic polishing machine is designed for precision surface finishing in critical applications including food hygiene, biomedical grade, electronic clean grade stainless steel welded pipe equipment, and high-purity pipe manufacturing production lines.

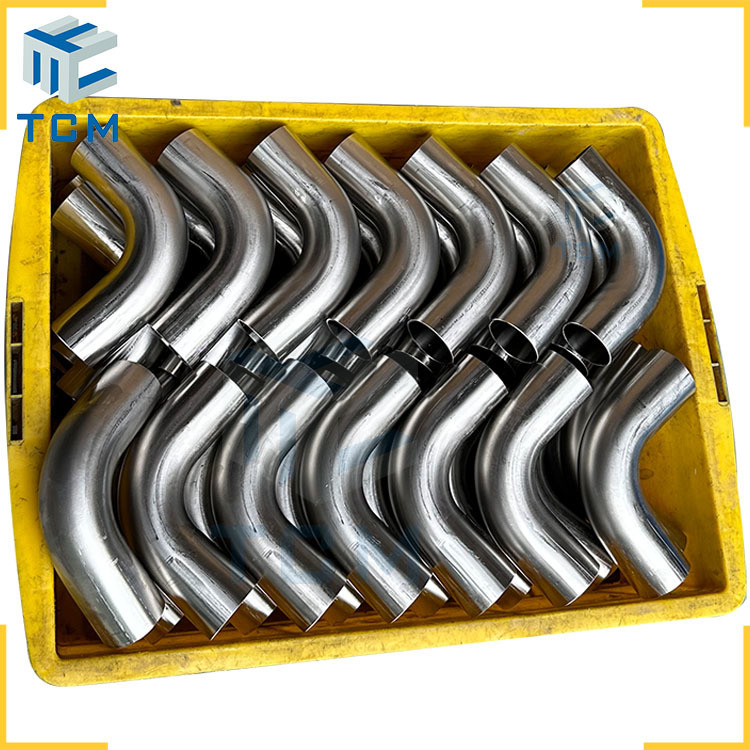

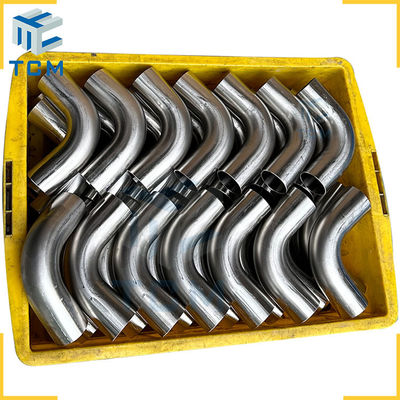

The TCM-NP type mechanical automatic polishing machine achieves precise surface roughness (Ra0.2-0.8 μm) for ASTM BPE steel 90 degree long elbows, with PLC-controlled automation for consistent results.

Key Features
  • Handles 1/2 inch to 4 inch diameter 90 degree elbow bends
  • PLC-controlled full automatic system for high efficiency
  • Single operator can manage up to 3 machines simultaneously
  • Compatible with ISO 3A, ASME-BPE, BA, EP, SMSDINS standards
  • Uniform internal grain surface roughness
  • Quick fixture replacement system
  • Mitsubishi PLC control with adjustable feed speed and polishing revolution
  • Environmental protection features conforming to ISO 14001
Technical Specifications
Available polishing elbow data 1/2-4 inch
Degree 90-180 degree
Polishing precision ≤ 0.2-0.8 μm (Ra)
Machine Weight 1300 KG
Outer Dimension 2100x1400x2000 mm
Input Total Power 18 KW
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Production Efficiency 180-200 Pieces/day
Suitable Polishing Material Custom design grinding wheels
ASME BPE 90 Degree Steel Elbow Internal PLC Automatic Polishing Machine 0 ASME BPE 90 Degree Steel Elbow Internal PLC Automatic Polishing Machine 1

Contact us for more information about sanitary pipe fittings surface polishing machines, grinding solutions, and demonstration videos.
