SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE

  • SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE
  • SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE
  • SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE
  • SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE
  • SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE
  • SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-NP
Minimum Order Quantity 1 set
Price USD 9000-50000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ss 90 Degree Elbow ID Inside Automatic Polishing Machine Dimension 2100x1400x2000mm
Weight 1300 Kg Color Blue/Red/Grey
Usage Polishing Elbow Inner Surface With Grinding Wheels Provide ODM & OEM
Voltage 380V 400V 415V Etc Warranty 18 Month
Condition 100% New After-sales Service Video Support/Engineer Oversea Service
Highlight

90 Degree Elbow Automatic Polishing Machine

,

380V Automatic Polishing Machine

,

400V automatic metal polishing machine
Leave a Message
Product Description
SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE
Product Specifications
Attribute Value
Product Name SS 90 Degree Elbow ID Inside Automatic Polishing Machine
Dimension 2100x1400x2000mm
Weight 1300 kg
Color Blue/Red/Grey

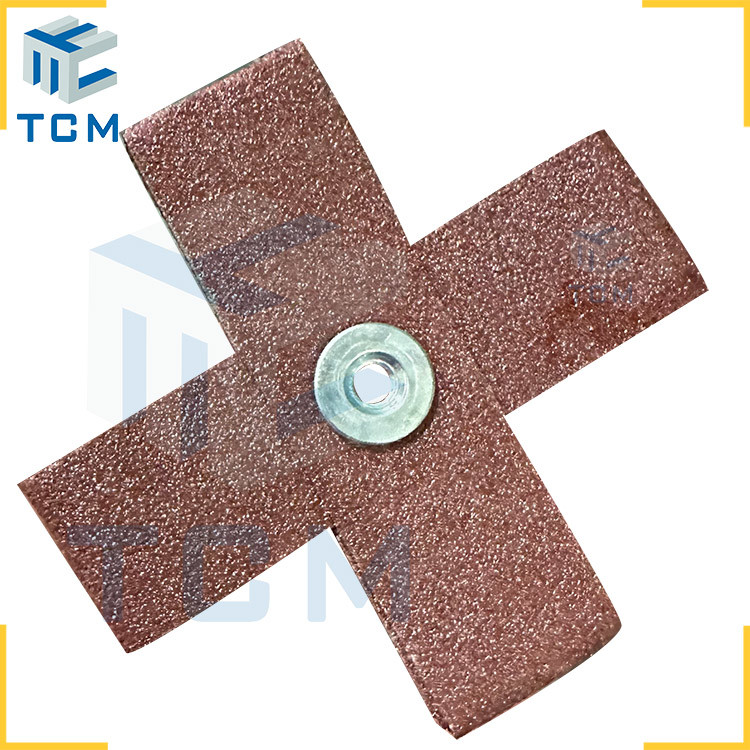

Usage Polishing elbow inner surface with grinding wheels
Provide ODM & OEM
Voltage 380V 400V 415V etc
Warranty 18 Month
Condition 100% new
After-sales service Video support/Engineer oversea service
Product Description

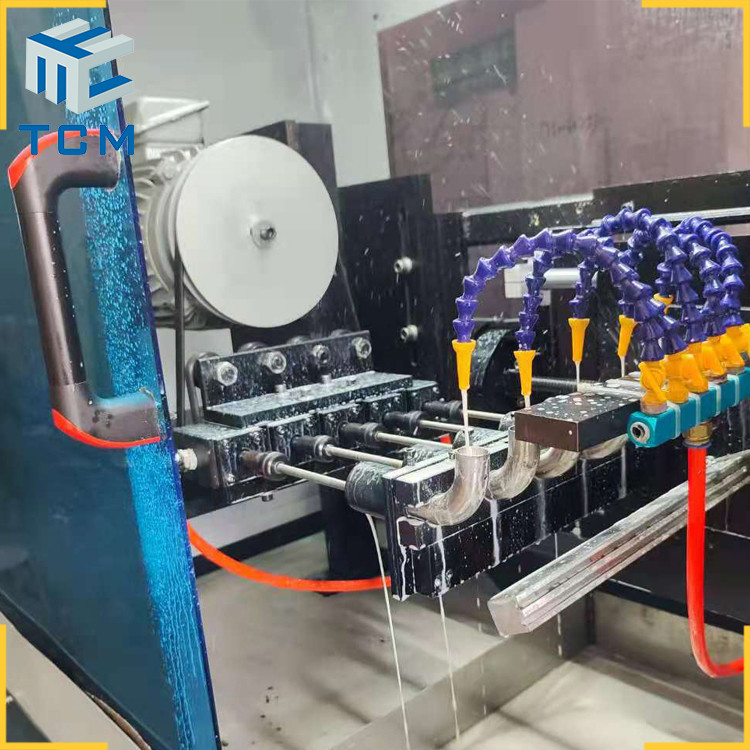

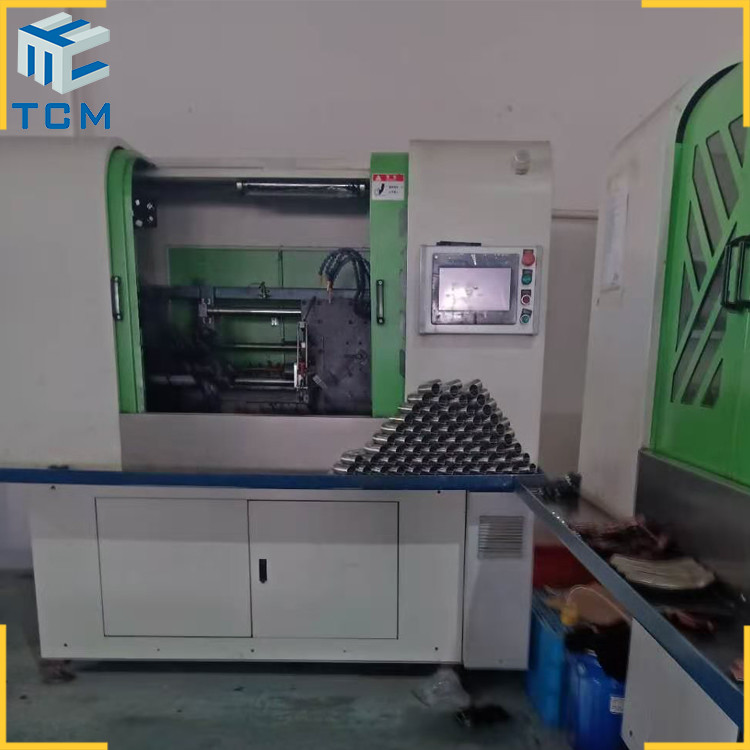

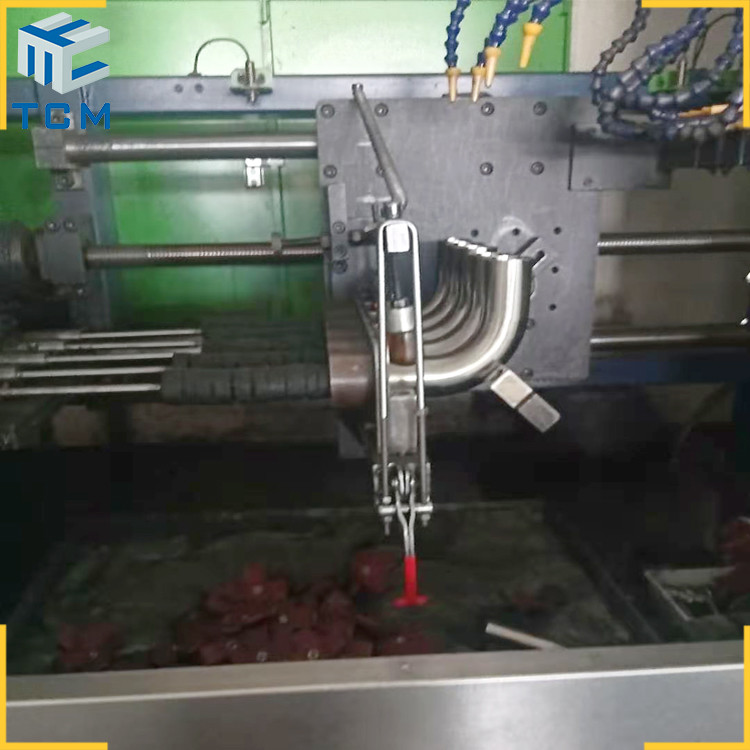

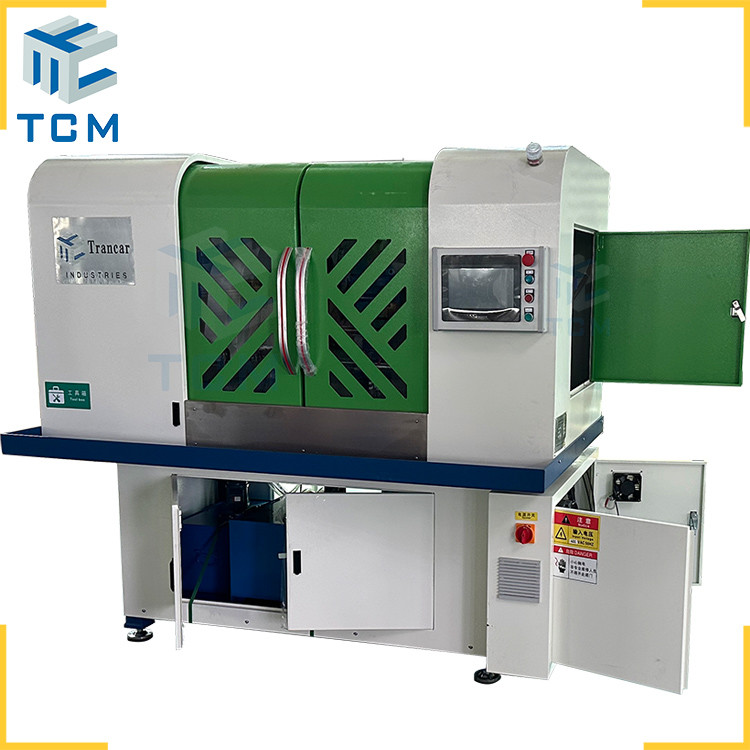

The SS 90 Degree Elbow ID Inside Automatic Polishing Machine with CE from Trancar Industries is designed for precision polishing of stainless steel elbow interiors. This mechanical polishing equipment is essential for industries requiring high surface quality, including food hygiene, biomedical, electronic clean grade stainless steel welded pipe equipment, and high-purity pipe manufacturing.

Key Features
  • Suitable for 1/2 inch to 4 inch diameter 90 degree elbow bends
  • PLC-controlled full automatic system for higher efficiency
  • One operator can manage up to 3 machines simultaneously
  • Complies with ISO 3A, ASME-BPE, BA, EP, SMSDINS standards
  • Uniform internal grain surface roughness (Ra0.2-0.8 μm)

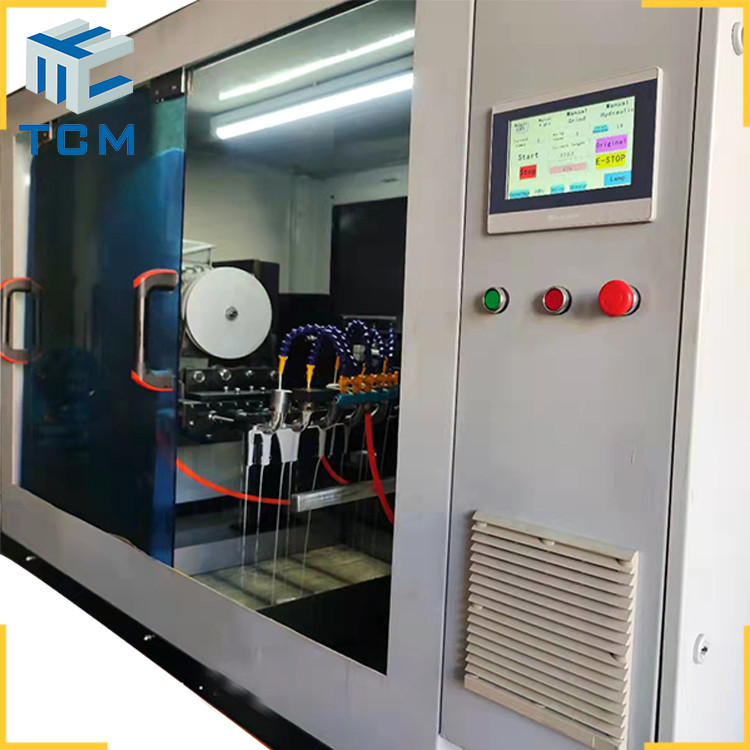

  • Mitsubishi PLC control with adjustable feed speed and polishing revolution
  • Environmentally friendly operation conforming to ISO 14001 standards
Technical Specifications
Parameter Value
Elbow Diameter 1/2-4 inch
Degree 90-180 degree
Surface Roughness (Ra) ≤ 0.2-0.8 μm
Machine Weight 1300 KG
Dimensions (L x W x H) 2100x1400x2000 mm
Input Power 18 KW
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Production Efficiency 180-200 Pieces/day
SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE 0 SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE 1 SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE 2 SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE 3 SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE 4 SS 90 Degree Elbow ID Inside Automatic Polishing Machine With CE 5
Keywords: Sanitary elbows, 90 degree elbow polishing machine, BPE elbows, BPE pipe fittings, elbow polishing machine, elbow internal polishing machine, mechanical polishing machine
Contact us for more information about SS 90 degree elbow ID inside automatic polishing machines, grinding solutions, and demonstration videos.
