Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine

  • Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine
  • Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine
  • Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine
  • Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine
  • Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine
  • Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-NP
Minimum Order Quantity 1 set
Price USD 9000-50000 Dollar per set
Packaging Details Custom design plywood box/Carton Boxes
Delivery Time 45 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Sanitary Ss Pipe Elbow Inside Polishing Grinding Machine Dimension 2100x1400x2000mm
Weight 1300 Kg Color Blue/Red/Grey
Usage Polishing Elbow Inner Surface With Grinding Wheels Provide ODM & OEM
Voltage 380V 400V 415V Etc Warranty 18 Month
Condition 100% New After-sales Service Video Support/Engineer Oversea Service
Diameter 3/4inch-4inch Certification CE / ISO
Highlight

SS Pipe elbow inside polishing machine

,

Sanitary elbow inside polishing machine

,

380V Automatic Pipe Fitting Grinding Machine
Leave a Message
Product Description
Sanitary SS Pipe Elbow Inside Polishing Machine - Automatic Pipe Fitting Grinding Machine
Product Specifications
Attribute Value
Product Name Sanitary SS Pipe Elbow Inside Polishing Grinding Machine
Dimension 2100×1400×2000mm
Weight 1300 kg
Color Blue/Red/Grey
Usage Polishing elbow inner surface with grinding wheels
Provide ODM & OEM
Voltage 380V 400V 415V etc
Warranty 18 Month
Condition 100% new
After-sales service Video support/Engineer oversea service
Diameter 3/4inch-4inch
Certification CE / ISO
Product Overview
The Trancar Elbow Internal Mechanical Polishing Equipment is designed for precision surface finishing in critical applications including food hygiene, biomedical grade, electronic clean grade stainless steel welded pipes, high-purity pipe manufacturing, and UHP piping systems.
Key Features
  • PLC-controlled full automatic system for consistent performance
  • High working efficiency - one operator can manage up to 3 machines simultaneously
  • Suitable for 1/2 inch to 4 inch diameter 90 degree elbow bends
  • Compatible with multiple industry standards: ISO 3A, ASME-BPE, BA, EP, SMSDINS
  • Uniform internal grain surface roughness (Ra0.2-0.8 μm)
  • Mitsubishi PLC control with adjustable feed speed and polishing revolution
  • Environmental protection features conforming to ISO 14001 standards
Technical Specifications
Available polishing elbow diameter 1/2-4 inch
Degree range 90-180 degree
Polishing precision (Surface roughness Ra) ≤ 0.2-0.8 μm
Machine Weight 1300 KG
Outer Dimension (L × W × H) 2100×1400×2000 mm
Input Total Power 18 KW
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Production Efficiency 180-200 Pieces/day
Product Images

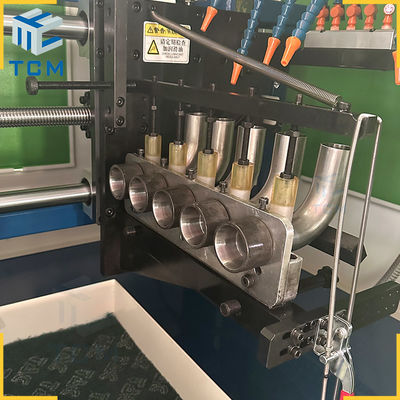

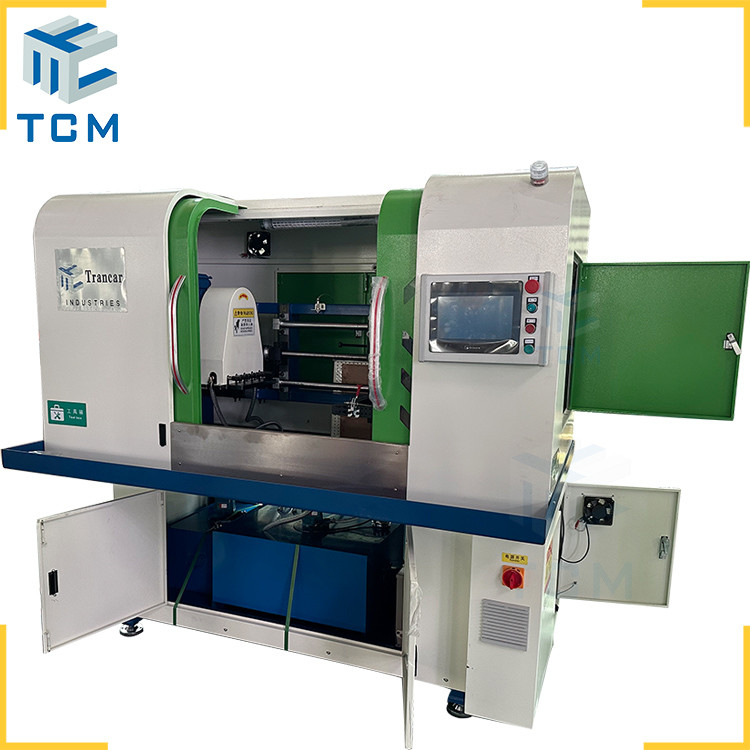

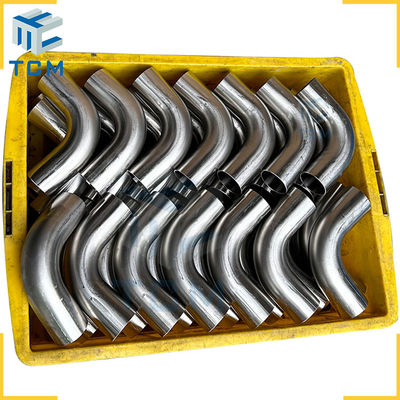

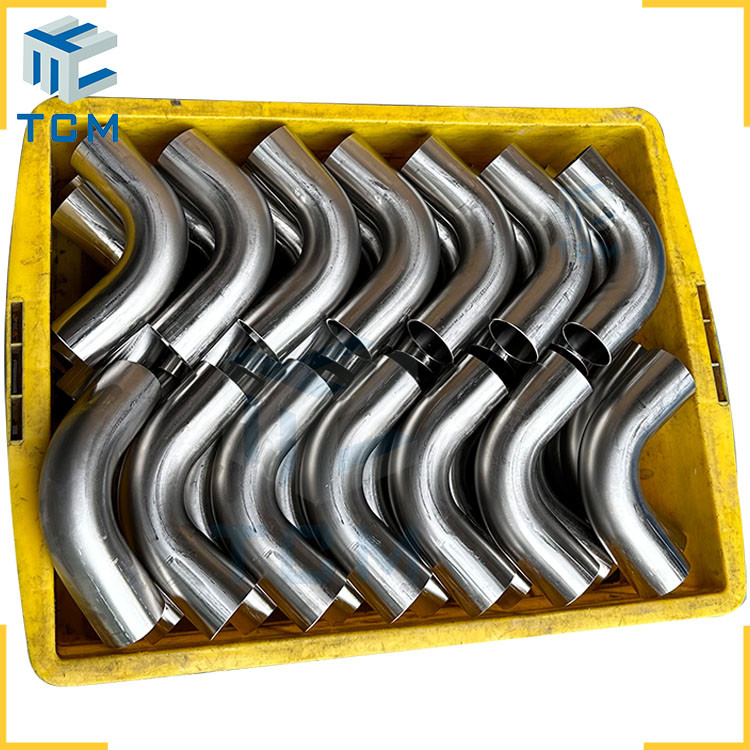

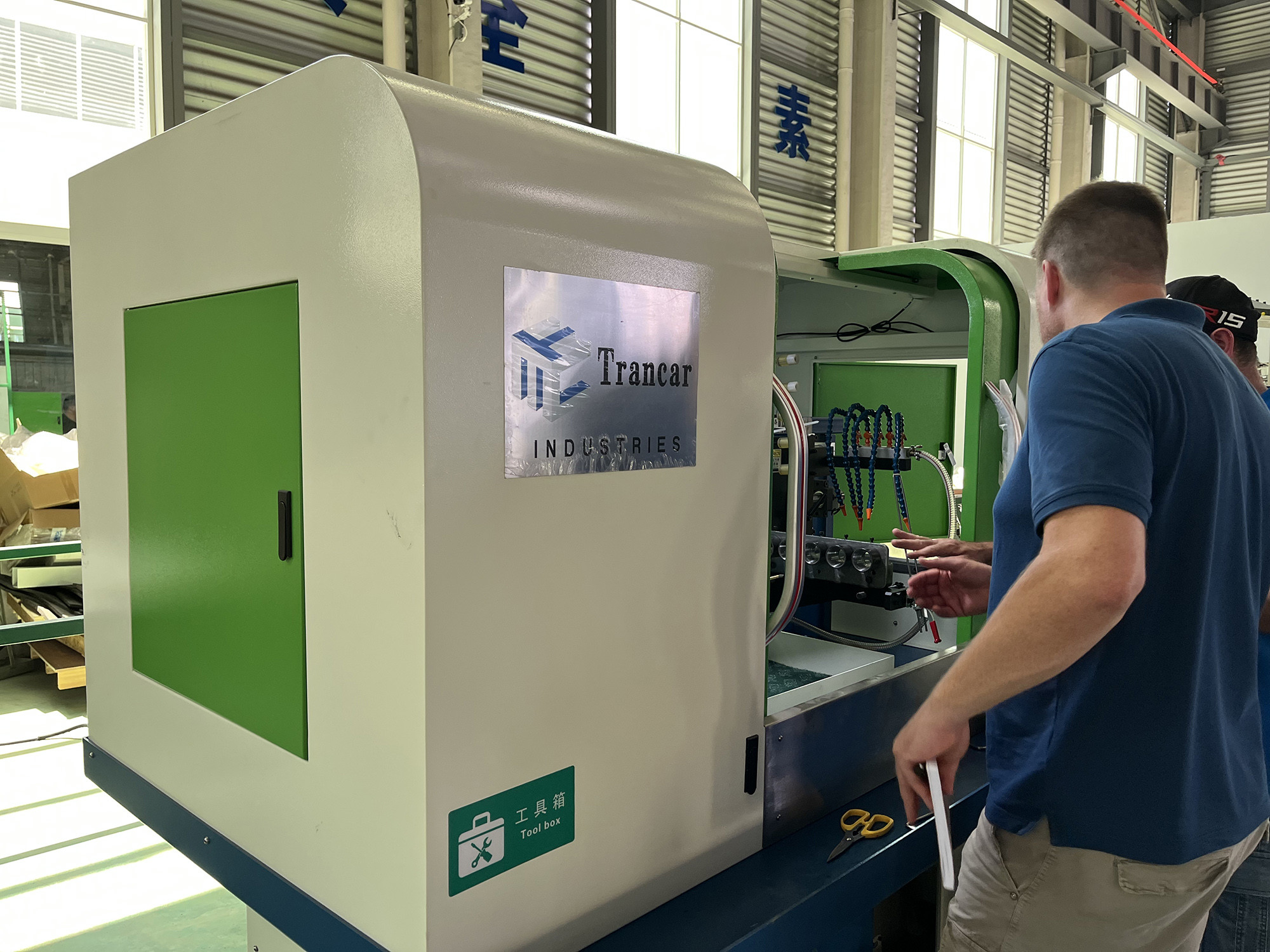

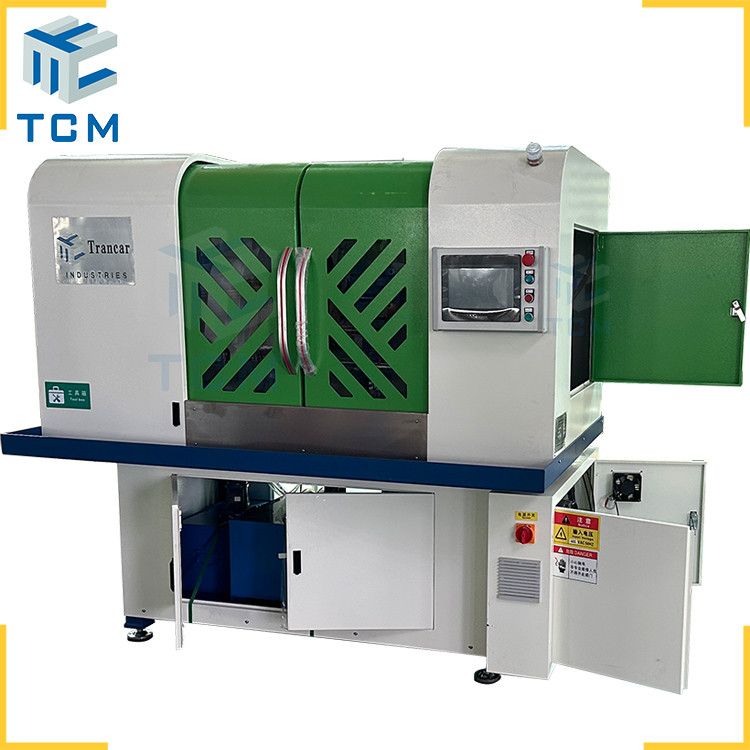

Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine 0 Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine 1 Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine 2 Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine 3 Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine 4 Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine 5 Sanitary SS Pipe Elbow Inside Polishing Machine Automatic Pipe Fitting Grinding Machine 6
Contact us for more information about our Sanitary SS Pipe Elbow Inside Polishing Grinding Machine and demonstration videos.
