Dished End Surface Steel Dished Head Semi Automatic Polishing Machine

  • Dished End Surface Steel Dished Head Semi Automatic Polishing Machine
  • Dished End Surface Steel Dished Head Semi Automatic Polishing Machine
  • Dished End Surface Steel Dished Head Semi Automatic Polishing Machine
  • Dished End Surface Steel Dished Head Semi Automatic Polishing Machine
  • Dished End Surface Steel Dished Head Semi Automatic Polishing Machine
  • Dished End Surface Steel Dished Head Semi Automatic Polishing Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-D
Minimum Order Quantity 1 set
Price USD 9000-25000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 25 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Automatic Dished Head Polishing Machine Color Blue/Red/Grey
Dimension 2500x1600x3080mm Weight 2200kg
Voltage 380V 400V 415V Etc Provide ODM & OEM
Highlight

Dished End semi automatic polishing machine

,

Dished Head semi automatic polishing machine

,

Dished End semi automatic buffing machine
Leave a Message
Product Description
Dished End Surface Steel Dished Head Semi Automatic Polishing Machine
Product Specifications
Attribute Value
Product name Automatic dished head polishing machine
Color Blue/Red/Grey
Dimension 2500x1600x3080mm
Weight 2200kg
Voltage 380V 400V 415V etc
Provide ODM & OEM
Product Overview

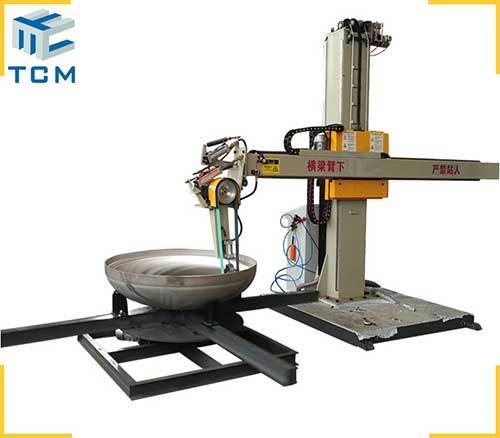

The TCM-D column and boom manipulator automatic surface grinding machine is designed for polishing and buffing steel metal tank ends, dish heads, tank caps, bottoms, and cone inner/outer surfaces.

This model is primarily used for surface polishing of stainless steel, metal, aluminum, and copper dished ends, tank heads, and cylinder heads. It can also be used for vertical tank surface grinding.

Applications

The TCM-D grinding machine is suitable for:

  • Standard head polishing
  • Conical head polishing
  • Spherical head surface polishing
  • Dish head polishing
  • Special heads polishing
  • Stainless steel oval head inside and outside surface grinding
  • Pressure vessel head polishing

Widely used in pharmaceutical, medical, food & beverage, water purification, pressure vessel, cosmetic, waste water treatment, semiconductor, and photovoltaic industries.

Technical Parameters
Parameter Specification
Available Polishing workpiece size 450~5000mm / 6000 mm
Turntable Max.Loading capacity 1 Ton / 2 Ton /5 Ton / 10 Ton (15 Ton, 20 Ton custom options available)
Polishing Precision (Surface roughness Ra) ≤0.25μm
Production Efficiency 6~12 m²/hour
Total Dimension 3500*1600*3080mm
Input total Power 12 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Color Options Grey/Green/Blue/Red/Yellow (Custom design available)
Machine Weight 2250kg
Suitable Polishing Material Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Dished End Surface Steel Dished Head Semi Automatic Polishing Machine 0 Dished End Surface Steel Dished Head Semi Automatic Polishing Machine 1
Delivery and Packaging
Dished End Surface Steel Dished Head Semi Automatic Polishing Machine 2
Contact Us
Dished End Surface Steel Dished Head Semi Automatic Polishing Machine 3
