Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-TW |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-100000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Tank Automatic Tig Welding Machine Plasma Welder | Color | Blue/Yellow/Red/White Etc |
|---|---|---|---|
| Dimension | 8000x2000x3800 Mm | Weight | 3500 Kg |
| Condition | 100% New | After-sales Service | Video Support/Engineer Oversea |
| Highlight | Automatic Tank Welding Machine,Tank Welding Machine Steel,TIG automatic welding machine |
||
Product Description
Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Steel tank automatic TIG welding machine plasma welder |
| Color | Blue/Yellow/Red/White (customizable) |
| Dimension | 8000 × 2000 × 3800 mm |
| Weight | 3500 kg |
| Condition | 100% new |
| After-sales service | Video support/Engineer overseas |

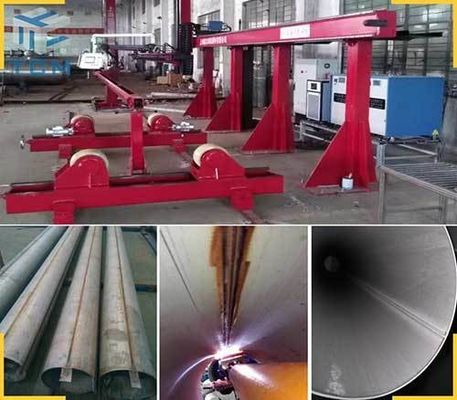

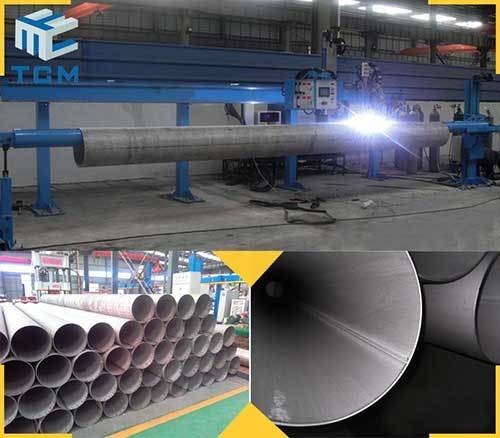

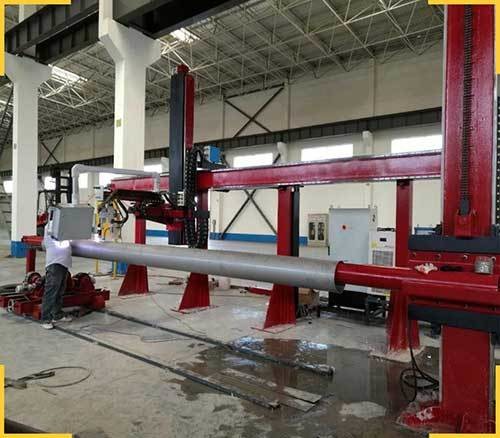

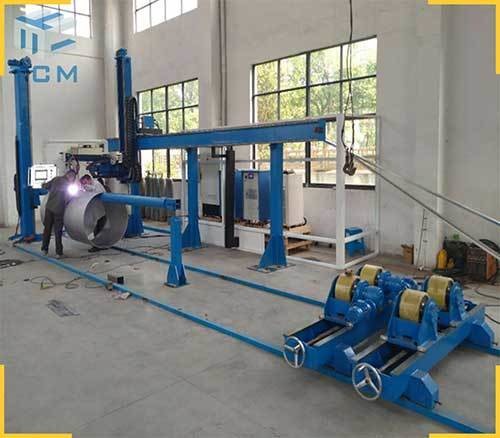

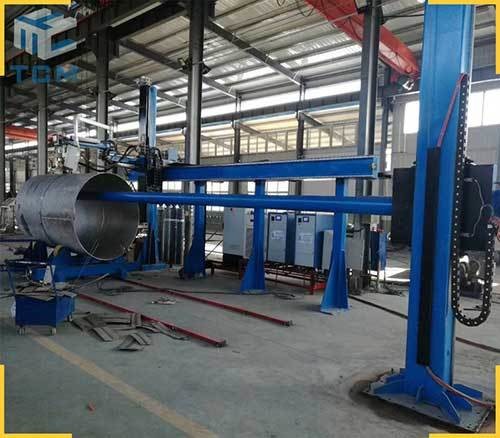

Steel Tank Cylinder Automatic Welding Machine
The TCM-TW automatic welding machine is specifically designed for steel pipe, tube, and tank shell fitting welding. This versatile system utilizes laser or TIG welding technology and features a robust construction including upright pillar, transverse beam, return and elevating mechanism, expansion mechanism of transverse arm, cross regulation, electrical box, and bottom base.
This 2-in-1 automatic welding machine can handle both longitudinal and circular tank welding applications. Custom designs are available to meet specific client requirements.
Technical Parameters
| Steel pipe size (Outside diameter) | 200-4000 mm |
| Length | ≤6000 mm |
| Tank Roller Max Loading capacity | 5 Ton /10 Ton or customization |
| Machine Dimension | 8000 × 2000 × 3800 mm |
| Boom expansion speed | 120-1200 mm/min |
| Boom elevating speed | 1000 mm/min |
| Power Supply | 220V / 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 3500 kg |
| Color Options | Blue/Grey/Green/Red/Yellow (Custom design available) |
Welding Machine and Solutions
Contact us for custom welding solutions:
