Steel Tank Cylinder Shell Longitudinal Seam TIG Welding Machine Tank Welder
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-W |
| Minimum Order Quantity | 1 set |
| Price | USD 1000-25000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Tank Shell Steel Sheet Longitudinal Seam TIG Welder | Dimensions | 3000x1500x2100 Mm |
|---|---|---|---|
| Weight | 2500kg | Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V Etc | Usage | Welding Tank Shell / Steel Sheet |
| Condition | 100% New | After-sale Service | Video Technical Support/Online Support/Engineer Oversea |
| Warranty | 1 Year | Provide | Custom Design Service |
| Highlight | Seam tank welding machine,TIG tank welding machine,Steel Tank Tank Welder |
||
Product Description

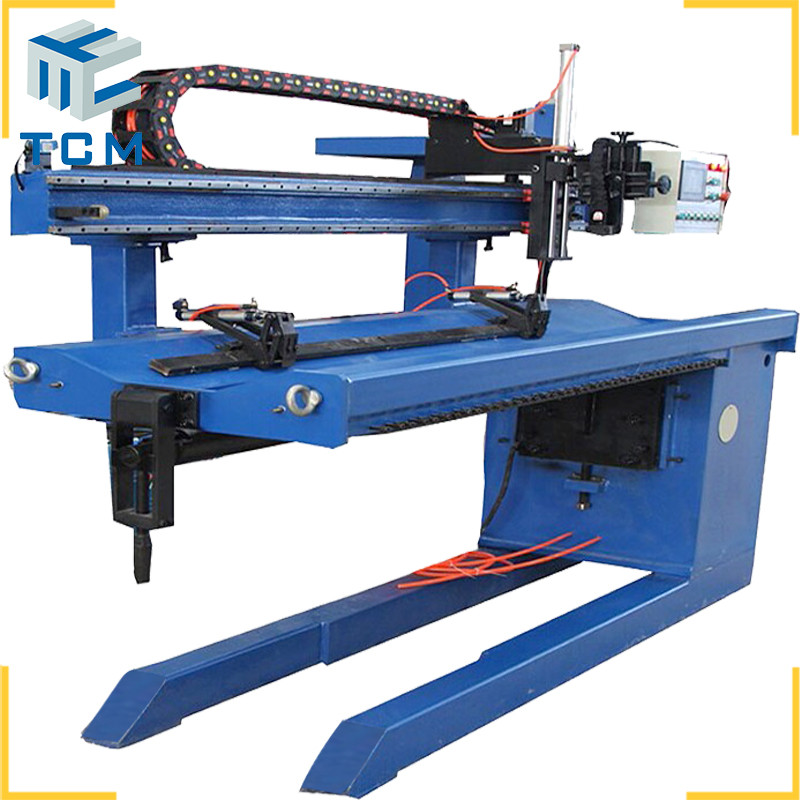

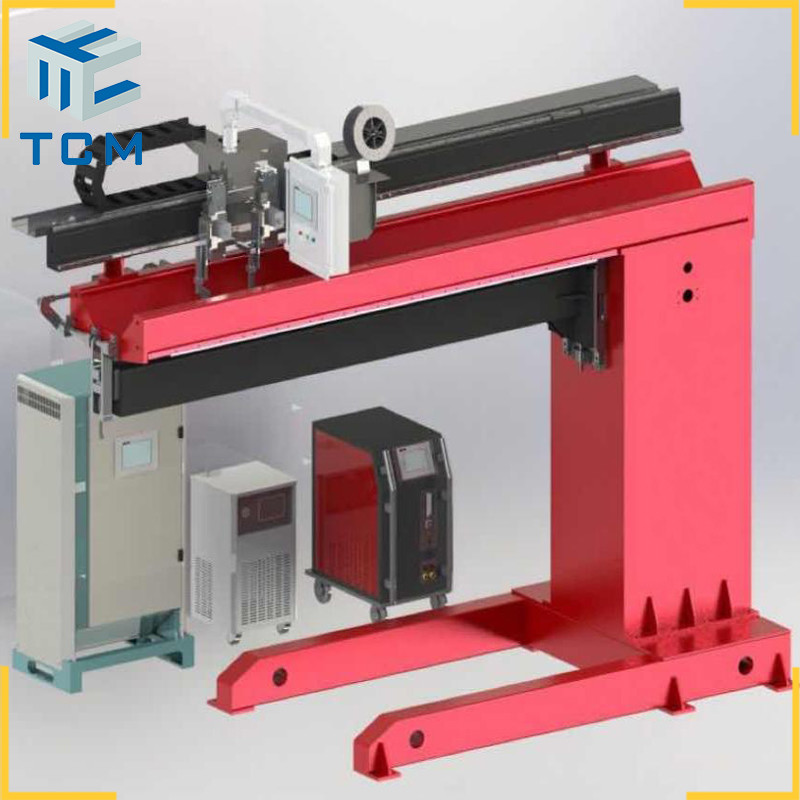

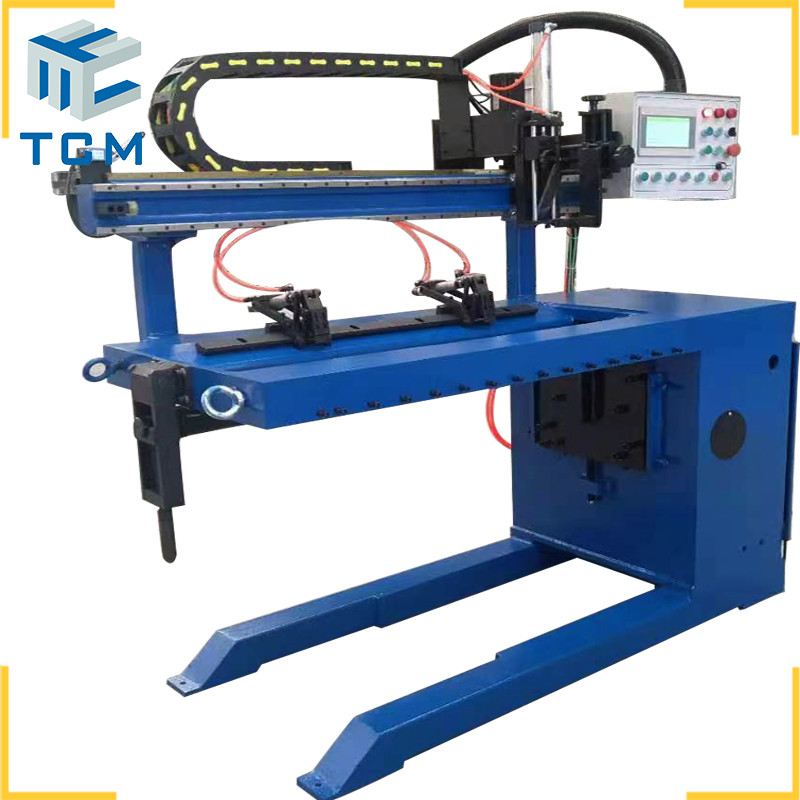

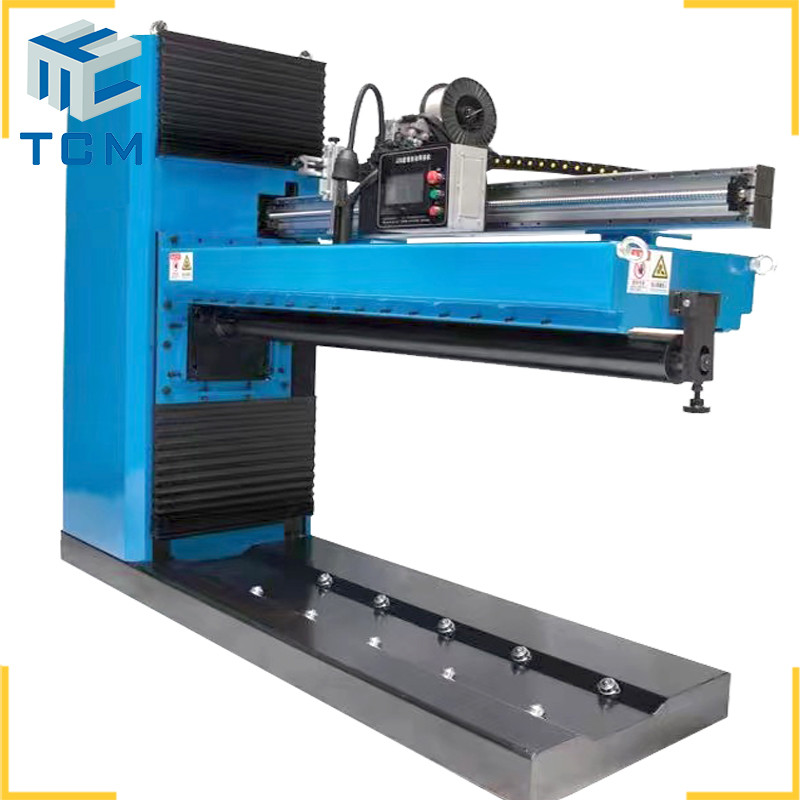

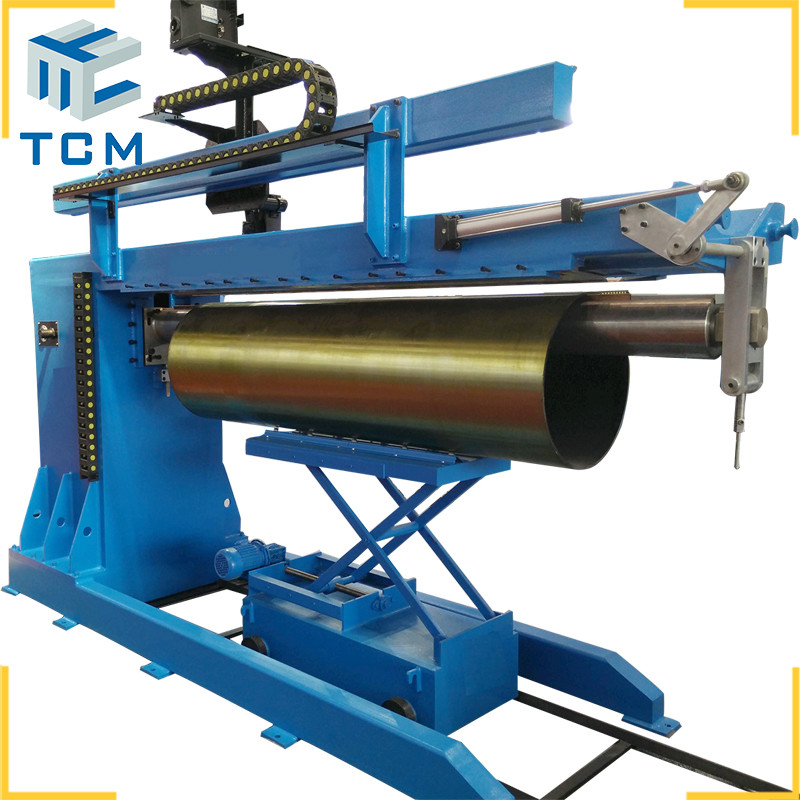

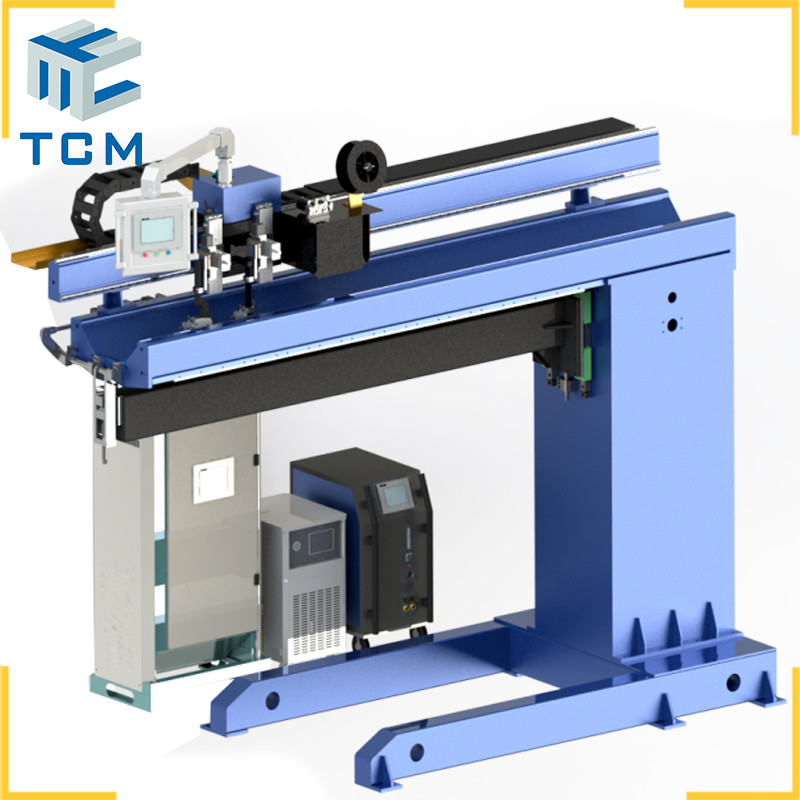

Steel Tank Cylinder Shell Longitudinal Seam TIG Welding Machine Tank Welder
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Steel tank shell steel sheet longitudinal seam TIG welder |
| Dimensions | 3000x1500x2100 mm |
| Weight | 2500kg |
| Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V etc |
| Usage | Welding tank shell / steel sheet |
| Condition | 100% new |
| After-sale service | Video technical support/Online support/Engineer oversea |
| Warranty | 1 year |
| Provide | Custom design service |
Product Description
The TCM-W series longitudinal seam welding machine is a professional solution for steel tank cylinder shell welding, combining a welding host machine and control system into a complete, easy-to-install unit.
Key Components
- Main Frame: Welded frame structure with exceptional rigidity and stability, secured by foundation bolts
- Piano-Type Pneumatic Fixture: Unique design with special pressure mechanism to automatically eliminate longitudinal joint assembly clearance
- Welding Core Shaft: Rigid cylinder structure providing back support and protection, with adjustable height for different plate thicknesses
- Mandrel Bracket: Secures welding core shaft to maintain rigidity during operation
Technical Parameters
| Pipe effective welding length | 1500mm/2000mm |
| Clamping max. length | 1500mm / 2000mm |
| Clamping max. dia. (outer side welding) | Φ300mm |
| Clamping min. dia.( inner side welding) | Φ1500mm |
| Clamping Min thickness(outside weld) | 1.0mm |
| Clamping Max thickness(outside weld) | 3.0mm |
| Walking velocity | 110～1100mm/min |
Contact Us for Custom Welding Solutions
Our team of experts is ready to assist with your specific welding requirements and machinery needs.
