1500W 2000W 3000W Handheld Fiber Laser Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | 1500W / 2000W / 3000W |
| Minimum Order Quantity | 1 set |
| Price | USD 5000-25000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Handheld Fiber Laser Welding Machine | Laser Power | 1500W / 2000W / 3000W |
|---|---|---|---|
| Laser Beam | 1070nm | Optical Fiber | 25um ,10M |
| Dimensions | 880x410x660mm | Weight | 220kg |
| Condition | 100% New | Spot Diameter | 0.2 To 3mm |
| Focal Length | F=100mm | Repeat Precision | ±0.02mm |
| Highlight | 3000W handheld fiber laser welding machine,2000W handheld fiber laser welding machine,1070nm 1500 watt handheld laser welder |
||
Product Description

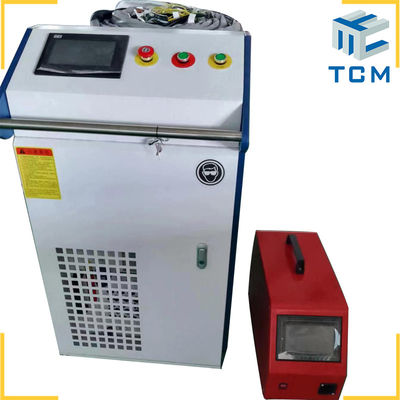

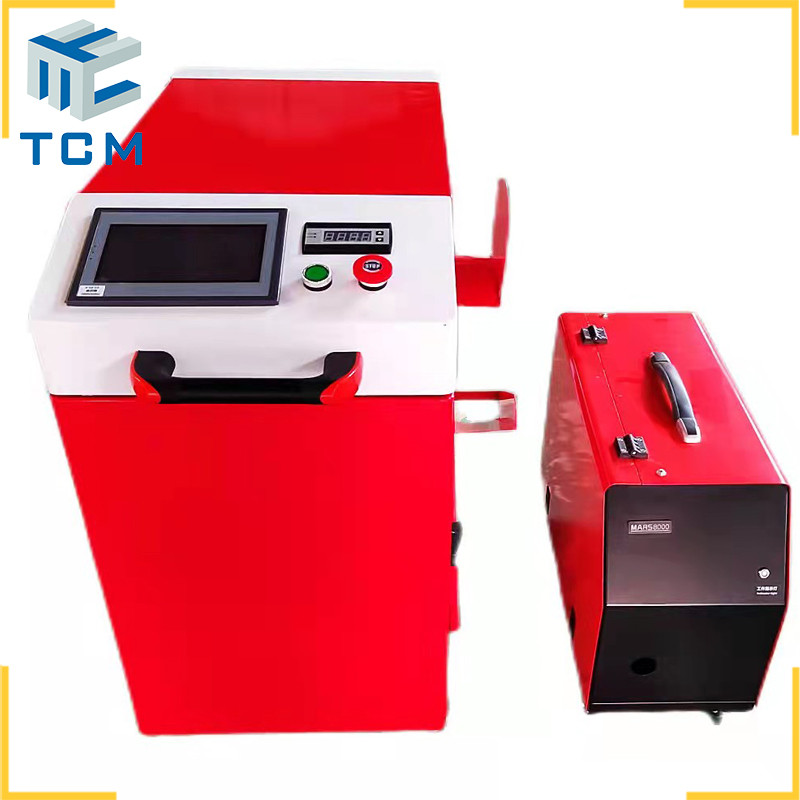

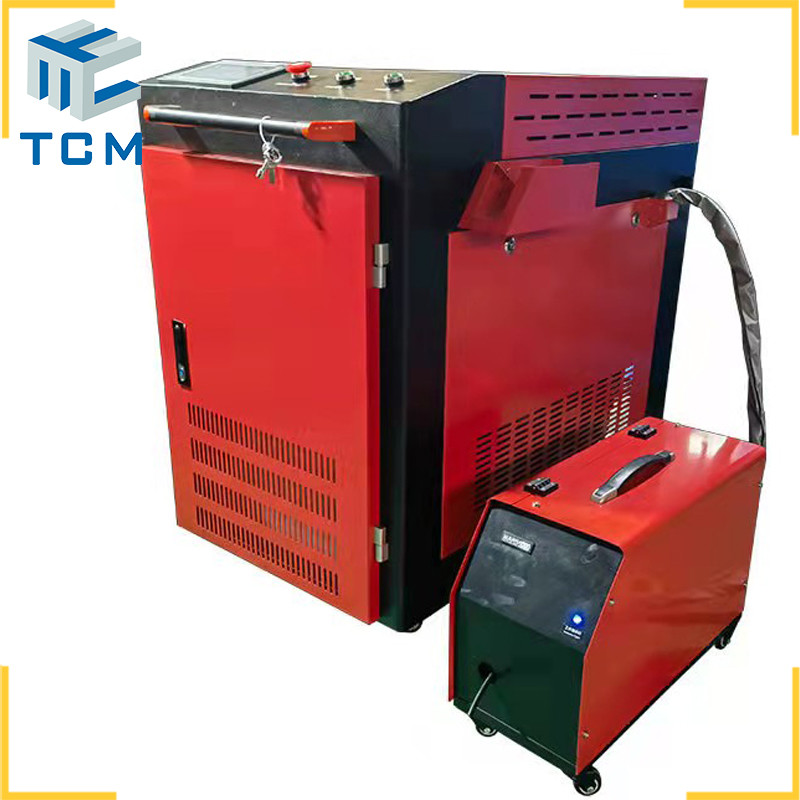

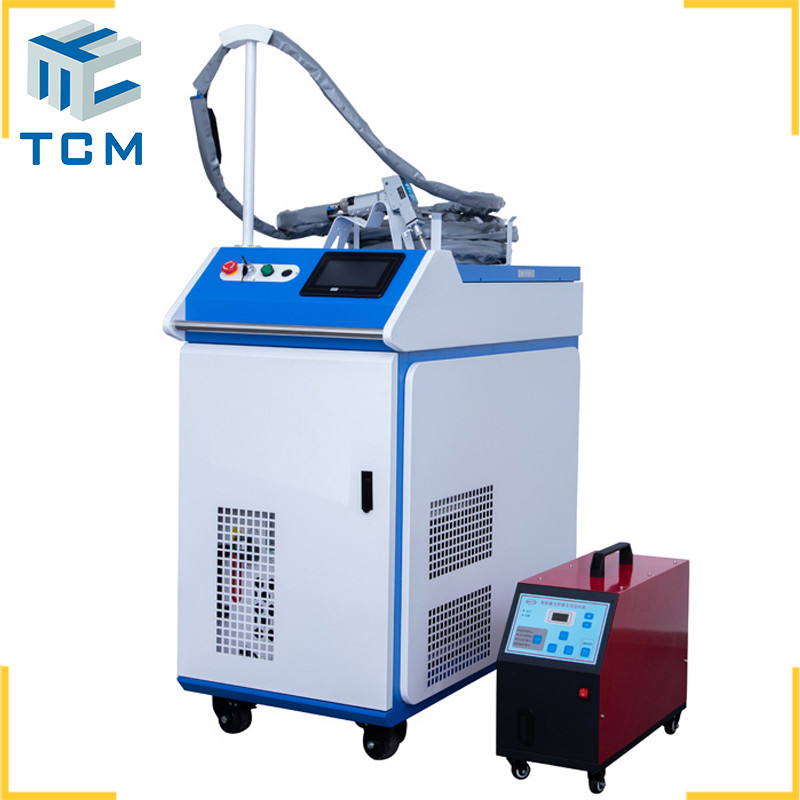

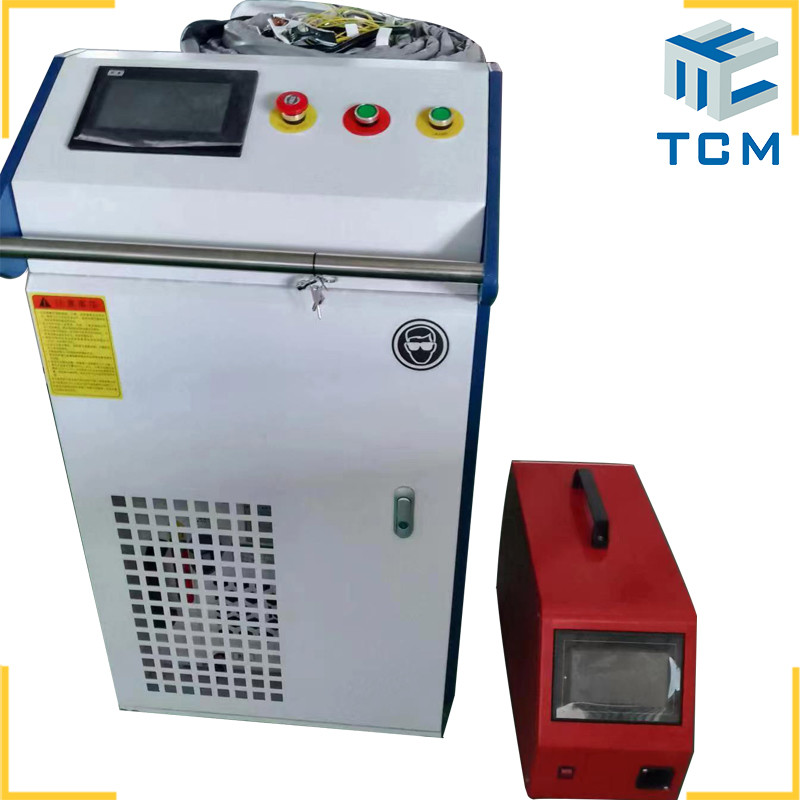

1500W 2000W 3000W Handheld Fiber Laser Welding Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Handheld Fiber Laser Welding Machine |
| Laser Power | 1500W / 2000W / 3000W |
| Laser Beam | 1070nm |
| Optical Fiber | 25um, 10M |
| Dimensions | 880×410×660mm |
| Weight | 220kg |
| Condition | 100% new |
| Spot Diameter | 0.2 to 3mm |
| Focal Length | F=100mm |
| Repeat Precision | ±0.02mm |
Machine Overview
The fiber continuous welding machine represents an advanced welding technology. The laser beam is coupled to the fiber and transmitted over long distances, processed into parallel light that focuses precisely on workpieces for continuous welding. This method delivers stronger welds with finer, more aesthetically pleasing seams due to continuous light output.
Key Features
- 2000W Reci fiber laser source with 50,000-60,000 hours lifespan and maintenance-free operation

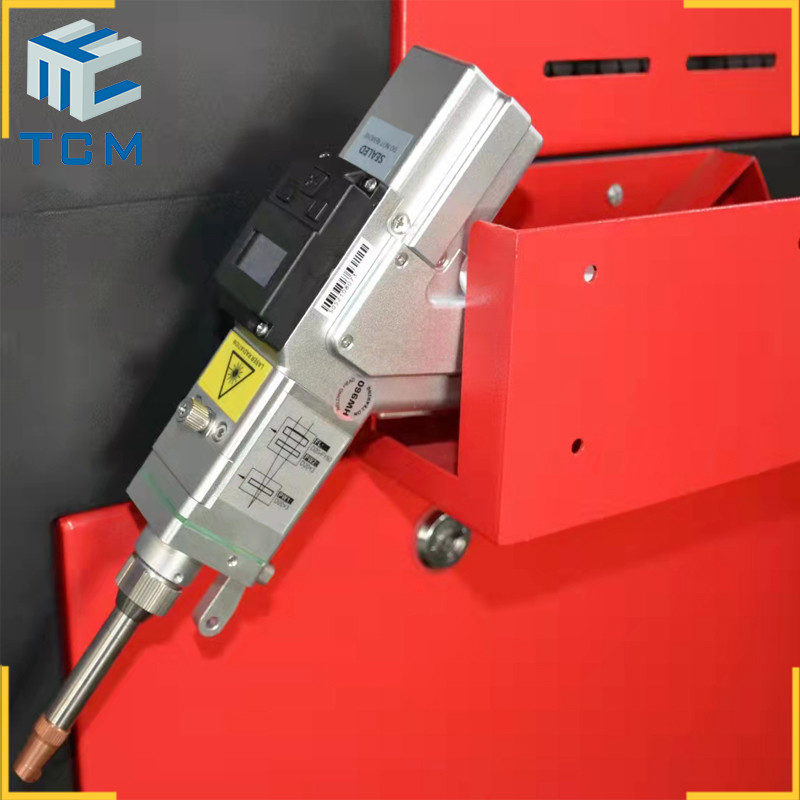

- Ergonomic hand-held welding head for easy operation and mobility
- Special welding software with continuous laser beam and adjustable output waveform for precise, high-speed welding
- 2000W maximum welding capacity for 4-5mm stainless steel
Applications
Ideal for welding various metals including stainless steel, mild steel, aluminum, brass, and more. Suitable for diverse industries such as advertising signage, metal fabrication, cabinetry, shelving, doors, windows, elevators, and sanitary ware manufacturing.
Technical Parameters
| Parameter | Specification |
|---|---|
| Laser power | 1500W / 2000W / 3000W |
| Laser wavelength | 1080nm |
| Welding gap (1m/min) | 4-5mm stainless steel |
| Welding gap (1m/min) | 4-5mm carbon steel |
| Welding gap (1m/min) | 3-4mm aluminum alloy |
| Welding gap | <0.2mm |
| Auto wire feeding | 0.8-1.6mm wire |
| Optical length | 10M |
| Power consumption | ≤ 7 KW |
| Power supply | 380V 50-60HZ |
| Water cooling | Customized industrial double temperature water cooling |
| Welding gas | Argon or Nitrogen |
| Machine weight | 220 KG |
For customized fiber laser welding solutions, please contact Trancar Industries directly.
