Special Sheet Metal Cone Rolling Machine 3 Rollers Hydraulic
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-CR |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Standard Export package |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Special Cone Bending Machine 3-rollers Hydraulic Cone Rolling Machine | Dimension | 3500x1500x2000 Mm |
|---|---|---|---|
| Weight | 3500kg | Function | Make Steel Cones,conical Tank Caps And Conical Dish Head Forming |
| Color | Blue/Red/Grey | Voltage | 380V 400V 415V Etc |
| Condition | 100% New | Warranty | 18 Month |
| After-sales Service | Video Support/Engineer Oversea Service | Provide | ODM & OEM |
| Highlight | Special sheet metal cone rolling machine,3 Rollers sheet metal cone rolling machine,Hydraulic cone rolling machine |
||
Product Description

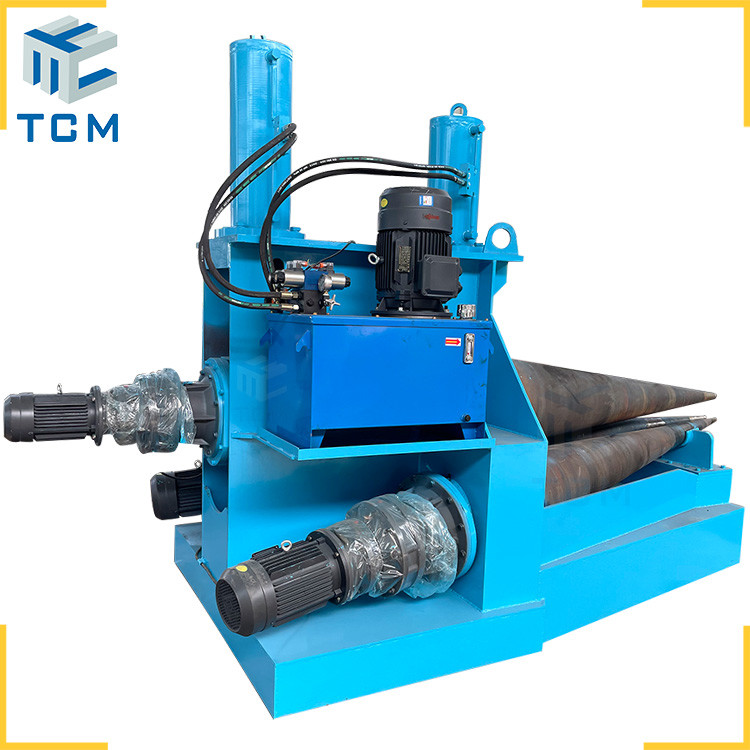

Special Sheet Metal Cone Rolling Machine 3 Rollers Hydraulic
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Special Cone Bending Machine 3-rollers hydraulic cone rolling machine |
| Dimension | 3500x1500x2000 mm |
| Weight | 3500kg |
| Function | Make steel cones, conical tank caps and conical dish head forming |
| Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V etc |
| Condition | 100% new |
| Warranty | 18 Month |
| After-sales service | Video support/Engineer oversea service |
| Provide | ODM & OEM |
Product Description
Trancar Industries Model TCM-CR hydraulic steel cone bending machine is designed for making folding steel conical tank caps, conical cones based on clients requirements.
TCM 3 rollers hydraulic bending machine amount with different capacity hydraulic power station, and could fold different thickness & dimensions carbon steel and stainless steel conical cones accordingly. It's widely used in the fields of petrochemical industry, Organic fuel, Organic fuel production, Pharmaceutical/CIP Plant, Chemical & Cosmetic industry etc.
Technical Parameters
Normal configuration (custom design acceptable)
| Cone Diameter | 20mm-5000mm |
| Machine Dimension | (L×W×H) 3500*1500*2000 |
| Cone thickness | 1-12mm (Stainless steel/Carbon steel) |
| Input total Power | 15 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 2500kg |
| Color | Grey/Green/Blue/Red/Yellow Custom design |
Customization & Ordering
Custom design service is available. Please confirm follow data about your required steel cone:
- Cone hole diameter ranges
- Side length
- Thickness
- Cone height
- Your workshop's voltage etc.
High efficiency cone rolling solution will figure out.
Beside steel cone bending rolling machine, there are cone surface grinding machine, tank cap polishing equipments for options.
Packaging & Delivery
Contact Trancar Industries for more steel cone rolling machine forming solutions.
