Steel Cone Bending Machine Conical Forming Machine With CE Certification

  • Steel Cone Bending Machine Conical Forming Machine With CE Certification
  • Steel Cone Bending Machine Conical Forming Machine With CE Certification
  • Steel Cone Bending Machine Conical Forming Machine With CE Certification
  • Steel Cone Bending Machine Conical Forming Machine With CE Certification
  • Steel Cone Bending Machine Conical Forming Machine With CE Certification
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-CR
Minimum Order Quantity 1 set
Price USD 9000-25000 Dollar per set
Packaging Details Standard Export package
Delivery Time 50 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 25 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Steel Cone Plate Rolling Machine Conical Forming Machine Dimension 3500x1600x2000 Mm
Weight 3500kg Function Forming Rolling Steel Conical Cones
Color Blue/Red/Grey Voltage 380V 400V 415V Etc
Condition 100% New Warranty 18 Month
After-sales Service Video Support/Engineer Oversea Service Provide ODM & OEM
Highlight

Steel cone bending machine

,

CE cone bending machine

,

380V conical forming machine
Leave a Message
Product Description
Steel Cone Bending Machine Conical Forming Machine With CE Certification
Product Specifications
Product Name Steel cone plate rolling machine conical forming machine
Dimension 3500x1600x2000 mm
Weight 3500kg
Function Forming rolling steel conical cones
Color Blue/Red/Grey
Voltage 380V 400V 415V etc
Condition 100% new
Warranty 18 Month
After-sales service Video support/Engineer oversea service
Provide ODM & OEM
Professional Conical Forming Solution

The TCM-CR series hydraulic steel cone bending machine from Trancar Industries is engineered for precision forming of steel conical tank caps and cones to exact customer specifications. This CE-certified equipment features:

  • Hydraulic power station with customizable capacity
  • Capability to form both carbon steel and stainless steel cones
  • Wide application in petrochemical, pharmaceutical, chemical, and cosmetic industries
  • Custom design services available

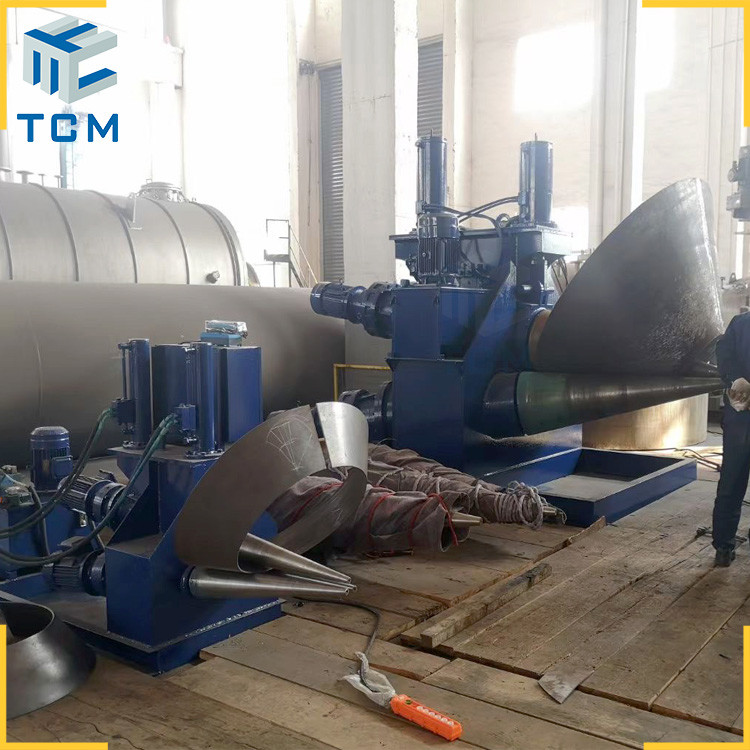

Steel Cone Bending Machine Conical Forming Machine With CE Certification 0
Technical Parameters
Cone Diameter Range 20mm-5000mm
Machine Dimensions (L×W×H) 3500×1500×2000 mm
Material Thickness Capacity 1-12mm (Stainless steel/Carbon steel)
Power Input 15 kw
Power Supply Options 380V 415V / 50Hz 60HZ / 3p or Customization
Machine Weight 2500kg
Color Options Grey/Green/Blue/Red/Yellow (Custom available)

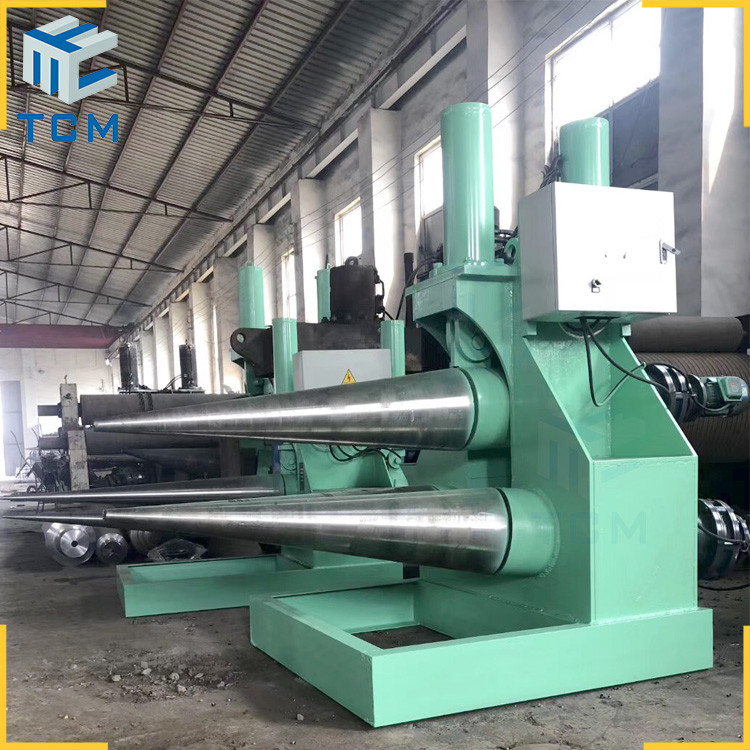

Steel Cone Bending Machine Conical Forming Machine With CE Certification 1
Custom Design Service

For accurate quotation, please provide:

  • Cone diameter requirements
  • Side length and height specifications
  • Material thickness
  • Workshop voltage parameters

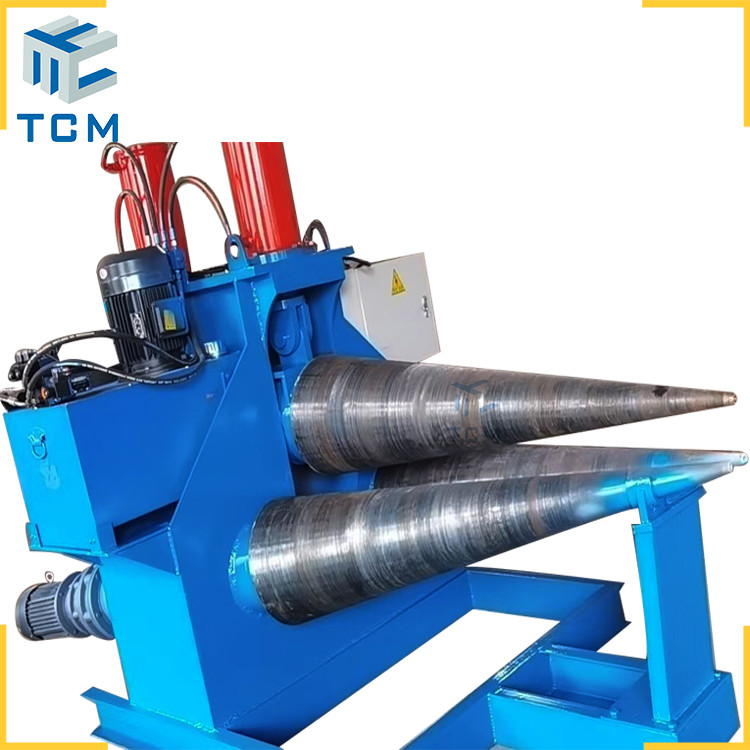

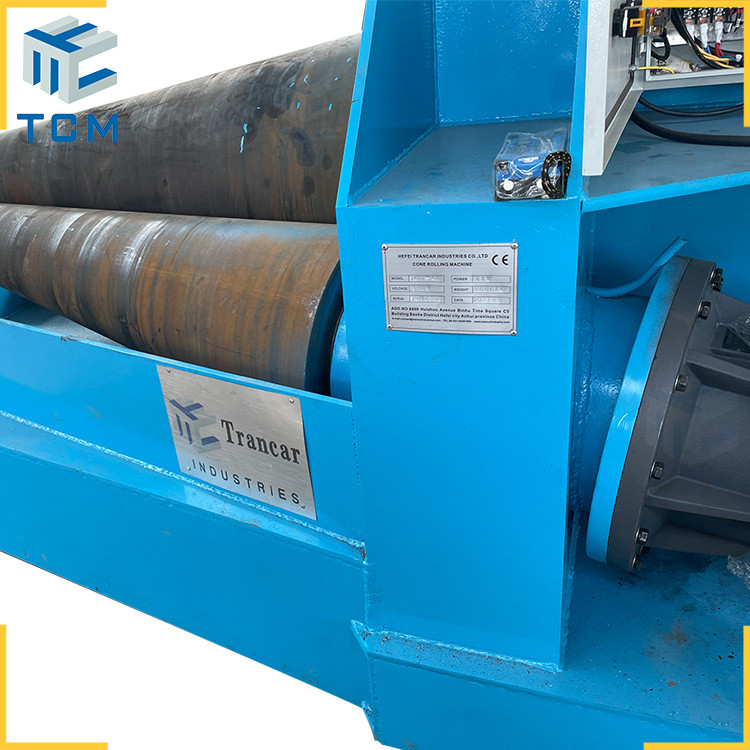

Steel Cone Bending Machine Conical Forming Machine With CE Certification 2 Steel Cone Bending Machine Conical Forming Machine With CE Certification 3
Complementary Equipment Options

Trancar Industries also provides:

  • Cone surface grinding machines
  • Tank cap polishing equipment

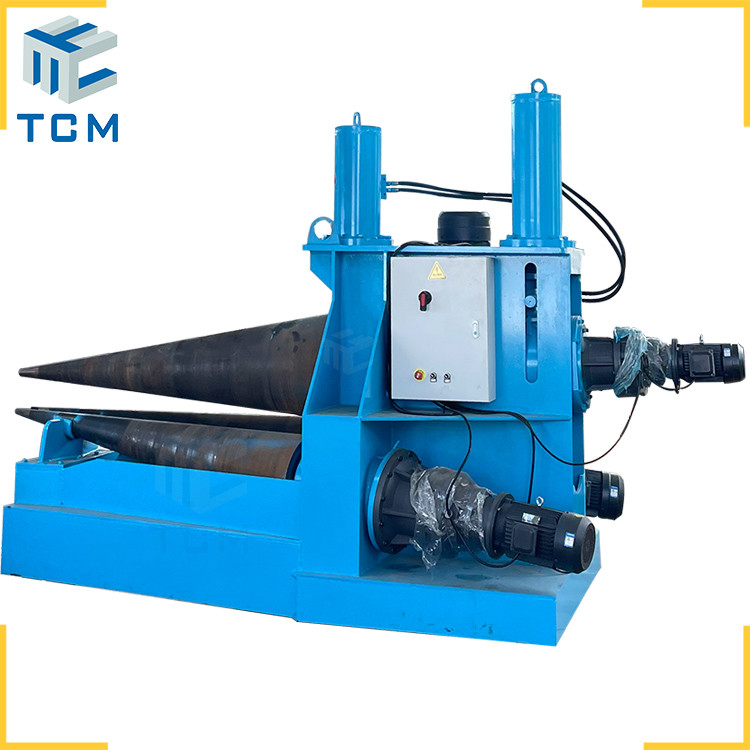

Steel Cone Bending Machine Conical Forming Machine With CE Certification 4
Packaging & Delivery
Steel Cone Bending Machine Conical Forming Machine With CE Certification 5 Steel Cone Bending Machine Conical Forming Machine With CE Certification 6
Contact Trancar Industries for comprehensive steel cone forming solutions and technical support. Steel Cone Bending Machine Conical Forming Machine With CE Certification 7
