380V 400V 415V Steel Cone Shaping Rolling Machinery Cone Making Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-CR |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Standard Export package |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Cone Shaping Rolling Machinery Cone Making Machine | Dimension | 3600x1800x2000 Mm |
|---|---|---|---|
| Weight | 4500kg | Function | Make Steel Cones,conical Tank Caps And Conical Dish Head Forming |
| Color | Blue/Red/Grey | Voltage | 380V 400V 415V Etc |
| Condition | 100% New | Warranty | 18 Month |
| After-sales Service | Video Support/Engineer Oversea Service | Provide | Custom Design Service |
| Highlight | 415V Cone Shaping Rolling Machinery,Steel Cone Shaping Rolling Machinery,380V Cone Making Machine |
||
Product Description
380V 400V 415V Steel Cone Shaping Rolling Machinery Cone Making Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Steel cone shaping rolling machinery cone making machine |
| Dimension | 3600x1800x2000 mm |
| Weight | 4500kg |
| Function | Make steel cones, conical tank caps and conical dish head forming |
| Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V etc |
| Condition | 100% new |
| Warranty | 18 Month |
| After-sales service | Video support/Engineer oversea service |
| Provide | Custom design service |

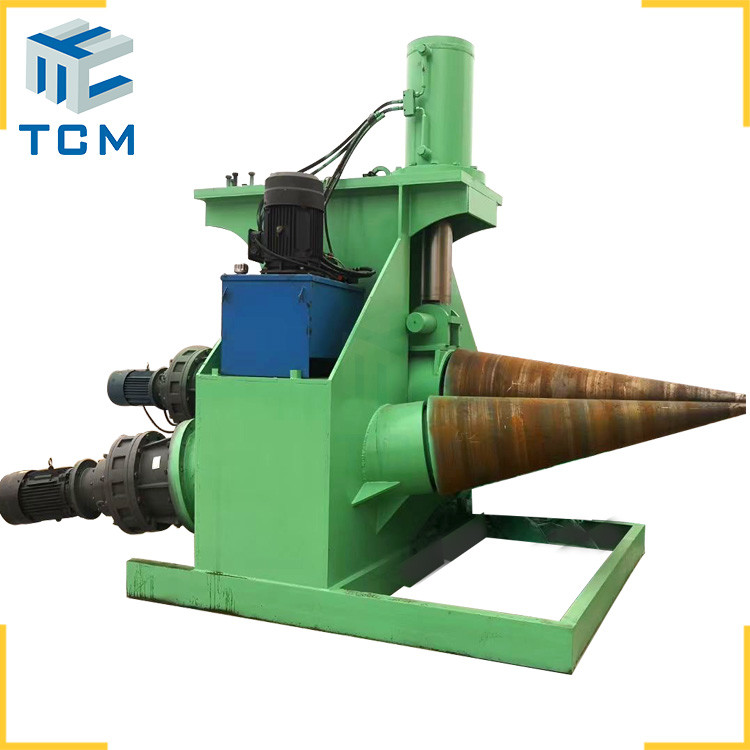

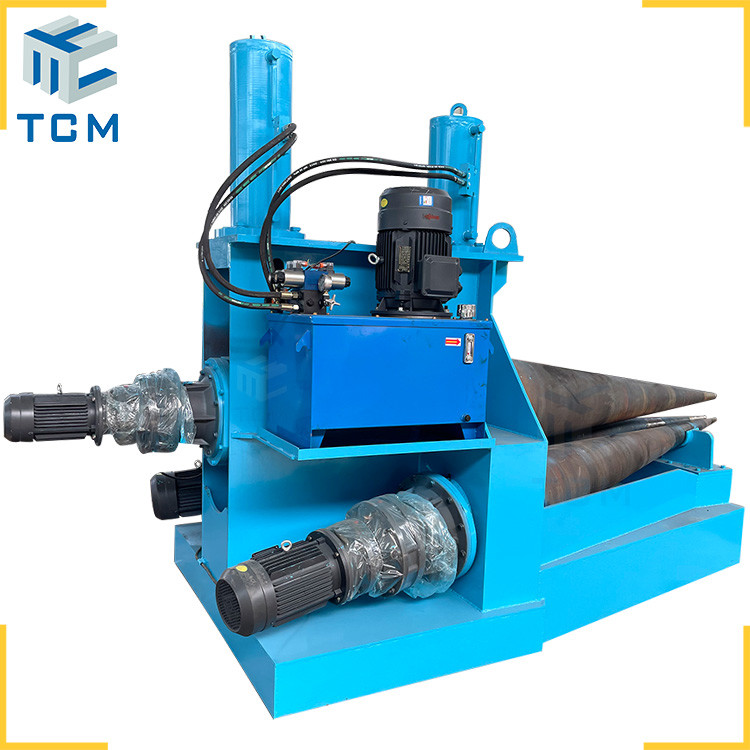

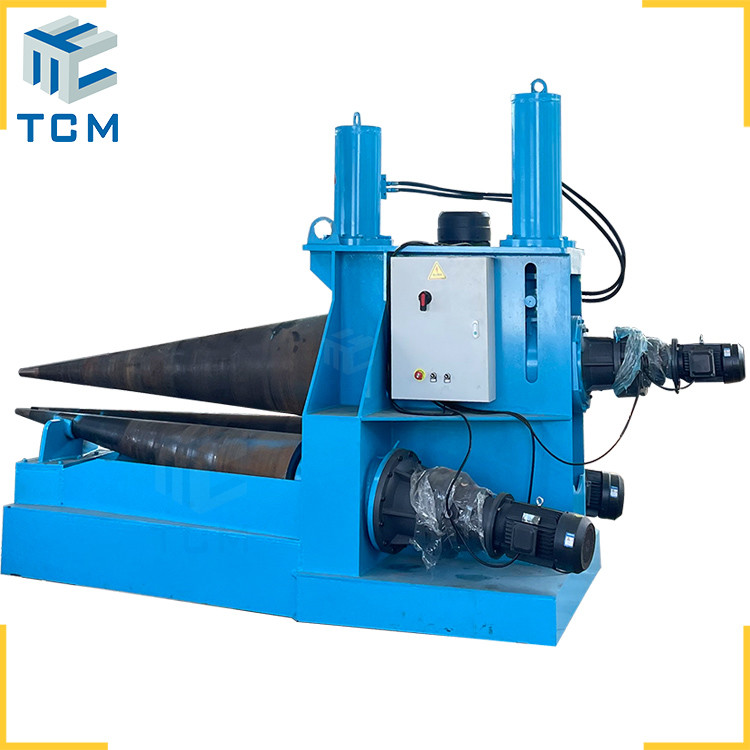

Steel Cone Shaping Rolling Machinery
The TCM-CR series hydraulic steel cone bending machine is designed for forming steel conical tank caps and cones according to client specifications. This 3-roller hydraulic bending machine with variable capacity power stations can form different thicknesses and dimensions of carbon steel and stainless steel conical components.
Technical Parameters
| Parameter | Specification |
|---|---|
| Cone Diameter | 20mm-5000mm |
| Machine Dimension | 3500×1500×2000 mm (L×W×H) |
| Cone Thickness | 1-12mm (Stainless steel/Carbon steel) |
| Input Power | 15 kW |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 2500kg |
| Color Options | Grey/Green/Blue/Red/Yellow or Custom |
Custom Design Service

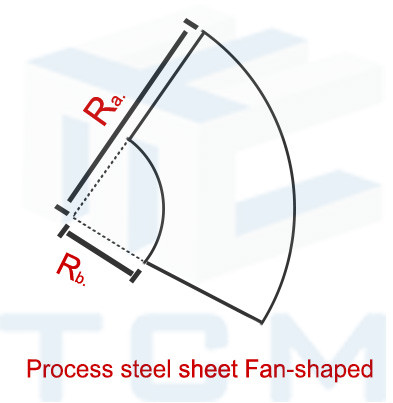

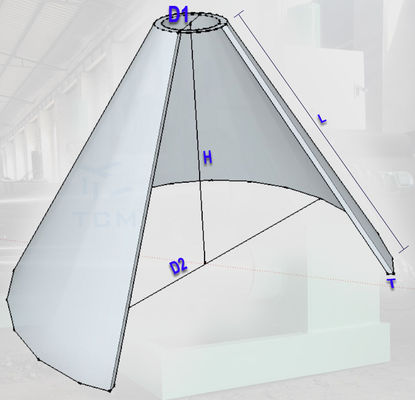

We provide tailored solutions based on your specific requirements. Please provide details about your cone specifications including diameter ranges, side length, thickness, cone height, and your workshop's voltage for a customized solution.
Additional options available: cone surface grinding machines and tank cap polishing equipment.
Packaging & Delivery
Contact Trancar Industries for more steel cone rolling machinery forming solutions.
