Three Shafts Cone Hydraulic Bending Machine Conical Bending Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-CR |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Standard Export package |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Three Shafts Cone Hydraulic Bending Machine Conical Banding Maschine | Dimension | 3500x1500x2000 Mm |
|---|---|---|---|
| Weight | 3500kg | Function | Make Steel Cones,conical Tank Caps And Conical Dish Head Forming |
| Color | Blue/Red/Grey | Voltage | 380V 400V 415V Etc |
| Condition | 100% New | Warranty | 18 Month |
| After-sales Service | Video Support/Engineer Oversea Service | Provide | ODM & OEM |
| Highlight | Cone hydraulic bending machine,Three Shafts hydraulic bending machine,380V conical bending machine |
||
Product Description

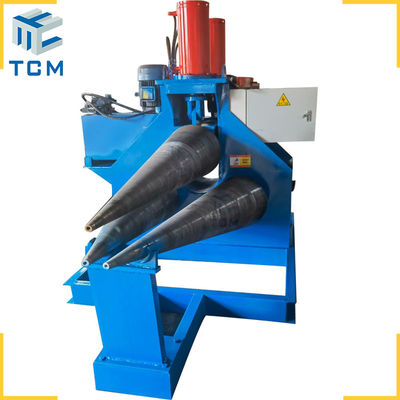

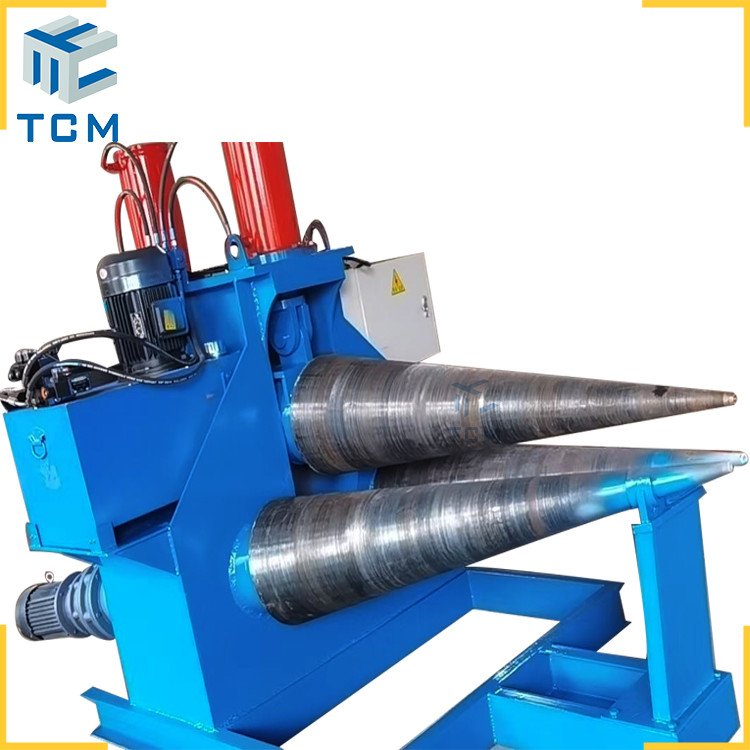

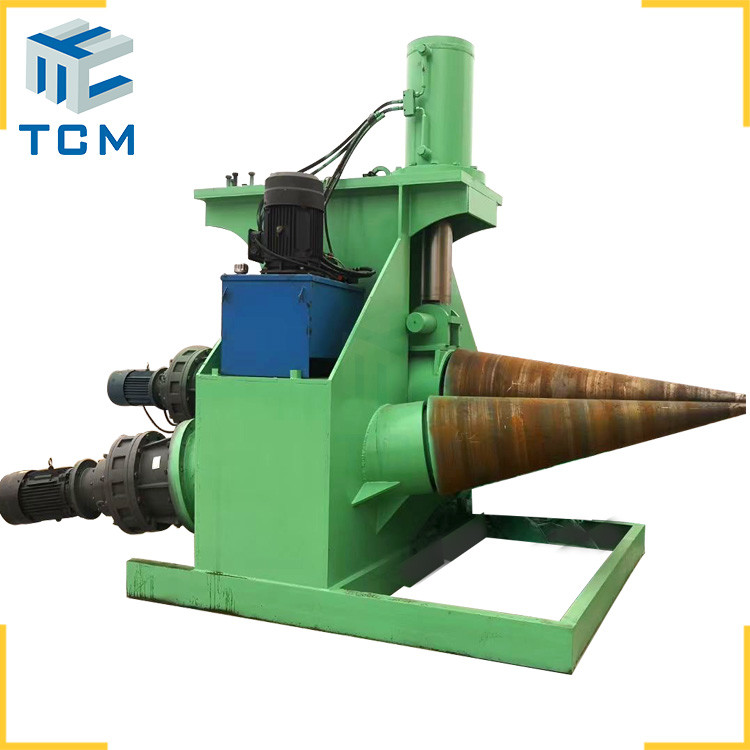

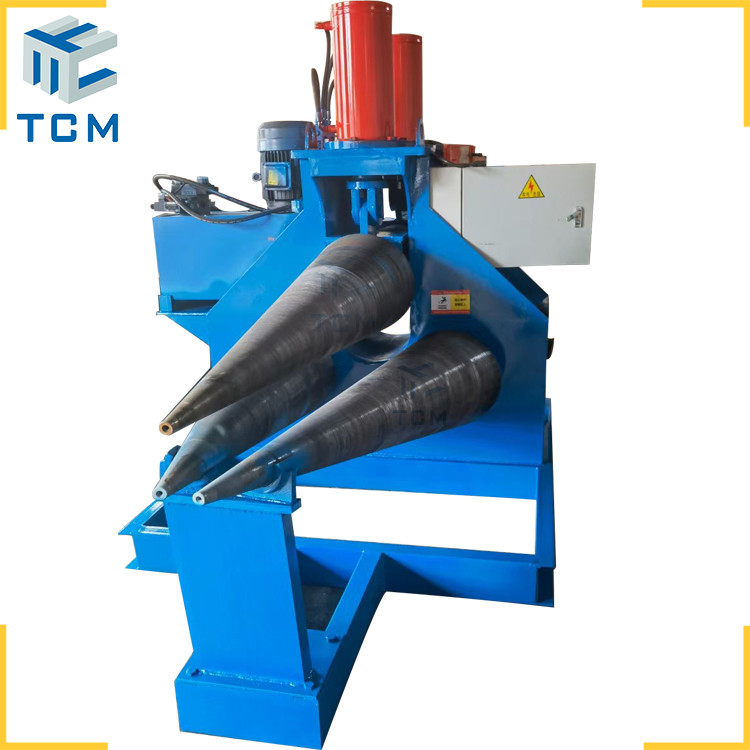

Three Shafts Cone Hydraulic Bending Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Three shafts cone hydraulic bending machine |
| Dimension | 3500×1500×2000 mm |
| Weight | 3500kg |
| Function | Steel cone forming, conical tank caps and dish head forming |
| Color Options | Blue/Red/Grey |
| Voltage | 380V 400V 415V etc |
| Condition | 100% new |
| Warranty | 18 Month |
| After-sales Service | Video support/Engineer oversea service |
| Provide | ODM & OEM |
Industrial Cone Forming Solution

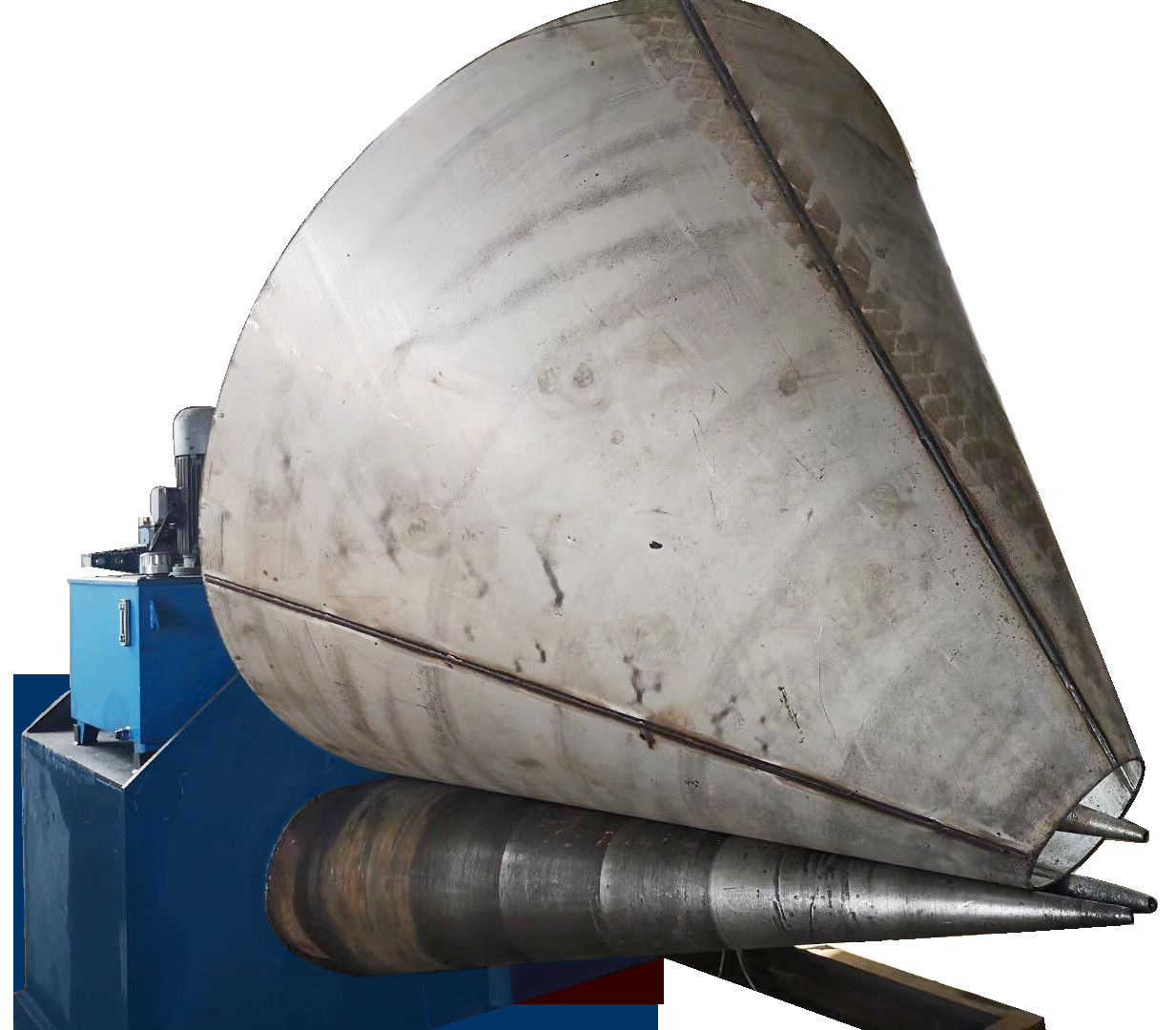

The Trancar Industries Model TCM-CR series hydraulic steel cone bending machine is engineered for precision forming of conical tank caps and steel cones to meet exact client specifications.
Technical Parameters
| Parameter | Specification |
|---|---|
| Cone Diameter Range | 20mm-5000mm |
| Machine Dimensions | 3500×1500×2000 mm (L×W×H) |
| Material Thickness | 1-12mm (Stainless steel/Carbon steel) |
| Power Input | 15 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p (Customizable) |
| Machine Weight | 2500kg |
| Color Options | Grey/Green/Blue/Red/Yellow (Customizable) |
Custom Design Service
We provide tailored cone bending solutions based on your specific requirements including:
- Cone diameter ranges
- Side length specifications
- Material thickness
- Cone height requirements
- Workshop voltage compatibility
Complete Manufacturing Solutions
In addition to our three-shaft hydraulic bending machines, we offer complementary equipment including:
- Cone surface grinding machines
- Tank cap polishing equipment
Packaging & Delivery
Contact Trancar Industries for expert steel cone forming solutions and customized machinery options.
