Steel Tank Shell Circumferential Welding Seam Planishing Machine

  • Steel Tank Shell Circumferential Welding Seam Planishing Machine
  • Steel Tank Shell Circumferential Welding Seam Planishing Machine
  • Steel Tank Shell Circumferential Welding Seam Planishing Machine
  • Steel Tank Shell Circumferential Welding Seam Planishing Machine
  • Steel Tank Shell Circumferential Welding Seam Planishing Machine
  • Steel Tank Shell Circumferential Welding Seam Planishing Machine
Place of Origin China
Brand Name Trancar Industries
Certification ISO/CE
Model Number TCM-CF
Minimum Order Quantity 1 set
Price USD 12000-30000 Dollars
Packaging Details Standard Export Package
Delivery Time 35 workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Steel Tank Circular Welded Joint Planishing Machine Color Blue/Red/Grey Etc
Dimensions 2000*900*3500mm Weight 2200 Kg
Voltage 380V 415V 400V Condition 100% New
Certicaition CE/ISO Warranty 1 Year
After-sales Service Video Technical Support/Online Surpport/Engineer Oversea Provide OEM & ODM
Highlight

Steel Tank weld planisher

,

Circumferential weld planisher

,

Seam planishing machine
Leave a Message
Product Description

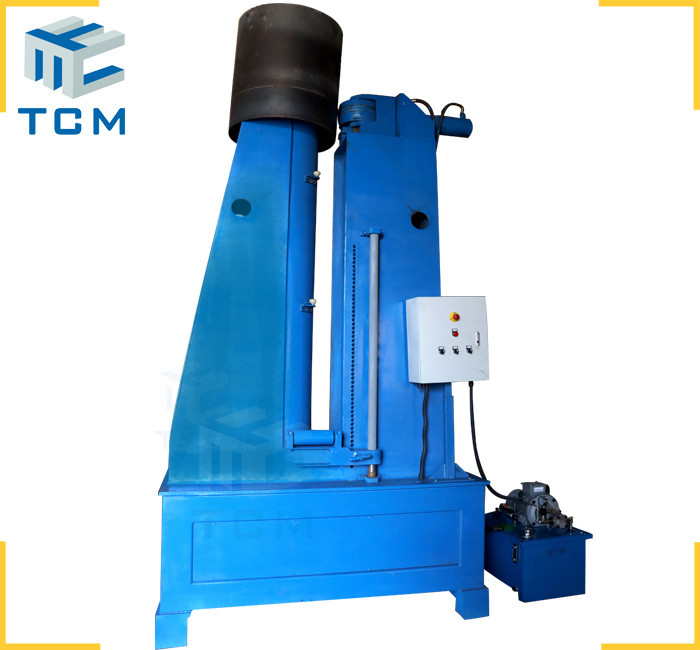

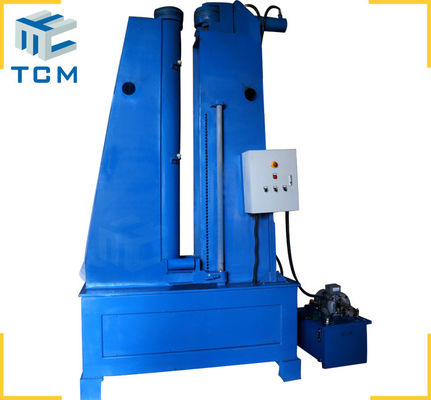

Steel Tank Shell Circumferential Welding Seam Planishing Machine
Product Specifications
Attribute Value
Product Name Steel tank circular welded joint planishing machine
Color Blue/Red/Grey etc
Dimensions 2000*900*3500mm
Weight 2200 kg
Voltage 380V 415V 400V
Condition 100% New
Certification CE/ISO
Warranty 1 year
After-sales service Video technical support/Online support/Engineer oversea
Provide OEM & ODM
Product Overview

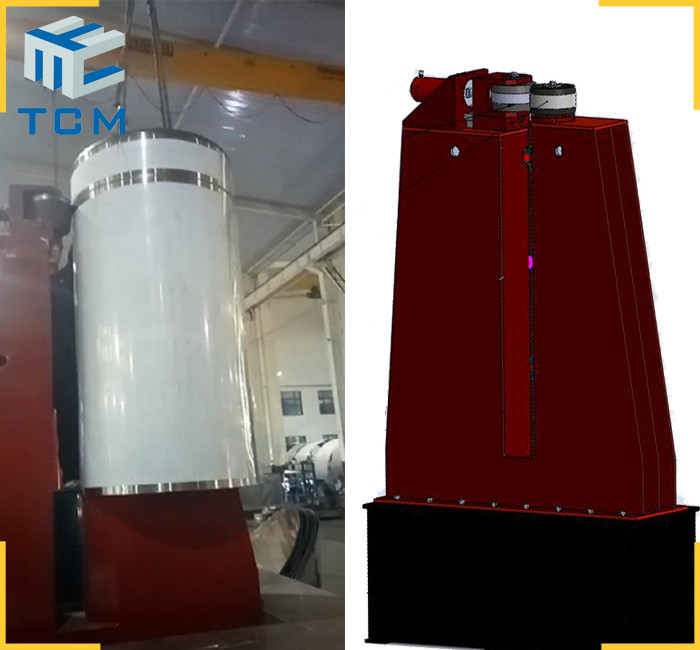

Hefei Trancar Industries cylinder circumferential joints planishing machine with CE certification is designed for steel tank shell and cylinder surface welded seam treatments including planishing, flattening, crushing, and smoothing after welding operations. This results in superior surface quality for sanitary cylinder tanks.

Machine Capabilities

Our product line includes both longitudinal welding seam planishing machines and circumferential joints planishing machines, both customizable to meet specific client requirements.

Technical Description

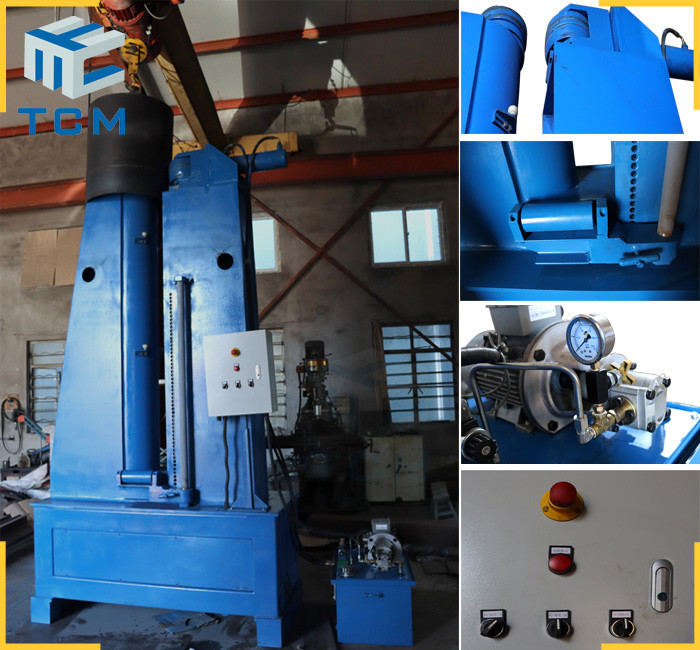

The TCM-CP planishing equipment is a specialized cylinder circumferential joints planishing machine composed of:

  • Fuselage with rolling wheel and guide rail
  • Top tightening cylinder

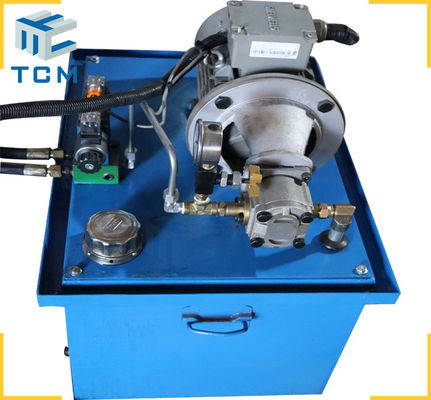

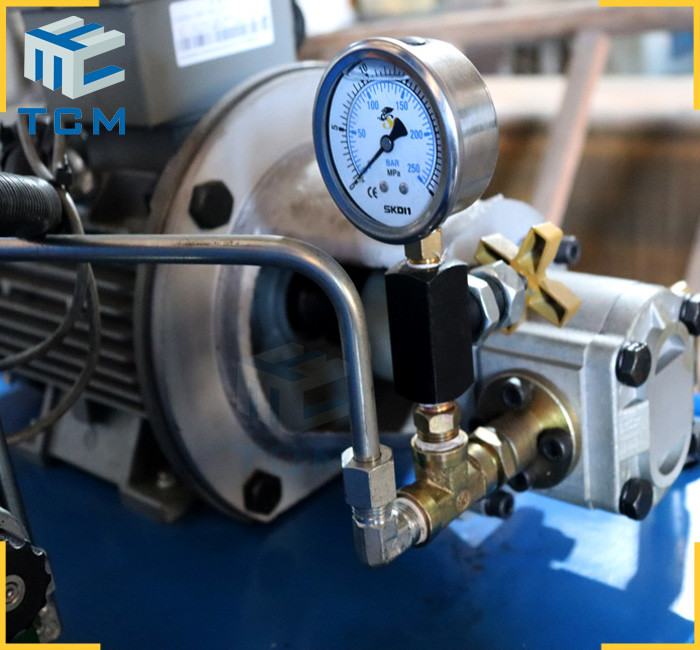

  • Hydraulic station
  • Main transmission mechanism
  • Lubrication system
  • Electrical control system

This machine is widely used in pharmaceutical, chemical, environmental purification, food & beverage, and water filtration industries.

Technical Parameters

Standard Configuration (custom designs available)

  • Steel metal tank size: 800-5000 mm diameter
  • Tank shell Max. Weight: 1 Ton / 2 Ton / 5 Ton /10 Ton
  • Planishing Speed: ≤1000 mm/minute
  • Welded Seam Width: 50-70mm (customizable)
  • Machine Dimension: 2000*900*3500mm
  • Smoothing Roller Material: Steel Gr12 case hardening
  • Operating pressure: 12 Mpa
  • Input total Power: 6 kw
  • Power Supply: 380V 415V / 50Hz 60HZ / 3p or Customization
Packaging & Delivery

Standard export packaging is used for all planishing machine shipments.

Steel Tank Shell Circumferential Welding Seam Planishing Machine 0 Steel Tank Shell Circumferential Welding Seam Planishing Machine 1
Custom Solutions Available

Contact us for custom welding seam planishing solutions tailored to your specific tank and sheet requirements.
