Planishing Welds Steel Tank Longitudinal Welding Seam Crushing Machine

  • Planishing Welds Steel Tank Longitudinal Welding Seam Crushing Machine
  • Planishing Welds Steel Tank Longitudinal Welding Seam Crushing Machine
  • Planishing Welds Steel Tank Longitudinal Welding Seam Crushing Machine
  • Planishing Welds Steel Tank Longitudinal Welding Seam Crushing Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-LF
Minimum Order Quantity 1 set
Price USD 9000-25000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 45 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Steel Tank Longitudinal Welding Seam Crushing Machine Voltage 380V 400V 415V Etc
Condition 100% New Warranty 18 Month
Highlight

Longitudinal Seam Crushing Machine

,

Welding Seam Crushing Machine

,

Steel Tank planishing welds
Leave a Message
Product Description
Planishing Welds Steel Tank Longitudinal Welding Seam Crushing Machine
Product Specifications
Attribute Value
Product name Steel tank longitudinal welding seam crushing machine
Voltage 380V 400V 415V etc
Condition 100% new
Warranty 18 Month
Product Overview

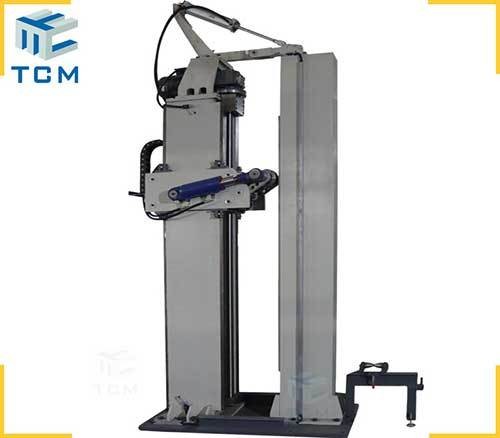

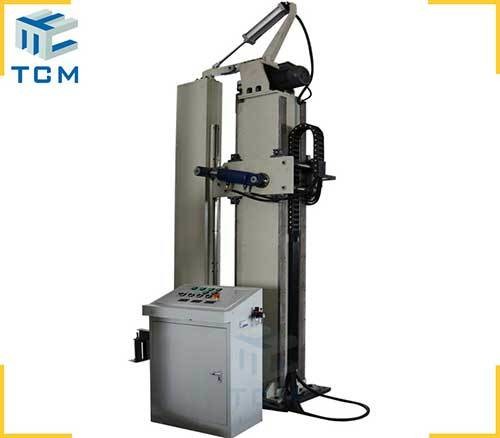

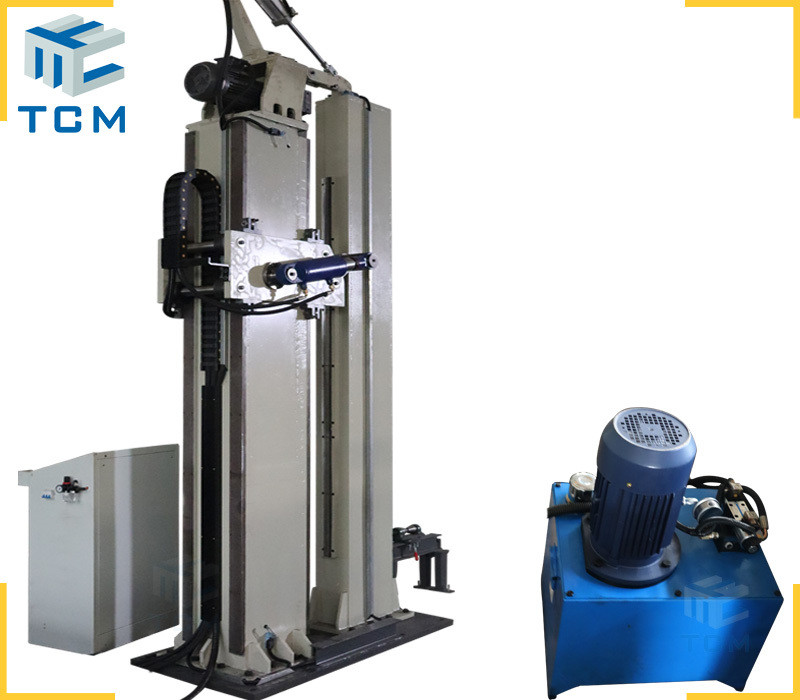

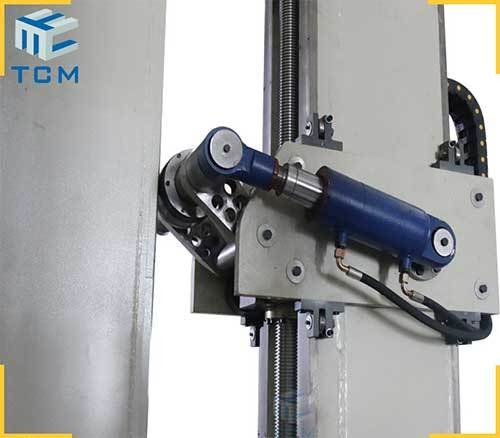

The TCM-LF automatic welding seam crushing machine from Trancar Industries is designed for surface treatment of steel tank welded seams before polishing. This specialized equipment performs flattening, crushing, and planishing treatments to achieve superior surface quality for stainless steel tanks.
Primary Applications: Crushing steel tank longitudinal welded seams, vertical welded joints, and planishing vessel longitudinal welding seams. Widely used in pharmaceutical, chemical, environmental purification, food & beverage, and water filtration industries.
Technical Parameters
Parameter Specification
Steel metal tank size Tank shell diameter ≥ 500 mm
Tank/Welded Seam Length 1800 mm (Custom designs available)
Tank shell Max. Weight 1 Ton / 2 Ton / 5 Ton /10 Ton
Flatten Roller Move Speed ≥2500 mm/minute
Welded Seam Width 50-70mm (Customizable)
Machine Dimension 2000*900*3200mm
Operating pressure 12 Mpa
Input total Power 5 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p (Customizable)
Machine Weight 2200kg
Color Grey/Green/Blue/Red/Yellow (Customizable)
