380V 400V 415V Steel Tank Shell Longitudinal Weld Planisher Flatten Equipment

  • 380V 400V 415V Steel Tank Shell Longitudinal Weld Planisher Flatten Equipment
  • 380V 400V 415V Steel Tank Shell Longitudinal Weld Planisher Flatten Equipment
  • 380V 400V 415V Steel Tank Shell Longitudinal Weld Planisher Flatten Equipment
  • 380V 400V 415V Steel Tank Shell Longitudinal Weld Planisher Flatten Equipment
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-LF
Minimum Order Quantity 1 set
Price USD 9000-25000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Steel Tank Longitudinal Welding Seams Planishng Machine Color Yellow/Red/White Etc
Voltage 380V 400V 415V Etc Provide ODM & OEM
Highlight

415V weld planisher

,

weld planisher Longitudinal

,

planishing machine 380V
Leave a Message
Product Description

Steel tank longitudinal welding seams planishng machine long welding seam planishing

TCM-LF automatic welding seam planishing machine is designed for steel tank shell welded seams surface treatment before polishing such as flatten & crush & planishing treatment after welding,and to make steel tank with better surface thus to get higher quality Ss tanks.It’s mainly for crushing steel tank longitudinal welded seams & lines,crushing tank vertical welded joints and planishing vessel longitudinal welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage, water filtration,etc.



Steel tank longitudinal welding seams planishng machine parameter:

Normal configuration(customer design acceptable)

Steel metal tank size

Tank shell diameter

≧ 500 mm

Tank / Welded Seam Length

1800 mm /Custom design

Tank shell Max.Weight

1 Ton / 2 Ton / 5 Ton /10 Ton

Flatten Roller Move Speed

≧2500 mm/minute

Welded Seam Width

50-70mm / Based on demands

Flatten machine size

Machine Dimension

2000*900*3200mm

Operating pressure

12 Mpa

Input total Power

/

5 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

2200kg

Color

Grey/Green/Blue/Red/Yellow Custom design

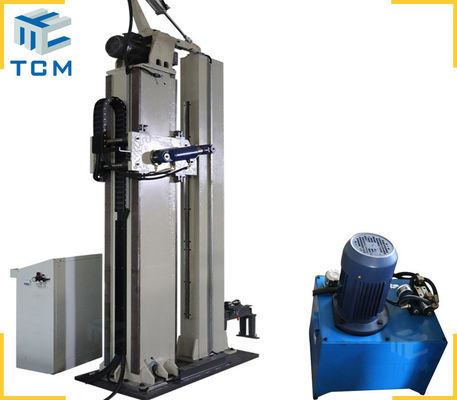

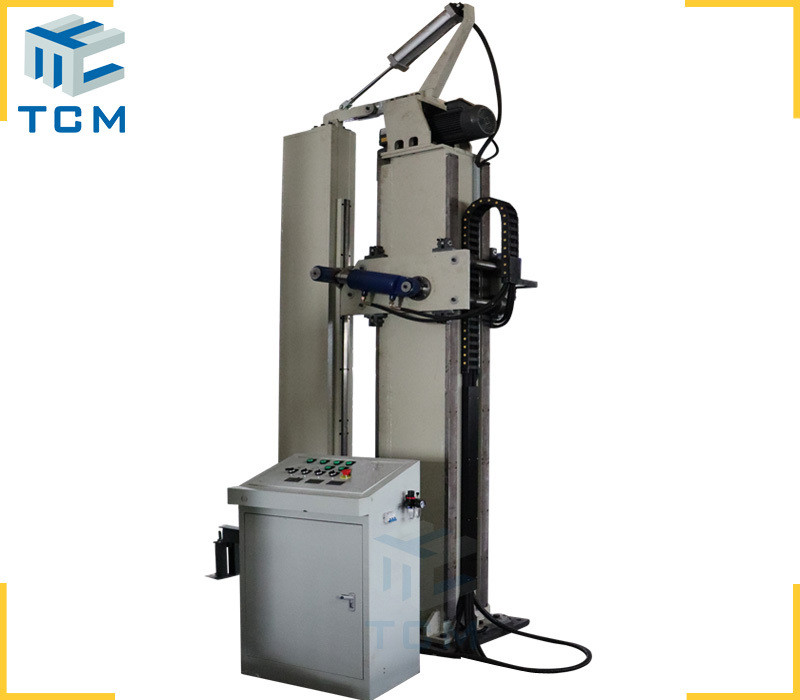

 380V 400V 415V Steel Tank Shell Longitudinal Weld Planisher Flatten Equipment 0



Contact Trancar Industries for more welds flatten planishing machine and solutions.

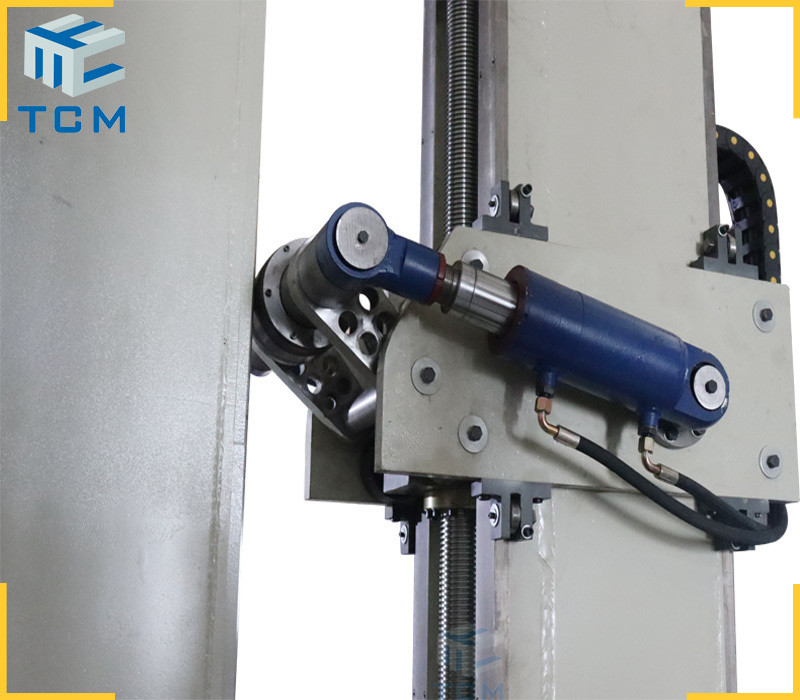

380V 400V 415V Steel Tank Shell Longitudinal Weld Planisher Flatten Equipment 1
