Custom Steel Tank Longitudinal Weld Planisher Seam Flatten Machine

  • Custom Steel Tank Longitudinal Weld Planisher Seam Flatten Machine
  • Custom Steel Tank Longitudinal Weld Planisher Seam Flatten Machine
  • Custom Steel Tank Longitudinal Weld Planisher Seam Flatten Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-LF
Minimum Order Quantity 1 set
Price USD 15000-50000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 45 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Tank Longitudinal Welded Seam Flatten Machine Color Blue/Red/Grey
Dimension 2000x900x3200mm Voltage 380V 400V 415V Etc
Weight 3500kg Condition 100% New
Usage Remove Welding Seam On Steel Sheet Surface Warranty 18 Month
Highlight

Longitudinal Weld Planisher

,

Steel Tank Weld Planisher

,

Custom planishing machine
Leave a Message
Product Description
Custom Steel Tank Longitudinal Weld Planisher Seam Flatten Machine
Product Specifications
Attribute Value
Product Name Tank Longitudinal Welded Seam Flatten Machine
Color Blue/Red/Grey
Dimension 2000x900x3200mm
Voltage 380V 400V 415V etc
Weight 3500kg
Condition 100% new
Usage Remove welding seam on steel sheet surface
Warranty 18 Month
Product Description

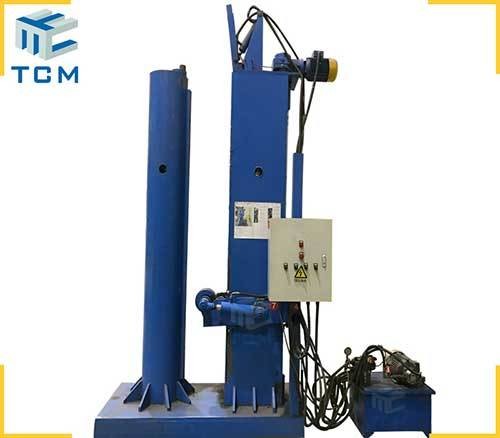

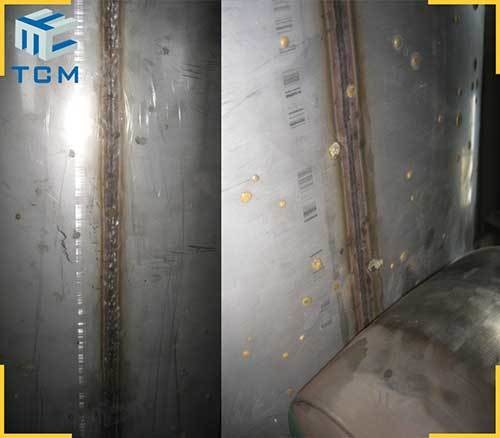

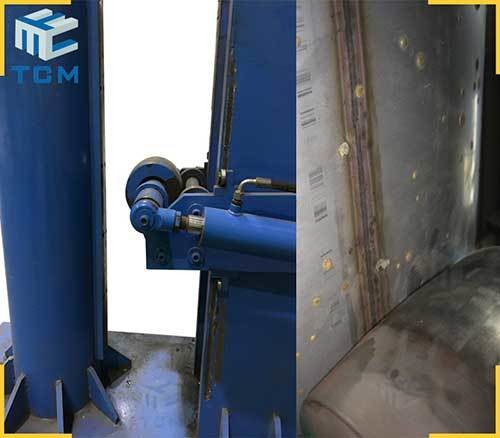

The TCM-LF automatic flatten machine is designed for steel tank shell welded seams surface flattening, crushing, and planishing treatment after welding, resulting in superior steel tank surfaces. This machine primarily flattens steel tank longitudinal welded seams, crushes tank vertical welded joints, and planishes vessel longitudinal welding seams. It finds wide application in pharmaceutical, chemical, environmental purification, food & beverage, and water filtration industries.

Technical Parameters
Steel metal tank size Tank shell diameter ≥ 500 mm
Tank / Welded Seam Length 1800 mm / Custom design available
Tank shell Max. Weight 1 Ton / 2 Ton / 5 Ton / 10 Ton
Flatten Roller Move Speed ≥2500 mm/minute
Welded Seam Width 50-70mm / Based on demands
Machine Dimension 2000*900*3200mm
Operating pressure 12 Mpa
Input total Power 5 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Machine Weight 2200kg
Color Grey/Green/Blue/Red/Yellow (Custom design available)
Custom Steel Tank Longitudinal Weld Planisher Seam Flatten Machine 0 Custom Steel Tank Longitudinal Weld Planisher Seam Flatten Machine 1

Contact Trancar Industries for more weld planishing equipment and flattening solutions.
