2 In 1 Tank Polishing Machine Vessel Dishes Mechanical Polishing Machine

  • 2 In 1 Tank Polishing Machine Vessel Dishes Mechanical Polishing Machine
  • 2 In 1 Tank Polishing Machine Vessel Dishes Mechanical Polishing Machine
  • 2 In 1 Tank Polishing Machine Vessel Dishes Mechanical Polishing Machine
  • 2 In 1 Tank Polishing Machine Vessel Dishes Mechanical Polishing Machine
  • 2 In 1 Tank Polishing Machine Vessel Dishes Mechanical Polishing Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-YT
Minimum Order Quantity 1 set
Price USD 9000-25000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 25 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name TCM-YT 2 In1 Steel Tank Vessel Dishes Mechanical Polishing Machine Dimension 3500x1600x3050mm
Weight 3500kg Color Blue/Red/Grey
Voltage 380V 400V 415V Etc Provide ODM & OEM
Highlight

2 In 1 Tank Polishing Machine

,

380V Tank Polishing Machine

,

Vessel Dishes mechanical polishing machine
Leave a Message
Product Description
TCM-YT 2 in 1 Steel Tank Vessel Dishes Mechanical Polishing Machine
Product Specifications
Attribute Value
Product Name TCM-YT 2 in1 steel tank vessel dishes mechanical polishing machine
Dimension 3500x1600x3050mm
Weight 3500kg
Color Blue/Red/Grey
Voltage 380V 400V 415V etc
Provide ODM & OEM
Product Overview

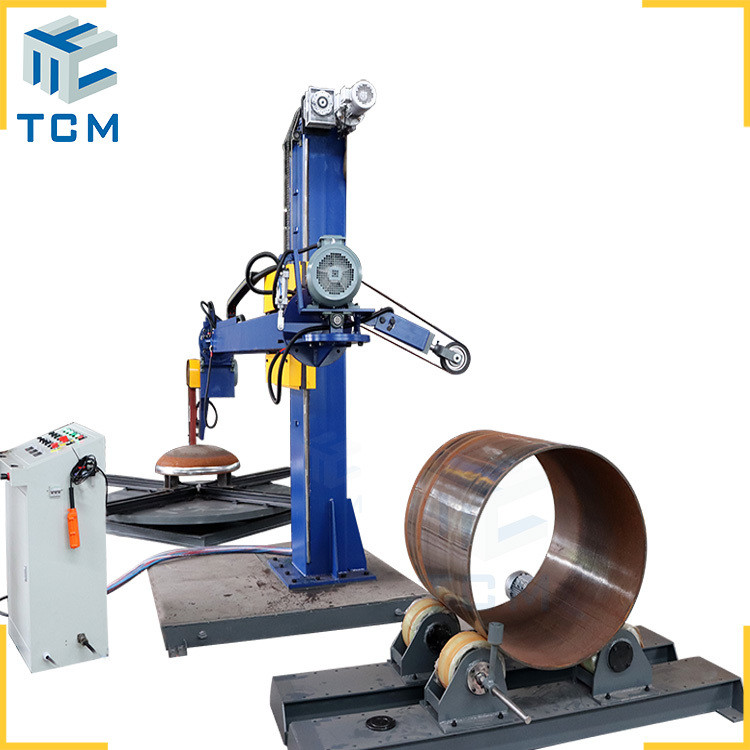

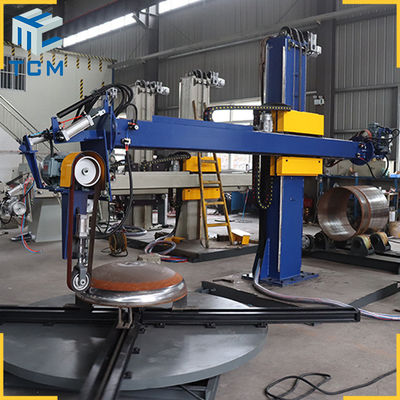

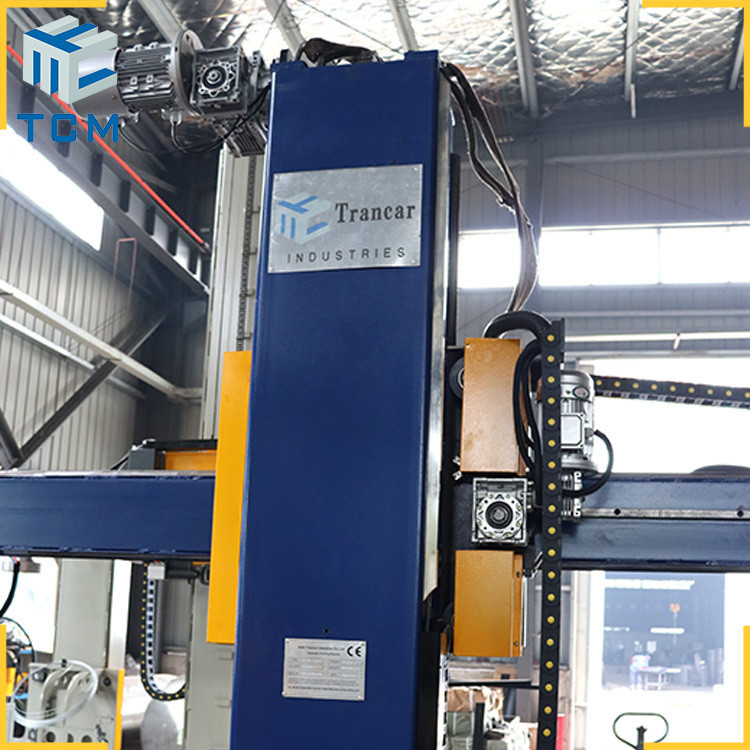

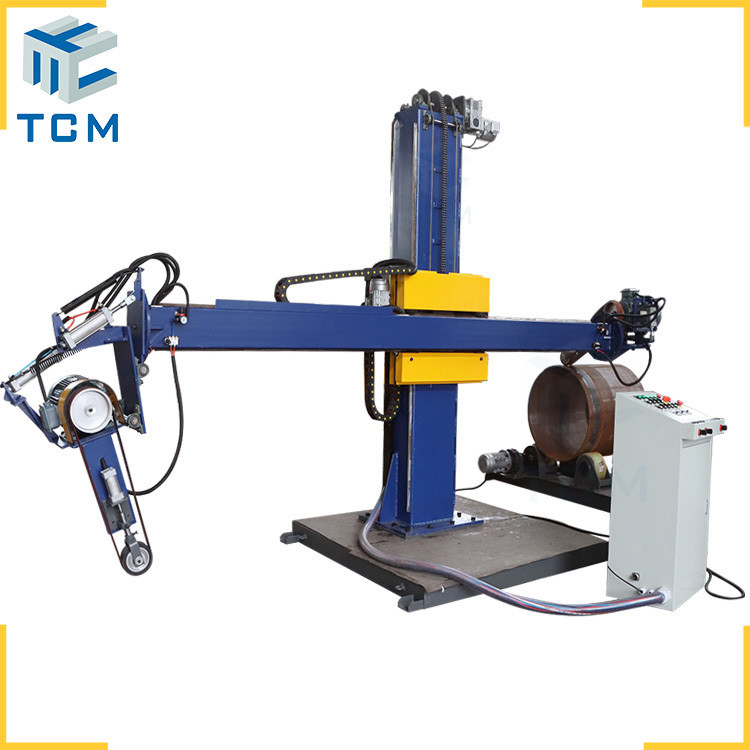

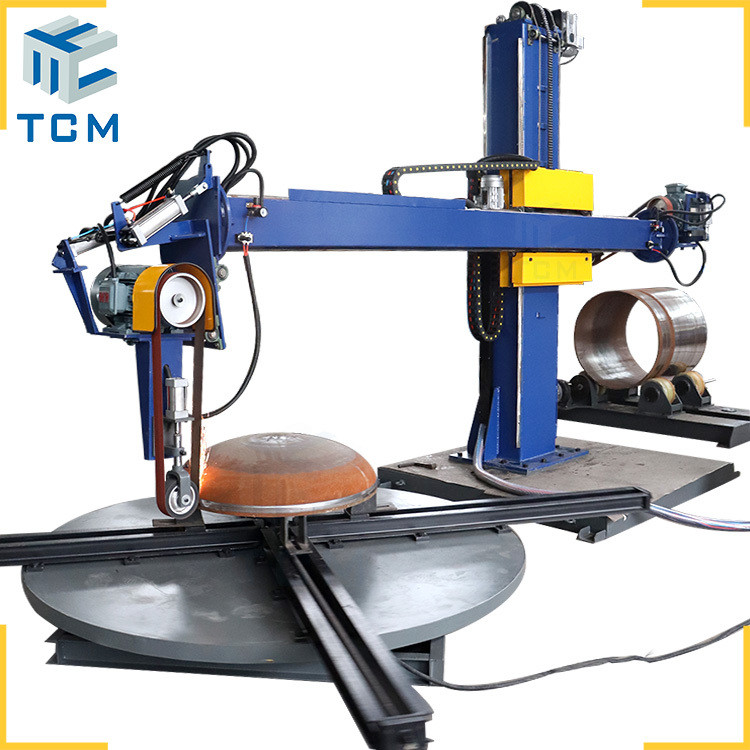

The TCM-YT 2 in1 dual use steel tank vessel dishes mechanical polishing machine is designed for pressure vessel fabrication applications. This versatile machine combines tank shell and dished end vessel head surface treatments in one system, featuring two polishing motors on each side of the machine beam for efficient operation.

2 In 1 Tank Polishing Machine Vessel Dishes Mechanical Polishing Machine 0 2 In 1 Tank Polishing Machine Vessel Dishes Mechanical Polishing Machine 1
Key Features
  • Dual-purpose design for both tank body and dish end polishing
  • Maximum loading capacity of 10 tons for both cylinder tank rotator and dishes turntable
  • Capable of achieving mirror surface finish
  • Production efficiency of 6-12 m²/h
  • Customizable specifications available
  • Suitable for various industries including medical, chemical, food and beverage
Technical Parameters
Parameter Specification
Steel Tank Size (OD) 400-5000mm / 7000mm
Steel Tank Size (ID) 400-5000mm / 7000mm
Length ≤5000mm / 8000mm
Tank Roller Capacity 1-20 Ton (customizable)
Dish End Size 450-5000mm / 6000mm
Turntable Capacity 1-20 Ton (customizable)
Input Power 15 kw
Power Supply 380V 415V / 50Hz 60Hz / 3p
Machine Weight 3550kg
Delivery & Packaging
2 In 1 Tank Polishing Machine Vessel Dishes Mechanical Polishing Machine 2 2 In 1 Tank Polishing Machine Vessel Dishes Mechanical Polishing Machine 3
