415V Steel Tank Shell Vessel Body Inside Outer Surface Automatic Metal Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-T |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Tank Automatic Polishing Machine | Color | Blue/Red/Grey |
|---|---|---|---|
| Dimension | 2500x1600x3080mm | Weight | 2200kg |
| Voltage | 380V 400V 415V Etc | Provide | ODM & OEM |
| Highlight | Steel automatic metal polishing machine,415V automatic metal polishing machine,Automatic metal surface grinding machine |
||
Product Description
415V Steel Tank Shell Vessel Body Inside Outer Surface Automatic Metal Polishing Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product name | Steel tank automatic polishing machine |
| Color | Blue/Red/Grey |
| Dimension | 2500x1600x3080mm |
| Weight | 2200kg |
| Voltage | 380V 400V 415V etc |
| Provide | ODM & OEM |
Industrial Tank Polishing Solution

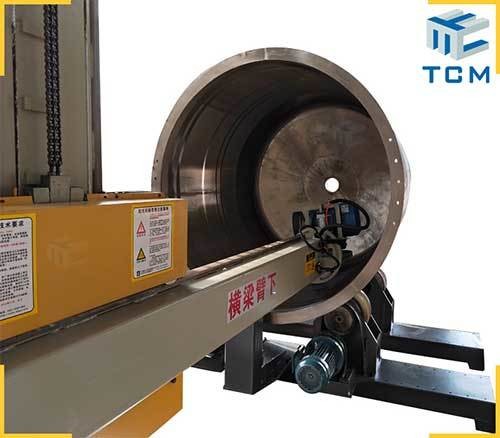

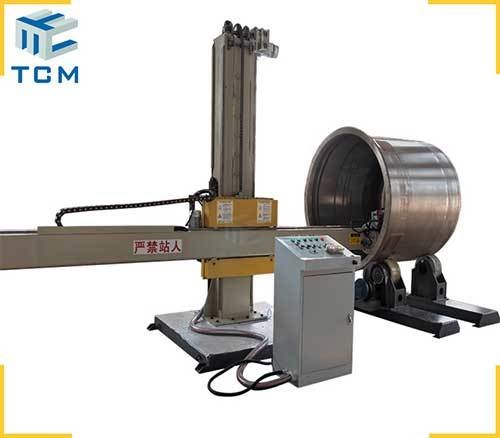

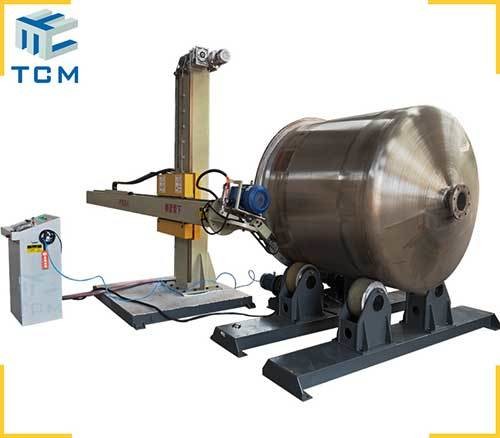

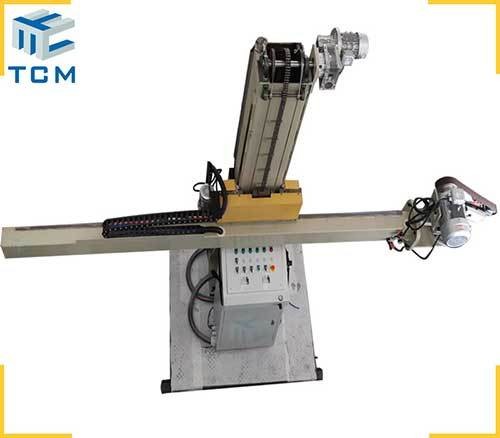

The Trancar Industries TCM-T column and boom manipulator stainless steel tank automatic polishing machine is designed for precision surface treatment of various industrial containers. This versatile equipment handles both internal and external polishing, grinding, and buffing operations for:
- Stainless steel tanks and industrial vessels
- Cylinder surfaces (inside and outside)
- Pressure vessels and industrial containers
- Circumferential welded seams
Industry Applications: Medical equipment, chemical processing, environmental purification, food & beverage processing, water filtration systems, pharmaceutical mixing, and cosmetic production.
Technical Parameters
| Parameter | Specification |
|---|---|
| Steel tank size (Outside diameter) | 400~5000mm / 7000 mm |
| Inside diameter | 400~5000mm / 7000 mm |
| Length | ≤5000mm / 8000 mm |
| Tank Roller Max.Loading capacity | 1 Ton,2 Ton,5 Ton,10 Ton (Custom options: 13T,15T,20T) |
| Polishing Precision (Surface roughness Ra) | ≤0.25μm |
| Production Efficiency | 6~12 m²/h |
| Machine Dimension | 3500*1600*3080mm |
| Input total Power | 12 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p (Customizable) |
| Machine Weight | 2250kg |

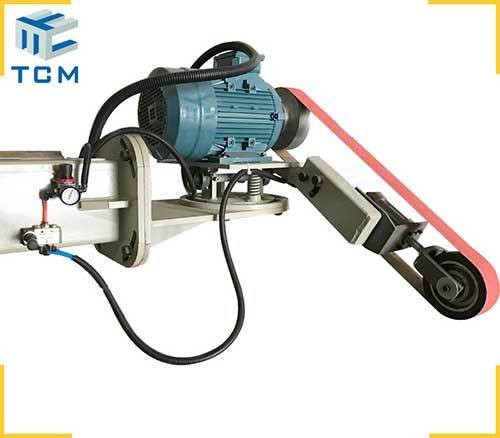

| Suitable Polishing Materials | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |
Packaging & Delivery
Contact us for custom automatic polishing solutions and technical support
