400V 415V 380V Automatic Stainless Steel Tank Vessel Surface Polishing Machine

  • 400V 415V 380V Automatic Stainless Steel Tank Vessel Surface Polishing Machine
  • 400V 415V 380V Automatic Stainless Steel Tank Vessel Surface Polishing Machine
  • 400V 415V 380V Automatic Stainless Steel Tank Vessel Surface Polishing Machine
  • 400V 415V 380V Automatic Stainless Steel Tank Vessel Surface Polishing Machine
  • 400V 415V 380V Automatic Stainless Steel Tank Vessel Surface Polishing Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-T
Minimum Order Quantity 1 set
Price USD 9000-25000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 25 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Automatic Stainless Steel Tank Polishing Machine Dimension 2500x1600x3080mm
Weight 2200kg Voltage 380V 400V 415V Etc
Highlight

Automatic surface polishing machine

,

Vessel surface polishing machine

,

400V metal surface polishing machine
Leave a Message
Product Description

Automatic Stainless Steel Tank vessel surface Polishing Machine

Automatic Stainless Steel Tank Polishing Machine.

Trancar Industries Ss tank polishing automatic polishing machine is made up of column and boom,This model is suitable for not only all kinds of stainless steel tanks ,industrial tanks internal and external polishing grinding and buffing,but surface of the cylinder inside and outside,pressure vessel,industrial container and the circumferential welded seams polishing.This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.

It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,

Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,

centrifugal cylinder shell,crystal furnace tank shell etc.#steeltankautomaticpolishingmachine #tankshellbuffingmachine



Automatic Stainless Steel tank polishing machine parameter:

Normal configuration(ODM & OEM acceptable)

Steel tank size

Outside diameter

400~5000mm / 7000 mm

Inside diameter

400~5000mm / 7000 mm

Length

<=5000mm / 8000 mm

Tank Roller Max.Loading capacity

1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T.

Polishing Precision

Surface roughness(Ra)

<=0.25μm

Production Efficiency

Polishing working speed

6~12 m2/h

Total Dimension

Machine Dimension

3500*1600*3080mm

Column Dimension

300x400x8 mm

Beam Dimension

150x200x6 mm

Input total Power

/

12 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

2250kg

Color

Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Material

Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)

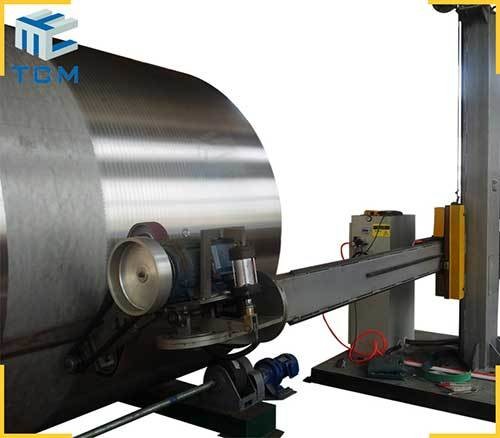

400V 415V 380V Automatic Stainless Steel Tank Vessel Surface Polishing Machine 0

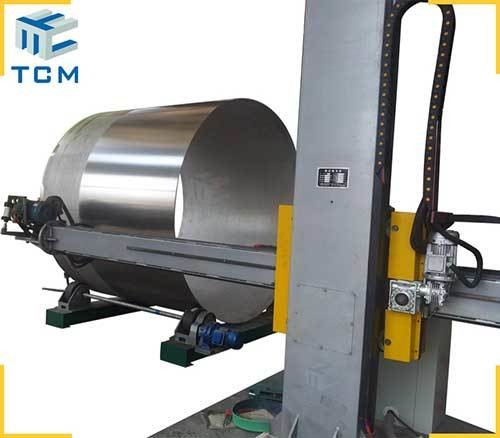

400V 415V 380V Automatic Stainless Steel Tank Vessel Surface Polishing Machine 1

Trancar Industries polishing machine delivery and package:

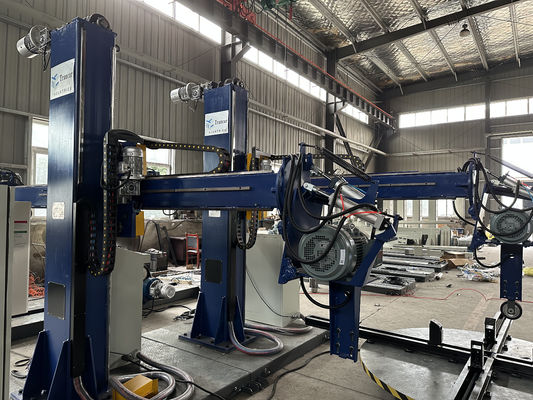

400V 415V 380V Automatic Stainless Steel Tank Vessel Surface Polishing Machine 2

Contact us for more polishing solutions:

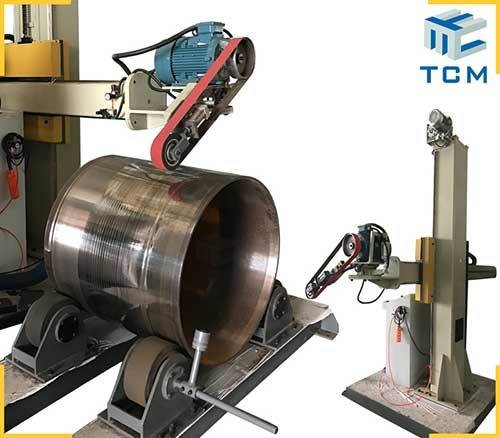

400V 415V 380V Automatic Stainless Steel Tank Vessel Surface Polishing Machine 3
