Automatic Grinding Machine For Steel Wire Rod Surface Grinding Polishing
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WR |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Automatic Grinding Machine For Steel Wire Rod Surface Grinding Polishing | Color | Yellow/Red/White Etc |
|---|---|---|---|
| Condition | 100% New | Provide | ODM & OEM |
| Highlight | Rod Surface automatic grinding machine,Polishing automatic grinding machine,Wire Surface automated grinding machine |
||
Product Description
Automatic Grinding Machine For Steel Wire Rod Surface Grinding Polishing
Product Specifications
| Product Name | Automatic grinding machine for steel wire rod surface grinding polishing |
|---|---|
| Color Options | Yellow/Red/White etc |
| Condition | 100% new |
| Service | ODM & OEM |
Advanced Automatic Grinding Machine for Steel Wire Rods

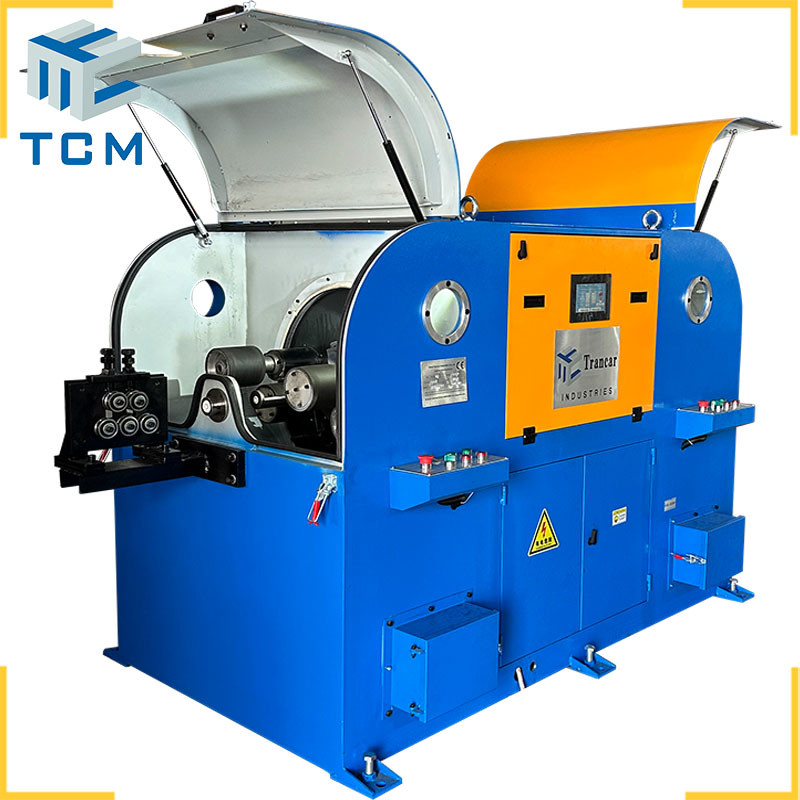

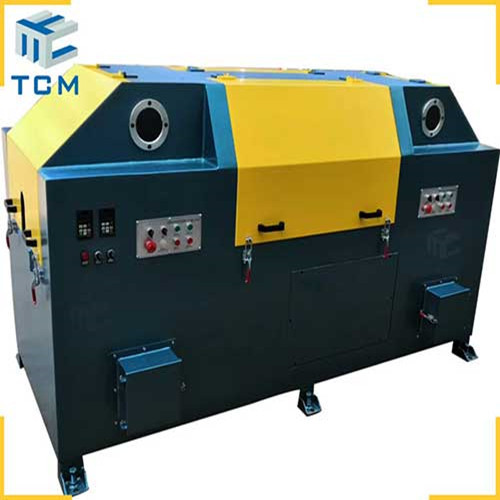

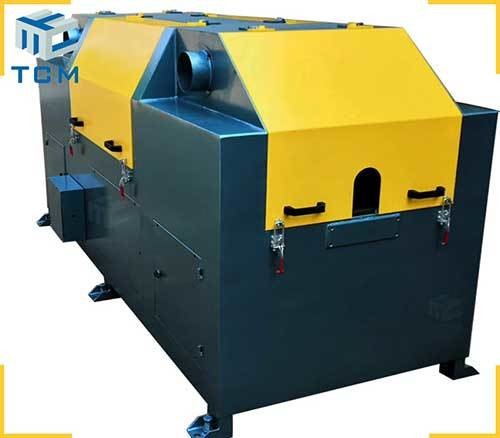

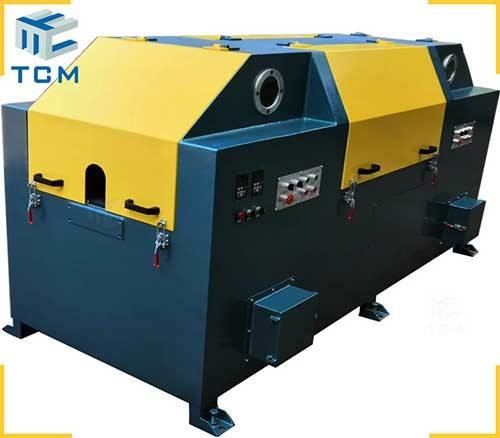

The Trancar Industries Model TCM-WR automatic steel wire rod grinding machine is specifically designed for surface grinding and buffing of stainless steel metal wire rods. This innovative machine uses mechanical processing to grind, polish, and remove rust from wire rod surfaces, replacing traditional pickling methods for an environmentally friendly and energy-efficient solution.

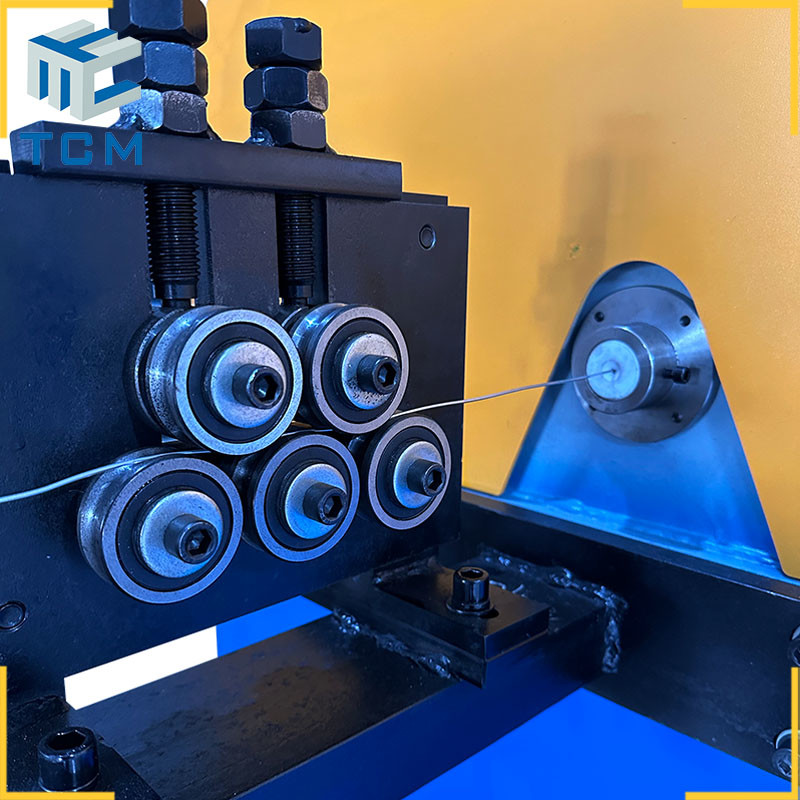

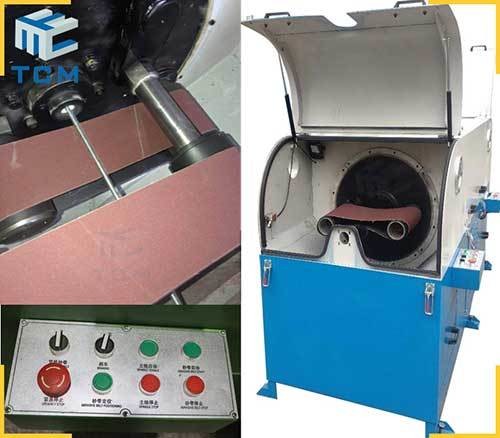

This belt sander effectively removes oxide scale, oxide film, and particles from wire surfaces. The system utilizes four fixed rollers (single side) and two tension rollers supported by a turntable, driving two high-speed rotating abrasive belts to achieve consistent polishing. The turntable rotation speed and wire feed speed are precisely matched for optimal performance.
The thickness of the double-headed belt can be customized according to specific finish requirements. Custom design services are available to meet unique production needs.
Technical Specifications
| Wire Rod Diameter | 1-5mm / 5-8mm / 8-16mm / 16-25mm |
|---|---|
| Machine Dimensions (L×W×H) | 2650×1050×1300mm |
| Abrasive Belts Size | 1600×500 mm / 1350×300mm / 1250×300mm etc |
| Production Efficiency | 120-200 m/h polishing working speed |
| Input Power | 35 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 2100kg |
| Color Options | Grey/Green/Blue/Red/Yellow (Custom design available) |
| Optional Features | Dust Collection system available during polishing |
Packaging and Delivery
Contact Trancar Industries for more steel wire automatic polishing solutions
