Automatic Sanding Belts Wire Polishing Machine Steel Straight Wire Rods
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WR |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-40000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wire Rod Automatic Sanding Belts Polishing Machine | Dimension | 2650x1050x1300mm |
|---|---|---|---|
| Weight | 2100 Kg | Voltage | 380V 400V 415V Etc |
| Color Option | Blue/White/Yellow/Grey Etc | Usage | Surface Brushing Linishing/diameter Reduce |
| Condition | 100% New | Polishing Speed | Max.2m/s |
| Warranty | 18 Month | After-sales Service | Video Support/Engineer Oversea Service |
| Provide | ODM & OEM | Control System | PLC Program |
| Highlight | Belts Wire Polishing Machine,Automatic Wire Polishing Machine,380V polishing belt machine |
||
Product Description
Automatic Sanding Belts Wire Polishing Machine for Steel Straight Wire Rods
Product Specifications
| Product Name | Wire Rod Automatic Sanding Belts Polishing Machine |
| Dimension | 2650×1050×1300mm |
| Weight | 2100 kg |
| Voltage | 380V 400V 415V etc |
| Color Option | Blue/White/Yellow/Grey etc |
| Usage | Surface brushing linishing/diameter reduction |
| Condition | 100% new |
| Polishing Speed | Max. 2m/s |
| Warranty | 18 Month |
| After-sales Service | Video support/Engineer oversea service |
| Provide | ODM & OEM |
| Control System | PLC program |
Stainless Steel Wire Rod Automatic Polishing Machine

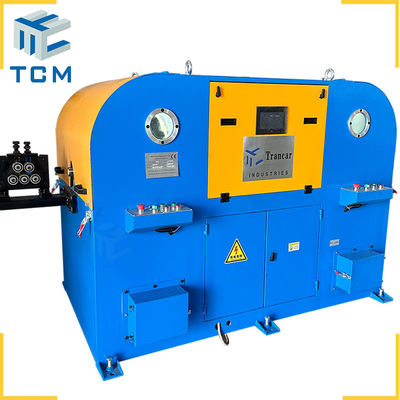

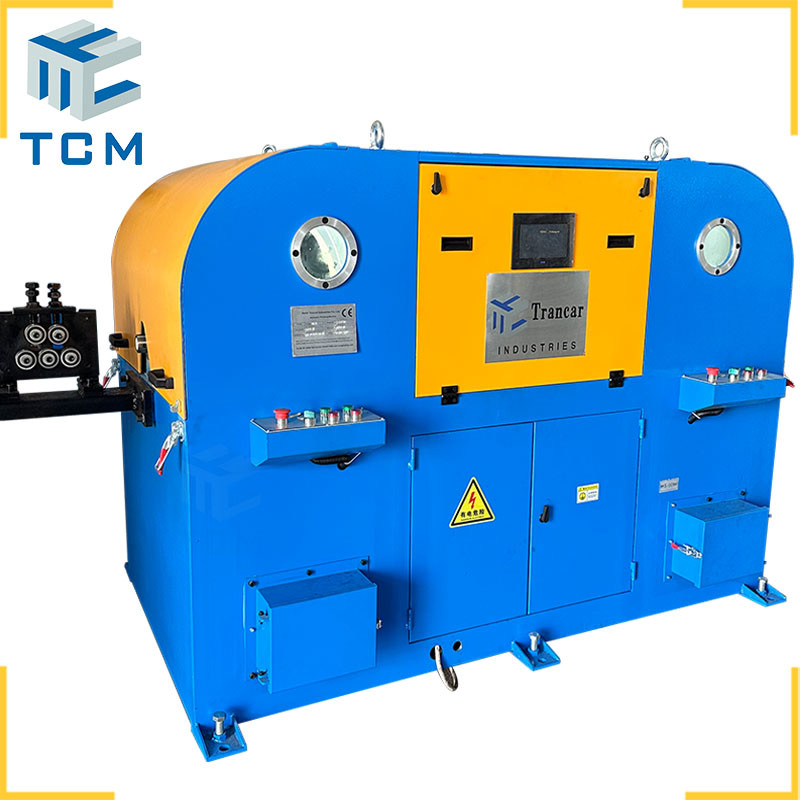

The Trancar Industries Model TCM-WR automatic steel wire rod polishing machine is designed for stainless steel metal wire rods' surface grinding and buffing. This environmentally friendly machine replaces traditional pickling methods, offering energy-efficient operation while meeting mass production requirements with high efficiency and stable, reliable product quality.

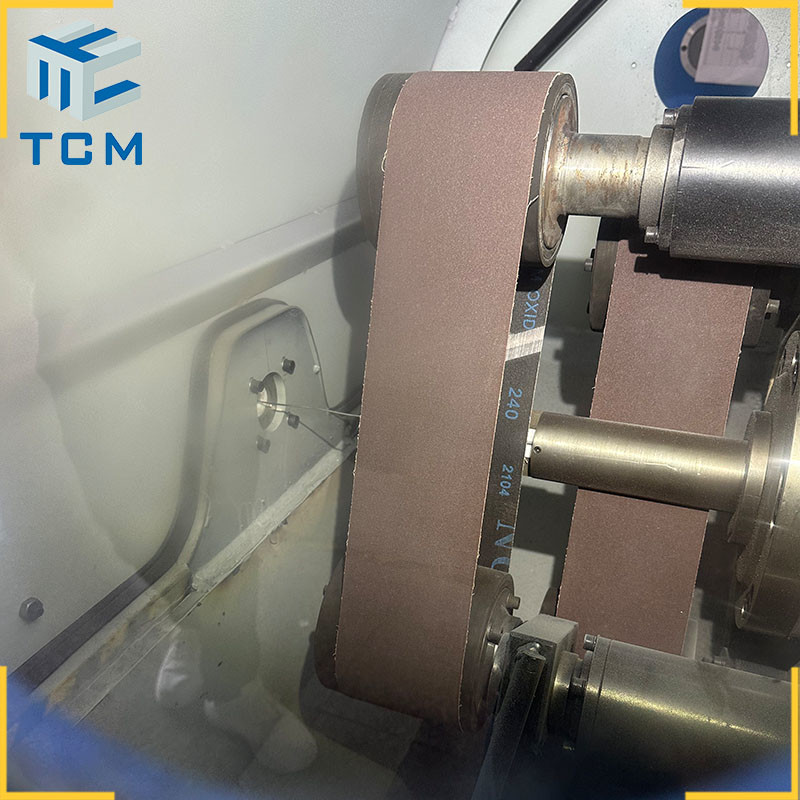

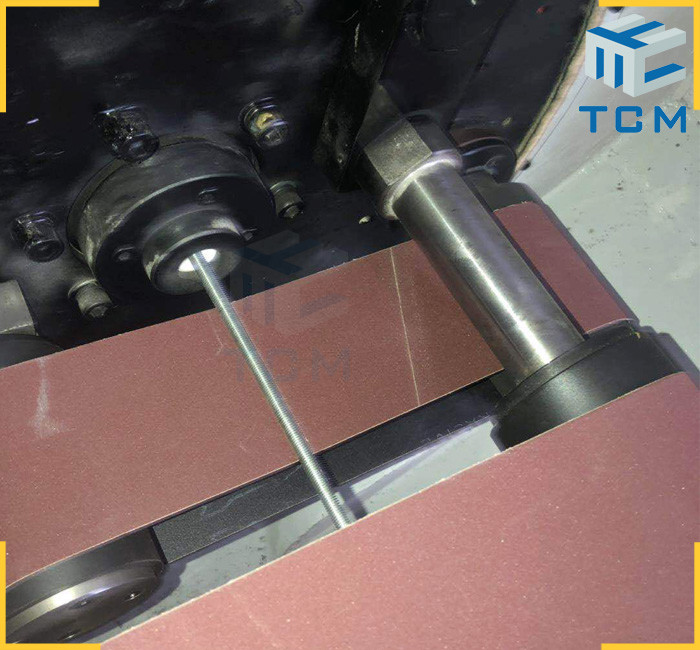

The belt sander effectively removes oxide scale, oxide film, and particles from wire surfaces. Utilizing four fixed rollers and two tension rollers supported by a turntable, it drives two high-speed rotating abrasive belts for precise polishing. The system allows for customizable belt thickness combinations to meet specific finish requirements.
Technical Parameters
| Wire Rod Diameter | 1-5mm / 5-8mm / 8-16mm / 16-25mm |
| Machine Dimension | 2650×1050×1300mm (L×W×H) |
| Abrasive Belts Size | 1600×500 mm / 1350×300mm / 1250×300mm etc |
| Production Efficiency | 120-200 m/h polishing speed |
| Input Total Power | 35 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 2100kg |
| Color | Grey/Green/Blue/Red/Yellow Custom design |
| Optional Features | Dust Collection system available |
Package and Delivery
Dust Collection System Option
The steel wire rod polishing machine can be equipped with a 4kw dust collection system for cleaner operation.
Contact Trancar Industries for more information about our stainless steel fine wire automatic polishing machines and custom design solutions. Our team is ready to provide specialized equipment tailored to your production requirements.
