Steel Metal Wire Rods Sanding Belt Descale Grinding Machine Wire Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WR |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-40000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wire Rods Sanding Belt Descale Grinding Machine | Dimension | 2650x1050x1300mm |
|---|---|---|---|
| Weight | 2100 Kg | Voltage | 380V 400V 415V Etc |
| Color Option | Blue/White/Yellow/Grey Etc | Usage | Surface Brushing Linishing/diameter Reduce |
| Condition | 100% New | Polishing Speed | Max.2m/s |
| Warranty | 18 Month | After-sales Service | Video Support/Engineer Oversea Service |
| Provide | ODM & OEM | Control System | PLC Program |
| Highlight | Steel Wire Polishing Machine,Metal Wire Polishing Machine,Rods Descale Grinding Machine |
||
Product Description
Steel Metal Wire Rods Sanding Belt Descale Grinding Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Wire rods sanding belt descale grinding machine |
| Dimension | 2650×1050×1300mm |
| Weight | 2100 kg |
| Voltage | 380V 400V 415V etc |
| Color option | Blue/White/Yellow/Grey etc |
| Usage | Surface brushing linishing/diameter reduction |
| Condition | 100% new |
| Polishing speed | Max. 2m/s |
| Warranty | 18 Month |
| After-sales service | Video support/Engineer oversea service |
| Provide | ODM & OEM |
| Control system | PLC program |
Product Description

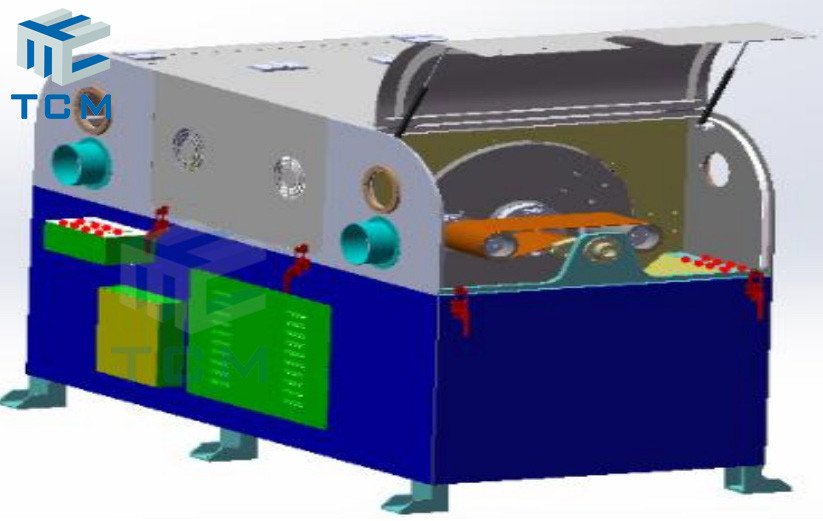

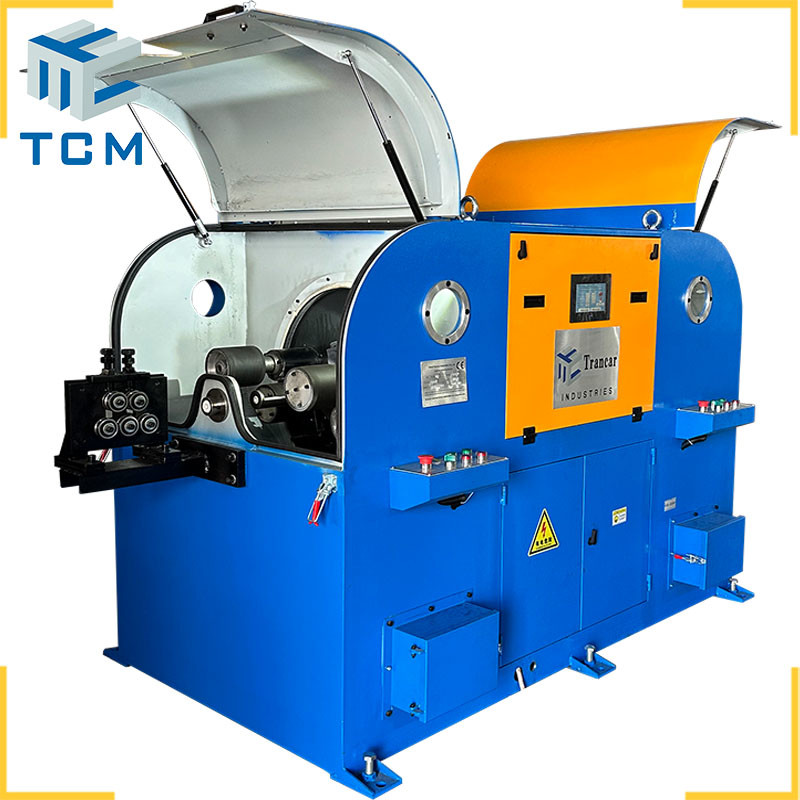

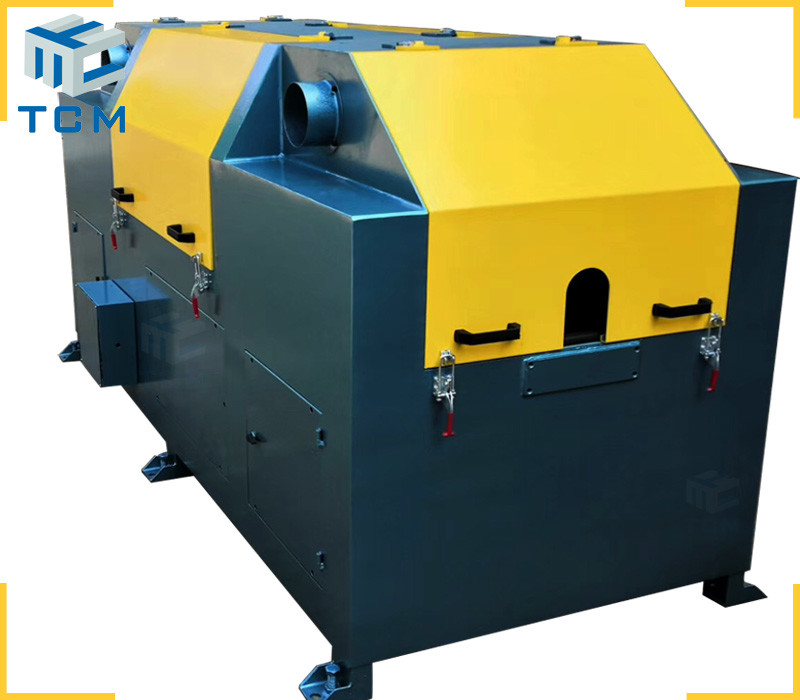

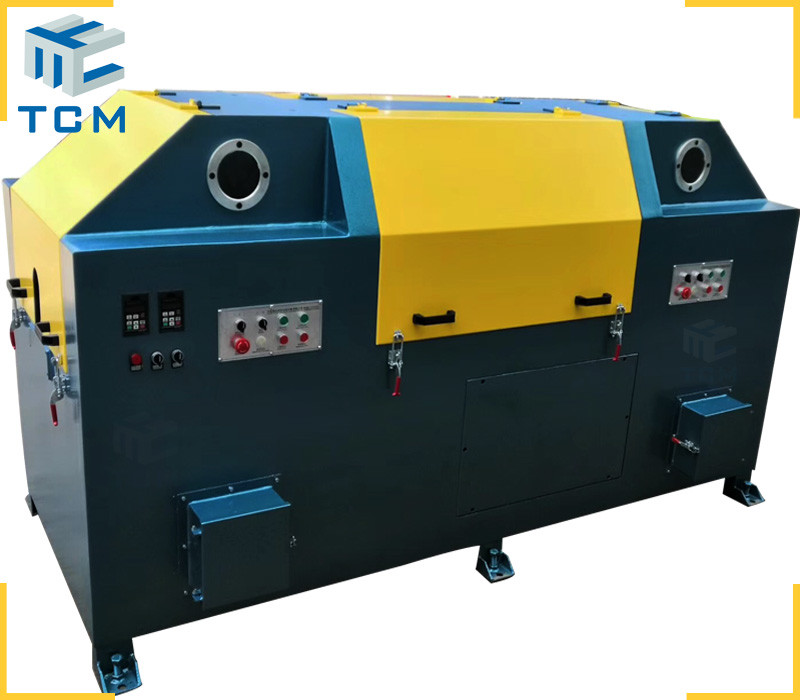

The Trancar Industries Model TCM-WR automatic steel wire rod cleaning machine is designed for stainless steel metal wire rods' surface grinding and buffing. This machine adopts mechanical methods to process the surface of metal wire rods for grinding, polishing, and rust removal, replacing traditional pickling methods. It is environmentally friendly, energy-saving, and meets mass production requirements while achieving high production efficiency and stable, reliable product quality.
Technical Parameters
| Wire Rod Diameter | 1-5mm / 5-8mm / 8-16mm / 16-25mm |
| Machine Dimension | 2650×1050×1300mm (L×W×H) |
| Abrasive Belts Size | 1600×500 mm / 1350×300mm / 1250×300mm etc |
| Production Efficiency | 120-200 m/h polishing working speed |
| Input Total Power | 35 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 2100kg |
| Color | Grey/Green/Blue/Red/Yellow Custom design |
Optional Feature: Dust collection system available during polishing for cleaner operation and improved working environment.
Machine Features
- Removes oxide scale and particles from wire surfaces

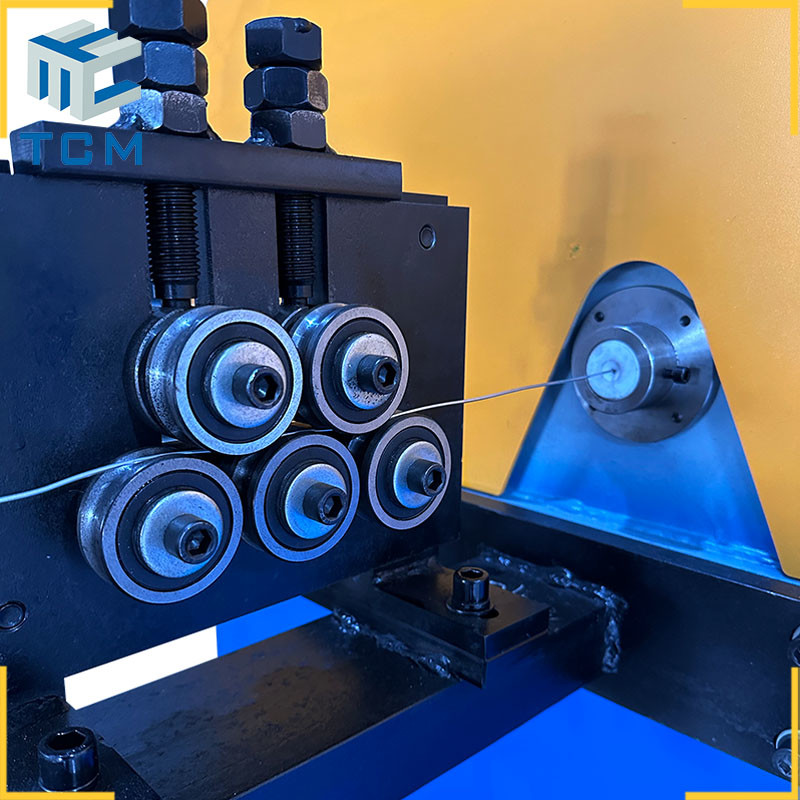

- Utilizes four fixed rollers and two tension rollers for precise polishing

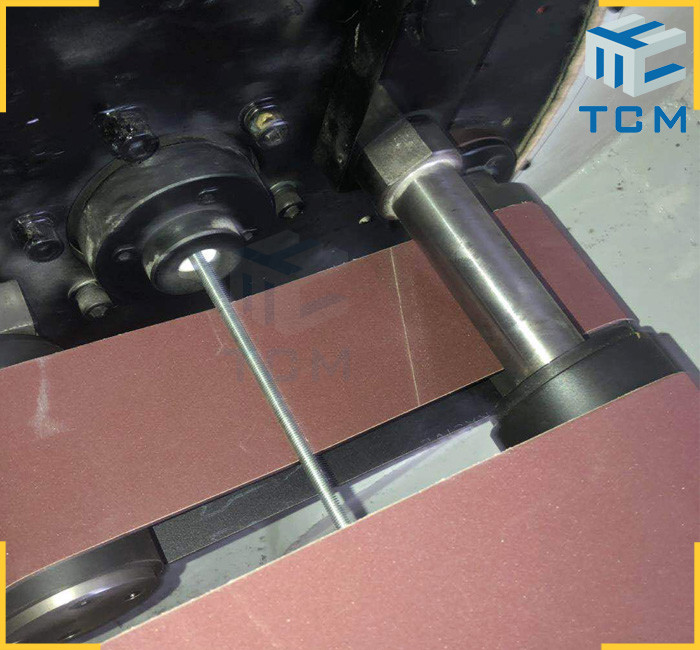

- High-speed rotating abrasive belts for efficient material removal
- Synchronized turntable rotation and wire feed speed
- Customizable belt thickness combinations for different finish requirements
- PLC control system for precise operation
Package and Delivery
Dust Collection System
Contact Trancar Industries for more information about our stainless steel fine wire and rods automatic cleaning polishing machines and solutions. Custom design services are available.
