Metal Precision Wire Fine Wires Surface Automatic Wire Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WR |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-40000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Metal Precision Wire Fine Wires Surface Automatic Polishing Machine | Dimension | 2650x1050x1300mm |
|---|---|---|---|
| Weight | 2100 Kg | Voltage | 380V 400V 415V Etc |
| Color Option | Blue/White/Yellow/Grey Etc | Usage | Surface Brushing Linishing/diameter Reduce |
| Condition | 100% New | Polishing Speed | Max.2m/s |
| Warranty | 18 Month | After-sales Service | Video Support/Engineer Oversea Service |
| Provide | ODM & OEM | Control System | PLC Program |
| Highlight | Precision wire polishing machine,wire polishing machine Automatic,Metal wire grinding machine |
||
Product Description
Metal Precision Wire Fine Wires Surface Automatic Wire Polishing Machine
Product Specifications
| Product Name | Metal precision wire fine wires surface automatic polishing machine |
| Dimension | 2650x1050x1300mm |
| Weight | 2100 kg |
| Voltage | 380V 400V 415V etc |
| Color option | Blue/White/Yellow/Grey etc |
| Usage | Surface brushing linishing/diameter reduce |
| Condition | 100% new |
| Polishing speed | Max. 2m/s |
| Warranty | 18 Month |
| After-sales service | Video support/Engineer oversea service |
| Provide | ODM & OEM |
| Control system | PLC program |
Product Overview

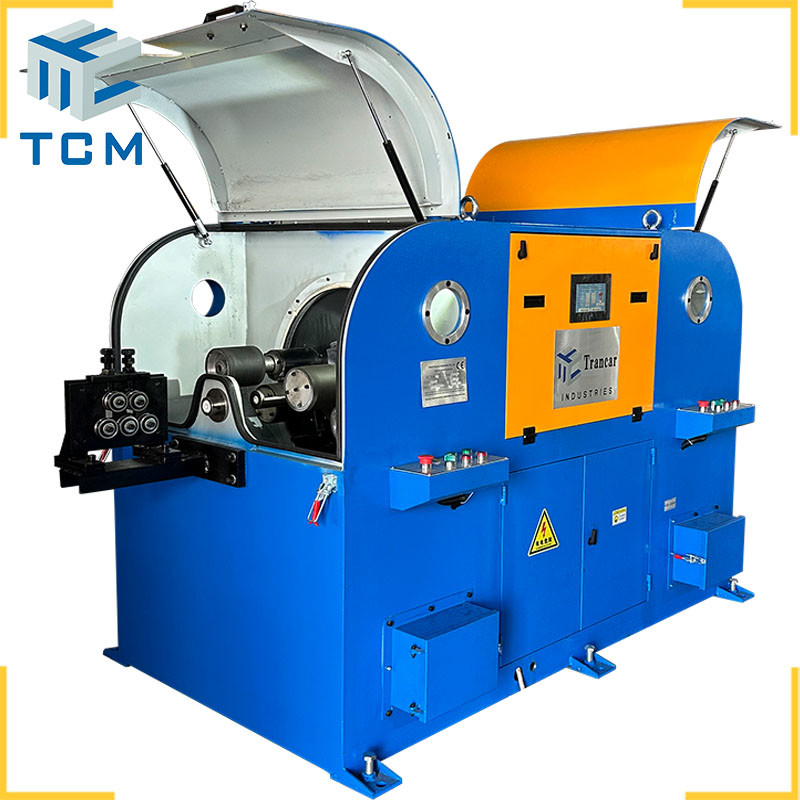

The Trancar Industries Model TCM-WR automatic steel wire polishing machine is designed for stainless steel metal wire rods' surface grinding and buffing. This machine adopts mechanical methods to process the surface of metal wire rods for grinding, polishing, and rust removal, replacing traditional pickling methods. It is environmentally friendly, energy-saving, and meets mass production requirements while achieving high production efficiency and stable, reliable product quality.
Key Features
- Removes oxide scale or oxide film and its particles from wire surfaces

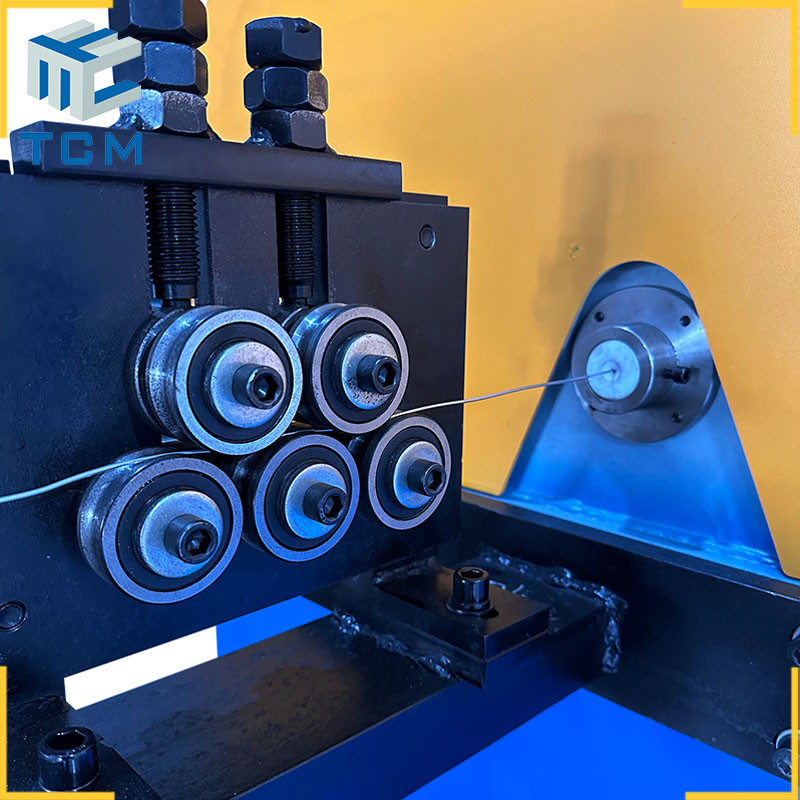

- Utilizes four fixed rollers (single side) and two tension rollers supported by turntable

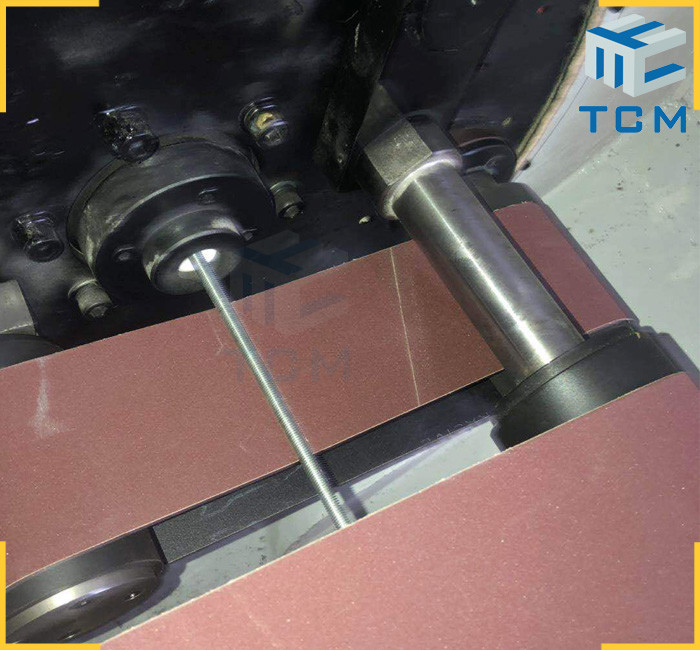

- Drives two high-speed rotating abrasive belts for polishing
- Synchronized turntable rotation speed and wire feed speed
- Double-headed belt thickness can be freely combined based on finish requirements
- Custom design services available
Technical Parameters
| Wire Rod Diameter | 1-5mm / 5-8mm / 8-16mm / 16-25mm |
| Machine Dimension | (L×W×H) 2650×1050×1300mm |
| Abrasive Belts Size | 1600*500 mm / 1350*300mm / 1250*300mm etc |
| Production Efficiency | 120-200 m/h |
| Input total Power | 35 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 2100kg |
| Color | Grey/Green/Blue/Red/Yellow Custom design |
| Optional Feature | Dust Collection system available during polishing |
Packaging & Delivery
Optional Dust Collection System
Contact Trancar Industries for more stainless steel fine wire automatic polishing machine solutions and custom design services.
