Full Automatic CNC Polishing Machine Steel Tank Cap Dished End Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-CNC |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Product Details
| Product Name | CNC Full Automatic Steel Tank Cap Grinding Machine | Color | Blue/Red/Grey |
|---|---|---|---|
| Voltage | 380V 400V 415V Etc | Control System | CNC |
| Highlight | Full Automatic CNC Polishing Machine,380V CNC Polishing Machine,400V dished end polishing machine |
||
Product Description
Full Automatic CNC Polishing Machine Steel Tank Cap Dished End Polishing Machine
Product Specifications
| Product Name | CNC full automatic Steel tank cap grinding machine |
|---|---|
| Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V etc |
| Control System | CNC |
Product Overview

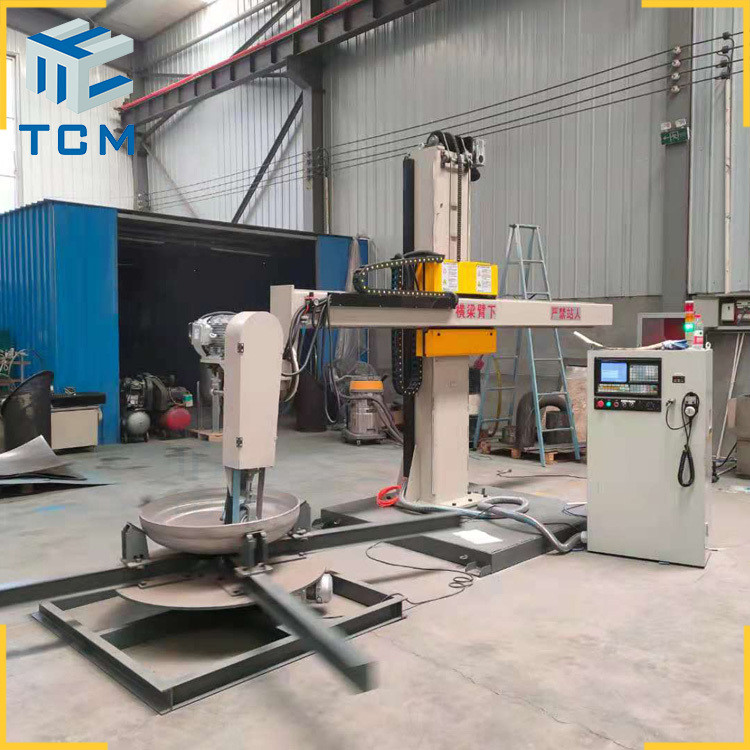

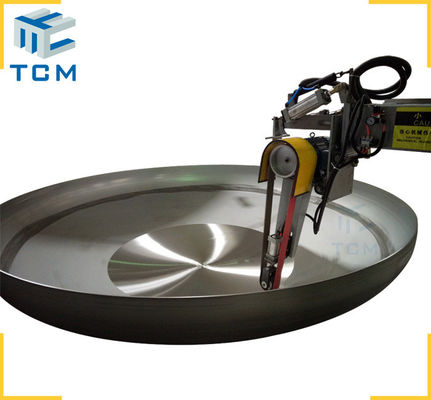

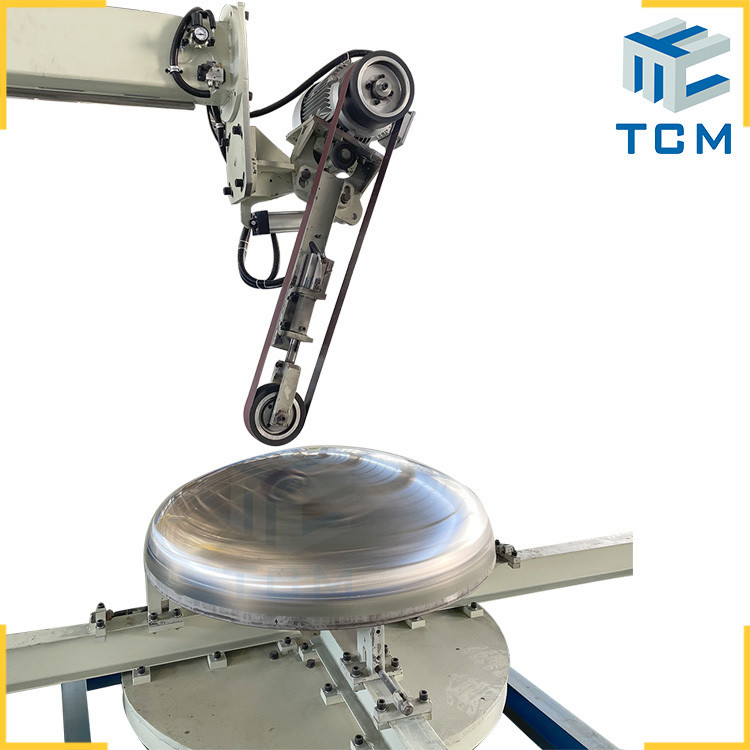

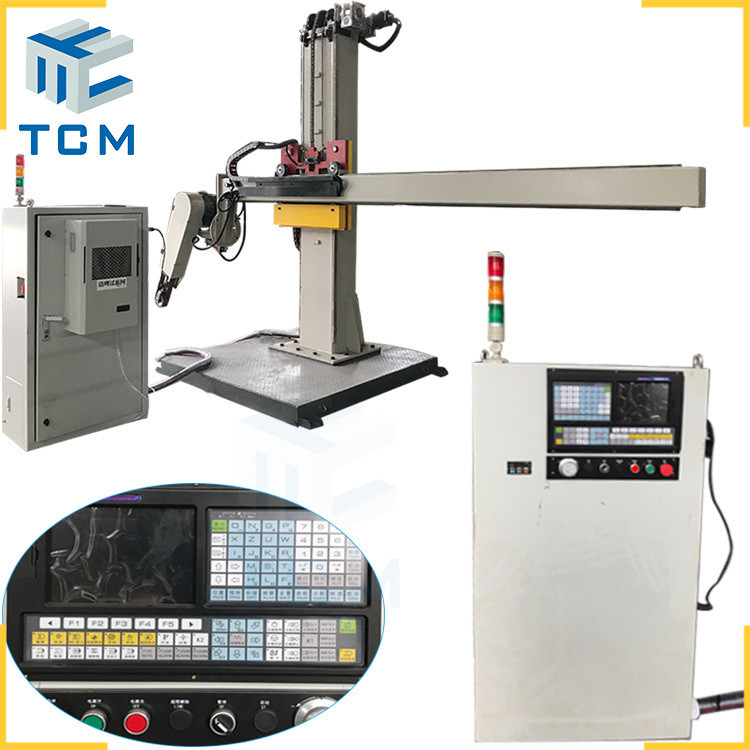

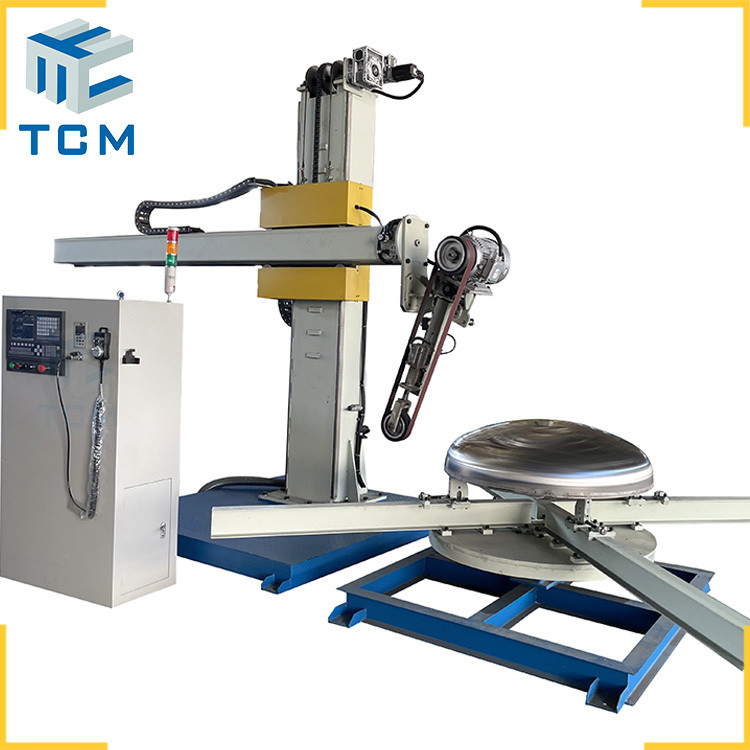

The TCM-CNC-D column and boom manipulator polishing machine is a fully automated CNC polishing solution designed for stainless steel tank caps and vessel heads. This precision equipment handles surface polishing, grinding, and buffing of both interior and exterior surfaces on various steel tank components.
Key Features
- Processes elliptical, flat bottom, torispherical, conical, and hemispherical heads
- Customizable based on client's dish end dimensions
- Compatible with multiple polishing tools including abrasive belts and grinding wheels
- Suitable for various industries including pharmaceutical, food processing, and petrochemical
Machine Configuration
| Technical Parameters | |
|---|---|
| Dish End Size (Outside Diameter) | 300~5000mm |
| Dish End Size (Inner Diameter) | 500~5000mm |
| Height/Depth | Max.750/1500/2000mm |
| Control System | SIEMENS or Danfoss CNC program |
| Turntable Capacity | 1-10 Ton (custom options up to 20 Ton) |
| Polishing Precision (Ra) | ≤0.25μm |
| Production Efficiency | 6~12 m²/h |
| Machine Dimensions | 4500×1600×3080mm |
| Power Requirements | 15 kw, 380V-415V, 50Hz/60Hz |
| Machine Weight | 3000kg |
Packaging & Delivery
Related Equipment
Hefei Trancar Industries also provides:
- Semi-automatic button control steel tank polishing machines
- PLC wire rod polishing equipment
- Welded joints planishing equipment
- Semi-automatic dish head polishing machines
CONTACT US for more steel surface automatic grinding solutions
