Custom Full Automation CNC Polishing Machine For Steel Surface Grinding Buffing

  • Custom Full Automation CNC Polishing Machine For Steel Surface Grinding Buffing
  • Custom Full Automation CNC Polishing Machine For Steel Surface Grinding Buffing
  • Custom Full Automation CNC Polishing Machine For Steel Surface Grinding Buffing
  • Custom Full Automation CNC Polishing Machine For Steel Surface Grinding Buffing
  • Custom Full Automation CNC Polishing Machine For Steel Surface Grinding Buffing
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-CNC
Minimum Order Quantity 1 set
Price USD 9000-50000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 45 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Full Automatic Polishing Machine Color Blue/Red/Grey
Voltage 380V 400V 415V Etc Control System CNC
Highlight

Full Automation cnc polishing

,

Custom cnc polishing

,

Buffing china polishing machine
Leave a Message
Product Description
Custom Full Automation CNC Polishing Machine For Steel Surface Grinding Buffing
Product Attributes
Attribute Value
Product Name Stainless steel full automatic polishing machine
Color Blue/Red/Grey
Voltage 380V 400V 415V etc
Control System CNC
Product Description

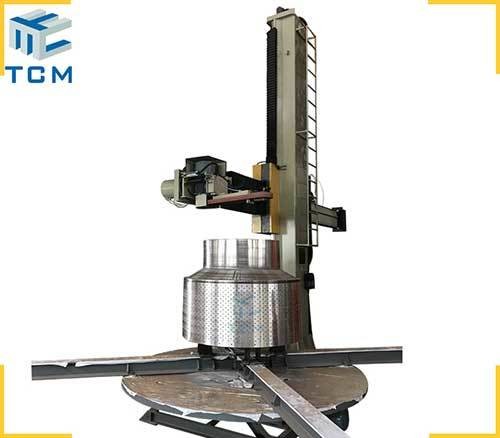

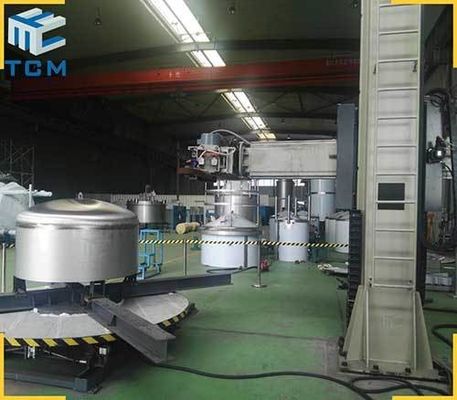

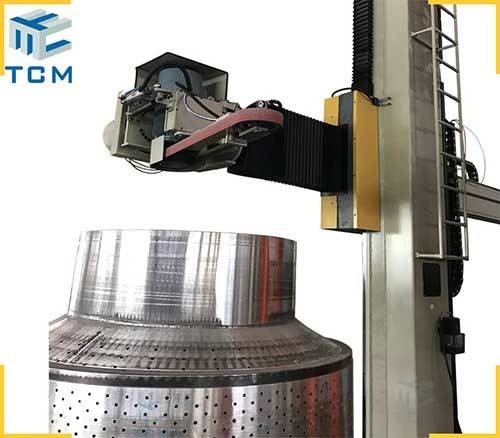

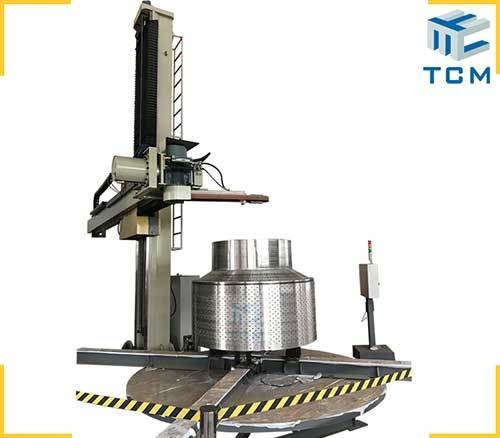

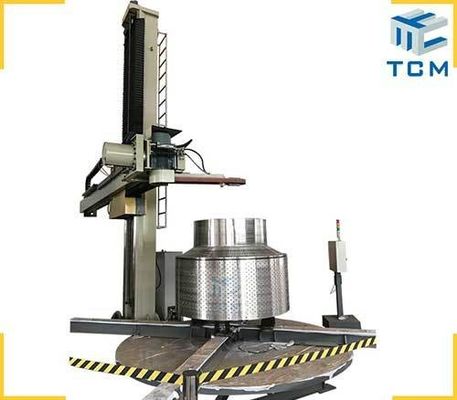

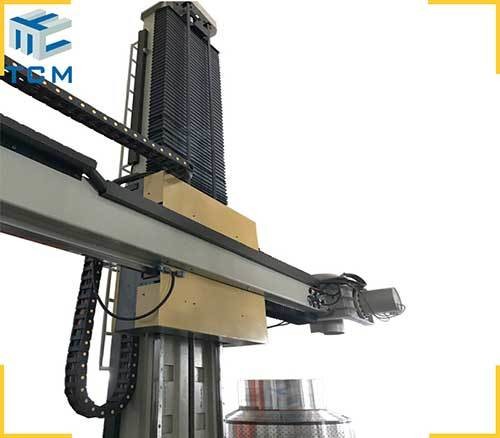

The TCM-CNC column and boom manipulator polishing machine is a dual-use multifunction full automatic polishing machine designed for steel metal tank bodies, tank shells, cylinders, heads, cones, and dish head interior & exterior surface grinding and buffing. This model is specifically engineered for both vertical tank shells and dished head tank cap surfaces, featuring a water cooling circulation system that reduces dust pollution by 95% and ensures optimal stainless steel performance after polishing.

Custom Full Automation CNC Polishing Machine For Steel Surface Grinding Buffing 0

The TCM-CNC polishing machine consists of:

  • Metal beam, column, and machine base (foot)
  • Control cabinet and turntable
  • Siemens CNC full automatic control system
  • Capacity for over 100 polishing programs
  • Compatible with various grinding mesh grit impellers and abrasive sanding belts

This machine finds applications in medical, chemical, environmental purification, food and beverage, and water filtration industries.

Technical Specifications
Parameter Specification
Vertical Tank Size (Outside Diameter) 500~4000mm
Length ≤3000mm
Dish End/Tank Head Size (Diameter) 500~4000mm
Dish Ends' Depth/Height ≤800mm
Turntable Loading Capacity 1 Ton / 2 Ton /5 Ton / 10 Ton (Custom options up to 20 Ton)
Polishing Precision (Surface Roughness Ra) ≤0.25μm
Production Efficiency 6~12 m²/h
Machine Dimensions 5200×800×5800mm
Input Power 12 kW
Power Supply 380V 415V / 50Hz 60HZ / 3p (Customizable)
Machine Weight 3200kg
Suitable Polishing Materials Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Custom Full Automation CNC Polishing Machine For Steel Surface Grinding Buffing 1
Contact Us for More Details
Custom Full Automation CNC Polishing Machine For Steel Surface Grinding Buffing 2
