380V 400V 415V Steel Dish End Making Machine CNC Polishing Machine

Place of Origin	China
Brand Name	Trancar Industries
Certification	CE/ISO
Model Number	TCM-CNC
Minimum Order Quantity	1 set
Price	USD 9000-50000 Dollar per set
Packaging Details	Custom design plywood box
Delivery Time	35 work days
Payment Terms	L/C, D/A, D/P, T/T, Western Union
Supply Ability	20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name

Steel Dish End CNC Polishing Machine

Color

Blue/Red/Grey

Voltage

380V 400V 415V Etc

Provide

ODM & OEM

Highlight

Steel dish end making machine

415V dish end making machine

380V automatic grinding and polishing machine

Leave a Message

Product Description

380V 400V 415V Steel Dish End Making Machine CNC Polishing Machine

Product Specifications

Product Name	Steel dish end CNC polishing machine
Color Options	Blue/Red/Grey
Voltage	380V 400V 415V etc
Service	ODM & OEM

Product Description

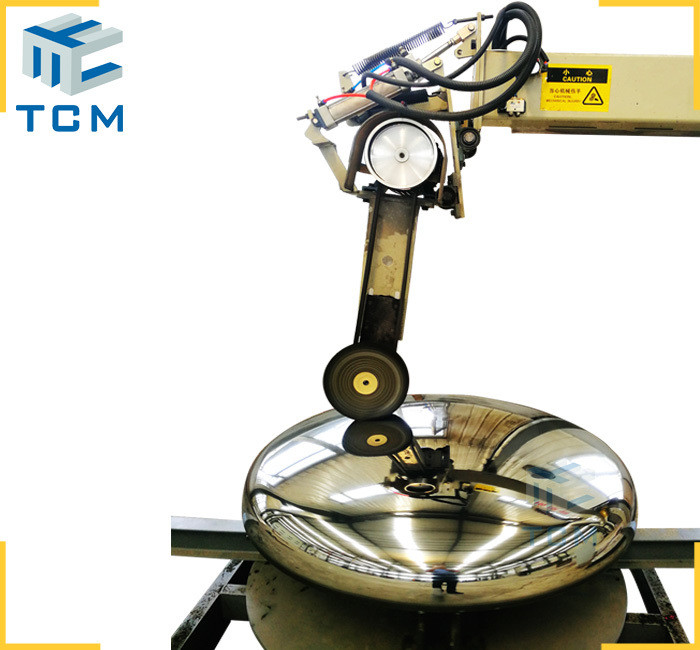

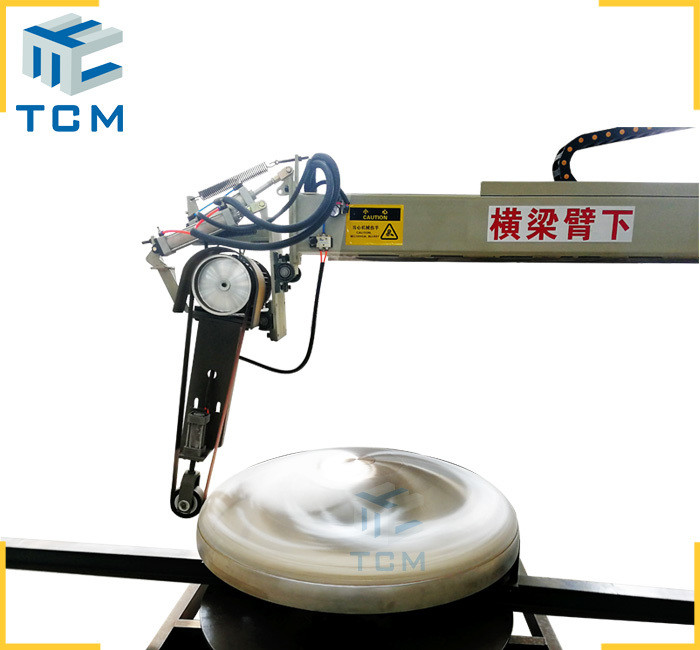

The TCM-CNC-D column and boom manipulator polishing machine is a fully automated CNC polishing system designed specifically for stainless steel tank dish end surface treatment. This advanced machine performs polishing, grinding, and buffing operations on both interior and exterior surfaces of steel products.

Ideal for manufacturers of various tank head types including elliptical, flat bottom, torispherical, conical, and hemispherical heads. Trancar Industries customizes each CNC polishing machine to match clients' specific dish end dimensions.

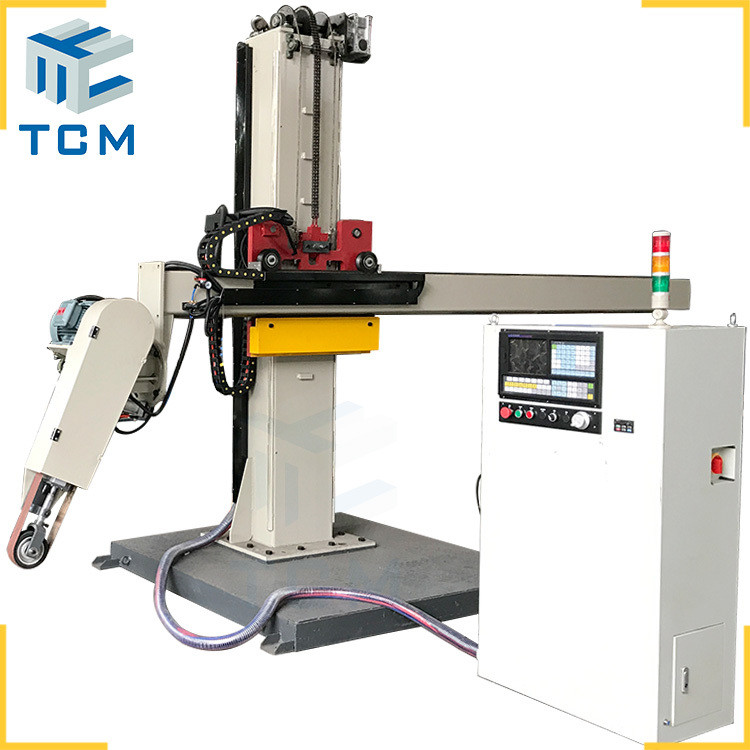

Machine Composition

Metal beam, column, and machine base construction

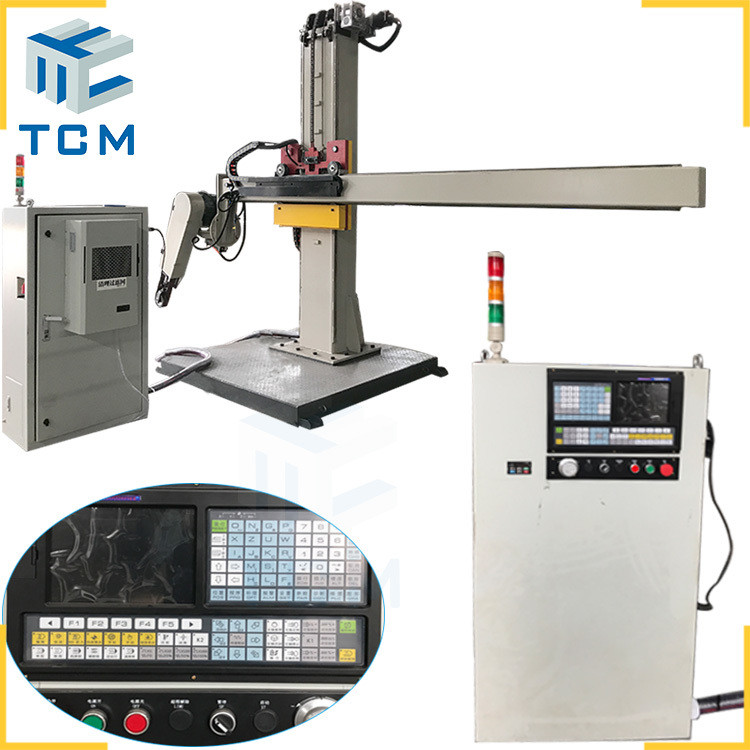

Control cabinet and turntable
Siemens or Danfoss brand CNC programming
Capacity for over 100 preset polishing programs
Adjustable impeller with various grinding mesh grit options
Compatible with both abrasive sanding belts and grinding wheels

Industrial Applications

This CNC polishing machine serves multiple industries including pharmaceutical, medical machinery, food & beverage processing, water purification, pressure vessels, paper/pulp production, petrochemical processing, wastewater treatment, semiconductor manufacturing, and photovoltaic industries.

Technical Parameters

Dish End Size	Outside diameter: 300~5000mm Inner diameter: 500~5000mm Height/Depth: Max.750/1500/2000mm
Control System	SIEMENS CNC program or Danfoss CNC program
Turntable Capacity	1 Ton / 2 Ton /5 Ton / 10 Ton (Custom options up to 20 Ton available)
Polishing Precision	Surface roughness (Ra) ≤0.25μm
Production Efficiency	6~12 m²/h polishing speed
Machine Dimensions	4500×1600×3080mm (Column: 300×400×8mm, Beam: 150×250×6mm)
Power Requirements	15 kw, 380V 415V / 50Hz 60HZ / 3p (Customizable)
Machine Weight	3000kg
Color Options	Grey/Green/Blue/Red/Yellow (Custom colors available)
Polishing Materials	Compatible with various abrasive sanding belts and grinding wheels (flap/cloth/emery/Nylon wheel etc)
