Stainless Steel Tank Head CNC Polishing Machine Automatic Belt Polishing Sanding Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-CNC |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Tank Head CNC Automatic Beslts Polishing Sanding Machine | Color | Blue/Red/Grey |
|---|---|---|---|
| Voltage | 380V 400V 415V Etc | Control System | SIEMENS/Danfoss CNC |
| Dimension | 4500x1600x3050mm | Weight | 3500kg |
| Condition | 100% New | Warranty | 18 Month |
| After-sales Service | Video Support/Engineer Oversea Service | Provide | ODM & OEM |
| Highlight | Tank Head cnc polishing machine,Stainless Steel cnc polishing machine,Automatic cnc buffing machine |
||
Product Description
Stainless Steel Tank Head CNC Polishing Machine
Automatic Belt Polishing & Sanding Machine with CE Certification
| Attribute | Value |
|---|---|
| Product Name | Stainless Steel Tank Head CNC Automatic Belts Polishing Sanding Machine |
| Color Options | Blue/Red/Grey |
| Voltage | 380V 400V 415V etc |
| Control System | SIEMENS/Danfoss CNC |
| Dimension | 4500x1600x3050mm |
| Weight | 3500kg |
| Condition | 100% New |
| Warranty | 18 Month |
| After-sales Service | Video support/Engineer oversea service |
| Provide | ODM & OEM |
Product Overview

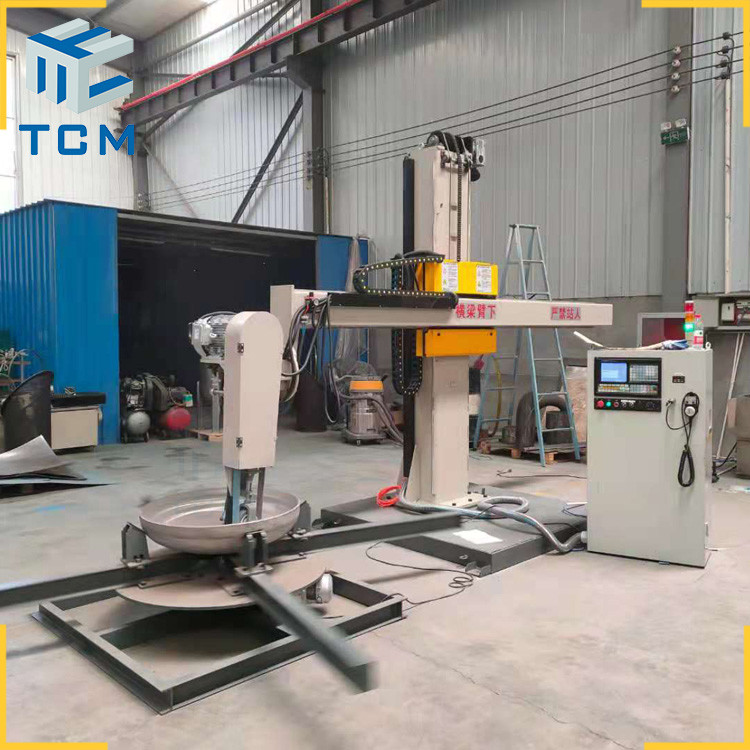

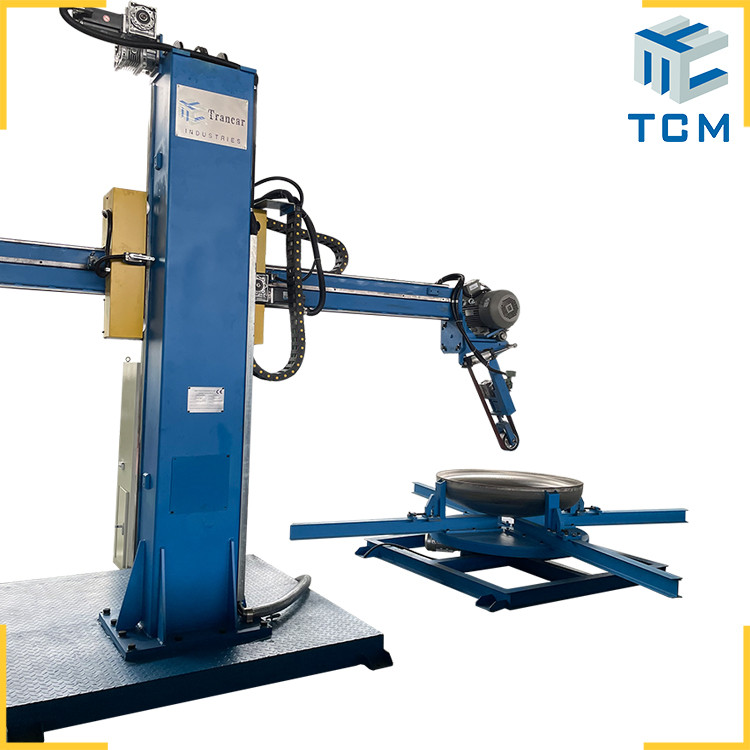

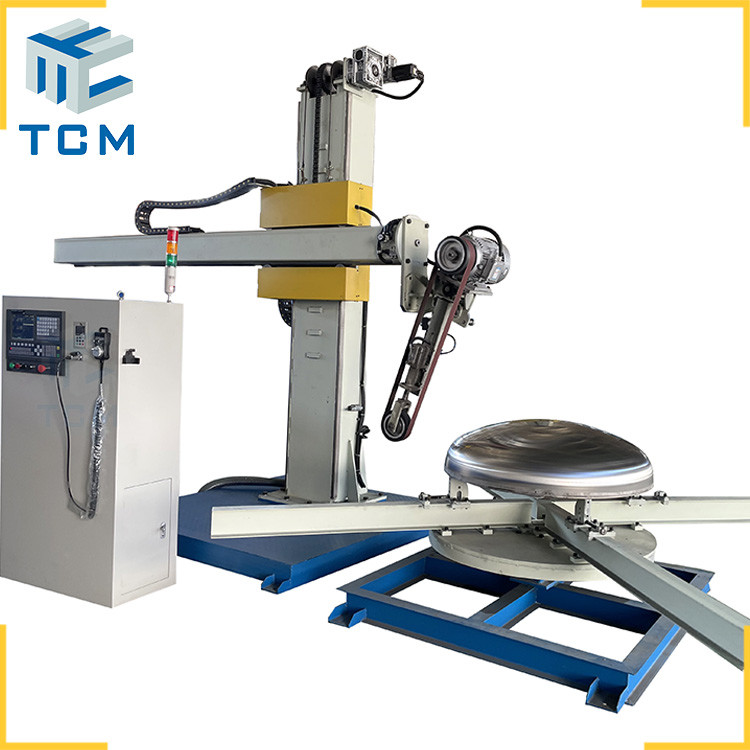

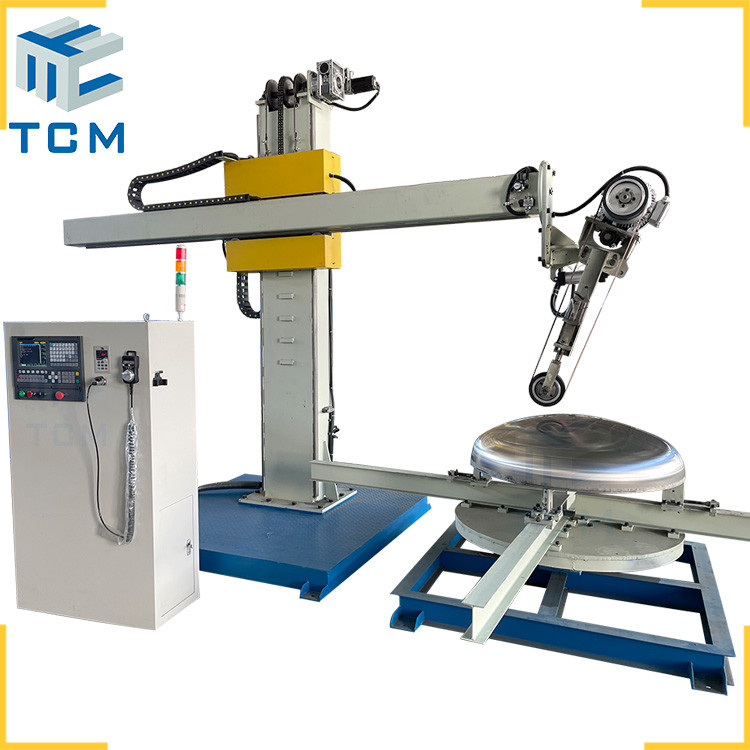

The TCM-CNC series column and boom manipulator polishing machine is a fully automated CNC polishing solution designed specifically for stainless steel tank heads and vessel ends. This precision equipment handles surface polishing, grinding, and buffing of both interior and exterior surfaces on various tank head designs including elliptical, flat bottom, torispherical, conical, and hemispherical heads.
Technical Specifications
| Parameter | Specification |
|---|---|
| Steel Tank Size (Outside Diameter) | 400~5000mm / 7000 mm |
| Steel Tank Size (Inside Diameter) | 400~5000mm / 7000 mm |
| Maximum Length | ≤5000mm / 8000 mm |
| Tank Roller Capacity | 1 Ton / 2 Ton / 5 Ton /10 Ton (Customizable up to 20 Ton) |
| Dish End/Tank Head Size | 450~5000mm / 6000 mm |
| Turntable Capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton (Customizable up to 20 Ton) |
| Polishing Precision (Surface roughness Ra) | ≤0.25μm |
| Production Efficiency | 6~12 m²/h |
| Machine Dimensions | 4500×1600×3080mm |
| Power Requirements | 15 kw, 380V 415V / 50Hz 60HZ / 3p (Customizable) |
| Machine Weight | 3550kg |
| Suitable Polishing Materials | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |
Machine Construction
The TCM CNC polishing machine consists of:
- Heavy-duty metal beam and column structure
- Sturdy machine base (foot)

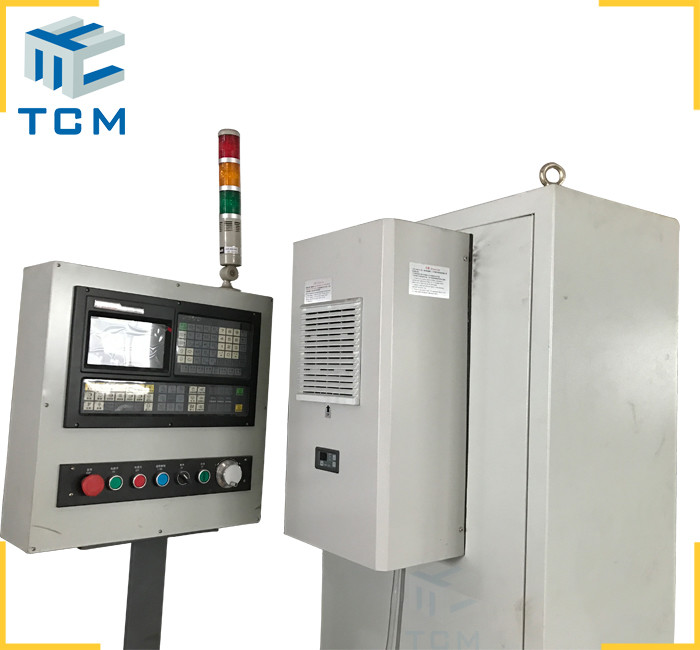

- Advanced control cabinet
- Precision turntable

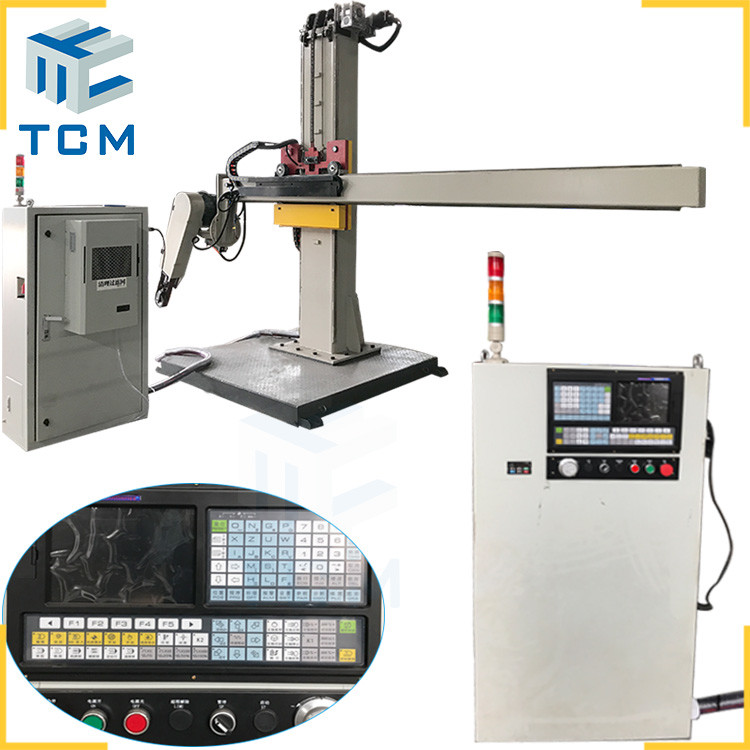

- Siemens or Danfoss CNC programming system with over 100 preset polishing programs
Industry Applications
Our CNC polishing machines serve diverse industries including:
- Pharmaceutical & medical machinery
- Food & beverage processing
- Water purification systems
- Pressure vessel manufacturing
- Petrochemical & biochemical processing
- Semiconductor & photovoltaic production
Packaging & Delivery
Related Products
Hefei Trancar Industries also manufactures:
- Semi-automatic button control steel tank polishing machines
- PLC wire rod polishing equipment
- Welded joints planishing equipment
- Semi-automatic dish head polishing machines
- Steel pipe interior surface grinding equipment
Contact Us for Custom Steel Surface Grinding Solutions
