CNC Surface Grinding Machine For Stainless Steel Tank Vessels Mirror Polishing

Place of Origin	China
Brand Name	Trancar Industries
Certification	CE/ISO
Model Number	TCM-YT-CNC
Minimum Order Quantity	1 set
Price	USD 9000-50000 Dollar per set
Packaging Details	Custom design plywood box
Delivery Time	35 work days
Payment Terms	L/C, D/A, D/P, T/T, Western Union
Supply Ability	20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Stainless Steel Tank Vessels Mirror Polishing CNC Grinding Machine	Color	Blue/Red/Grey
Voltage	380V 400V 415V Etc	Control System	SIEMENS CNC
Dimension	4500x1600x3050mm	Weight	3500kg
Condition	100% New	Warranty	18 Month
After-sales Service	Video Support/Engineer Oversea Service	Provide	ODM & OEM
Highlight	CNC tank polishing machine , Stainless Steel tank polishing machine , 380V metal polishing equipment

Leave a Message

Product Description

CNC Surface Grinding Machine For Stainless Steel Tank Vessels Mirror Polishing

Product Specifications

Attribute	Value
Product Name	Stainless steel tank vessels mirror polishing CNC grinding machine
Color	Blue/Red/Grey
Voltage	380V 400V 415V etc
Control System	SIEMENS CNC
Dimension	4500x1600x3050mm
Weight	3500kg
Condition	100% new
Warranty	18 Month
After-sales service	Video support/Engineer oversea service
Provide	ODM & OEM

Product Overview

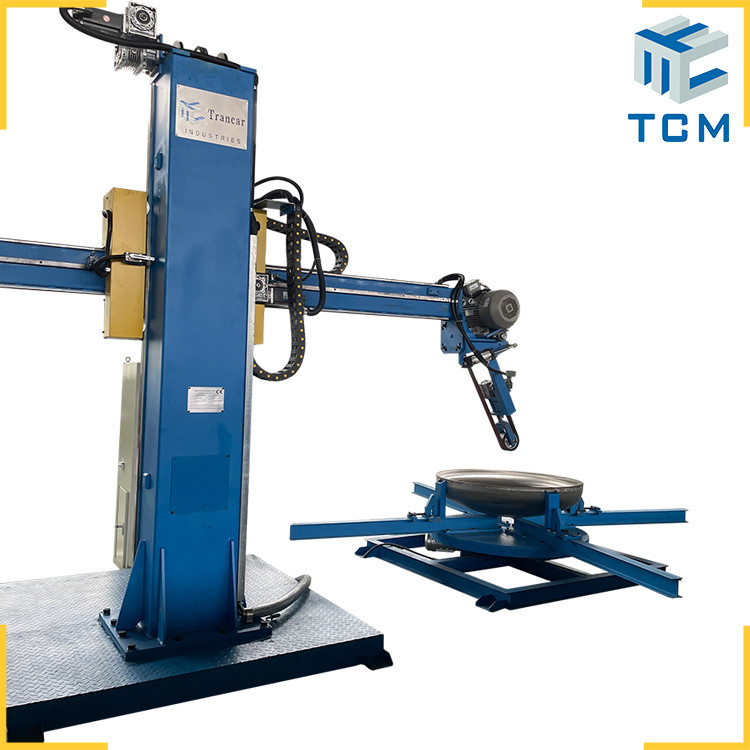

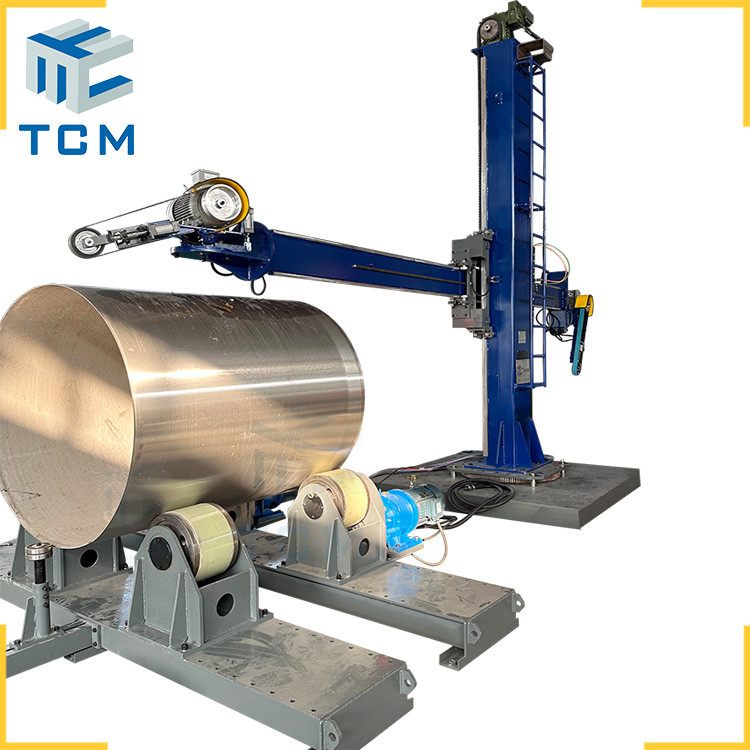

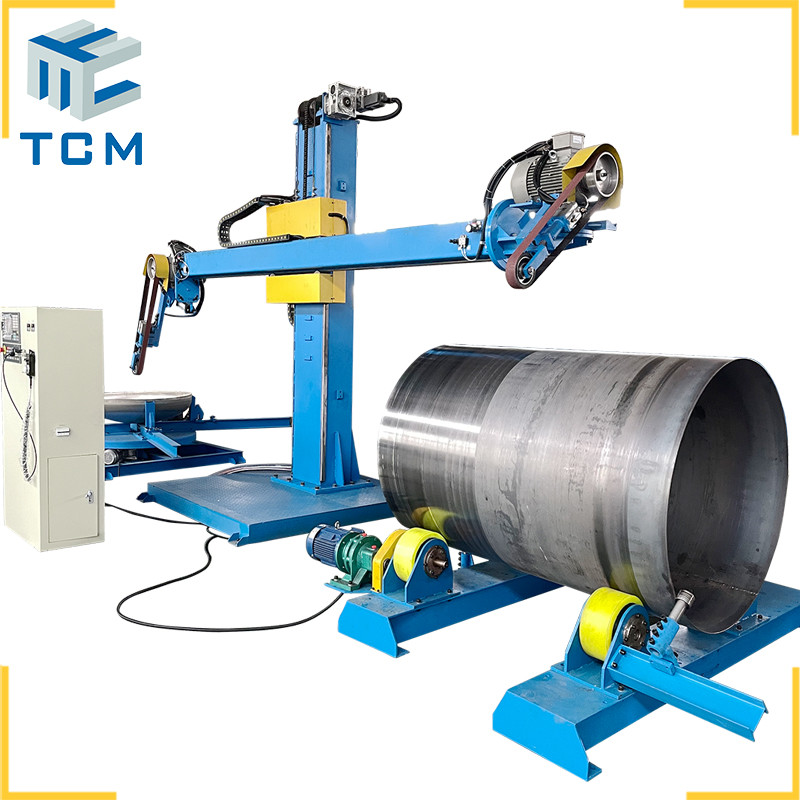

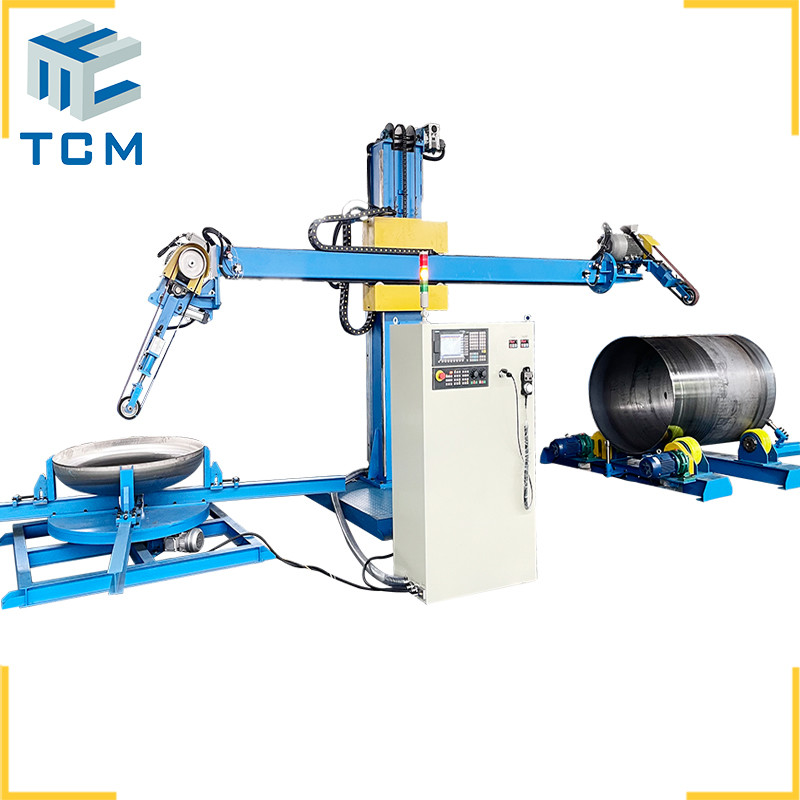

The TCM-CNC series column and boom manipulator polishing machine is a fully automated CNC polishing solution designed specifically for stainless steel tank vessels and heads. This precision equipment handles both interior and exterior surface polishing, grinding, and buffing of various steel tank components including elliptical heads, flat bottom heads, torispherical heads, conical heads, and hemispherical heads.

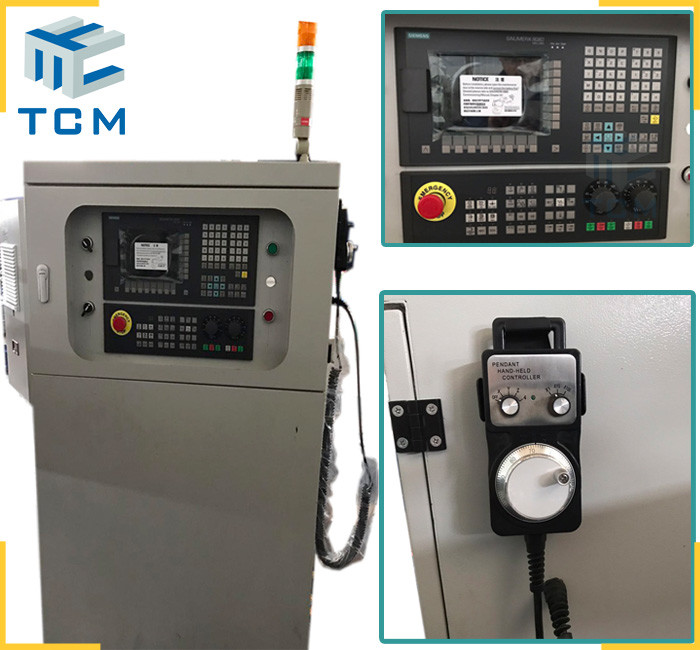

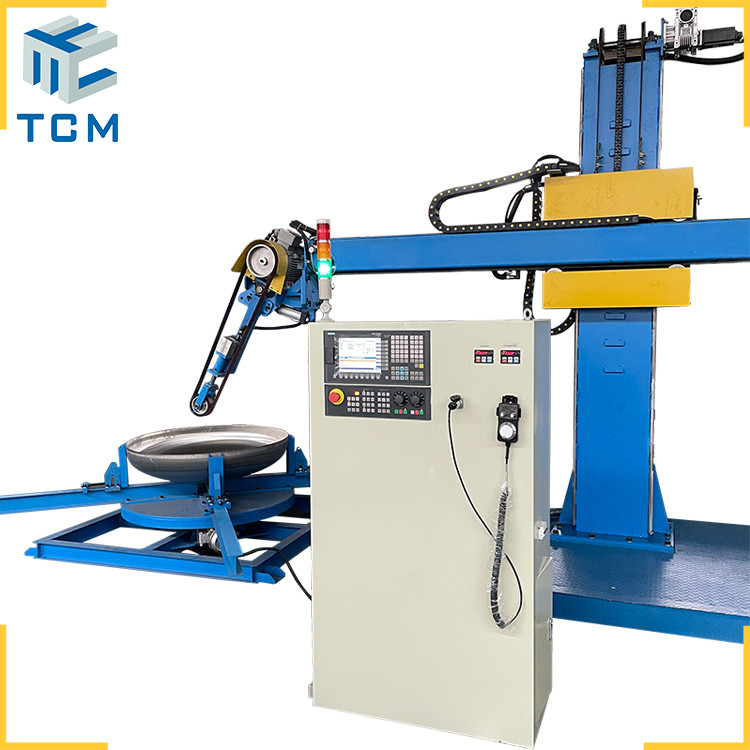

Hefei Trancar Industries custom fabricates each CNC polishing machine based on client specifications, offering factory-direct pricing with exceptional quality. Our machines feature modular construction including metal beam, column, machine base, control cabinet, and turntable, equipped with Siemens or Danfoss CNC programming capable of storing over 100 polishing programs.

Technical Parameters

Parameter	Specification
Steel Tank Size (Outside Diameter)	400~5000mm / 7000 mm
Steel Tank Size (Inside Diameter)	400~5000mm / 7000 mm
Length	<=5000mm / 8000 mm
Tank Roller Max Loading Capacity	1 Ton / 2 Ton / 5 Ton /10 Ton or customization (13T,15T,20T)
Dish End/Tank Head Size	450~5000mm / 6000 mm
Turntable Max Loading Capacity	1 Ton / 2 Ton /5 Ton / 10 Ton (custom designs up to 20 Ton available)
Polishing Precision (Surface roughness Ra)	<=0.25μm
Production Efficiency	6~12 m²/h
Machine Dimension	450016003080mm
Input Power	15 kw
Power Supply	380V 415V / 50Hz 60HZ / 3p or Customization
Machine Weight	3550kg
Suitable Polishing Materials	Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)

Industry Applications

Trancar CNC polishing machines serve diverse industries including pharmaceutical, medical machinery, food & beverages, water purification, pressure vessels, paper and pulp, fine chemicals, petrochemical, biochemistry, petroleum pipelines, cosmetics, wastewater treatment, semiconductor, and photovoltaic industries.
