Stainless Steel Dish End Surface CNC Automatic Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | ISO 9001 / CE |
| Model Number | TCM-D-CNC |
| Minimum Order Quantity | 1 set |
| Price | 8000-30000USD/set |
| Packaging Details | Custom design Plywood boxes+carton+ PE film |
| Delivery Time | 10-40 days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 20 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Dish End Surface CNC Automatic Polishing Machine | Dimension | 3500x1600x3080 Mm |
|---|---|---|---|
| Weight | 2550 Kg | Color | Blue/Gray/Red Ect |
| Condition | 100% NEW | Input Power | 15 Kw |
| Frequency | 50Hz/60Hz | Voltage | 380V/400V/415V Etc |
| Application | Stainless Steel Surface Polishing Buffing | Warranty | 1 Year |
| OEM/ODM | Available | After-sales Service Provided | Engineer Oversea Service Available |
| Highlight | Stainless Steel CNC automatic polishing machine,automatic polishing machine CNC,380V metal surface polishing machine |
||
You can tick the products you need and communicate with us in the message board.
| Polishing Efficiency | 6~12 m2/h | |
|---|---|---|
| Polishing Precision | <=0.25μm | |
| CNC system | SIMENS CNC or Danfoss CNC | |
| Polishing consumable | Abrasive sanding belts/Sanding wheels |
Product Description
Stainless Steel Dish End Surface CNC Automatic Polishing Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Dish end surface CNC automatic polishing machine |
| Dimension | 3500x1600x3080 mm |
| Weight | 2550 kg |
| Color | Blue/Gray/Red etc |
| Condition | 100% NEW |
| Input power | 15 kw |
| Frequency | 50Hz/60Hz |
| Voltage | 380V/400V/415V etc |
| Application | Stainless steel surface polishing buffing |
| Warranty | 1 year |
| OEM/ODM | Available |
| After-sales service | Engineer oversea service available |
Product Overview

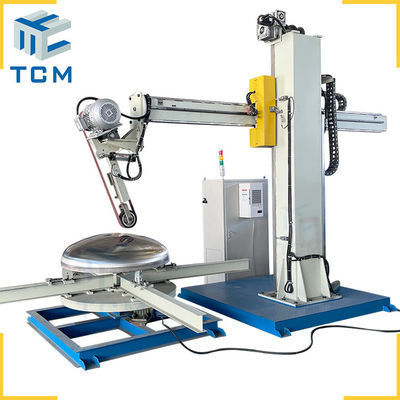

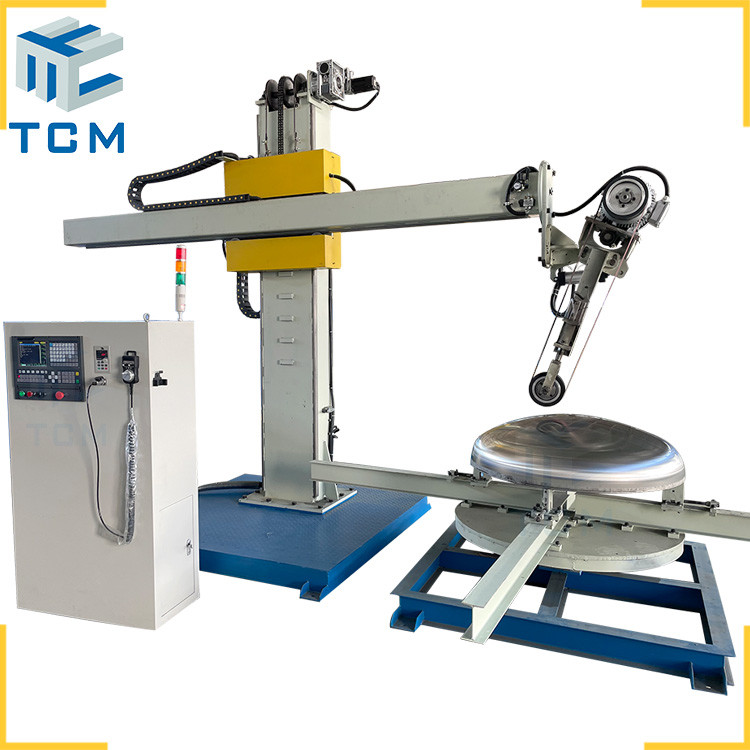

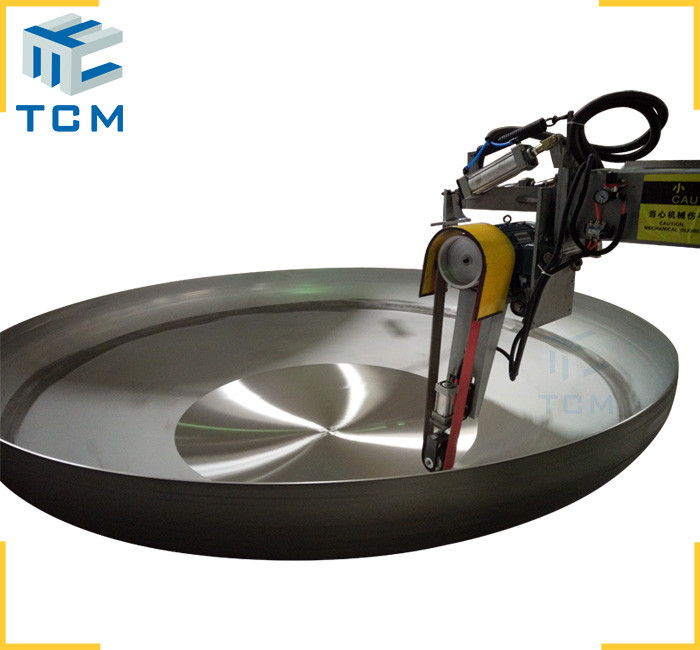

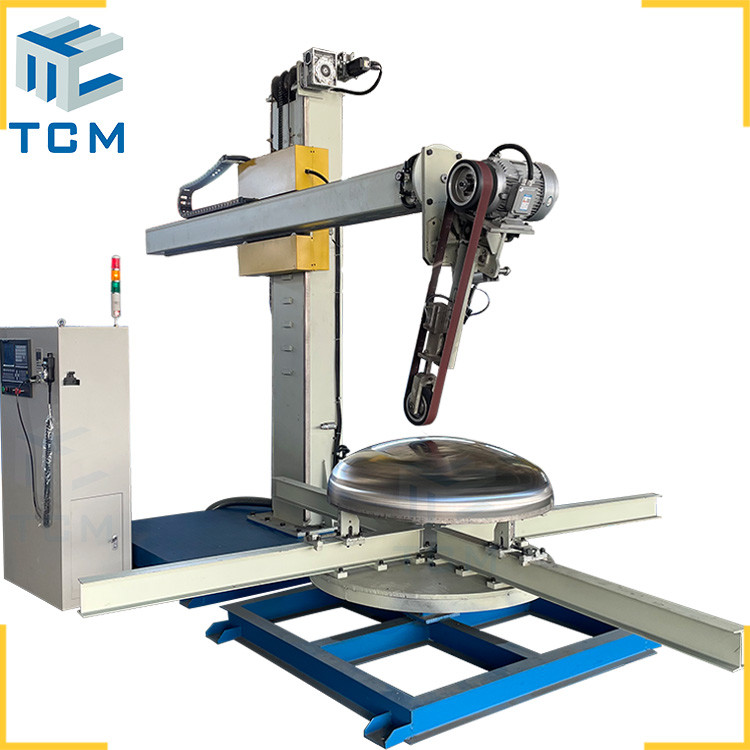

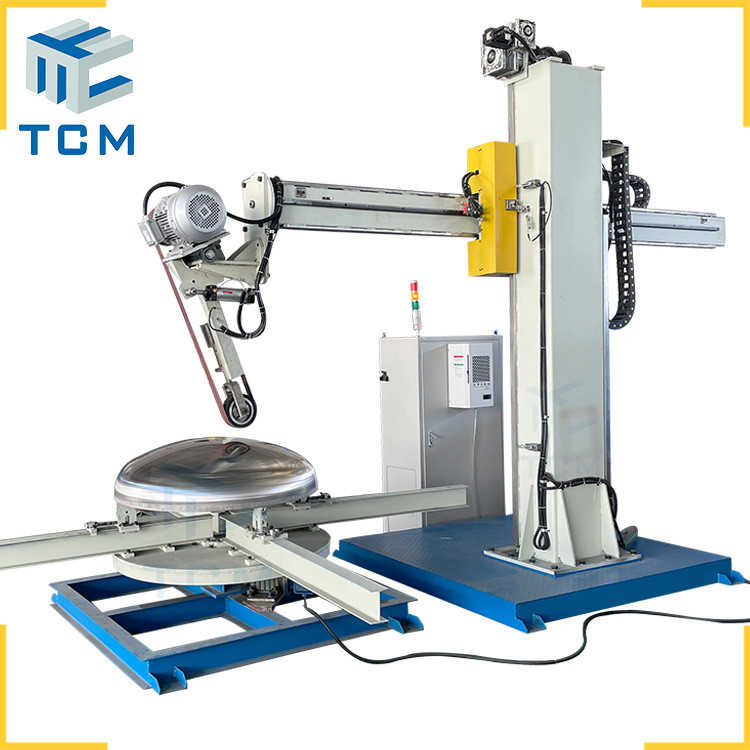

The TCM-D-CNC column and boom manipulator polishing machine is a fully automated CNC system designed for precision polishing of stainless steel tank caps, vessel heads, and various steel surfaces. This versatile equipment handles both interior and exterior surfaces of steel products, making it ideal for manufacturers of elliptical heads, flat bottom heads, torispherical heads, conical heads, and hemispherical heads.
Key Features
- Custom fabrication based on client's dish end dimensions

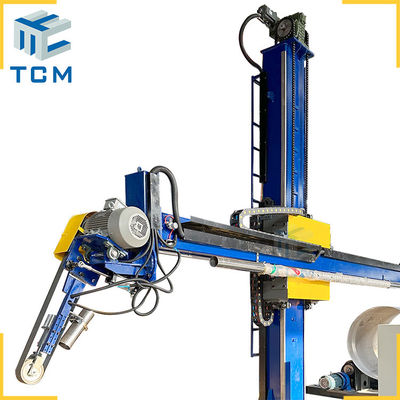

- Composed of metal beam, column, machine base, control cabinet, and turntable

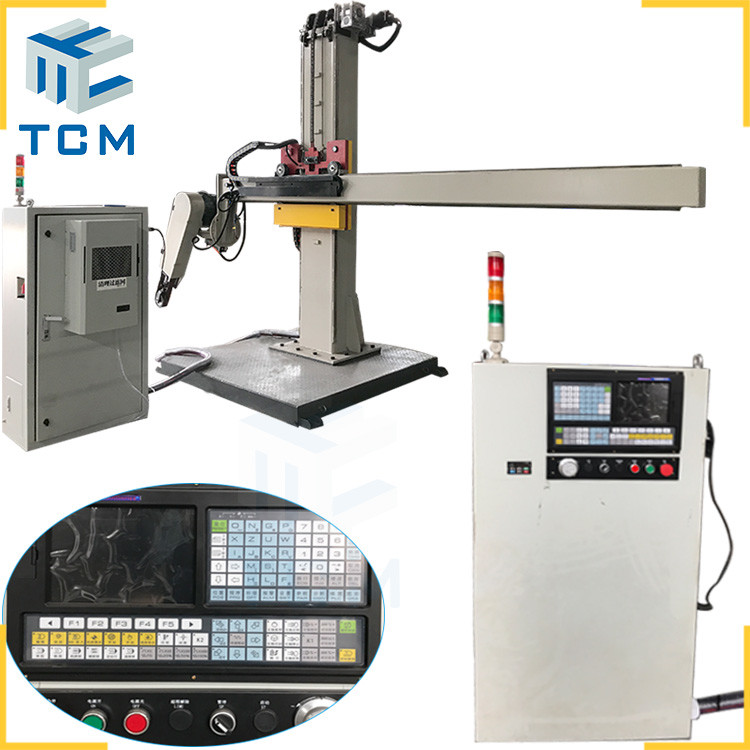

- Equipped with Siemens or Danfoss brand CNC programming
- Supports over 100 programmable polishing routines
- Compatible with various grinding mesh grits and polishing tools
- Works with abrasive sanding belts and grinding wheels
Technical Parameters
| Dish end size (Outside diameter) | 300~5000mm |
| Dish end size (Inner diameter) | 500~5000mm |
| Height/Depth | Max.750/1500/2000mm |
| Control system | SIEMENS or Danfoss CNC program |
| Turntable Max. loading capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton (Custom designs up to 20 Ton available) |
| Polishing Precision (Surface roughness Ra) | <=0.25μm |
| Production Efficiency | 6~12 m²/h |
| Total Dimension | 4500*1600*3080mm |
| Input total Power | 15 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 3000kg |
| Color Options | Grey/Green/Blue/Red/Yellow (Custom designs available) |
Industry Applications
Our CNC polishing machines serve diverse industries including pharmaceutical, medical machinery, food & beverages, water purification, pressure vessels, paper and pulp, fine chemicals, petrochemicals, biochemistry, petroleum pipelines, cosmetics, wastewater treatment, semiconductor, and photovoltaic industries.
