Body Circular Welded Seam Polishing Grinding Machine Steel Tank Shell Vessel

  • Body Circular Welded Seam Polishing Grinding Machine Steel Tank Shell Vessel
  • Body Circular Welded Seam Polishing Grinding Machine Steel Tank Shell Vessel
  • Body Circular Welded Seam Polishing Grinding Machine Steel Tank Shell Vessel
  • Body Circular Welded Seam Polishing Grinding Machine Steel Tank Shell Vessel
  • Body Circular Welded Seam Polishing Grinding Machine Steel Tank Shell Vessel
  • Body Circular Welded Seam Polishing Grinding Machine Steel Tank Shell Vessel
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-X
Minimum Order Quantity 1 set
Price USD 3000-5000 Dollar
Packaging Details Custom design plywood box
Delivery Time 20 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Steel Tank Circular Welded Joint Polishing Machine Color Yellow/Red/White Etc
Voltage 380V 400V 415V Etc Condition 100% New
Dimension 900x900x1500 Mm Warranty 18 Month
Weight 600 Kg Provide ODM & OEM
Highlight

Welded polishing grinding machine

,

Seam polishing grinding machine

,

grinding and polishing machine
Leave a Message
Product Description

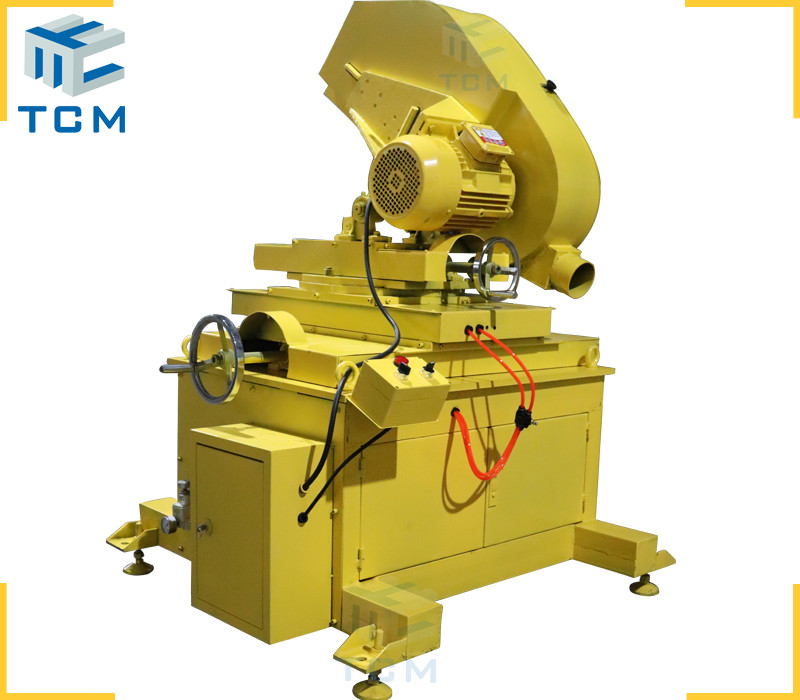

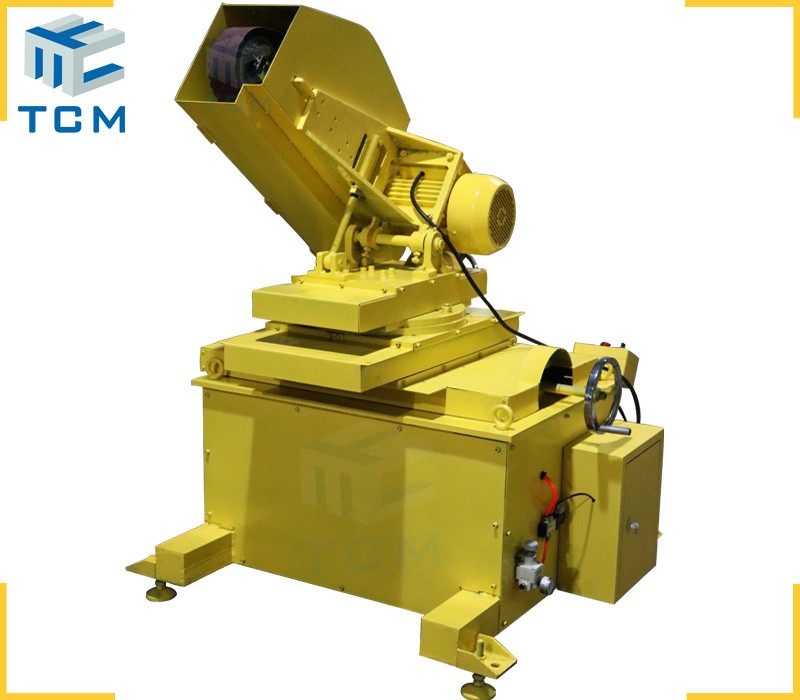

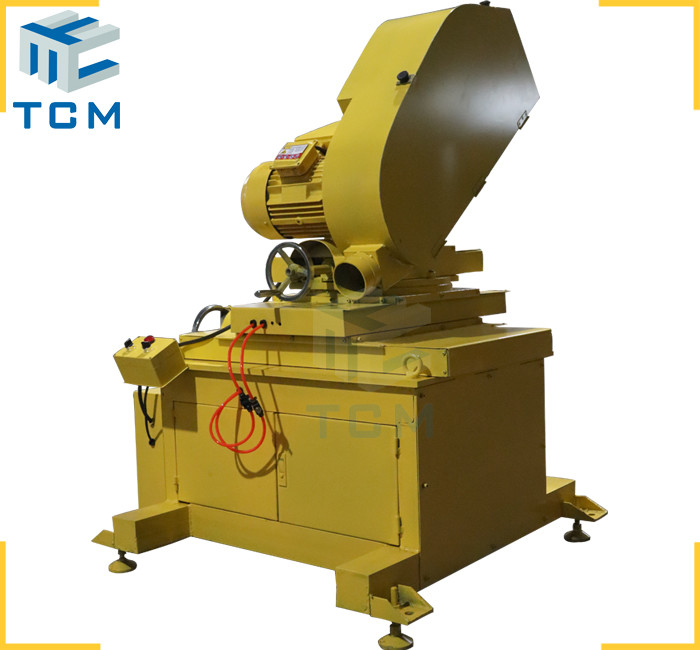

Body Circular Welded Seam Polishing Grinding Machine Steel Tank Shell Vessel
Product Specifications
Product Name Steel tank circular welded joint polishing machine
Color Options Yellow/Red/White etc
Voltage 380V 400V 415V etc
Condition 100% new
Dimension 900×900×1500 mm
Warranty 18 Month
Weight 600 kg
Service ODM & OEM
Product Description

Stainless steel tank shell circular welded seam surface automatic polishing grinding machine.

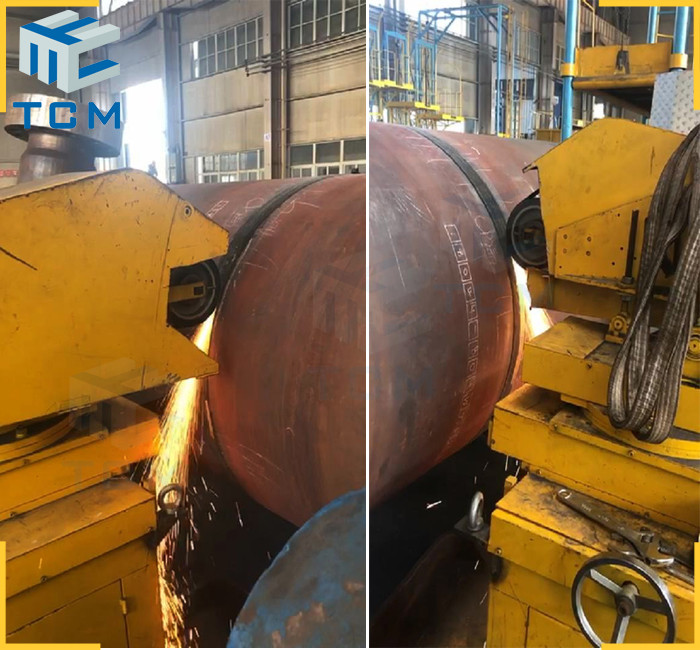

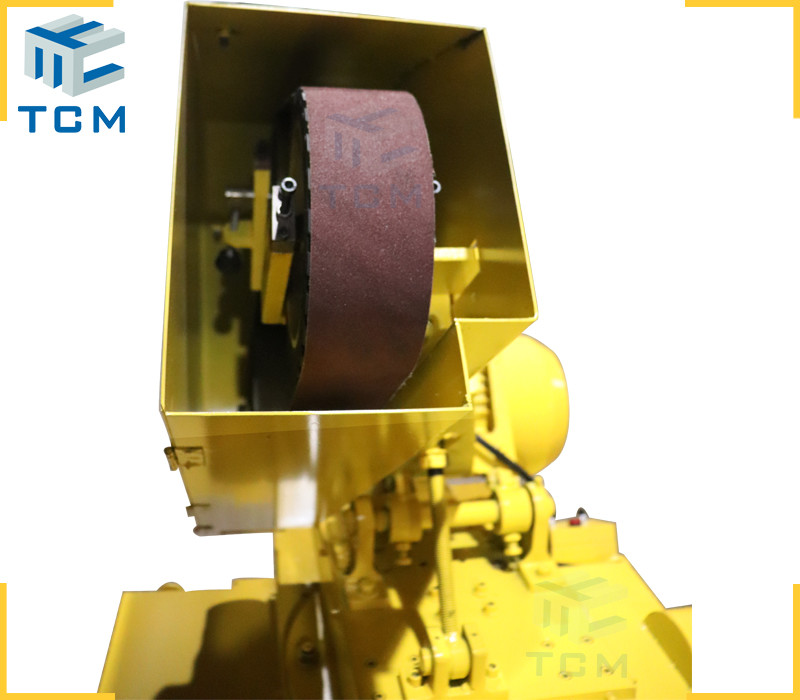

The Trancar Industries TCM-TW tank shell circular welded seam automatic polishing machine is specifically designed for surface treatment of steel tank shell circular welded seams (joints). Featuring a specialized welded seam grinding head system, this model is suitable for polishing, grinding, and buffing circular welded seams and joints on various steel tanks and pipes.

This machine finds extensive applications in:

  • Medical equipment manufacturing
  • Chemical processing
  • Environmental purification systems
  • Food and beverage production
  • Water filtration systems
Compatible Tank Types

The machine can effectively buff various steel metal cylinder tanks including:

  • Atmospheric/pressure tanks
  • CIP tanks
  • Milk/Cream/Yoghurt Tanks
  • Chocolate Processing tanks
  • Beer Fermentation Tanks
  • Yeast propagation Tanks
  • Mixers
  • Bio/Cosmetics Reactors
  • Pharma Mixers
  • Centrifugal cylinder shells
  • Crystal furnace tank shells

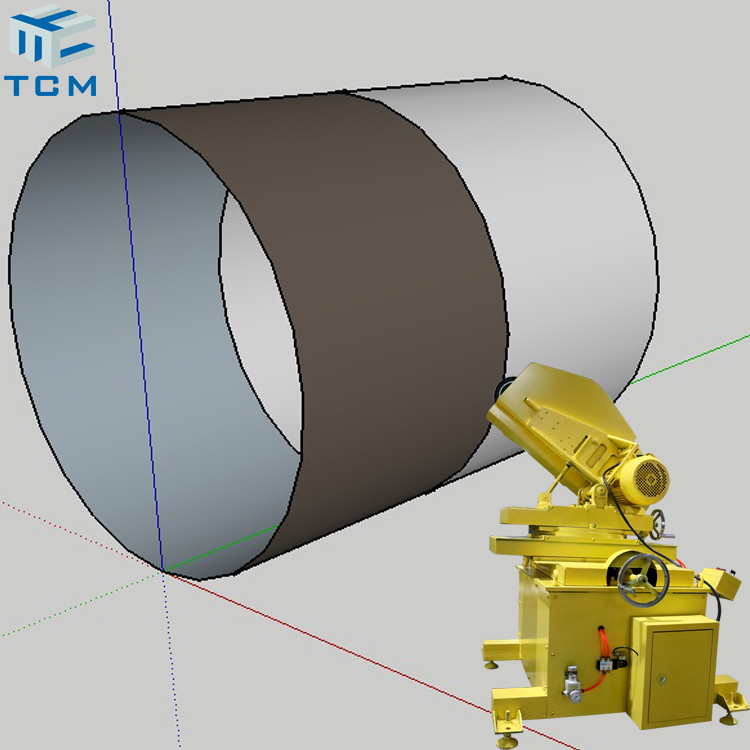

Custom-designed welded seam polishing solutions are available to meet specific requirements for both vertical and horizontal welded seam surface grinding and polishing.

Technical Parameters
Tank Circular Welded Seam Size Tank Shell Diameter: 450-5000 mm
Weld Seam Width ≤ 60 mm / 75 mm
Tank Shell Length ≤6000 mm
Tank Roller Max.Loading capacity 1 Ton, 2 Ton, 5 Ton, 10 Ton (Custom options available: 13T, 15T, 20T)
Polishing Precision Surface roughness(Ra) ≤0.25μm
Production Efficiency Polishing working speed: 6~12 m²/h
Machine Dimension 900×900×1500 mm
Input total Power 8 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Machine Weight 600 kg
Color Options Grey/Green/Blue/Red/Yellow (Custom designs available)
Body Circular Welded Seam Polishing Grinding Machine Steel Tank Shell Vessel 0 Body Circular Welded Seam Polishing Grinding Machine Steel Tank Shell Vessel 1
