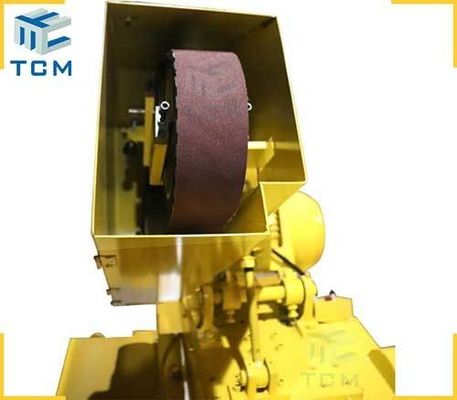

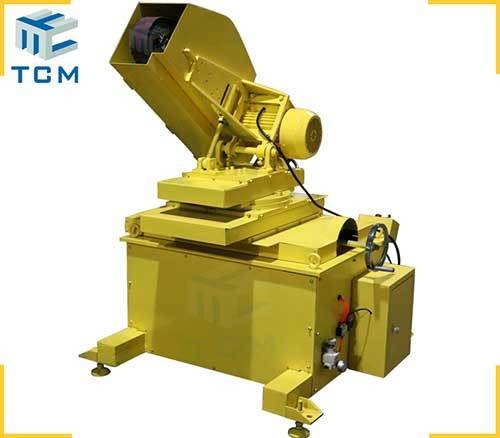

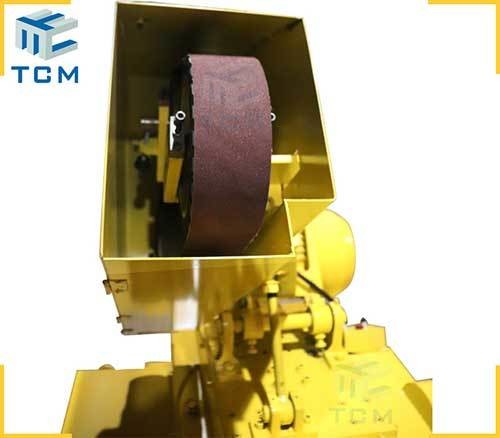

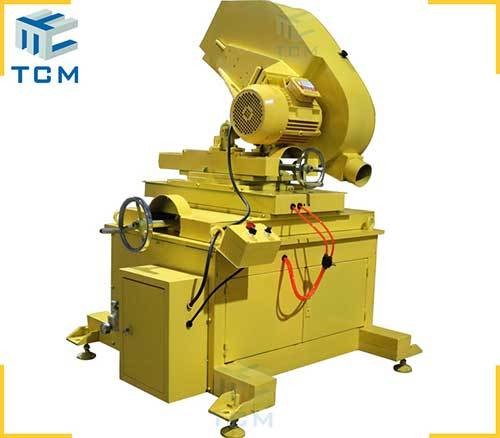

Steel Tank Shell Vessel Body Circular Welded Seam Auto Polishing Machine

  • Steel Tank Shell Vessel Body Circular Welded Seam Auto Polishing Machine
  • Steel Tank Shell Vessel Body Circular Welded Seam Auto Polishing Machine
  • Steel Tank Shell Vessel Body Circular Welded Seam Auto Polishing Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-XTC
Minimum Order Quantity 1 set
Price USD 9000-25000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 5 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Steel Tank Circular Welded Seam Auto Polishing Machine Dimension 900x900x1500mm
Color Yellow/Red/White Etc Function Grinding Welding Seam
Highlight

Welded Auto Polishing Machine

,

Seam Auto Polishing Machine

,

Steel Tank automatic polishing machine
Leave a Message
Product Description
Steel Tank Shell Vessel Body Circular Welded Seam Auto Polishing Machine
Product Specifications
Product Name Steel tank circular welded seam auto polishing machine
Dimension 900x900x1500mm
Color Yellow/Red/White etc
Function Grinding welding seam
Product Description

The Trancar Industries TCM-TW tank shell circular welded seam automatic polishing machine is specifically engineered for surface treatment of steel tank shell circular welded seams (joints) with a specialized welded seam grinding head system.

This model is suitable for polishing, grinding, and buffing circular welded seams and joints on various steel tanks and pipes, with applications in:

  • Medical equipment manufacturing
  • Chemical processing
  • Environmental purification systems
  • Food and beverage processing
  • Water filtration systems

The machine handles various steel metal cylinder tanks including:

  • Atmospheric/pressure tanks
  • CIP tanks
  • Milk/Cream/Yoghurt Tanks
  • Chocolate Processing tanks
  • Beer Fermentation Tanks
  • Pharmaceutical mixers and reactors
  • Centrifugal cylinder shells
  • Crystal furnace tank shells

Custom-designed welded seam polishing solutions are available to meet specific requirements for vertical or horizontal welded seam surface treatment.

Technical Parameters
Tank Circular Welded Seam Size Tank Shell Diameter: 450-5000 mm
Weld Seam Width ≤ 60 mm / 75 mm
Tank Shell Length ≤6000 mm
Tank Roller Max.Loading capacity 1 Ton, 2 Ton, 5 Ton, 10 Ton (Custom options available: 13T, 15T, 20T)
Polishing Precision Surface roughness(Ra) ≤0.25μm
Production Efficiency Polishing working speed: 6~12 m²/h
Machine Dimension 900x900x1500 mm
Input total Power 8 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p (Customizable)
Machine Weight 600 kg
Color Grey/Green/Blue/Red/Yellow (Custom design available)
Steel Tank Shell Vessel Body Circular Welded Seam Auto Polishing Machine 0 Steel Tank Shell Vessel Body Circular Welded Seam Auto Polishing Machine 1 Steel Tank Shell Vessel Body Circular Welded Seam Auto Polishing Machine 2
Contact Trancar Industries for more polishing machine solutions and customization options.
