Steel Vessel Tank Shell Surface Welded Seam Polishing Machine 380V 400V 415V

  • Steel Vessel Tank Shell Surface Welded Seam Polishing Machine 380V 400V 415V
  • Steel Vessel Tank Shell Surface Welded Seam Polishing Machine 380V 400V 415V
  • Steel Vessel Tank Shell Surface Welded Seam Polishing Machine 380V 400V 415V
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-T
Minimum Order Quantity 1 set
Price USD 9000-25000 Dollar per set
Packaging Details Custom design plywood box/Carton Boxes
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 25 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Tank Shell Welded Seam Polishing Machine Voltage 380V 400V 415V Etc
Usage Remove Welding Seam On Steel Sheet Surface Color Blue/Red/Grey
Dimension 2500x1600x3080mm Condition 100% New
Weight 2500kg Warranty 18 Month
Highlight

Welded Seam Polishing Machine

,

380V Seam Polishing Machine

,

415V Welding Line Grinding Polishing Machine
Leave a Message
Product Description
Steel Vessel Tank Shell Surface Welded Seam Polishing Machine 380V 400V 415V
Product Specifications
Attribute Value
Product Name Tank shell welded seam polishing machine
Voltage 380V 400V 415V etc
Usage Remove welding seam on steel sheet surface
Color Blue/Red/Grey
Dimension 2500x1600x3080mm
Condition 100% New
Weight 2500kg
Warranty 18 Month
Product Description

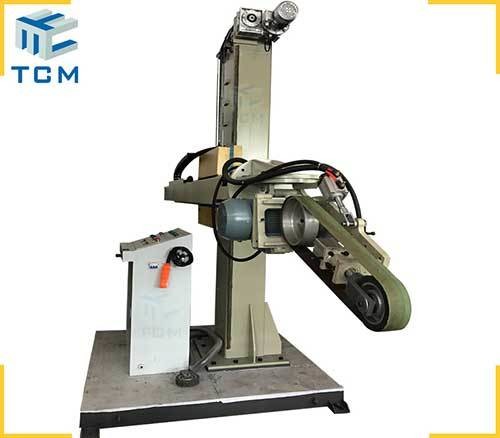

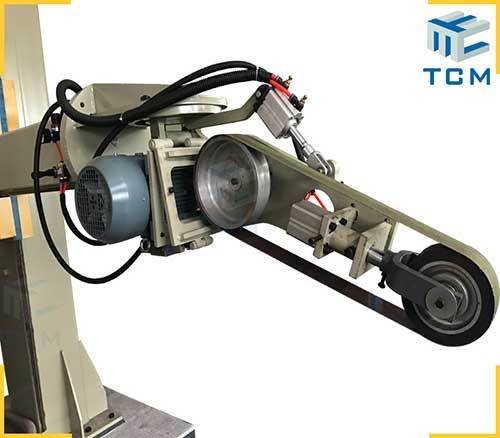

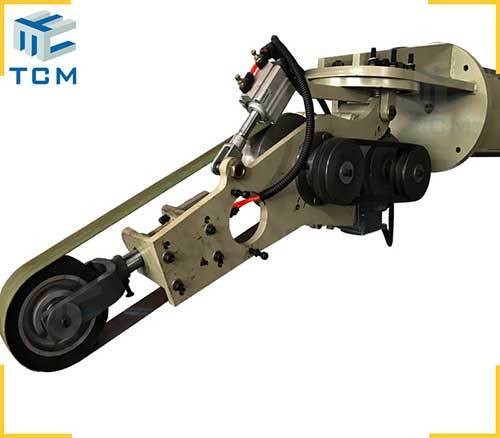

The Trancar Industries TCM-TW column and boom manipulator tank welded seam automatic polishing machine is a specialized solution for stainless steel tank surface treatment. Redesigned from the TCM-T model, it features an advanced welded seam grinding head system for superior polishing performance.

This machine is ideal for polishing all types of stainless steel tank welded seams, including longitudinal and circular joints. Widely used in medical, chemical, environmental purification, food, beverage, and water filtration industries.
Applications
  • Atmospheric/pressure tanks
  • CIP-tanks
  • Milk/Cream/Yoghurt Tanks
  • Chocolate Processing tanks
  • Beer Fermentation Tanks
  • Yeast propagation Tanks
  • Mixers and Bio/Cosmetics Reactors
  • Pharma Mixers
  • Centrifugal cylinder shells
  • Crystal furnace tank shells
Technical Parameters
Tank Circular Welded Seam Size
Diameter 450-5000 mm
Width ≤ 60 mm / 75 mm
Tank Longitudinal Welded Seam Size
Length ≤ 5000mm
Width ≤ 60 mm / 75 mm
Performance Specifications
Tank Roller Max.Loading capacity 1 Ton,2 Ton,5 Ton,10 Ton (Custom options available: 13T,15T,20T)
Polishing Precision (Surface roughness Ra) ≤0.25μm
Production Efficiency (Polishing speed) 6~12 m²/h
Machine Specifications
Total Dimension 3500*1600*3080mm
Column Dimension 300x400x8 mm
Beam Dimension 150x200x6 mm
Input Power 12 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p (Customizable)
Machine Weight 2260 kg
Color Options Grey/Green/Blue/Red/Yellow (Custom design available)
Suitable Polishing Materials Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Custom Solutions Available

We offer custom-designed welded seam polishing solutions tailored to your specific requirements for vertical or horizontal welded seam surface grinding and polishing.

Steel Vessel Tank Shell Surface Welded Seam Polishing Machine 380V 400V 415V 0 Steel Vessel Tank Shell Surface Welded Seam Polishing Machine 380V 400V 415V 1 Steel Vessel Tank Shell Surface Welded Seam Polishing Machine 380V 400V 415V 2
