Carbon Steel Pressure Vessel Tank Welding Seam Grinding Polishing Machine

  • Carbon Steel Pressure Vessel Tank Welding Seam Grinding Polishing Machine
  • Carbon Steel Pressure Vessel Tank Welding Seam Grinding Polishing Machine
  • Carbon Steel Pressure Vessel Tank Welding Seam Grinding Polishing Machine
  • Carbon Steel Pressure Vessel Tank Welding Seam Grinding Polishing Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-T
Minimum Order Quantity 1 set
Price USD 10000-50000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 45 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Carbon Steel Pressure Vessel Tank Welding Seam Grinding Polishing Machine Voltage 380V 400V 415V Etc
Color Red/Blue/Red/Gray Etc Warranty 1 Year
Highlight

Welding grinding polishing machine

,

Seam grinding polishing machine

,

Vessel Tank polishing grinder
Leave a Message
Product Description
Carbon Steel Pressure Vessel Tank Welding Seam Grinding Polishing Machine
Product Specifications
Product Name Carbon steel pressure vessel tank welding seam grinding polishing machine
Voltage 380V 400V 415V etc
Color Red/Blue/Red/Gray etc
Warranty 1 year
Product Overview
Trancar Industries' welding seam grinding polishing machine is custom-designed to meet specific client requirements. The adjustable motor-driven turning roller rotates tank shells during operation, while an integrated camera system provides visual monitoring of the polishing process.
Applications
This specialized machine performs grinding and polishing operations on welded joints and surfaces of:
  • Carbon steel and stainless steel pressure vessels
  • Industrial container internal/external surfaces
  • Circumferential welding seams
  • Various steel metal cylinder tanks
Widely used in medical, chemical, environmental purification, food processing, beverage production, and water filtration industries.
Technical Parameters
Standard Configuration (Custom designs available)
Vessel Size Outside diameter: 400~5000mm / 7000 mm
Inside diameter: 400~5000mm / 7000 mm
Length: ≤5000mm / 8000 mm
Tank Roller Capacity 1 Ton, 2 Ton, 5 Ton, 10 Ton (Custom options: 13T, 15T, 20T)
Polishing Precision Surface roughness (Ra) ≤0.25μm
Production Efficiency Polishing speed: 6~12 m²/h
Dimensions Machine: 3500×1600×3080mm
Column: 300×400×8 mm
Beam: 150×200×6 mm
Power Requirements 12 kW total input power
380V 415V / 50Hz 60HZ / 3p (Customizable)
Machine Weight 3000kg
Color Options Grey/Green/Blue/Red/Yellow (Custom colors available)
Suitable Polishing Materials Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Machine Features
  • Custom-designed for specific application requirements
  • Adjustable motor-driven turning roller
  • Integrated camera system for process visualization
  • Handles both internal and external surface polishing
  • Suitable for various industrial tank types and materials
  • High precision polishing with surface roughness ≤0.25μm
Product Images

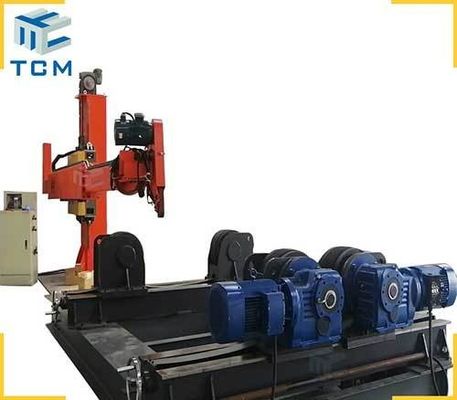

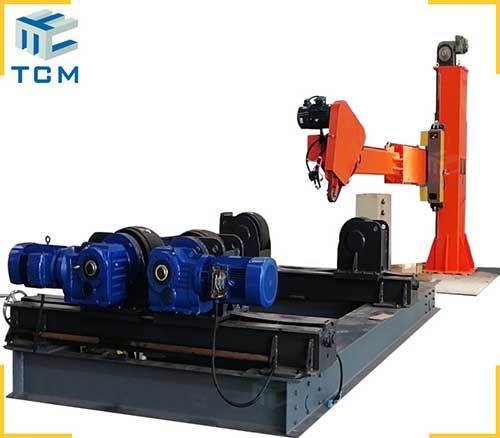

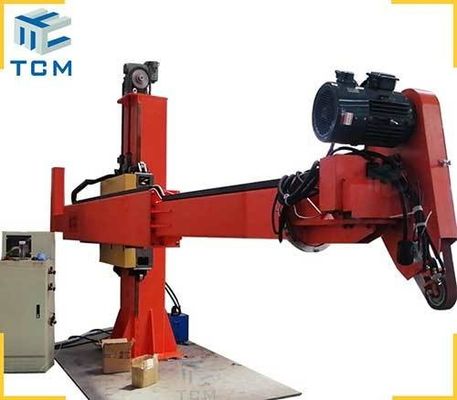

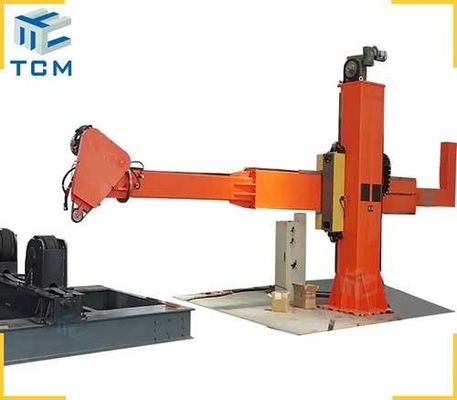

Carbon Steel Pressure Vessel Tank Welding Seam Grinding Polishing Machine 0 Carbon Steel Pressure Vessel Tank Welding Seam Grinding Polishing Machine 1
Note: All specifications and configurations can be customized to meet specific production requirements. Contact our engineering team for specialized solutions.
