Flat Sheet Welded Joint Welding Line Grinding Polishing Machine 380V 400V 415V

  • Flat Sheet Welded Joint Welding Line Grinding Polishing Machine 380V 400V 415V
  • Flat Sheet Welded Joint Welding Line Grinding Polishing Machine 380V 400V 415V
  • Flat Sheet Welded Joint Welding Line Grinding Polishing Machine 380V 400V 415V
  • Flat Sheet Welded Joint Welding Line Grinding Polishing Machine 380V 400V 415V
  • Flat Sheet Welded Joint Welding Line Grinding Polishing Machine 380V 400V 415V
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-XTC
Minimum Order Quantity 1 set
Price USD 800-2000 Dollar
Packaging Details Custom design plywood box
Delivery Time 5 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 100 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Flat Sheet Welded Joint Grinding Machine Voltage 380V 400V 415V Etc
Warranty 18 Month Provide ODM & OEM
Highlight

Flat Sheet Welding Line Grinding Polishing Machine

,

380V Welding Line Grinding Polishing Machine

,

415V Automatic Weld Seam Finishing Machine
Leave a Message
Product Description
Flat Sheet Welded Joint Welding Line Grinding Polishing Machine 380V 400V 415V
Product Specifications
Product Name Flat Sheet Welded Joint Grinding Machine
Voltage 380V 400V 415V etc
Warranty 18 Month
Provide ODM & OEM
Product Overview

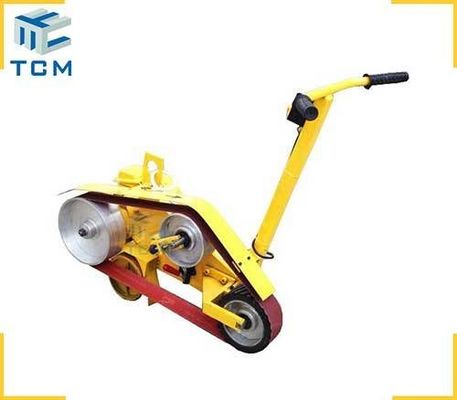

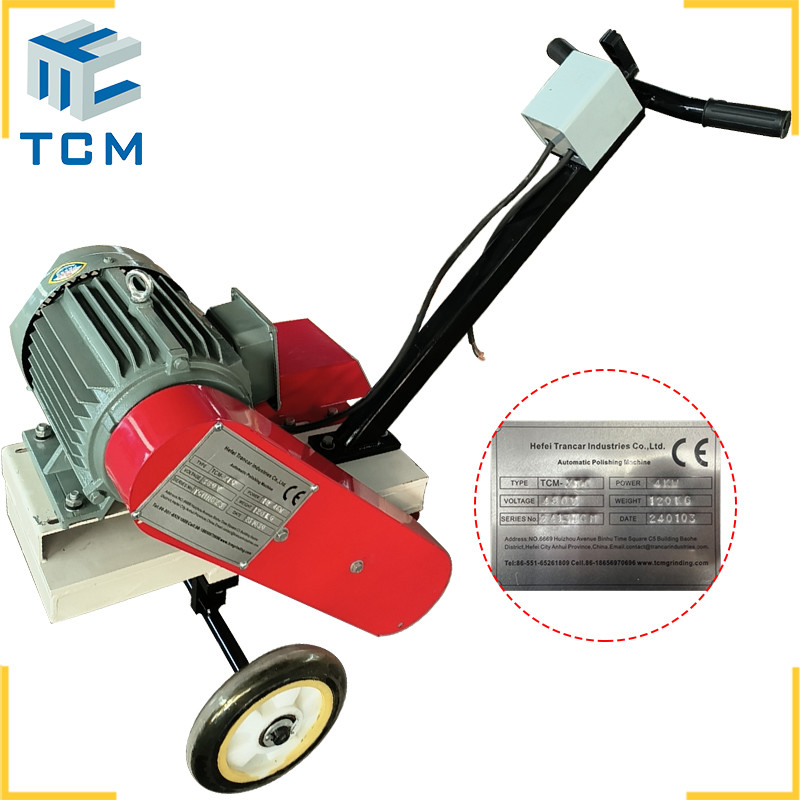

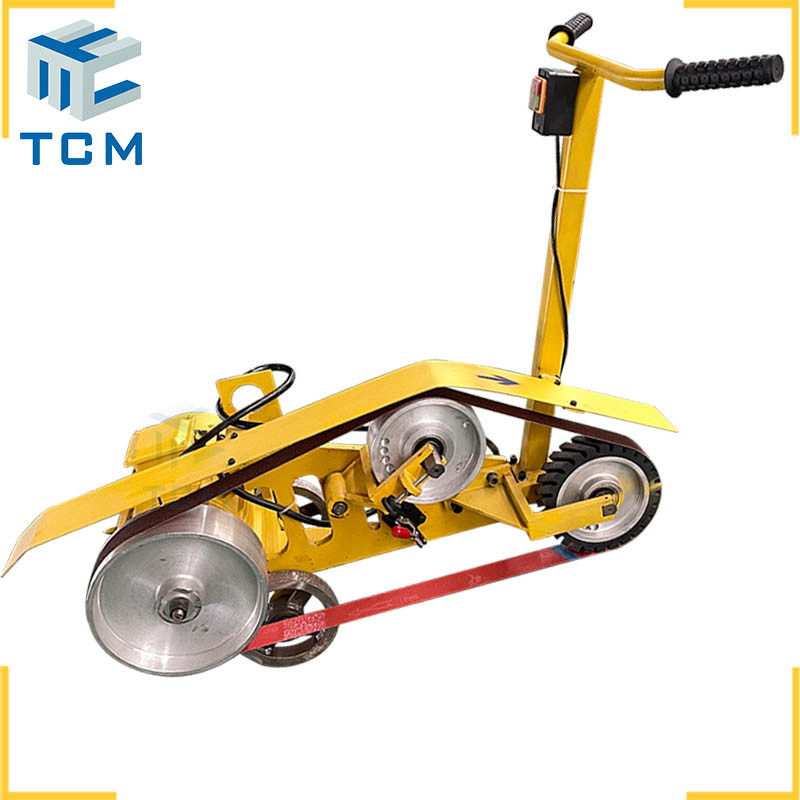

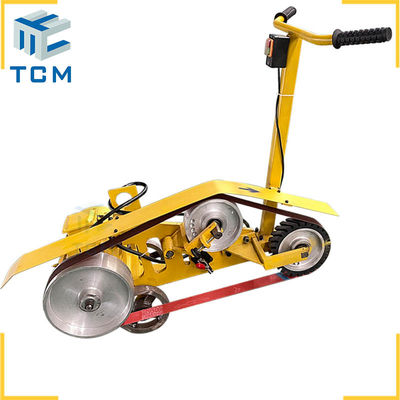

The TCM-XTC manual control grinder machine is designed for precision surface treatment of metal sheets and welded joints. This robust industrial solution combines efficiency with manual control for optimal polishing results.

Key Components
  • Belt driving mechanism for consistent operation
  • Contacting wheels (abrasive wheel) system
  • Grinding head body with supporting base
  • Stand bars and caster for mobility
  • Abrasive belt with hand push rod
  • Electrical control system for precise operation
Technical Parameters
Specification Value
Machine Dimensions (L x W x H) 1300x800x1200 mm
Polishing Precision (Surface roughness Ra) ≤0.4μm
Abrasive Belt Specification 2000mm*50mm (60#-600# grit mesh)
Grinding Efficiency (Working speed) 6 m²/h
Input Power 4 kW
Power Supply 380V 415V / 50Hz 60Hz / 3p or Customization
Machine Weight 120 kg
Color Options Yellow/Grey/Green/Blue/Red/Custom design

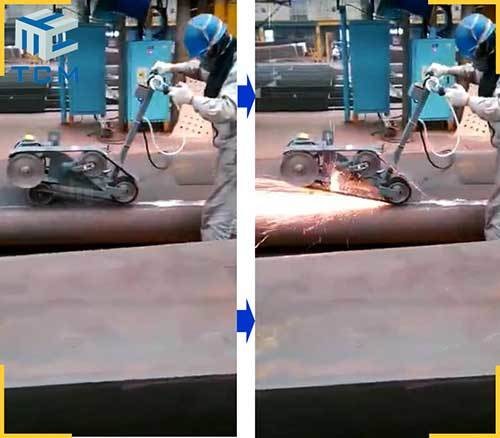

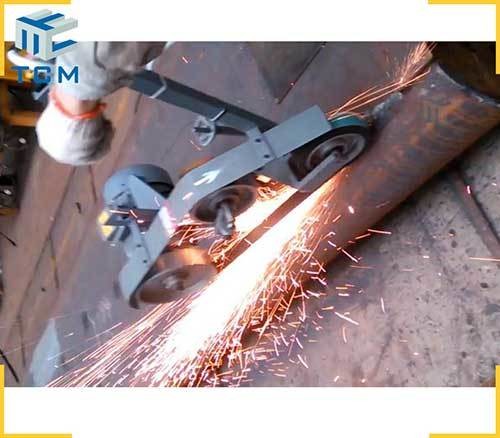

Applications

This versatile grinding machine is ideal for:

  • Flat sheet surface grinding
  • Plate welded joint surface polishing
  • Welding seam grinding
  • Metal sheet dust removal

Widely used in steel metal product fabrication and industrial manufacturing applications.

Flat Sheet Welded Joint Welding Line Grinding Polishing Machine 380V 400V 415V 0 Flat Sheet Welded Joint Welding Line Grinding Polishing Machine 380V 400V 415V 1

Contact Trancar Industries for more polishing and grinding solutions:

Flat Sheet Welded Joint Welding Line Grinding Polishing Machine 380V 400V 415V 2
