Inox Cylindrical Tank Shell Inner Exterior Surface Automatic Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-T |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-5000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Inox Cylindrical Tank Shell Inner Exterior Surface Automatic Polishing Machine | Dimension | 3500x1600x3080mm |
|---|---|---|---|
| Weight | 2200 Kg | Voltage | 380V 400V 415V Etc |
| Color Option | Blue/Yellow/Red Etc | Usage | Steel Tank Surface Cleaning,rust 0removal,mirror Surface Achieving |
| Condition | 100% New | Control System | Semi-automatic/CNC Full Automation Etc |
| Polishing Efficiency | 8-15m2 Per Hour | Warranty | 18 Month |
| After Sales Service | Video Technical Support/Online Support/Engineer Oversea | Provides | ODM & OEM |
| Highlight | Inox Tank Polishing Machine,Cylindrical Tank Polishing Machine,Surface automatic polishing machine |
||
Product Description
Inox Cylindrical Tank Shell Inner Exterior Surface Automatic Polishing Machine
Product Specifications
| Product Name | Inox cylindrical tank shell inner exterior surface automatic polishing machine |
| Dimension | 3500x1600x3080mm |
| Weight | 2200 kg |
| Voltage | 380V 400V 415V etc |
| Color Option | Blue/Yellow/Red etc |
| Usage | Steel tank surface cleaning, rust removal, mirror surface achieving |
| Condition | 100% new |
| Control System | Semi-automatic/CNC Full automation etc |
| Polishing Efficiency | 8-15m² per hour |
| Warranty | 18 Month |
| After sales service | Video technical support/Online support/Engineer oversea |
| Provides | ODM & OEM |
Product Description
The Inox cylindrical tank shell automatic polishing machine is designed for stainless steel tank surface polishing, grinding, and buffing. This model is suitable for various industrial applications including internal and external polishing of stainless steel tanks, cylinders, pressure vessels, and industrial containers.
Applications include:
- Medical equipment manufacturing
- Chemical processing
- Environmental purification systems
- Food and beverage processing equipment
- Water filtration systems
Compatible with various tank types:
- Atmospheric/pressure tanks
- CIP-tanks
- Dairy processing tanks
- Beer fermentation tanks
- Pharmaceutical mixers
- Centrifugal cylinder shells
Technical Parameters
| Steel tank size (Outside diameter) | 400~5000mm / 7000 mm |
| Steel tank size (Inside diameter) | 400~5000mm / 7000 mm |
| Length | ≤5000mm / 8000 mm |
| Tank Roller Max.Loading capacity | 1 Ton, 2 Ton, 5 Ton, 10 Ton (Customizable up to 20T) |
| Polishing Precision (Surface roughness Ra) | ≤0.25μm |
| Production Efficiency | 6~12 m²/h |
| Total Dimension | 3500*1600*3080mm |
| Input total Power | 12 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Suitable Polishing Material | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |

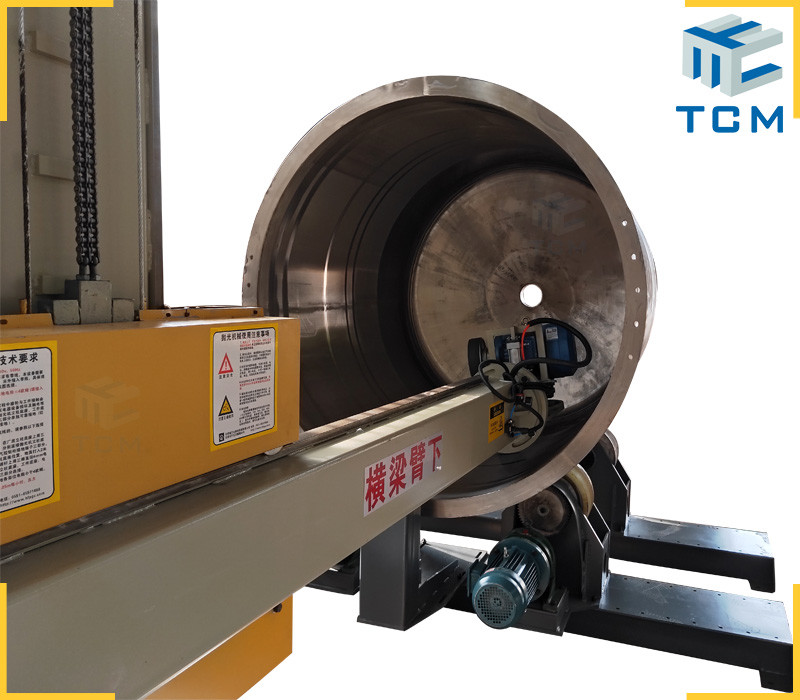

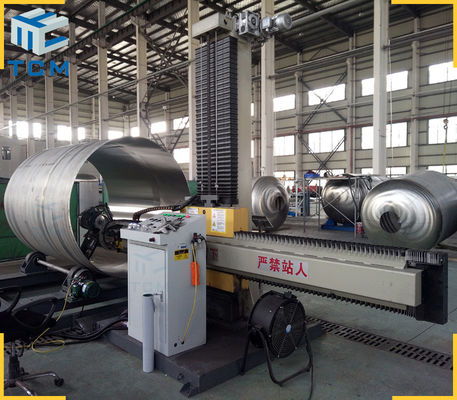

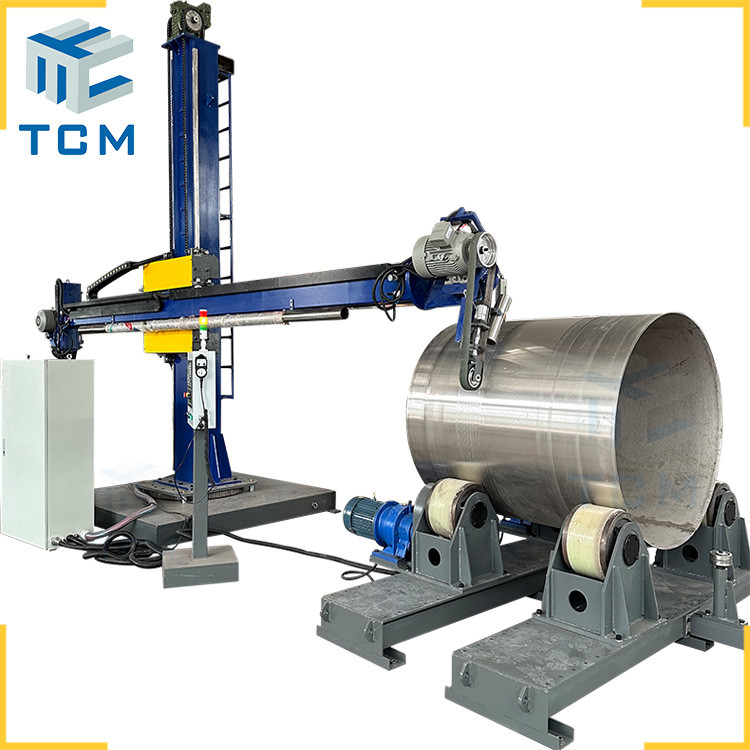

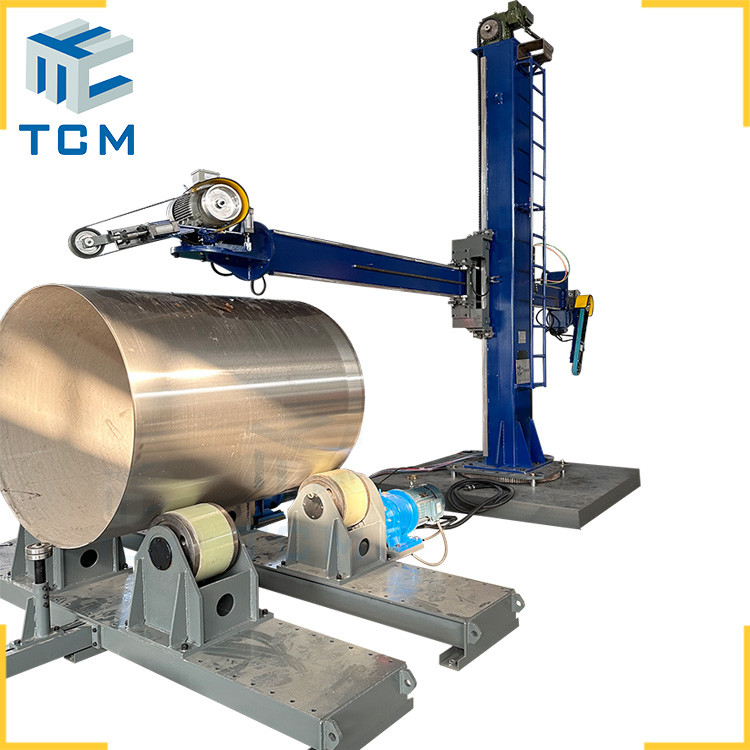

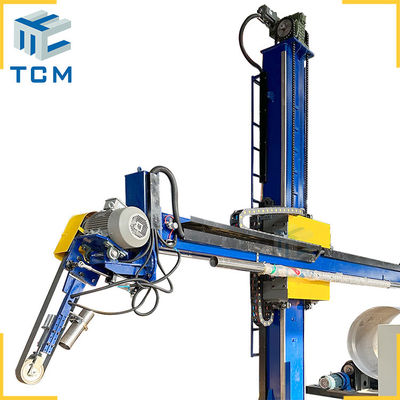

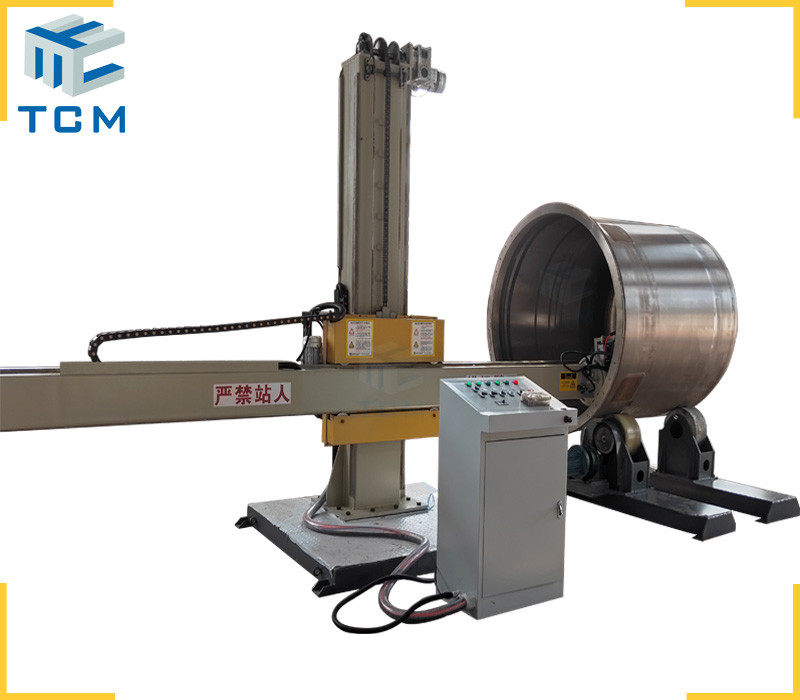

Product Images
Packaging and Delivery
- Plywood case + PE Film + Carton protection
- Custom packaging available based on order requirements
