Mixer And Agitator 380V 400V 415V Automatic Tank Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-T |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-5000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Mixer And Agitator Tank Surface Automatic Polishing Machine | Dimension | 3500x1600x3080mm |
|---|---|---|---|
| Weight | 2200 Kg | Voltage | 380V 400V 415V Etc |
| Color Option | Blue/Yellow/Red Etc | Usage | Steel Tank Surface Cleaning,rust 0removal,mirror Surface Achieving |
| Condition | 100% New | Control System | Semi-automatic/CNC Full Automation Etc |
| Polishing Efficiency | 8-15m2 Per Hour | Warranty | 18 Month |
| After Sales Service | Video Technical Support/Online Support/Engineer Oversea | Provides | ODM & OEM |
| Highlight | Automatic Tank Polishing Machine,415V Tank Polishing Machine,380V automatic grinding and polishing machine |
||
Product Description

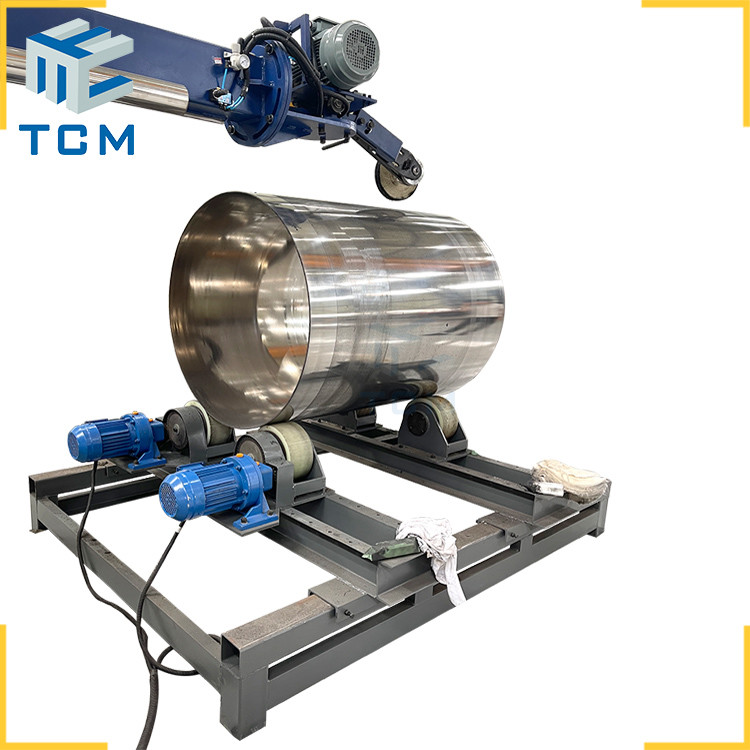

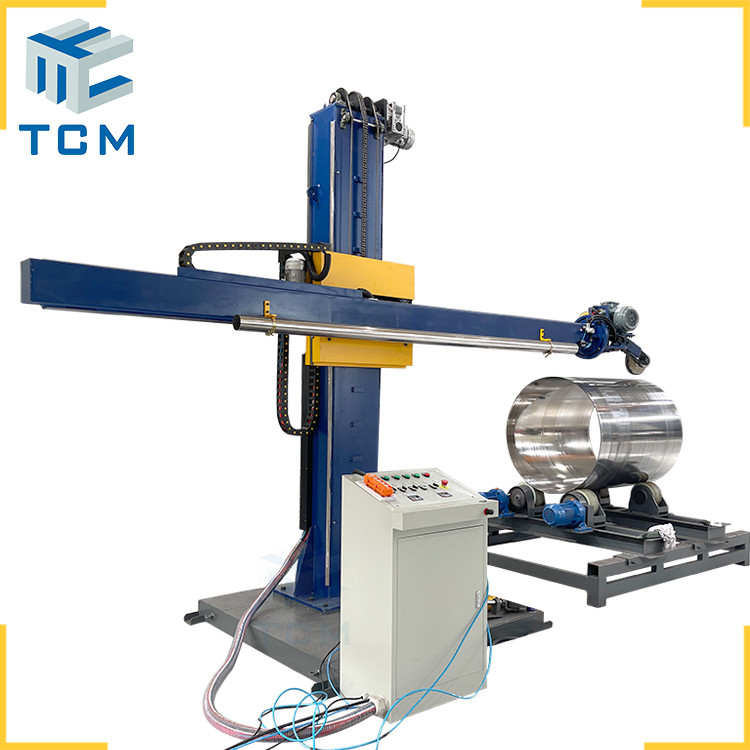

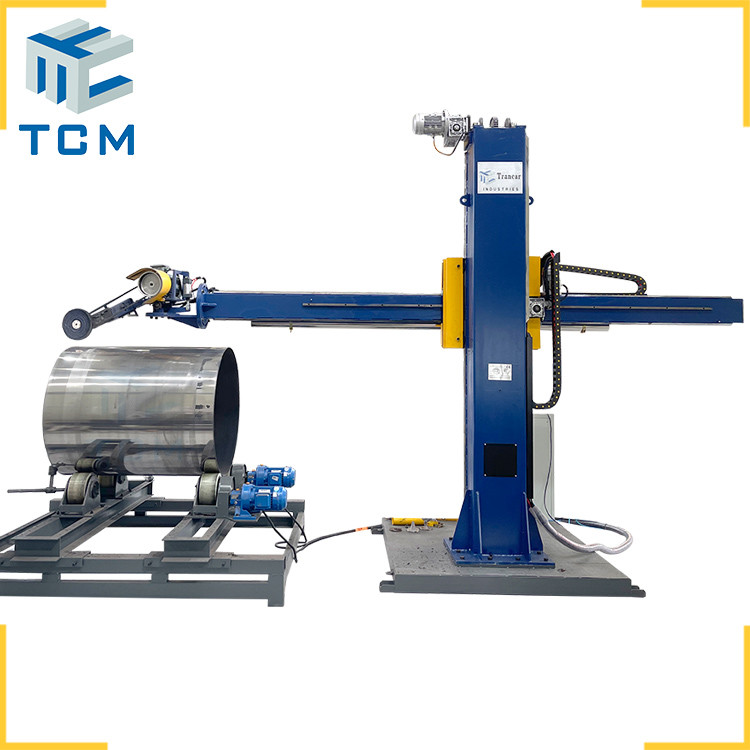

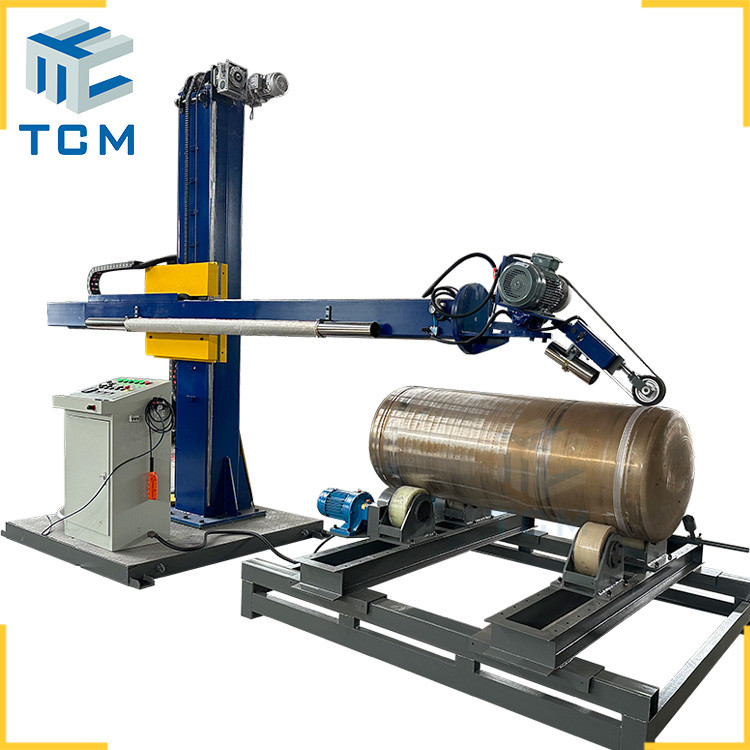

Mixer and agitator tank surface automatic polishing machine
Stainless steel tank surface automatic polishing grinding buffing machine.
Trancar Industries TCM-T column and boom manipulator stainless steel tank automatic polishing machine,This model is suitable for not only all kinds of stainless steel tanks ,industrial tanks internal and external polishing grinding and buffing,but surface of the cylinder inside and outside,pressure vessel,industrial container and the circumferential welded seams polishing.
This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.
It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.
Mixer and agitator tank surface automatic polishing machine TCM-T series automatic polishing machine parameter:
| Normal configuration(customer design acceptable) | ||
| Steel tank size | Outside diameter | 400~5000mm / 7000 mm |
| Inside diameter | 400~5000mm / 7000 mm | |
| Length | <=5000mm / 8000 mm | |
| Tank Roller Max.Loading capacity | 1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T. | |
| Polishing Precision | Surface roughness(Ra) | <=0.25μm |
| Production Efficiency | Polishing working speed | 6~12 m2/h |
| Total Dimension | Machine Dimension | 3500*1600*3080mm |
| Column Dimension | 300x400x8 mm | |
| Beam Dimension | 150x200x6 mm | |
| Input total Power | / | 12 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
| Machine Weight | / | 2250kg |
| Color | Grey/Green/Blue/Red/Yellow Custom design | |
| Suitable Polishing Material | Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) | |
Trancar Industries Mixer and agitator tank surface automatic polishing machine delivery & package:
Packaging and delivery:
1,Plywood case+PE Film+ Carton protection.
2,or based on your order requirements.
