Rods Mechanical Wire Buffing Machine Automatic Polishing Machine

  • Rods Mechanical Wire Buffing Machine Automatic Polishing Machine
  • Rods Mechanical Wire Buffing Machine Automatic Polishing Machine
  • Rods Mechanical Wire Buffing Machine Automatic Polishing Machine
  • Rods Mechanical Wire Buffing Machine Automatic Polishing Machine
  • Rods Mechanical Wire Buffing Machine Automatic Polishing Machine
  • Rods Mechanical Wire Buffing Machine Automatic Polishing Machine
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-WR
Minimum Order Quantity 1 set
Price USD 15000-40000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wire And Rods Mechanical Cleaning Machine Dimension 2650x1050x1300mm
Weight 2100 Kg Voltage 380V 400V 415V Etc
Color Option Blue/White/Yellow/Grey Etc Usage Surface Brushing Linishing/diameter Reduce
Condition 100% New Polishing Speed Max.2m/s
Warranty 18 Month After-sales Service Video Support/Engineer Oversea Service
Provide ODM & OEM Control System PLC Program
Highlight

Mechanical wire buffing machine

,

Rods wire buffing machine

,

Automatic rod grinding machine
Leave a Message
Product Description

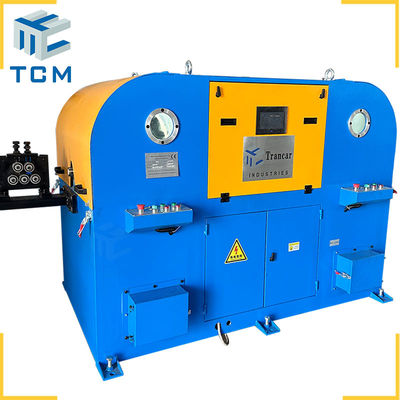

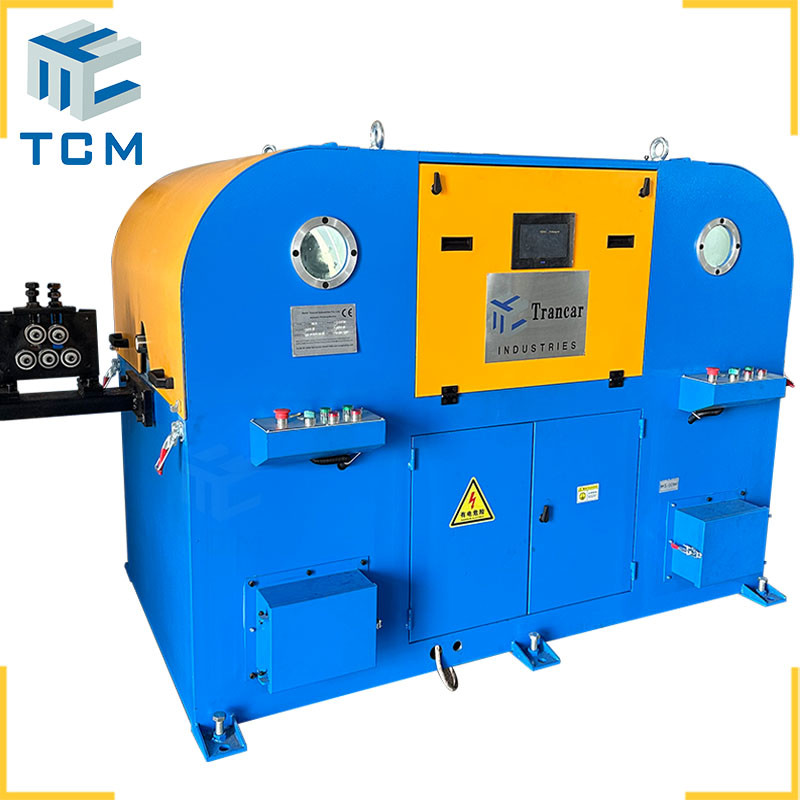

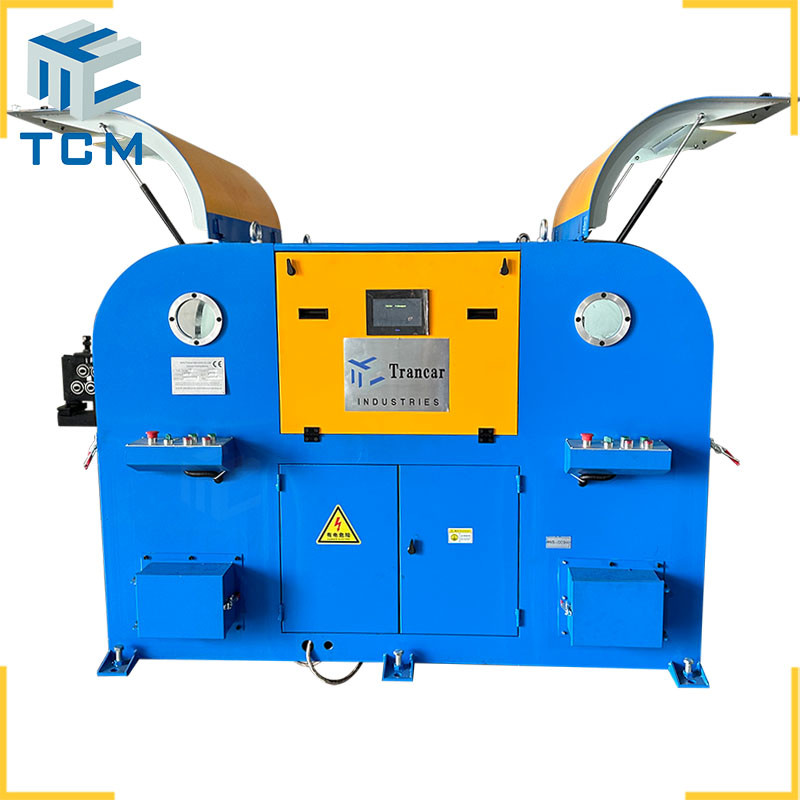

Rods Mechanical Wire Buffing Machine Automatic Polishing Machine
Product Specifications
Attribute Value
Product Name Wire and rods mechanical cleaning machine
Dimension 2650x1050x1300mm
Weight 2100 kg
Voltage 380V 400V 415V etc
Color option Blue/White/Yellow/Grey etc
Usage Surface brushing linishing/diameter reduce
Condition 100% new
Polishing speed Max.2m/s
Warranty 18 Month
After-sales service Video support/Engineer oversea service
Provide ODM & OEM
Control system PLC program
Product Overview

The Trancar Industries Model TCM-WR automatic steel wire rod cleaning machine is designed for stainless steel metal wire rods' surface grinding and buffing. This machine uses mechanical methods to process metal wire rod surfaces for grinding, polishing, and rust removal, replacing traditional pickling methods while being environmentally friendly and energy efficient.

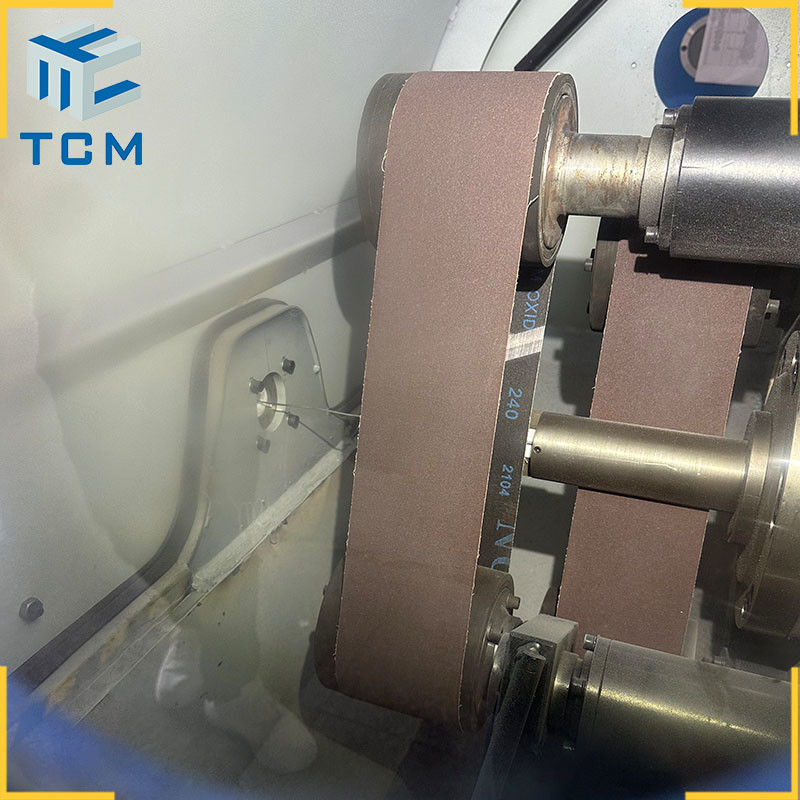

This belt sander effectively removes oxide scale or oxide film and its particles from wire. Through four fixed rollers (single side) and two tension rollers supported by the turntable, two high-speed rotating abrasive belts provide consistent polishing. The rotation speed of the turntable and the feed speed of the wire are precisely matched for optimal results.

Rods Mechanical Wire Buffing Machine Automatic Polishing Machine 0 Rods Mechanical Wire Buffing Machine Automatic Polishing Machine 1
Technical Parameters
Parameter Specification
Wire Rod Diameter 1-5mm / 5-8mm / 8-16mm / 16-25mm
Machine Dimension (L×W×H) 2650×1050×1300mm
Abrasive Belts Size 1600×500 mm / 1350×300mm / 1250×300mm etc
Production Efficiency 120-200 m/h
Input Total Power 35 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Machine Weight 2100kg
Color Options Grey/Green/Blue/Red/Yellow Custom design
Optional Features Dust Collection system available
Rods Mechanical Wire Buffing Machine Automatic Polishing Machine 2 Rods Mechanical Wire Buffing Machine Automatic Polishing Machine 3 Rods Mechanical Wire Buffing Machine Automatic Polishing Machine 4
Packaging & Delivery
Rods Mechanical Wire Buffing Machine Automatic Polishing Machine 5 Rods Mechanical Wire Buffing Machine Automatic Polishing Machine 6
Optional Dust Collection System

The steel metal wire rod cleaning machine can be equipped with a 4kw dust collecting system for cleaner operation.

Rods Mechanical Wire Buffing Machine Automatic Polishing Machine 7 Rods Mechanical Wire Buffing Machine Automatic Polishing Machine 8
Contact Trancar Industries for more information about stainless steel fine wire and rods automatic cleaning polishing machines and custom design solutions.
