Steel Tank Shell And Bottom Surface Automatic Polishing Machine For Stainless Steel
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-YT |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-5000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Tank Shell And Bottom Surface Automatic Polishing Sanding Grinding Machine | Dimension | 4500x1600x3080mm |
|---|---|---|---|
| Weight | 3500 Kg | Voltage | 380V 400V 415V Etc |
| Color Option | Blue/Yellow/Red Etc | Usage | Steel Tank Surface Cleaning,rust Removal,mirror Surface Achieving |
| Condition | 100% New | Control System | Semi-automatic/CNC Full Automation Etc |
| Polishing Efficiency | 8-15m2 Per Hour | Warranty | 18 Month |
| After Sales Service | Video Technical Support/Online Support/Engineer Oversea | Provides | ODM & OEM |
| Highlight | Tank Shell automatic polishing machine for stainless steel,Steel automatic polishing machine for stainless steel,380V automatic stainless steel polishing machine |
||
Product Description
Steel Tank Shell And Bottom Surface Automatic Polishing Machine For Stainless Steel
Product Specifications
| Product Name | Steel tank shell and bottom surface automatic polishing sanding grinding machine |
| Dimension | 4500x1600x3080mm |
| Weight | 3500 kg |
| Voltage | 380V 400V 415V etc |
| Color Option | Blue/Yellow/Red etc |
| Usage | Steel tank surface cleaning, rust removal, mirror surface achieving |
| Condition | 100% new |
| Control System | Semi-automatic/CNC Full automation etc |
| Polishing Efficiency | 8-15m² per hour |
| Warranty | 18 Month |
| After sales service | Video technical support/Online support/Engineer oversea |
| Provides | ODM & OEM |
Product Description

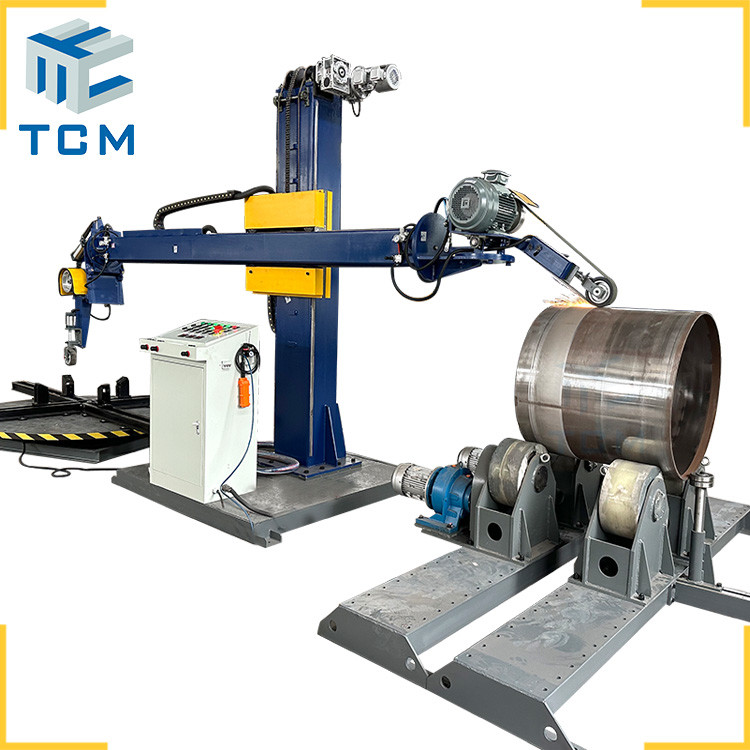

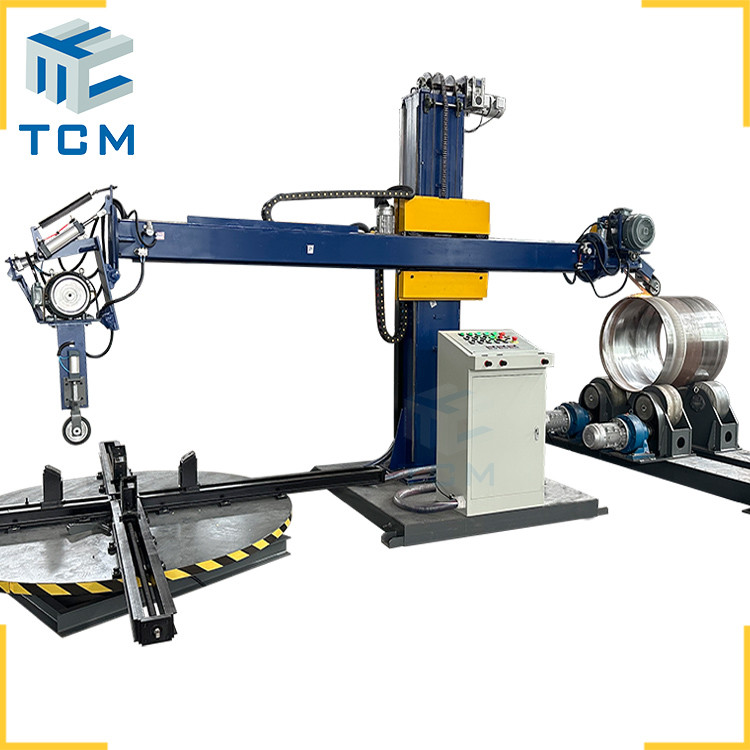

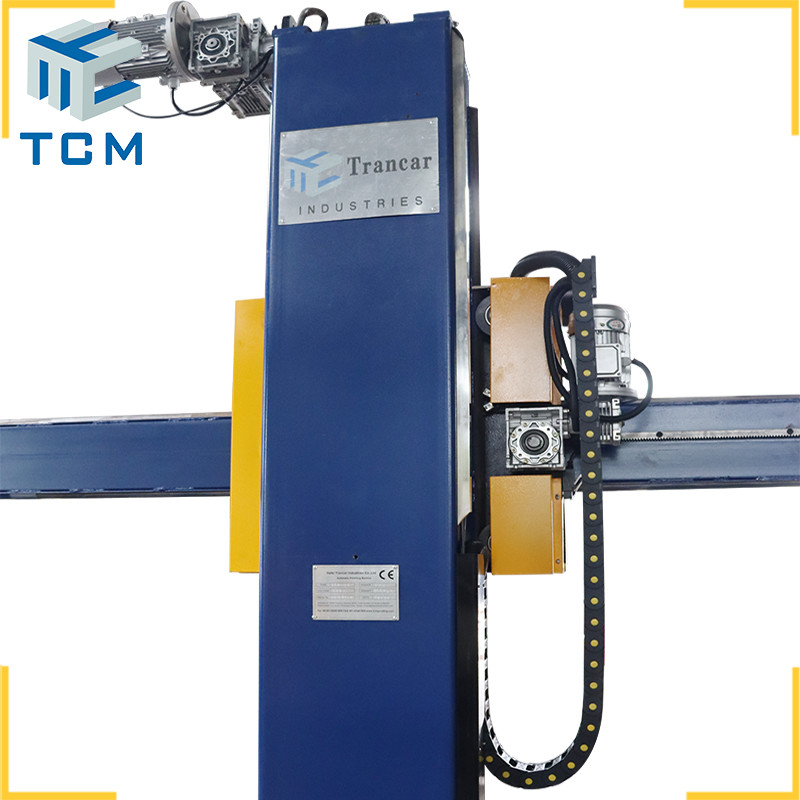

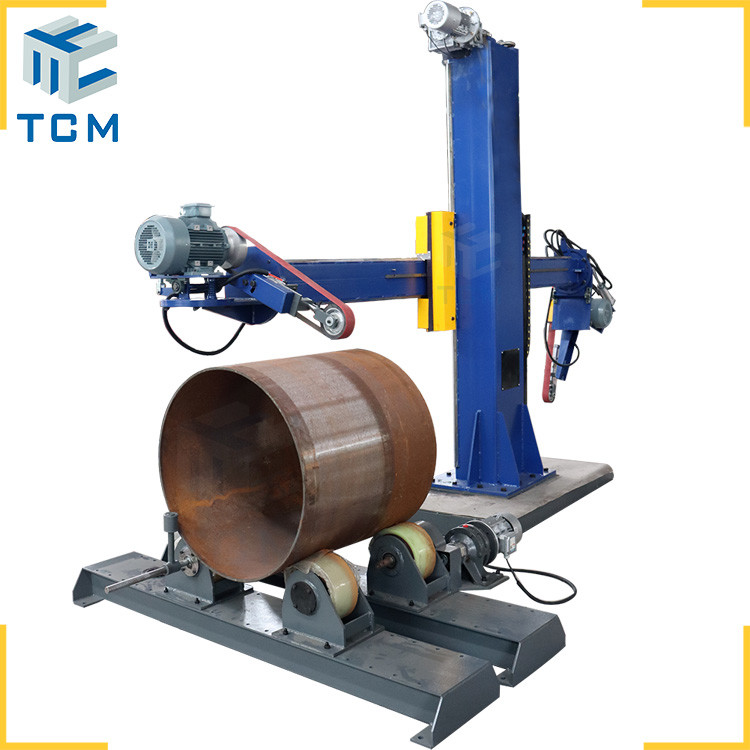

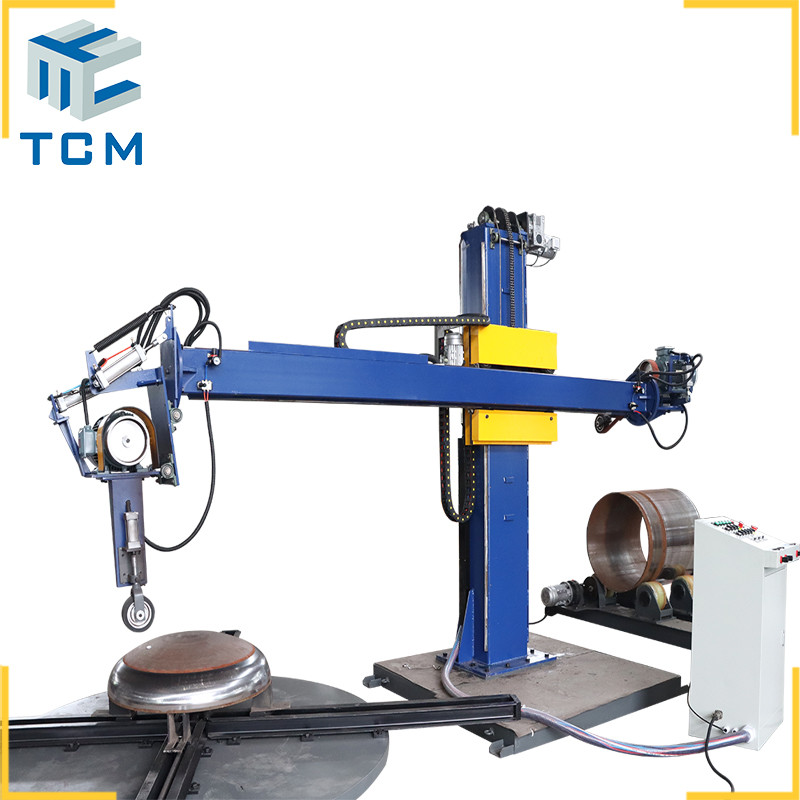

The TCM-YT column and boom manipulator polishing machine is a 2-in-1 dual-use automatic polishing solution for stainless steel cylinder shells and tank caps. This versatile machine handles both interior and exterior surface treatments including polishing, grinding, and buffing operations.
Equipped with two polishing motors on each side of the machine beam, it offers economical and environmentally friendly operation (though simultaneous operation is not supported). The system is designed for various workpiece types including tank bodies, tank heads, and dish ends.
Technical Parameters
| Steel metal tank size (Outside diameter) | 400~5000mm / 7000 mm |
| Steel metal tank size (Inside diameter) | 400~5000mm / 7000 mm |
| Length | <=5000mm / 8000 mm |

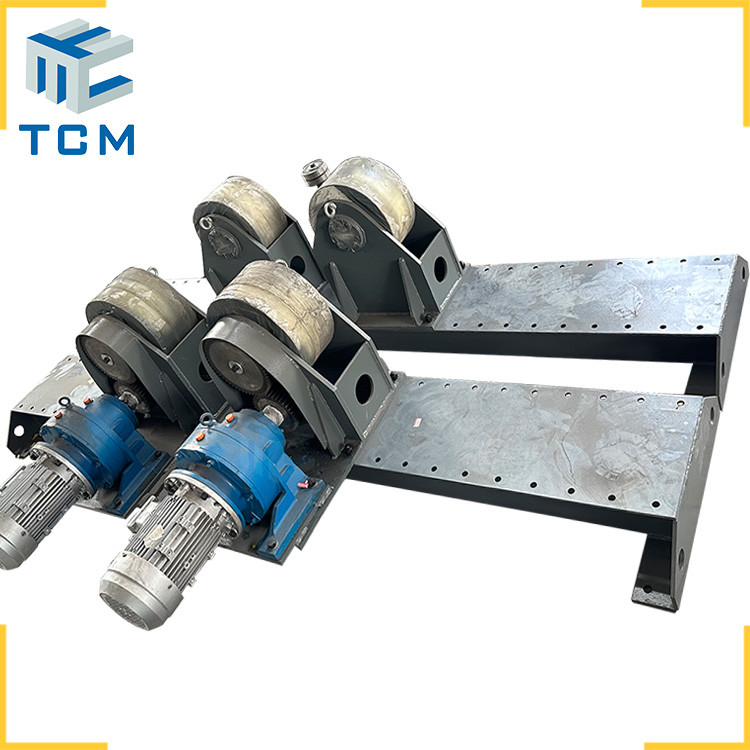

| Tank Roller Max.Loading capacity | 1 Ton / 2 Ton / 5 Ton /10 Ton or customization (13T,15T,20T) |
| Dish end/Tank Head Size | 450~5000mm / 6000 mm |
| Turntable Max.loading capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton |
| Polishing Precision (Surface roughness Ra) | <=0.25μm |
| Production Efficiency | 6~12 m²/h |
| Total Dimension | 4500*1600*3080mm |
| Input total Power | 15 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 3550kg |
| Color Options | Grey/Green/Blue/Red/Yellow Custom design |
| Suitable Polishing Materials | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |
Packaging & Delivery
Standard packaging includes plywood case with PE film and carton protection. Custom packaging solutions available based on order requirements.
Related Machinery Solutions
Our complete product line includes:
- Wire rod polishing machines
- Steel pipe inner surface mechanical polishing grinding machines
- Welding seam planishing equipment
- Pipe rod exterior surface linishing polishing machines
Contact Us for Custom Solutions
We provide ODM & OEM services with 18-month warranty and comprehensive after-sales support including video technical assistance and overseas engineer service.
