Stainless Steel Welded Pipe Seamless Pipe Automatic Grinding And Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WP |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Welded Pipe Seamless Pipe Outer Surface Automatic Polishing Grinding Machine | Dimension | 14500*1200*1200mm |
|---|---|---|---|
| Weight | 2500kg | Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V Etc | Warranty | 18 Month |
| Usage | Steel Pipe Tube Surface Polishing Linishing | Condition | 100% New |
| After-sales Service | Video Support/Engineer Oversea Service | Provide | ODM & OEM |
| Highlight | Welded Pipe Automatic Grinding And Polishing Machine,Seamless Pipe Automatic Grinding And Polishing Machine,380V tube polishing machine |
||
Product Description
Stainless Steel Welded Pipe Seamless Pipe Automatic Grinding And Polishing Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product name | Welded pipe seamless pipe outer surface automatic polishing grinding machine |
| Dimension | 14500*1200*1200mm |
| Weight | 2500kg |
| Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V etc |
| Warranty | 18 Month |
| Usage | Steel pipe tube surface polishing linishing |
| Condition | 100% new |
| After-sales service | Video support/Engineer oversea service |
| Provide | ODM & OEM |
Product Overview

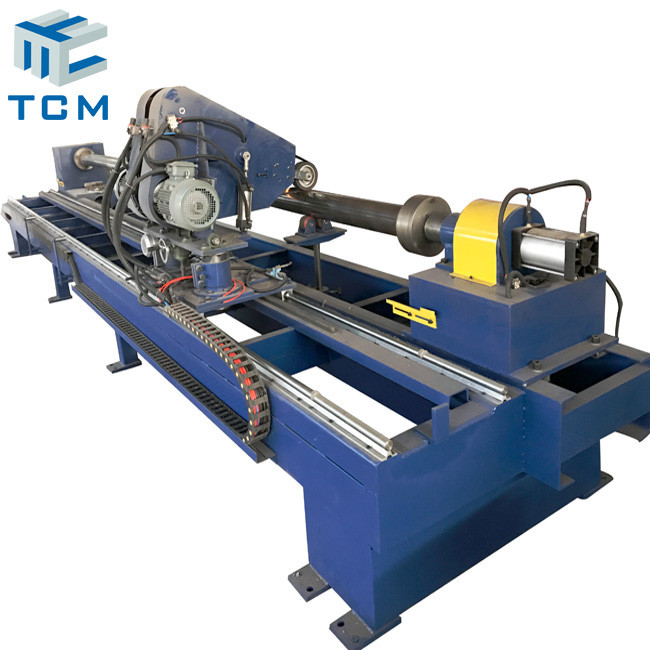

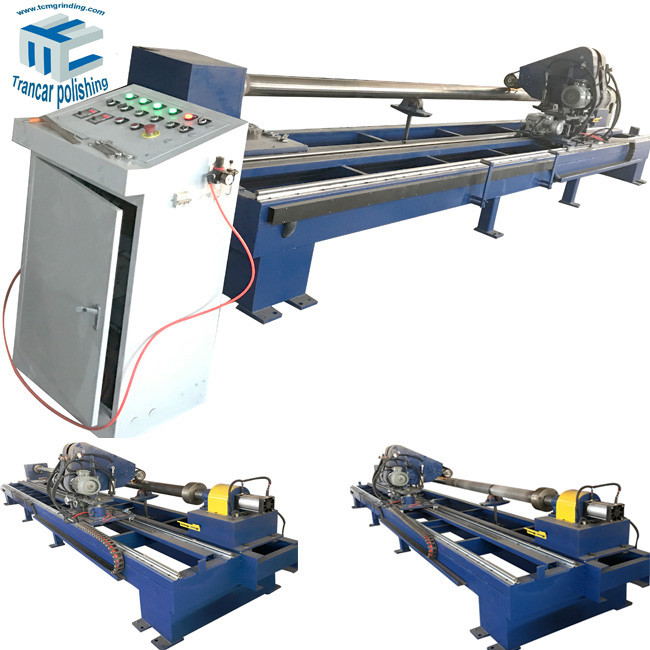

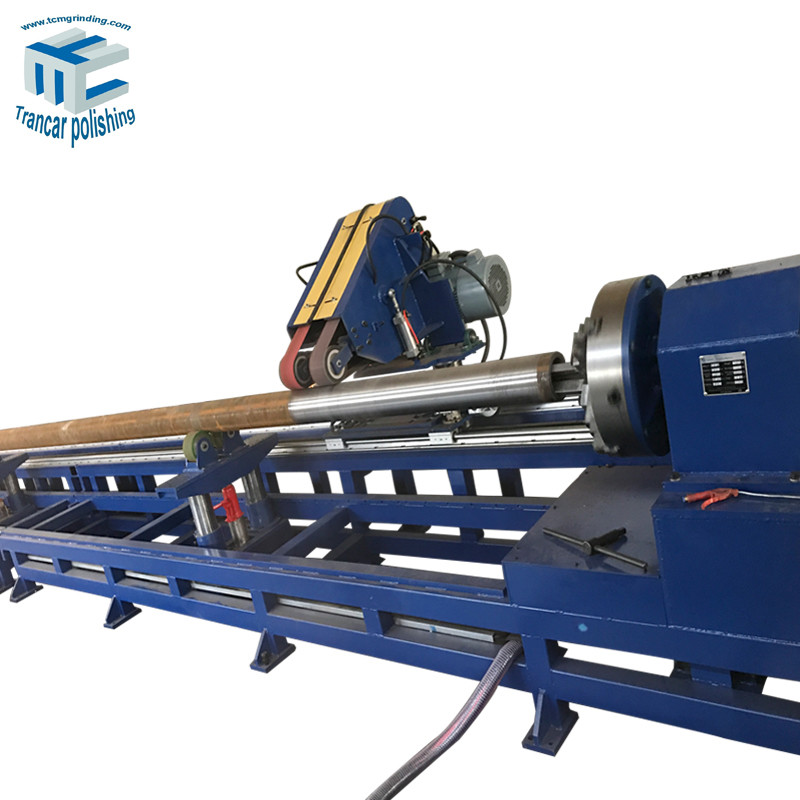

The Trancar Industries Model TCM-WP automatic grinding machine is designed for steel welded pipe tube and seamless pipe tube exterior surface grinding and linishing. In addition to pipe tube surface polishing, it can also grind steel cylinder solid rod products surfaces, including round solid bars and hydraulic cylinder exteriors.

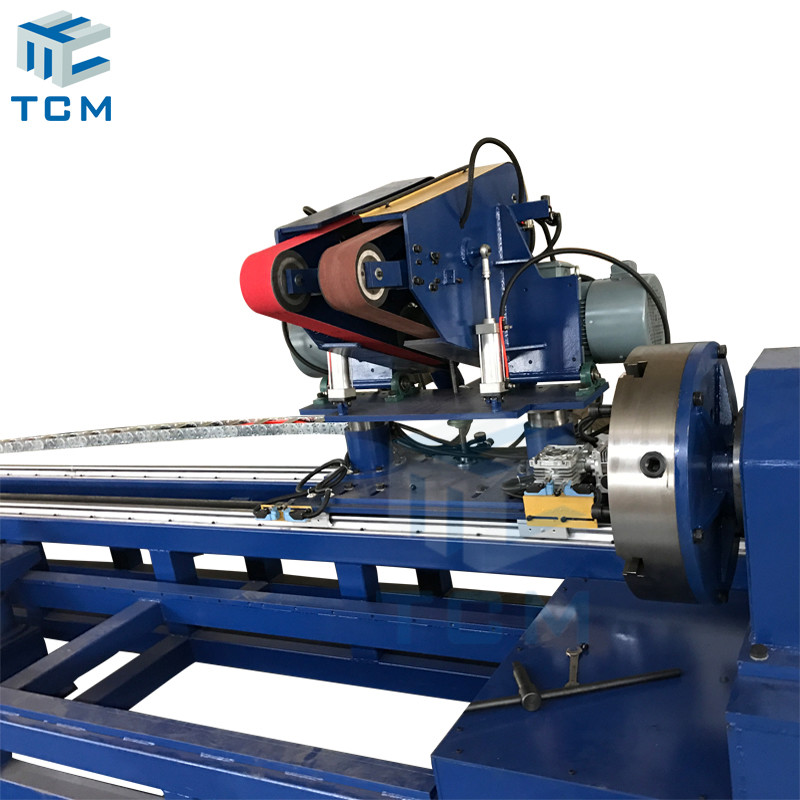

The TCM-WP rod grinding machine features double variable frequency grinding motors (7.5 KW each) and can utilize both grinding wheels and abrasive sanding belts. This versatile machine serves industries including pharmaceutical, medical, food processing, water purification, pressure vessels, cosmetics, wastewater treatment, semiconductors, and photovoltaics.
Technical Parameters
| Parameter | Specification |
|---|---|
| Steel metal Pipe size | Max.Diameter: 40-800 mm |
| Thickness | 3-10 mm |
| Length | ≤12,000 mm |
| Machine Dimension | 14500*1200*1200 mm (L*W*H) |

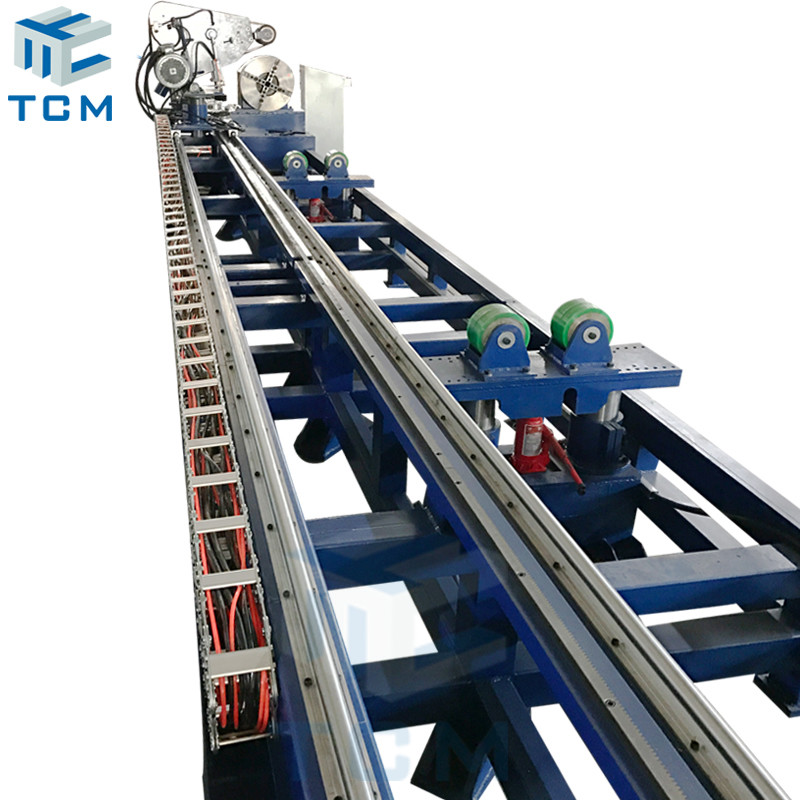

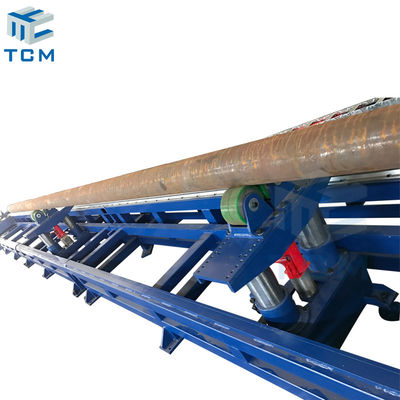

| Pipe Roller Max.Loading capacity | 1 Ton / 2 Ton / 5 Ton / 7Ton (options available) |
| Polishing Precision | Surface roughness(Ra) ≤0.25μm |
| Production Efficiency | Polishing working speed: 6~12 m²/h |
| Input total Power | 22 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 3800kg |
| Color | Grey/Green/Blue/Red/Yellow (Custom design available) |
| Suitable Polishing Materials | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |
| Optional Features | Water cooling system available during polishing |
Packaging and Delivery
Standard Export Package:
- Plywood case + PE Film + Carton protection
- Custom packaging available based on order requirements
Related Polishing Machinery
- Tank shell & head automatic polishing machine
- Pipe tube inside surface grinding equipment
- Wire rod surface automatic linishing machine
- Welded joint planishing equipment
Contact Trancar Industries
For more steel automatic polishing solutions and machines, please contact our team.
