Seamless Steel Tube Internal Surface Polishing Machine Automatic Grinding Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-NP |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Seamless Steel Tube Internal Surface Polishing Machine Automatic Grinding Machine | Dimension | 15500x3000x1200mm |
|---|---|---|---|
| Color | Blue/Red/Grey | Usage | Steel Pipe Inner Surface Cleaning,rust Removal,mirror Surface Achieving |
| Warranty | 18 Month | Provide | ODM & OEM |
| Condition | 100% New | Voltage | 380V 400V 415V Etc |
| Weight | 2500kg | After-sales Service | Video Support/Engineer Oversea Service |
| Highlight | Steel Tube surface polishing machine,Internal surface polishing machine,380V automatic grinding machine |
||
Product Description
Seamless Steel Tube Internal Surface Polishing Machine
Product Overview
Hefei Trancar Industries Co., Ltd specializes in customized equipment for steel pipe tube inner surface abrasive cleaning. Our TCM-NP type automatic polishing machine is designed for precision internal surface treatment of welded and seamless steel pipes.
Key Features
- Automated grinding and polishing for internal pipe surfaces
- Capable of achieving mirror surface finishes (Ra ≤ 0.25μm)
- Suitable for stainless steel, metal, and aluminum tubes
- Custom design service available for specific requirements
- Wide application in medical, chemical, environmental, and food industries
Technical Specifications
| Tube Diameter Range | 16-219mm (multiple configurations available) |
| Maximum Length | 6m, 7m, or 8m |
| Surface Roughness | ≤ 0.25μm (Ra) |
| Machine Weight | 2500kg |
| Dimensions (L×W×H) | 15500×3000×1200mm |
| Power Requirements | 27KW, 380V/415V, 50Hz/60Hz, 3-phase |
| Production Efficiency | 6-12 m²/hour/head |
Product Attributes
| Attribute | Value |
|---|---|
| Color Options | Blue/Red/Grey |
| Usage | Steel pipe inner surface cleaning, rust removal, mirror surface achieving |
| Warranty | 18 Months |
| Service Options | ODM & OEM available |
| Condition | 100% New |
| After-sales Service | Video support/Engineer overseas service |
Applications
This machine is ideal for processing various stainless steel tubes including:
- Semiconductor tubes
- Sanitary tubes for medical and food industries
- Industrial water supply and drainage pipes
- Automobile exhaust pipes
- Heat exchanger pipes
- Commercial exhibition tubes

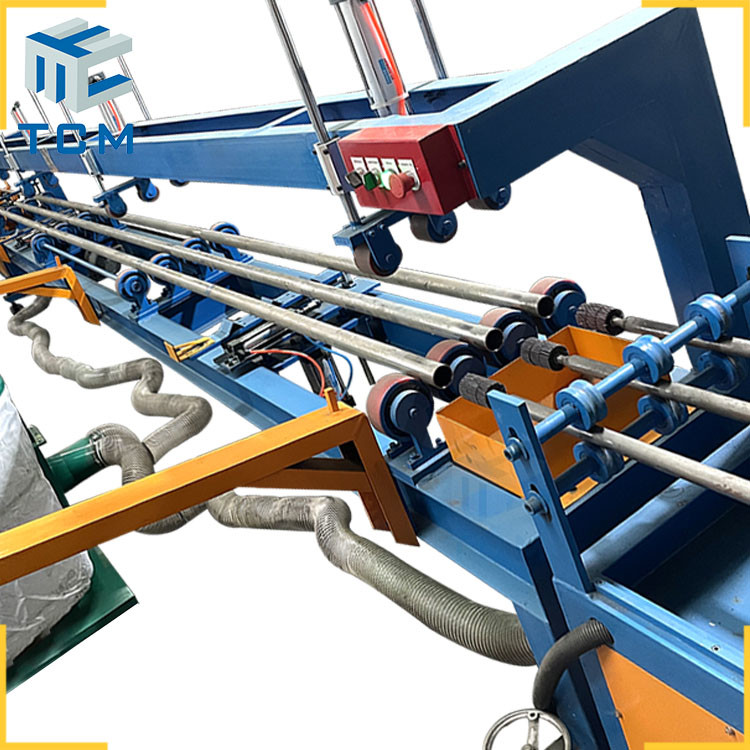

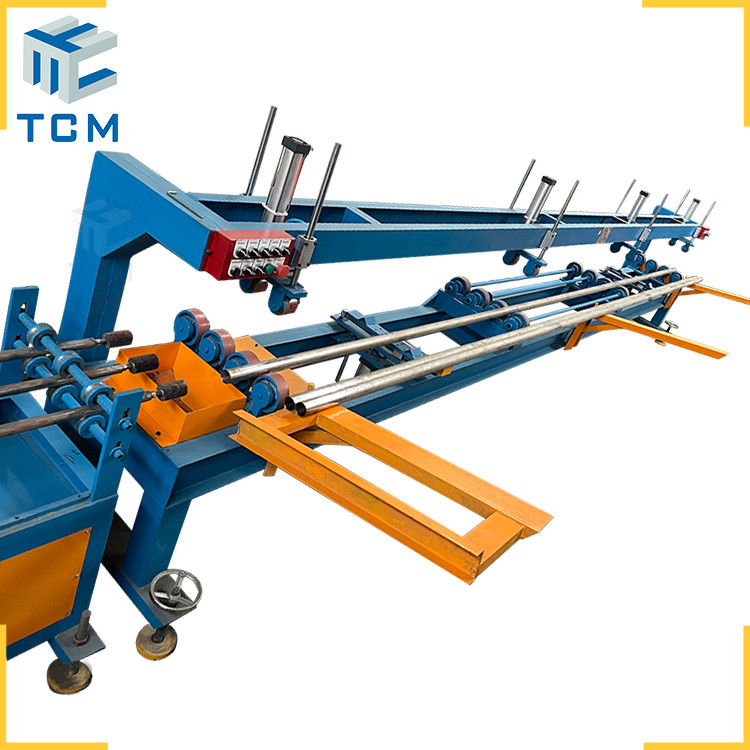

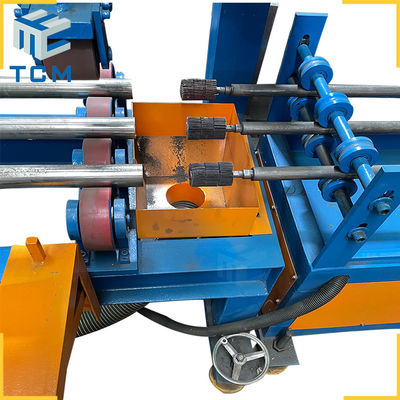

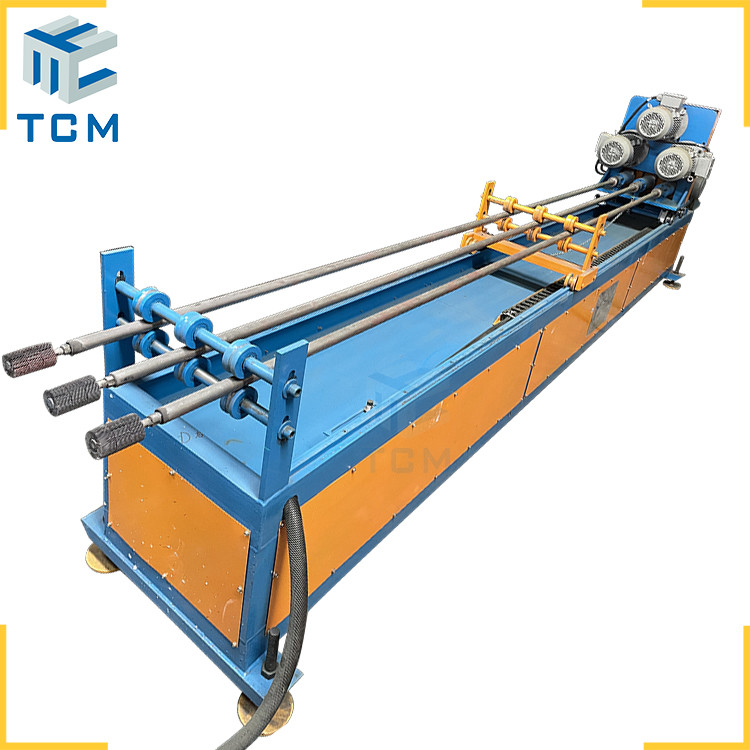

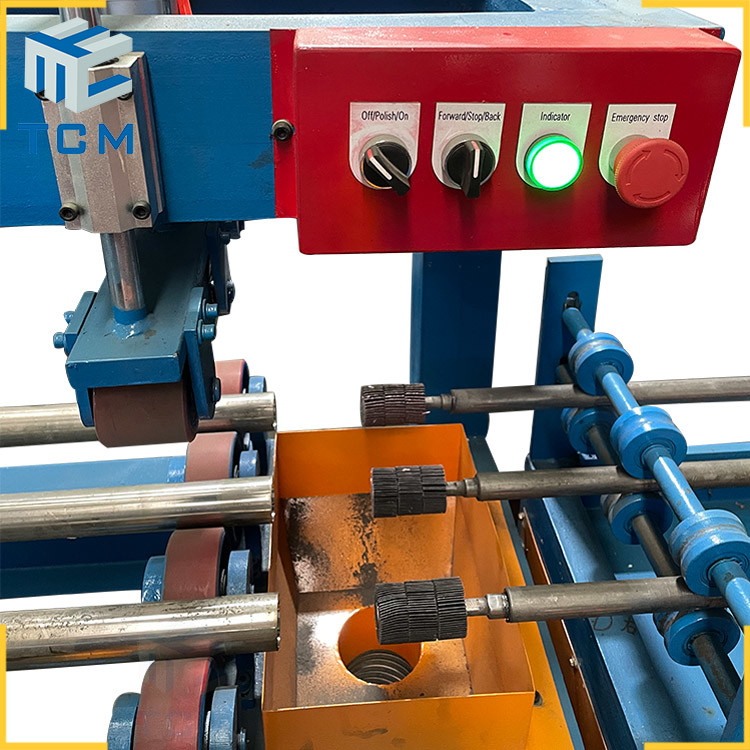

Product Images
Packaging & Delivery
Contact Trancar Industries
For more information about our steel pipe inside surface automatic polishing machines and custom solutions:
