Hydraulic Shafts Cylinder Rods Automatic Pipe Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WP |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Hydraulic Shafts Cylinder Rods Automatic Polishing Linishing Machine | Dimension | 14500*1200*1200mm |
|---|---|---|---|
| Weight | 2500kg | Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V Etc | Warranty | 18 Month |
| Usage | Steel Rod Surface Polishing Linishing | Condition | 100% New |
| After-sales Service | Video Support/Engineer Oversea Service | Provide | ODM & OEM |
| Highlight | Cylinder Rods Automatic Pipe Polishing Machine,Hydraulic Shafts Automatic Pipe Polishing Machine,380V pipe polishing machine manufacturer |
||
Product Description
Hydraulic Shafts Cylinder Rods Automatic Pipe Polishing Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Hydraulic shafts cylinder rods automatic polishing linishing machine |
| Dimension | 14500*1200*1200mm |
| Weight | 2500kg |
| Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V etc |
| Warranty | 18 Month |
| Usage | Steel rod surface polishing linishing |
| Condition | 100% new |
| After-sales service | Video support/Engineer oversea service |
| Provide | ODM & OEM |
Product Overview
The Trancar Industries Model TCM-WP automatic grinding machine is specifically designed for steel hydraulic cylinder chrome rod exterior surface grinding and linishing. This versatile machine can also handle steel cylinder pipe solid rod products, including steel tube pipes, round solid bars, and hydraulic cylinder exterior surfaces.
Key Features
- Equipped with double variable frequency grinding motors (7.5 KW each)
- Compatible with both grinding wheels and abrasive sanding belts
- Suitable for multiple industries including pharmaceutical, medical, food, water purification, pressure vessels, and more
Technical Parameters
| Parameter | Specification |
|---|---|
| Steel Metal Pipe Size (Max. Diameter) | 40-800 mm |
| Thickness | 3-10 mm |
| Length | ≤15,000 mm |
| Machine Dimension (L×W×H) | 14500×1200×1200 mm |
| Pipe Roller Max. Loading Capacity | 1 Ton / 2 Ton / 5 Ton / 7Ton (options available) |
| Polishing Precision (Surface roughness Ra) | ≤0.25μm |
| Production Efficiency (Polishing speed) | 6~12 m²/h |
| Input Total Power | 22 kW |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 3800kg |
| Color Options | Grey/Green/Blue/Red/Yellow (Custom design available) |
| Suitable Polishing Materials | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |
| Optional Features | Water cooling system available during polishing |

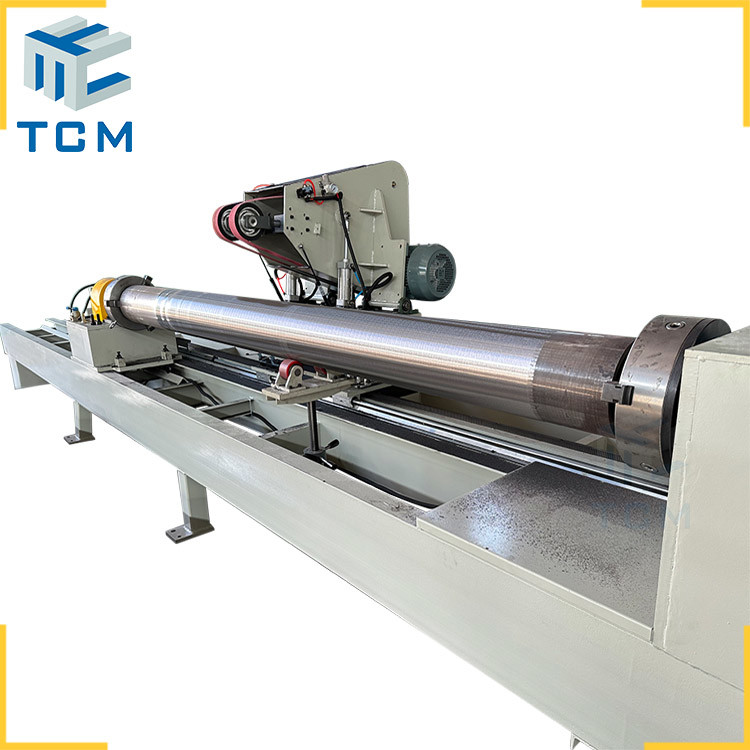

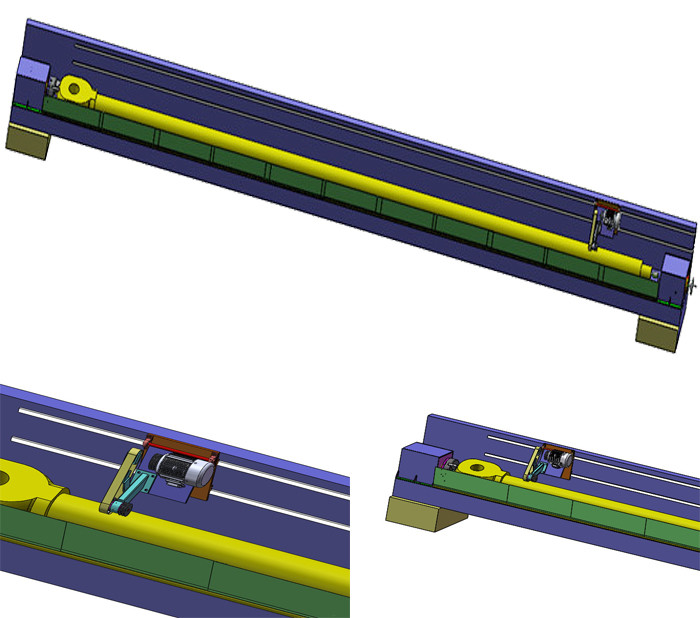

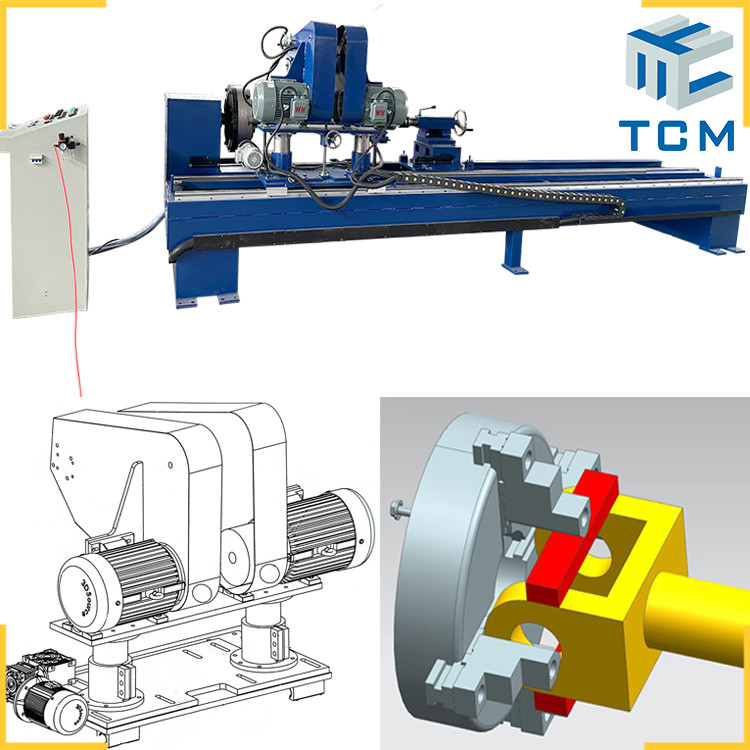

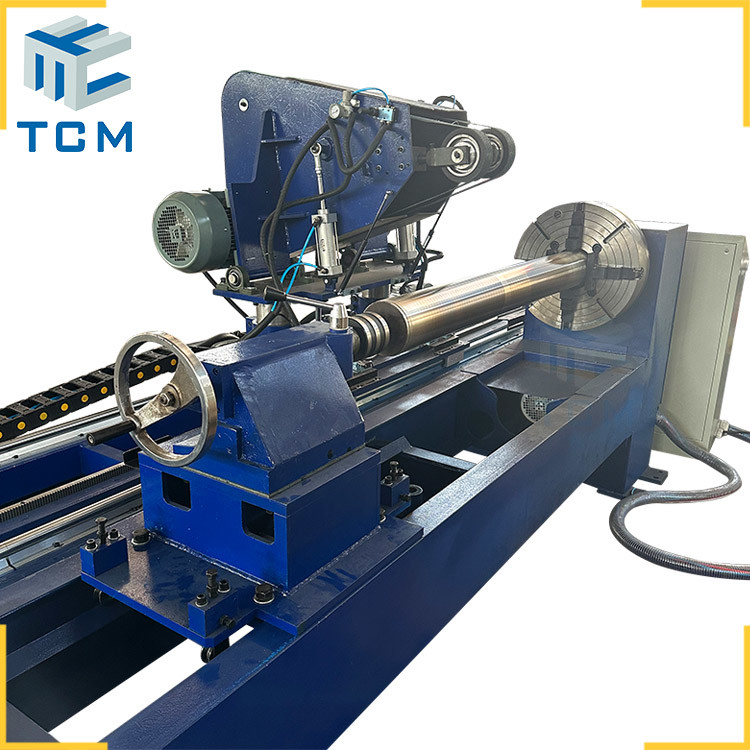

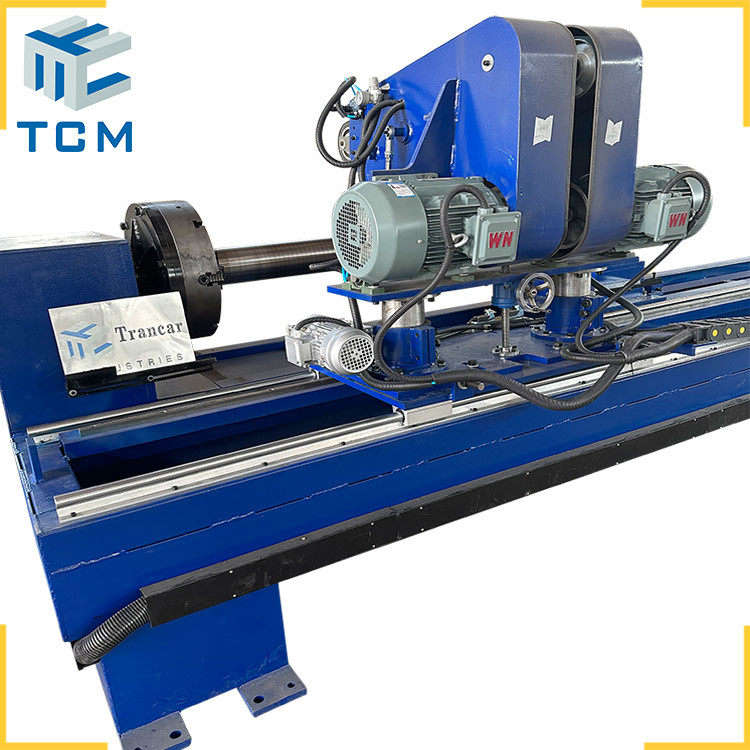

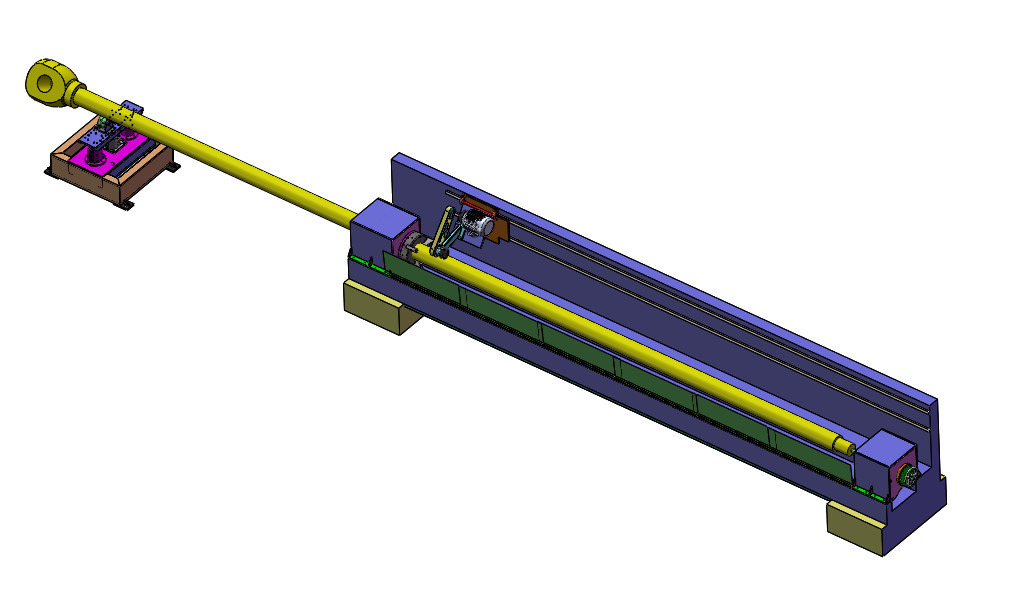

Product Images
Packaging & Delivery
Standard export package includes plywood case with PE film and carton protection. Custom packaging solutions available based on order requirements.
Related Products
Trancar Industries offers a complete range of polishing solutions including:
- Tank shell & head automatic polishing machine
- Pipe tube inside surface grinding equipment
- Wire rod surface automatic linishing machine
- Welded joint planishing equipment
