SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE

  • SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE
  • SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE
  • SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE
  • SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE
  • SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE
  • SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-NP
Minimum Order Quantity 1 set
Price USD 9000-50000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 25 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ss Pipe Inside Surface Mechanical Polishing Grinding Machine Dimension 15500x3000x1200mm
Color Blue/Red/Grey Usage Steel Pipe Inner Surface Cleaning,rust Removal,mirror Surface Achieving
Warranty 18 Month Provide Custom Design Service
Condition 100% New Voltage 380V 400V 415V Etc
Weight 2500kg After-sales Service Video Support/Engineer Oversea Service
Highlight

SS automatic pipe polishing machine

,

CE automatic pipe polishing machine

,

Mechanical polishing grinding machine
Leave a Message
Product Description
SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE
Product Specifications
Attribute Value
Product name SS pipe inside surface mechanical polishing grinding machine
Dimension 15500x3000x1200mm
Color Blue/Red/Grey
Usage Steel pipe inner surface cleaning, rust removal, mirror surface achieving
Warranty 18 Month
Provide Custom design service
Condition 100% New
Voltage 380V 400V 415V etc
Weight 2500kg
After-sales service Video support/Engineer oversea service
Product Description

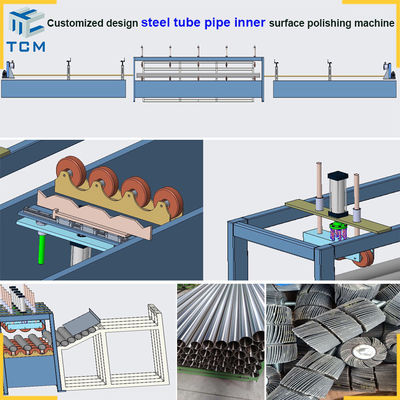

Hefei Trancar Industries Co.,Ltd customized design equipment for steel pipe tube inner surface abrasive cleaning.

Trancar Industries TCM-NP type automatic polishing machine is widely used for steel welded tube and seamless steel pipe inner surface treatment. It's suitable for small diameter stainless steel/metal/aluminium tube pipe interior surface grinding & buffing, achieving good mirror surface finish.

Applications include:

  • Semiconductor tubes
  • SS sanitary tubes
  • Industrial water supply and drainage pipes
  • Factory sewage pipes
  • Stainless steel sanitary pipes
  • Medical equipment pipes
  • Hardware stainless steel pipes
  • Automobile exhaust pipes
  • Heat exchanger pipes
  • Filter tubes
  • Commercial exhibition tubes

TCM-NP tube pipe inside surface mechanical automatic polishing machines are widely used in medical, chemical, environmental purification, food and beverage, and water filtration industries. Custom design service is available based on clients' requirements.

SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE 0 SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE 1
Technical Specifications
Parameter Value Unit
Tube Diameter (working capacity) A:16-89 B:89-114 C:114-219 mm
Max. Length 6m,7m,8m mm
Surface roughness (Ra) <= 0.25 μm
Machine Weight 2500 KG
Outer Dimension (L x W x H) 15500x3000x1200 mm
Input Total Power 27 KW
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Produce Efficiency 6~12 m2/Hour/Head
Suitable Polishing Material Custom design grinding wheels
SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE 2 SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE 3
Package and Delivery
SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE 4
Contact Trancar Industries for Steel Pipe Polishing Solutions
SS Pipe Inside Surface Mechanical Polishing Grinding Machine With CE 5
