Metal Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Stainless Steel Pipe Polisher

Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-WP
Minimum Order Quantity 1 set
Price USD 9000-50000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 35 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Linishing Machine Dimension 14500*1200*1200mm
Weight 2500kg Color Blue/Red/Grey
Voltage 380V 400V 415V Etc Warranty 18 Month
Usage Steel Rod Surface Polishing Linishing Condition 100% New
After-sales Service Video Support/Engineer Oversea Service Provide ODM & OEM
Highlight

380V stainless steel pipe polisher

,

Automatic stainless steel pipe polisher

,

400V stainless steel tube polisher

Leave a Message
Product Description
Metal Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Stainless Steel Pipe Polisher
Product Specifications
Attribute Value
Product name Hydraulic cylinder chromed rod exterior surface automatic linishing machine
Dimension 14500*1200*1200mm
Weight 2500kg
Color Blue/Red/Grey
Voltage 380V 400V 415V etc
Warranty 18 Month
Usage Steel rod surface polishing linishing
Condition 100% new
After-sales service Video support/Engineer oversea service
Provide ODM & OEM
Product Overview

The Trancar Industries Model TCM-WP automatic grinding machine is designed for steel hydraulic cylinder chromed rod exterior surface grinding and linishing. This versatile machine can also polish steel cylinder pipes, solid rods, and various steel tube products through mechanical processing.

Key Features
  • Equipped with dual 7.5 KW variable frequency grinding motors
  • Compatible with both grinding wheels and abrasive sanding belts
  • Suitable for multiple industries including pharmaceutical, medical, food processing, water purification, and semiconductor manufacturing
  • Water cooling system available as an option during polishing
Technical Parameters
Steel metal Pipe size Max.Diameter: 40-800 mm
Thickness: 3-10 mm
Length: ≤12,000 mm
Machine Dimension 14500*1200*1200 mm (L*W*H)
Pipe Roller Max.Loading capacity 1 Ton / 2 Ton / 5 Ton / 7Ton options available
Polishing Precision Surface roughness (Ra) ≤0.25μm
Production Efficiency 6~12 m²/h polishing speed
Input total Power 22 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Machine Weight 3800kg
Color Options Grey/Green/Blue/Red/Yellow (Custom designs available)
Product Images

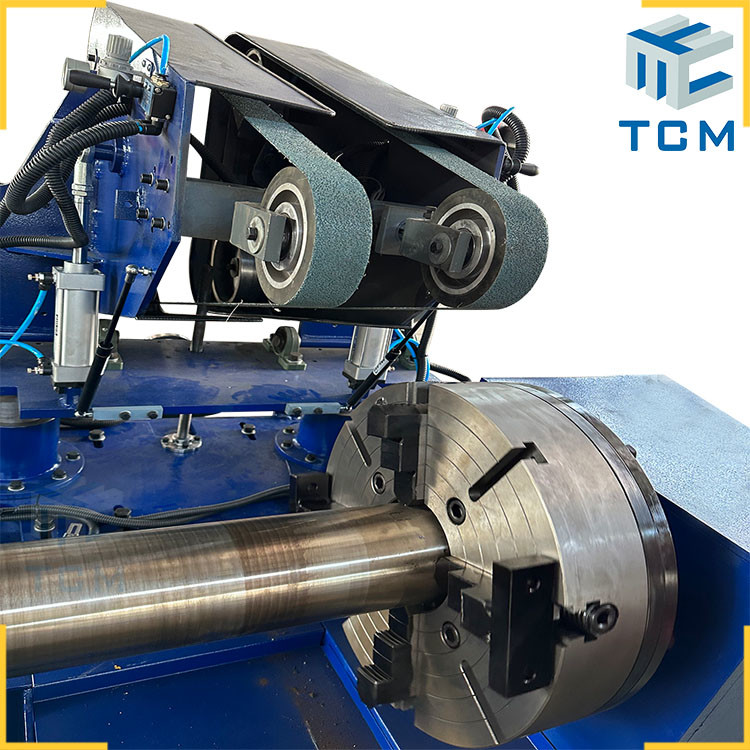

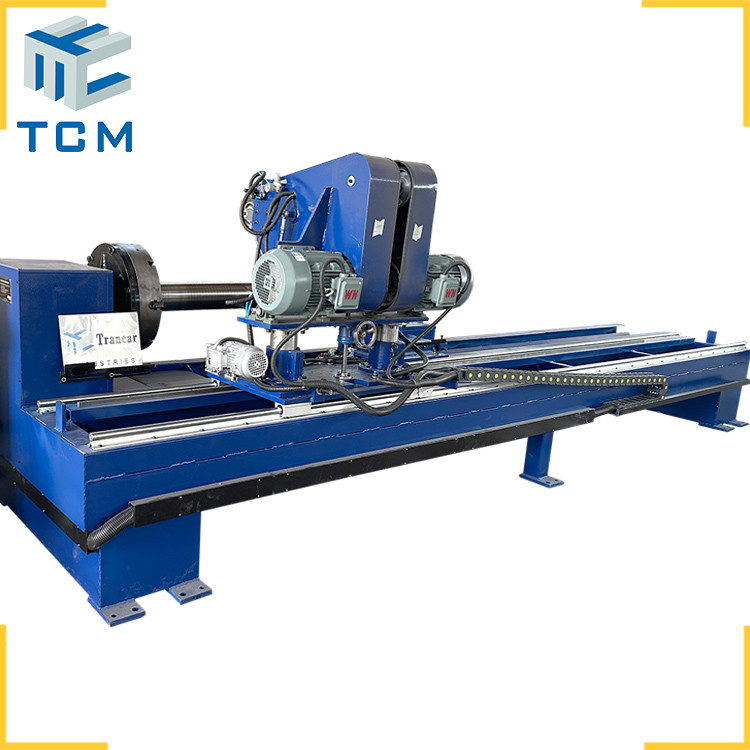

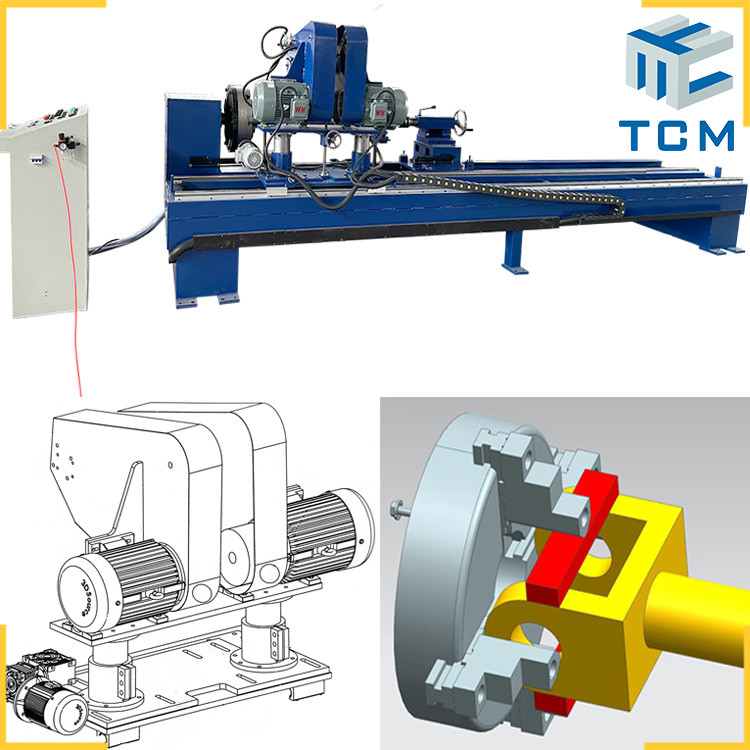

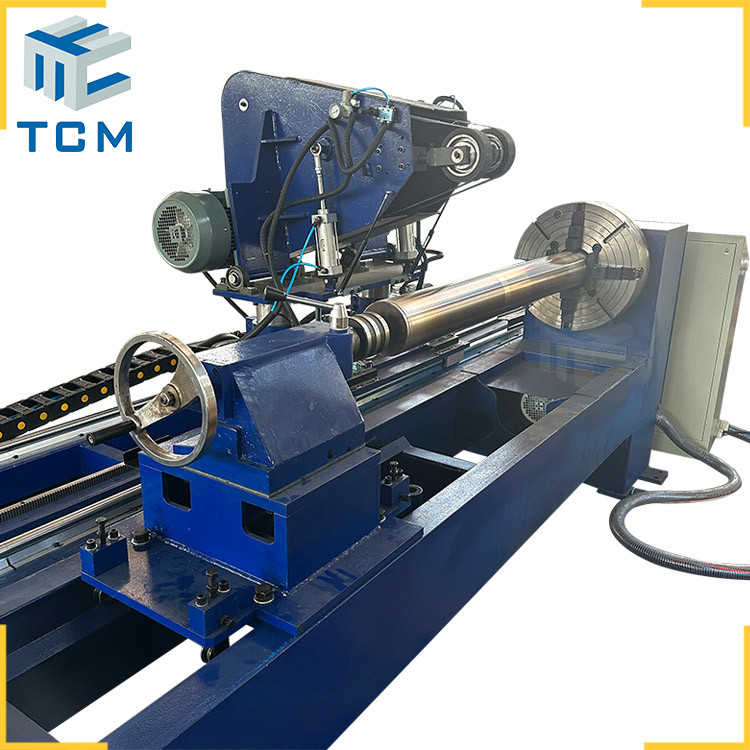

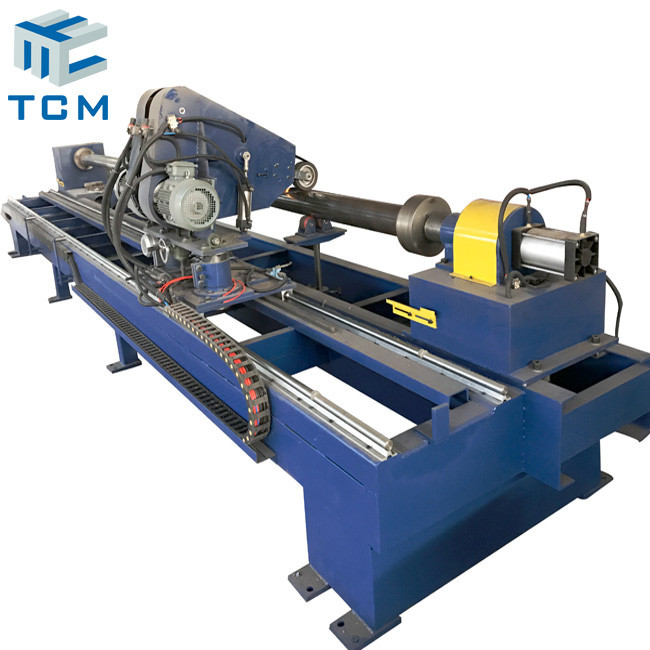

Metal Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Stainless Steel Pipe Polisher 0 Metal Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Stainless Steel Pipe Polisher 1 Metal Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Stainless Steel Pipe Polisher 2
Packaging & Shipping

Standard export packaging includes plywood case with PE film and carton protection. Custom packaging solutions available based on order requirements.

Metal Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Stainless Steel Pipe Polisher 3 Metal Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Stainless Steel Pipe Polisher 4
Related Products

Trancar Industries offers a complete range of surface finishing solutions:

  • Tank shell & head automatic polishing machine
  • Pipe tube inside surface grinding equipment
  • Wire rod surface automatic linishing machine
  • Welded joint planishing equipment
Metal Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Stainless Steel Pipe Polisher 5 Metal Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Stainless Steel Pipe Polisher 6 Metal Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Stainless Steel Pipe Polisher 7 Metal Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Stainless Steel Pipe Polisher 8
Contact Trancar Industries for Custom Steel Polishing Solutions

Our engineering team can develop specialized polishing equipment tailored to your specific requirements.

Metal Hydraulic Cylinder Chromed Rod Exterior Surface Automatic Stainless Steel Pipe Polisher 9
