Sanitar Semi Conductor Tubing Internal Diameter Pipe Polishing Grinding Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-NP |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Internal Diameter Pipe Polishing Grinding Machine | Dimension | 15500x3000x1200mm |
|---|---|---|---|
| Color | Blue/Red/Grey | Usage | Steel Pipe Inner Surface Cleaning,rust Removal,mirror Surface Achieving |
| Warranty | 18 Month | Provide | ODM & OEM |
| Condition | 100% New | Voltage | 380V 400V 415V Etc |
| Weight | 2500kg | After-sales Service | Video Support/Engineer Oversea Service |
| Highlight | Sanitar stainless steel pipe polishing machine,380V stainless steel pipe polishing machine,400V automatic polishing machine |
||
Product Description
Sanitar Semi Conductor Tubing Internal Diameter Pipe Polishing Grinding Machine
Product Specifications
| Attribute | Value |
|---|---|
| Product name | Internal diameter pipe polishing grinding machine |
| Dimension | 15500x3000x1200mm |
| Color | Blue/Red/Grey |
| Usage | Steel pipe inner surface cleaning, rust removal, mirror surface achieving |
| Warranty | 18 Month |
| Provide | ODM & OEM |
| Condition | 100% New |
| Voltage | 380V 400V 415V etc |
| Weight | 2500kg |
| After-sales service | Video support/Engineer oversea service |
Product Overview
Hefei Trancar Industries Co., Ltd specializes in customized design equipment for steel pipe tube inner surface abrasive cleaning. Our TCM-NP type automatic polishing machine is engineered for precision internal surface treatment of various steel pipes.
Key Applications
- Semiconductor tubing
- Sanitary stainless steel tubes
- Industrial water supply and drainage pipes
- Medical equipment stainless steel pipes
- Automobile exhaust pipes
- Heat exchanger pipes
- Commercial exhibition tubes
Technical Specifications
| Parameter | Value |
|---|---|
| Tube Diameter Range | 16-219mm (multiple configurations available) |
| Max. Length | 6m, 7m, 8m |
| Surface Roughness (Ra) | ≤ 0.25μm |
| Machine Weight | 2500 KG |
| Dimensions (L x W x H) | 15500x3000x1200 mm |
| Input Power | 27 KW |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Production Efficiency | 6~12 m²/Hour/Head |

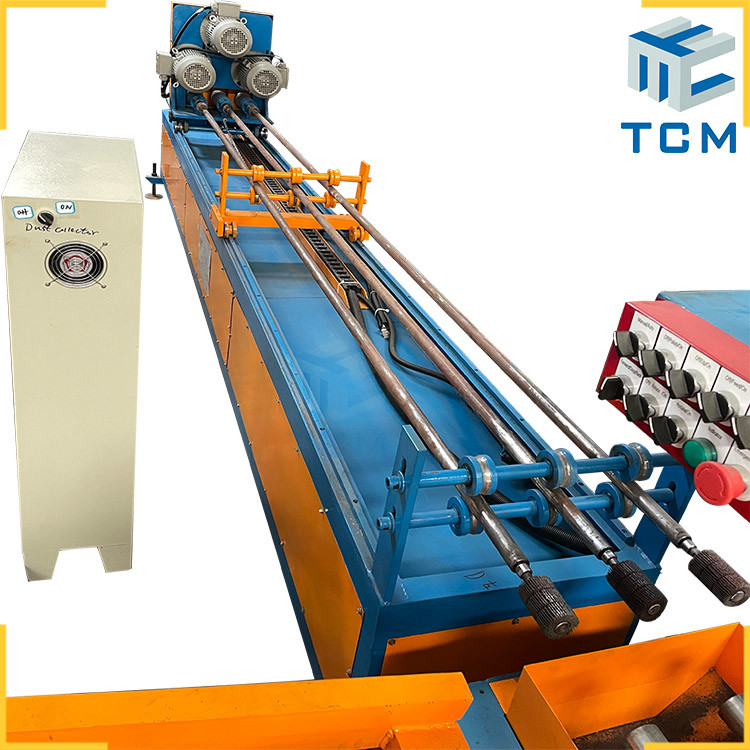

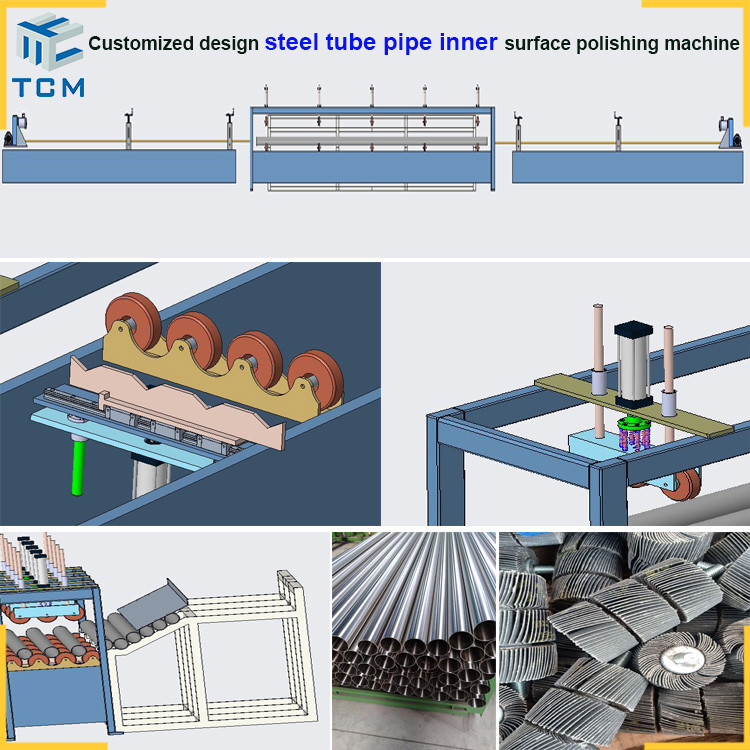

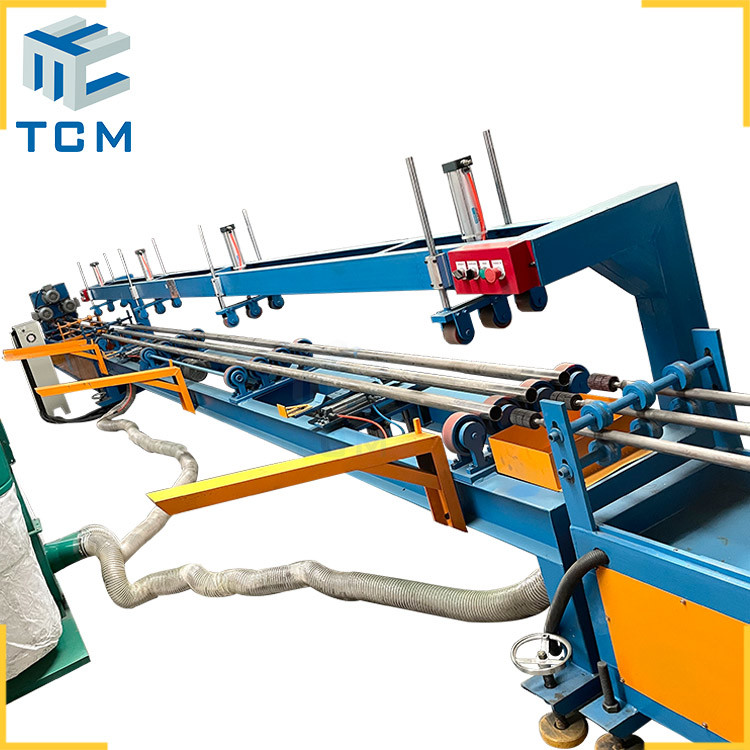

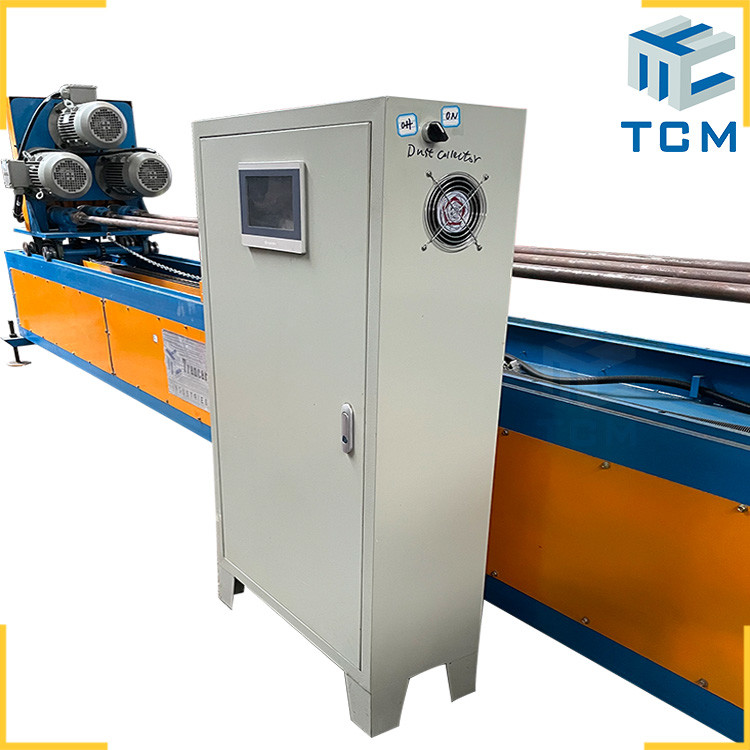

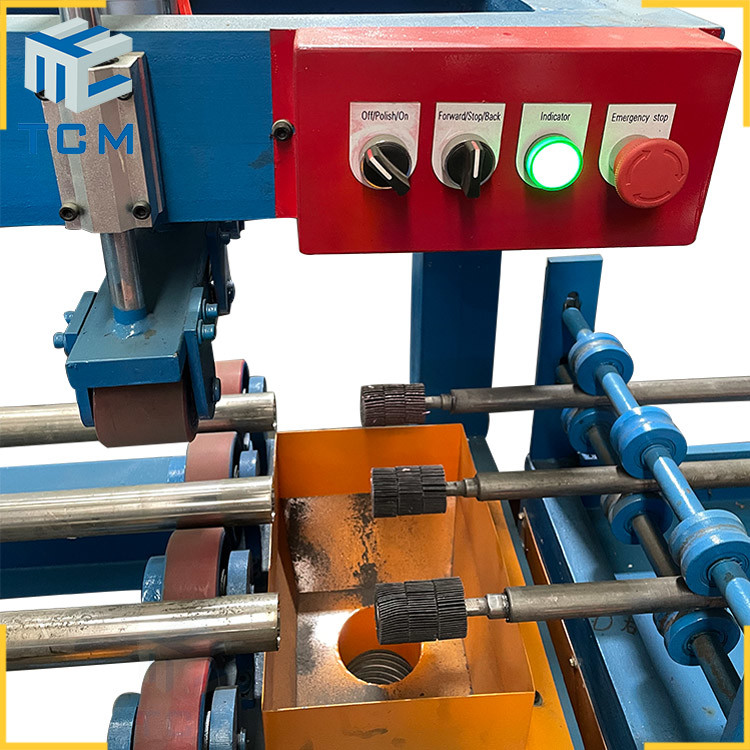

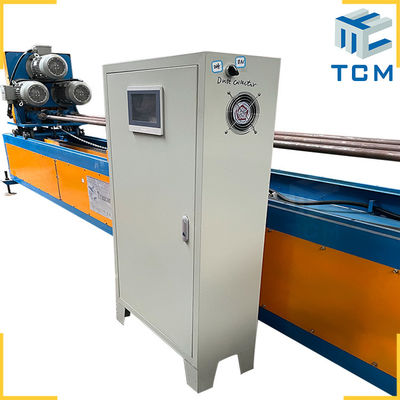

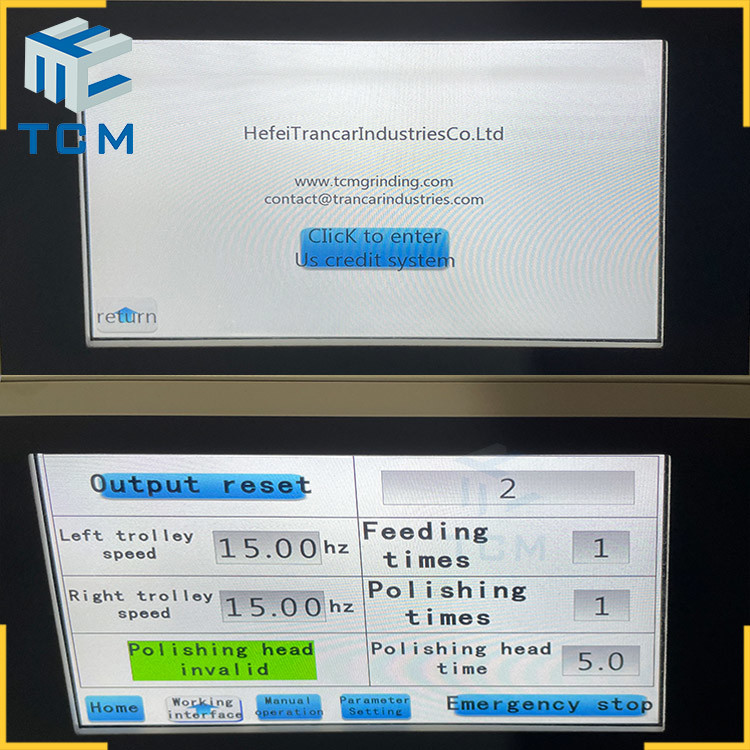

Machine Images
Packaging & Shipping
Contact Us for Custom Solutions
Our engineering team is ready to discuss your specific pipe polishing requirements and provide tailored solutions.
