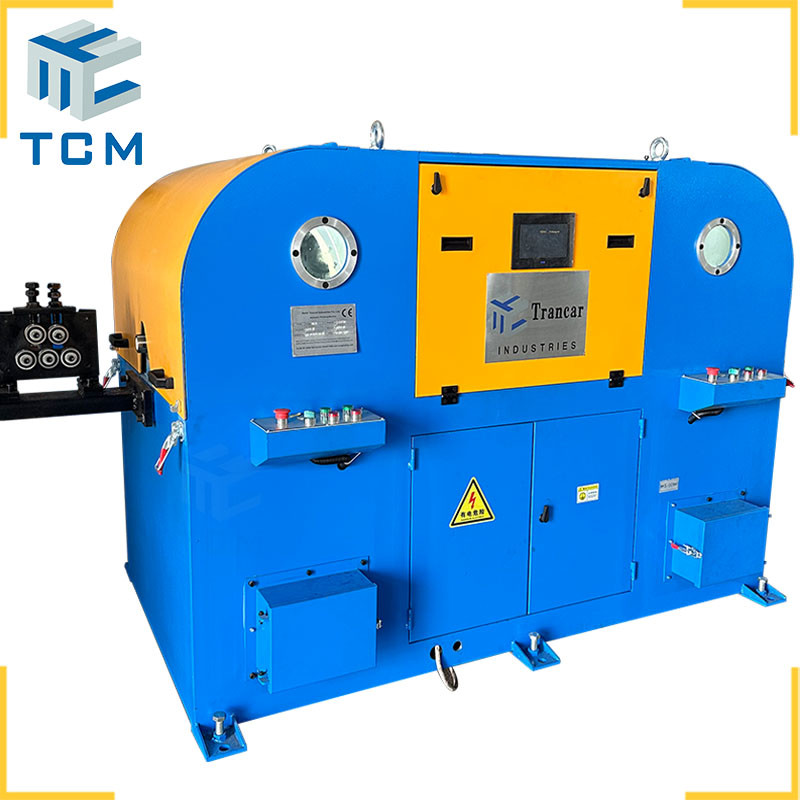

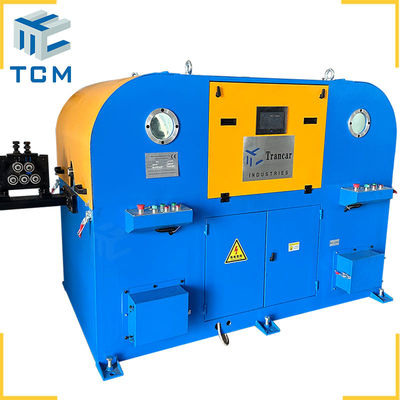

Wire descaling machine wire rod automatic rust removing machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WR |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-40000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wire Descaling Machine Wire Rod Automatic Rust Removing Machine | Dimension | 2650x1050x1300mm |
|---|---|---|---|
| Weight | 2100 Kg | Voltage | 380V 400V 415V Etc |
| Color Option | Blue/White/Yellow/Grey Etc | Usage | Linishing Polishing Steel Wire Surface |
| Condition | 100% New | Polishing Speed | Max.2m/s |
| Warranty | 18 Month | After-sales Service | Video Support/Engineer Oversea Service |
| Provide | ODM & OEM | Control System | PLC Program |
| Highlight | Wire Rod Rust Removing Machine,Automatic Rust Removing Machine,Wire Descaling Machine |
||
Product Description
Wire Descaling Machine - Automatic Rust Removal for Wire Rods
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Wire descaling machine wire rod automatic rust removing machine |
| Dimension | 2650x1050x1300mm |
| Weight | 2100 kg |
| Voltage | 380V 400V 415V etc |
| Color option | Blue/White/Yellow/Grey etc |
| Usage | Linishing polishing steel wire surface |
| Condition | 100% new |
| Polishing speed | Max. 2m/s |
| Warranty | 18 Month |
| After-sales service | Video support/Engineer oversea service |
| Provide | ODM & OEM |
| Control system | PLC program |

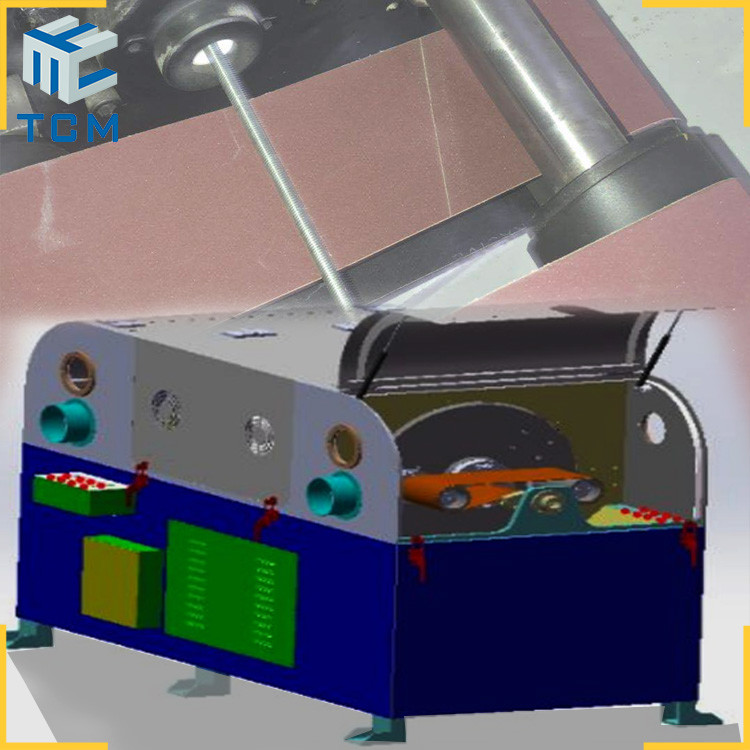

Advanced Mechanical Descaling Technology

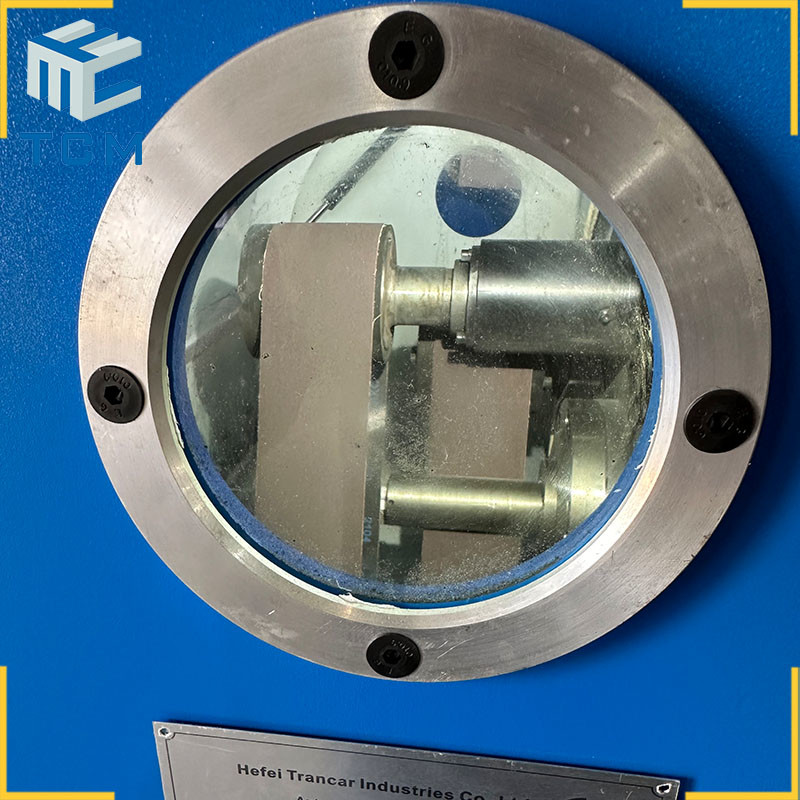

The TCM-WR wire descaling machine utilizes mechanical processing to clean wire rod surfaces, eliminating the need for traditional acid pickling methods. This abrasive belt polishing equipment effectively removes slight pits and scratches from wire surfaces through high-speed rotating abrasive belts.
Key Features
- Each set includes active rollers and tension rollers supported by turntables
- Aluminum alloy rollers for precise polishing
- Structural frame with long square box design for durability

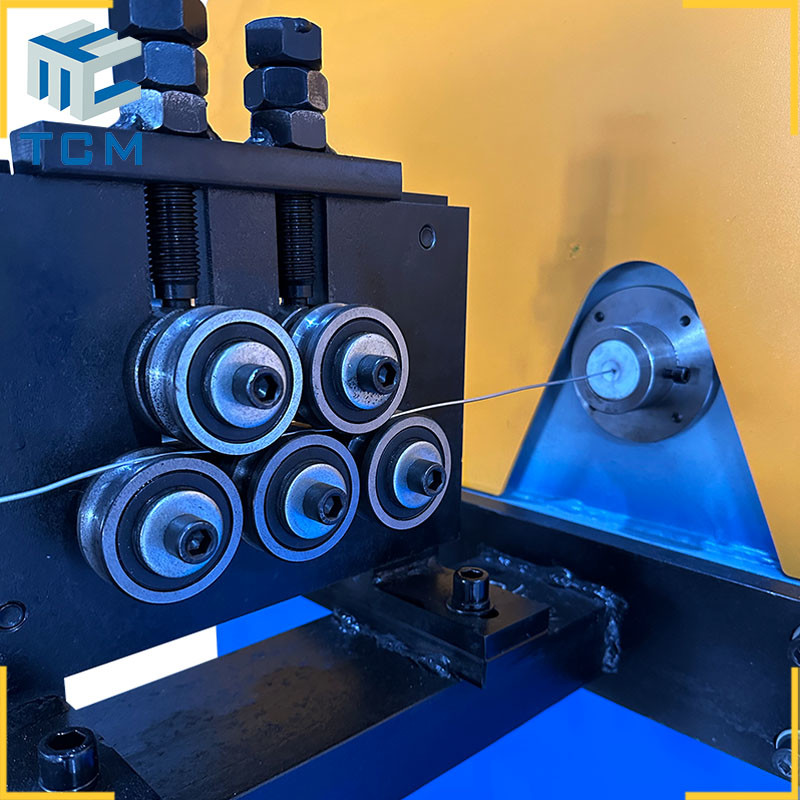

- Comprehensive system including spindle, rotary disc, power drive, straightener, and protective cover
- Vacuum cleaner integration for clean operation
- Dual 7.5kw frequency conversion motors for reliable power

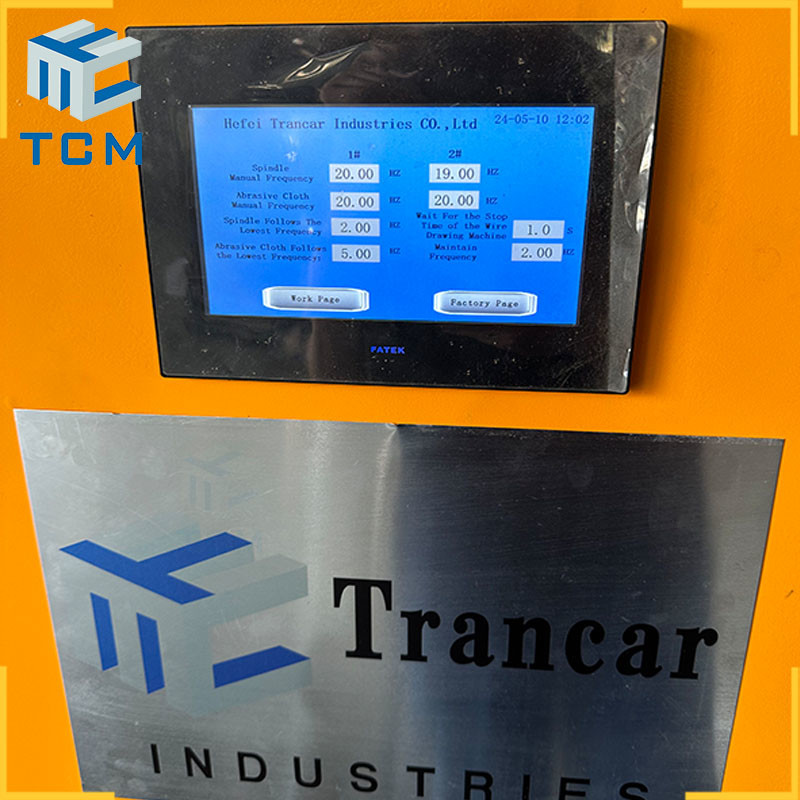

- SIEMENS PLC program for automated control
- Option for separate machine control when needed
Technical Parameters
| Parameter | Specification |
|---|---|

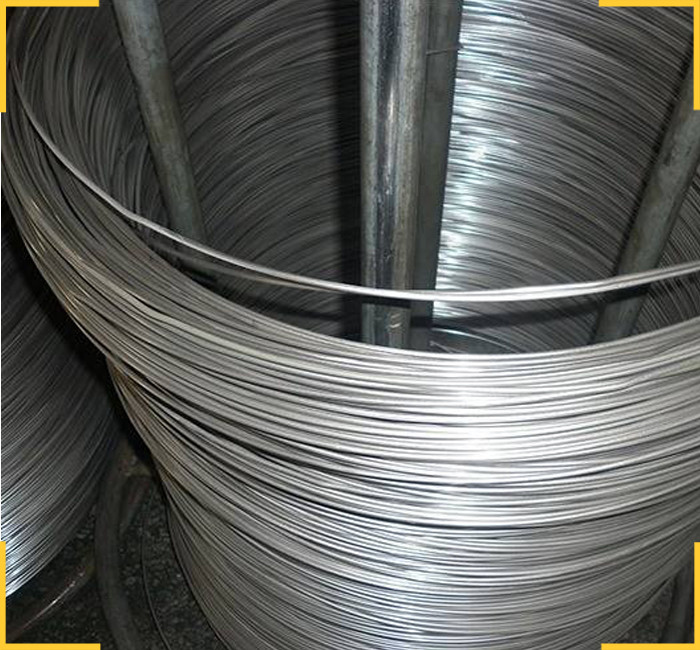

| Wire Rod Diameter | 1-5mm / 5-8mm / 8-16mm / 16-25mm |
| Machine Dimension | 2650×1050×1300mm (L×W×H) |
| Abrasive Belts Size | 1600×500 mm / 1350×300mm / 1250×300mm etc |
| Production Efficiency | 120-200 m/h polishing speed |
| Input Power | 35 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | 2100kg |
| Color Options | Grey/Green/Blue/Red/Yellow (Custom design available) |
Optional dust collection system available to maintain clean operation during polishing processes.
Machine Operation Images
Packaging & Delivery
Optional Dust Collector System
Contact Trancar Industries for custom wire polishing machine solutions and design services.
